6KA 10kA Miniature Circuit Breaker

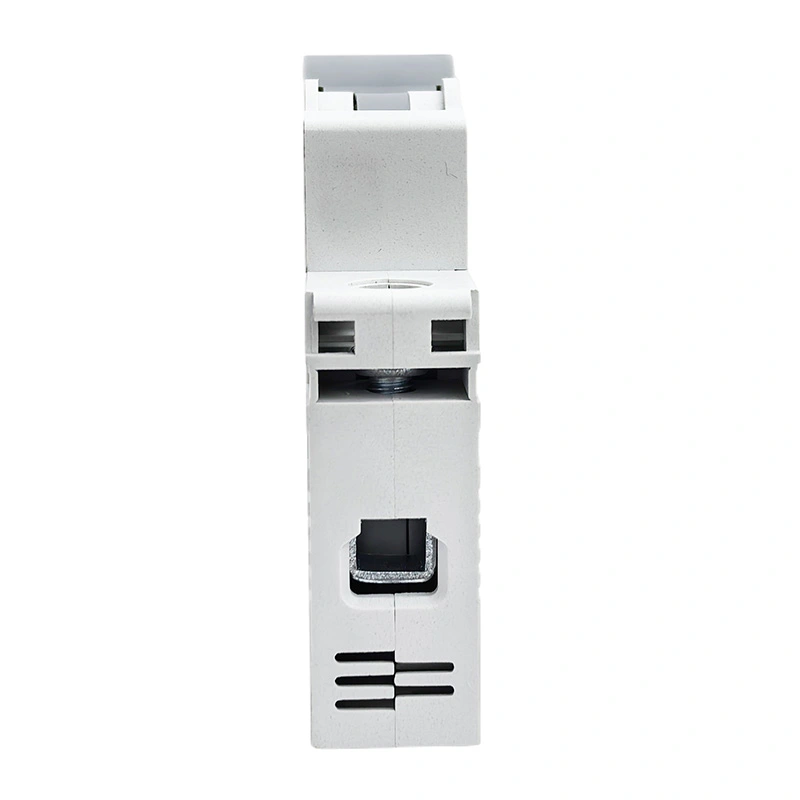

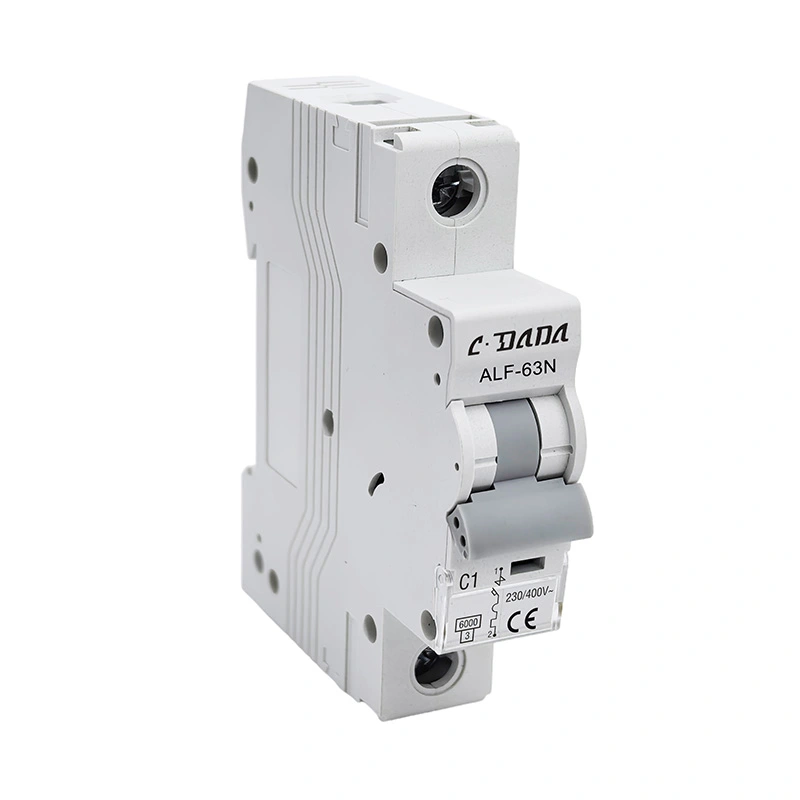

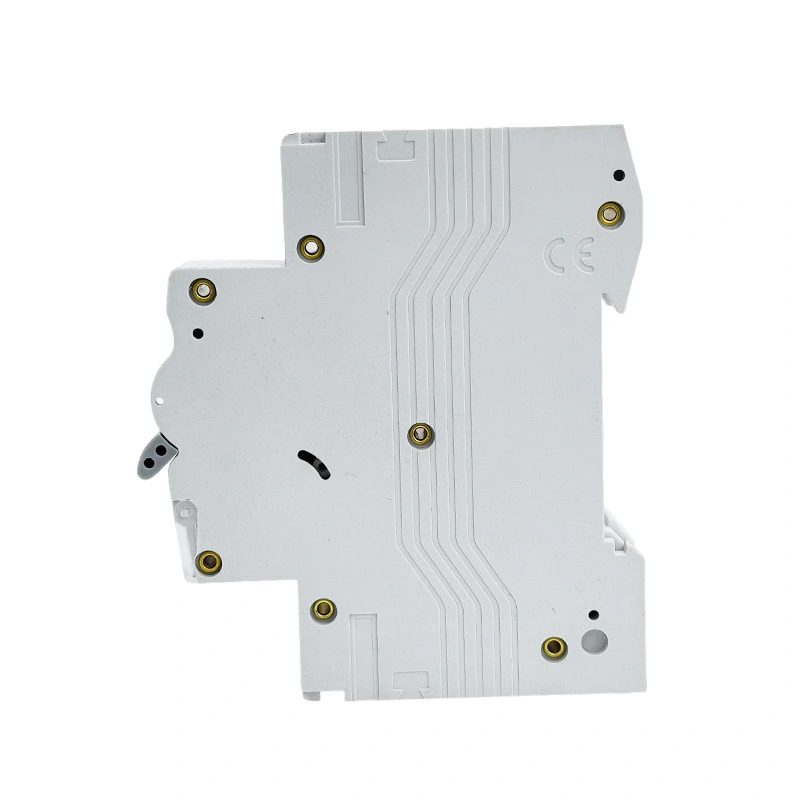

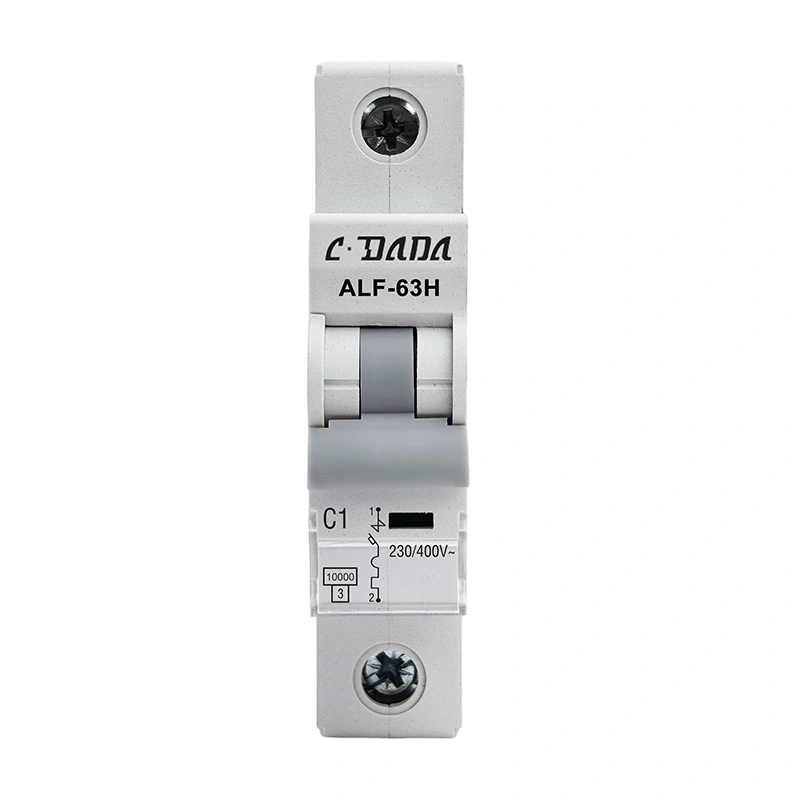

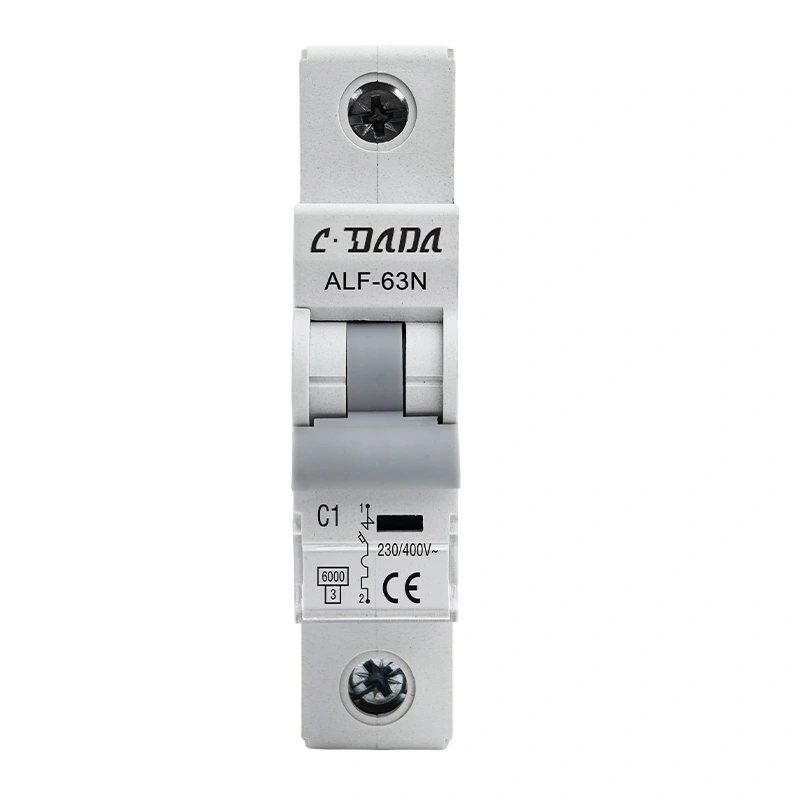

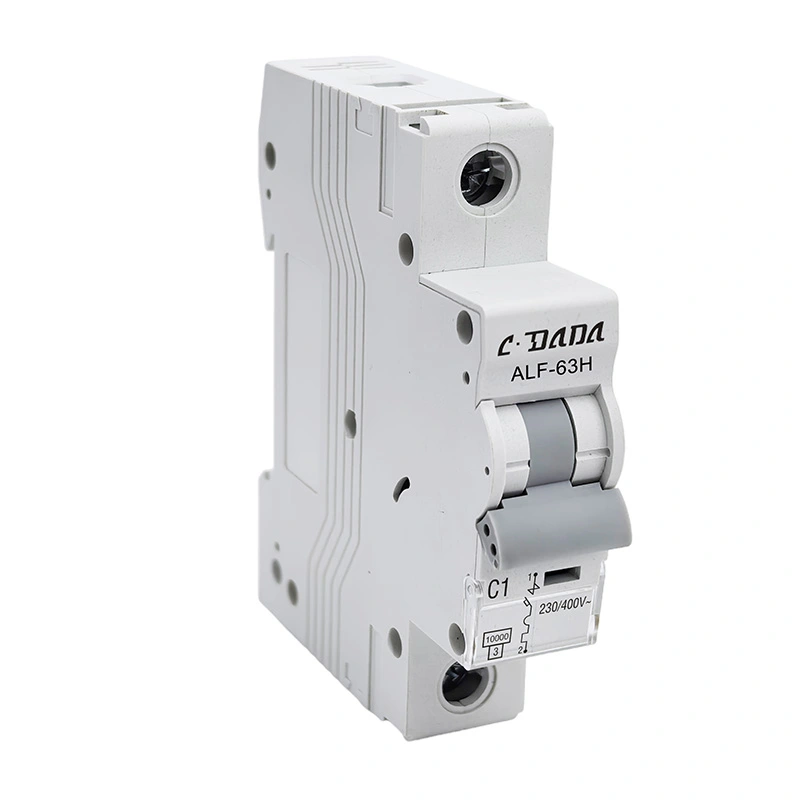

ALF-63N/H yakatevedzana yakakwira kutyora 6KA 10kA Miniature Circuit Breaker (MCB), inoenderana neIEC60898 chiyero, MCB ine hunhu hwekuita kwakavimbika, chaiyo inodzivirira basa, ipfupi kuburitsa nguva, uye yakakwirira kuputika kugona, vhoriyamu diki zvakare. Iyo inoshandiswa zvakanyanya mukati uye yakawandisa yevanobatika, switchgear, uye magetsi emagetsi.

Bata CDADA uye sarudza isu semugadziri wako, tinogona kupa OEM / ODM masevhisi.

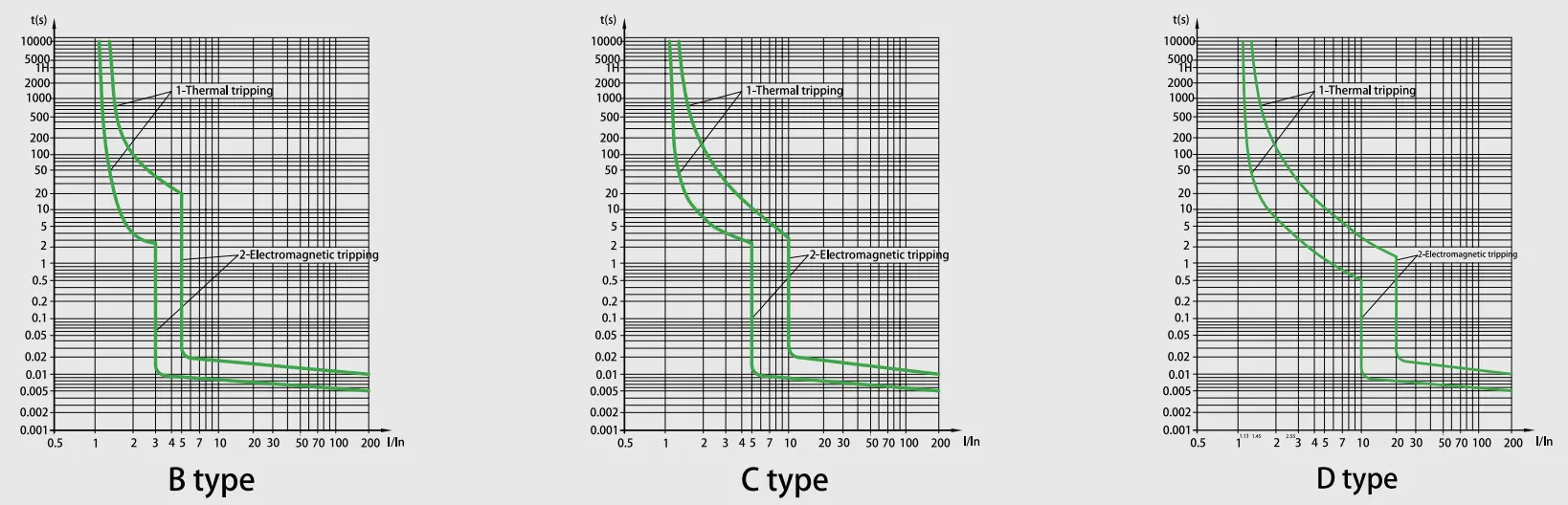

Characteristic Curve

Kutsanangurwa Kwehunyanzvi

ALF-63N/H Series 6KA 10kA Miniature Circuit Breaker
Standard	SH/IEC60898-1
Kutyora simba (kA)	6,10
Dziviriro	Against overload uye short circuit
Rated current(A)In	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Rated voltage (V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Rated impulse inomira voltage Uimp(kV)	4
Rated insulation voltage Ui (V)	500
Simba rinomisa kasi	3
Ambient tembiricha (℃)	-25~+40,Max.95% mwando
Thermal operating limit	1.13xln Hapana kugumburwa mukati meawa
	1.45xIn Kufamba mukati meawa
Magnertic kushanda	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Nhamba yematanda	1P,1P+N,2P,3P,3P+N uye 4P
Rudzi rwerwendo	Thermal/magnetic release
Terminal capacity	16mm² inochinjika kana 25mm² yakasimba kusvika ku25A ratings
	25mm² inochinjika kana 35mm² yakasimba kubva pa32A kusvika 63A ratings
Dhigirii rekudzivirira	IP20
Installation	Kukwira pane 35mm DIN njanji

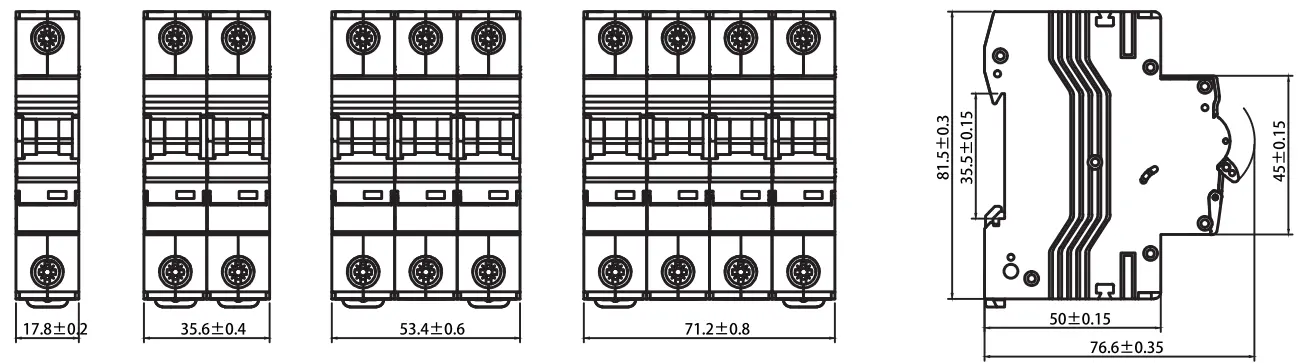

Upamhi	17.8mm padanda

Circuit breaker release character

AIHWA.	Yakatemerwa ikozvino yekuburitswa (A)	Mamiriro ekutanga	Test current	Nguva yakatarwa	Mhedzisiro inofanira kuwanikwa	Mashoko
1	1-63	cold state	1.13In	t≤1h	Kwete-rwendo
2	1-63	pabvunzo yapfuura	1.45ln	t <1h	rwendo	Kuseta ikozvino kusvika kune yakatsanangurwa zvakatsiga mu5s
3	Mu≤32	cold state	2.55In	1s	rwendo
	Mu>32
4	1-63	cold state	3In	t≤0.1s	Kwete-rwendo	B mhando
			5In	t <0.1s	rwendo	B mhando
			5Mu10ln	t≤0.1s	Kwete-rwendo	C mhando
			10In	t <0.1s	rwendo	C mhando
			20ln	t≤0.1s	Kwete-rwendo	D mhando
				t <0.1s	rwendo	D mhando

Endurance(Operations)

Category	Operation Cycles	Operation frequency	Rated current
Kutsungirira kwemagetsi	4000	240/h	1-32
		120/h	40-63
Mechanical kutsungirira	10000	240/h	1-63

Features

★ Ultra-High Short-Circuit Breaking Capacity

Yepamberi arc control tekinoroji inowana yakakwirira yekukanganisa kugona kana ichienzaniswa neindasitiri zviyero, kuve nechokwadi chekuchengetedzwa kwakavimbika kwemaindasitiri-giredhi emagetsi masisitimu pasi pekukanganisa kwakanyanya.

★ Dual-Mode Connection Interface

Yakabatanidzwa hybrid terminal dhizaini inotsigira ese akaomesesa bhazi docking uye inochinjika tambo clamping, inogonesa-isina chishandiso kuchinjika kune akasiyana ekuisa mamiriro uku ichidzikisa wiring nguva ne40%.

★ Energy-Storage Mechanism yeKurarama Hurefu

Spring-assisted operating system ine 10,000 mechanical cycles kutsungirira, inoratidzira kupfeka-mubhadharo teknolojia.

★ Advanced Composite Enclosure

ine mbiri-retarcant, inodzivirira kupisa, uye impulse-proof zvivakwa zvakabatanidzwa arc-kudzima makamuri ezviitiko zvine mhosva.

★ Dynamic Current-Limiting Topology

Hungwaru kurega-kuburikidza nesimba kudzvanyirira kunodzikisira kutadza kwepamusoro ne65-80%, kugonesa kudzika kwakadzika kwechigadzirwa optimization ne30% yakazara system yekudzikisa mutengo.

Rondedzera zviyero

Application Scenarios

★ Dzimba: Zvikamu zvevatengi uye mabhodhi ekugovera kuitira kuchengetedzwa kwemba.

★ Indasitiri: Dziviriro yevanobatika, switchgear, uye inorema yemagetsi midziyo.

★ Zvekutengesa: Zvivakwa zvemuhofisi nenzvimbo dzekutengera zvinoda kuvimbika kwakanyanya.

Kudzora Kwemhando & Standard Testing

★ Yese CDADA MCB inoedzwa zvakasimba kuti ive nechokwadi chekutevedzera IEC60898-1:

★ Thermal Tripping Test: Yakasimbiswa pa1.13In (isina-rwendo) uye 1.45In (rwendo mukati meawa imwe).

★ Magnetic Tripping Test: Chaiyo kuburitsa kuyedzwa kweB, C, uye D maitiro.

★ Kutsungirira Kwemagetsi: Kuedzwa kwe4,000 maitiro ekushanda.

★ Mechanical Endurance: Yakasimbiswa kune 10,000 cycles.
