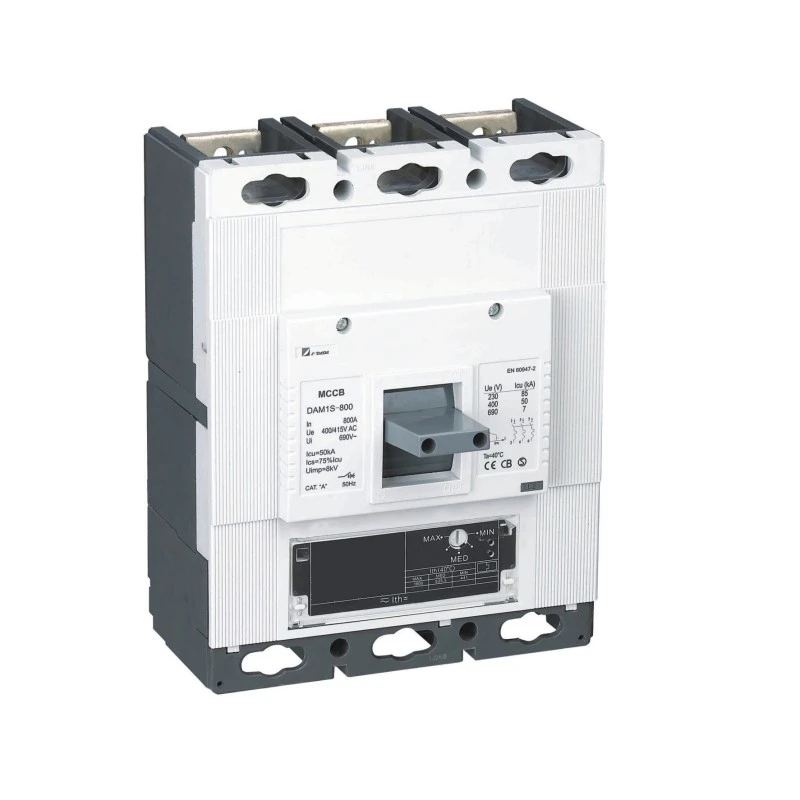

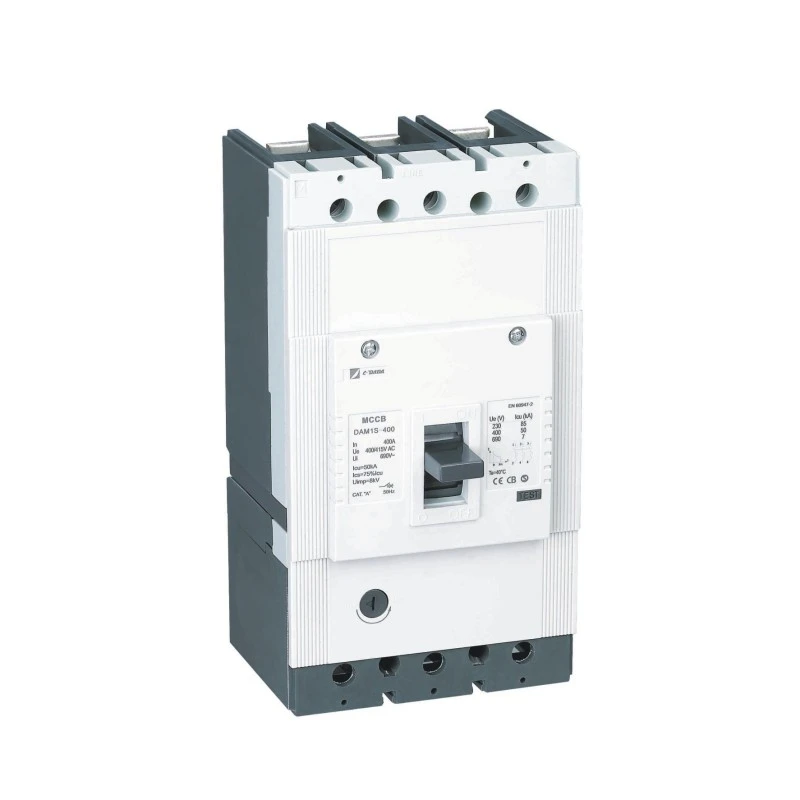

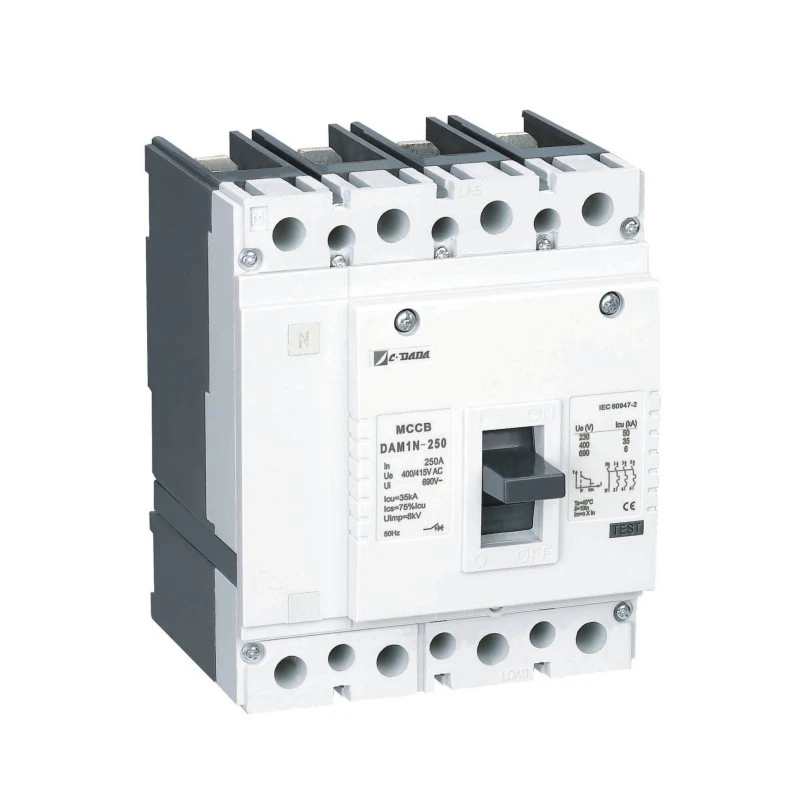

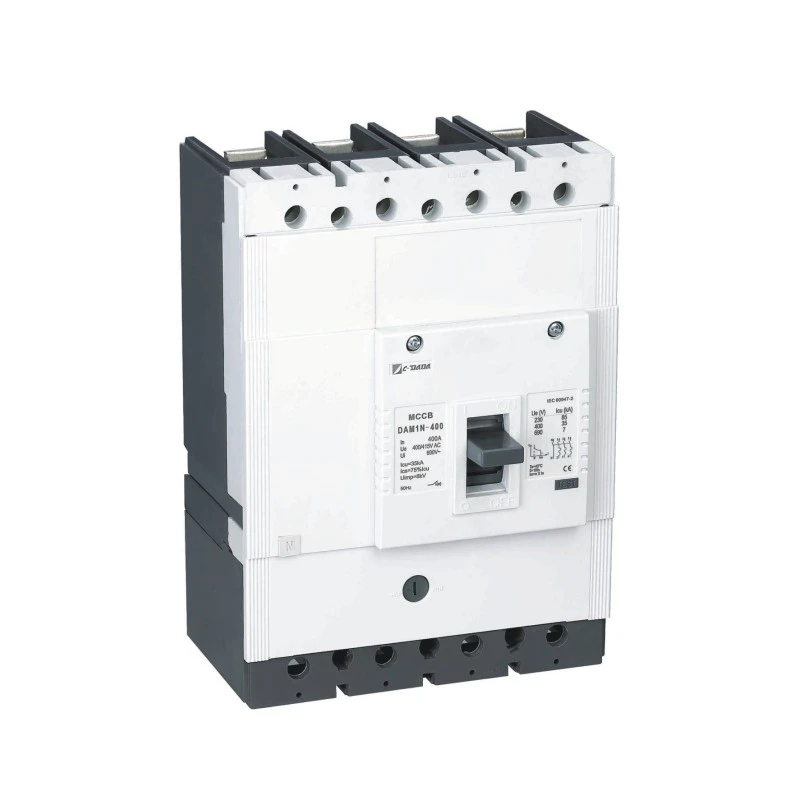

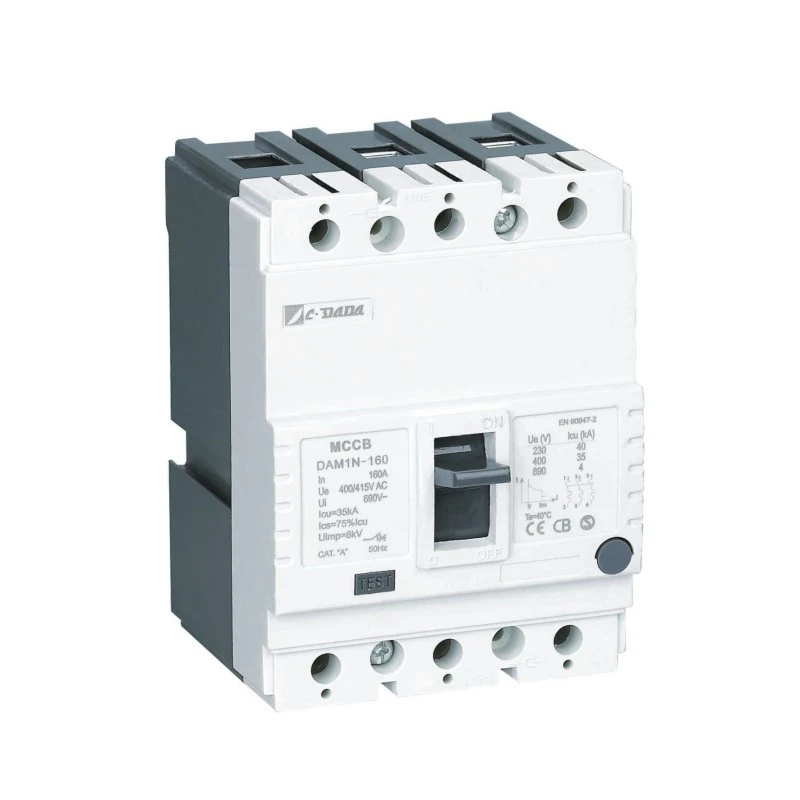

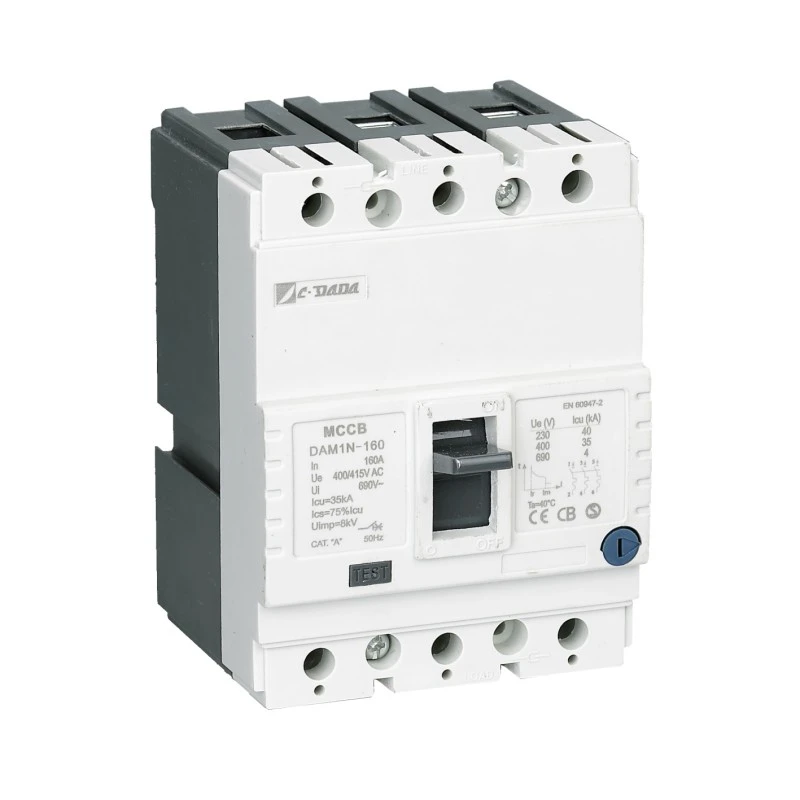

Thermal Adjustable Molded Case Circuit Breaker
Model:DAM1 Series
Ziva iyo CDADA DAM1 Series Thermal Adjustable Molded Case Circuit Breaker kubva ku 贴 yakavimbika fekitori, Shanghai DADA Electric-yakasimbiswa (ASTA, KEMA, CE) uye inogadzirika magadzirirwo ekupisa (70-100% In). Yakanakira kunyatsodzivirirwa kwekuremerwa mumaindasitiri maapplication. Inowanikwa mu3P/4P zvigadziriso kusvika ku1600A pa400V/415V. Yakakwana yeOEMs uye vatengi vakawanda.
Iyo DAM1 Series Thermal Adjustable Molded Case Circuit Breaker neShanghai DADA Electric CO., LTD. yakagadzirirwa kuzadzisa zviyero zvepasi rose, ichipa dziviriro yakasimba kubva kune zvese zvakawandirwa uye pfupi-dunhu mamiriro. Iine inogadzirika yekupisa yekuseta ye70% kusvika 100% yeIn, iyi breaker inogona kurongeka zvakanaka kuti ienderane neyako chaiyo application inoda.
Inowanikwa mu3P uye 4P zvigadziriso, yakayerwa kusvika 1600A pa400V/415V, inouya nezvitupa zvepasi rose seASTA, KEMA, CE, CB, SEMKO, uye RoHS, kuve nechokwadi chekutevedzwa munzvimbo dzakawanda.
Magetsi paramita yeDAM1 Thermal Adjustable Molded Case Circuit Breaker
|
Thermal inogadziriswa mhando MCCB (0.7-1)In |
|||||||||
|
Mufananidzo |
Model |
code |
Icu (KA) |
Ics (KA) |
Rated Current -In |
Ui(V) |
Ue(V) |
Pole |
Uimp(V) |
|
|

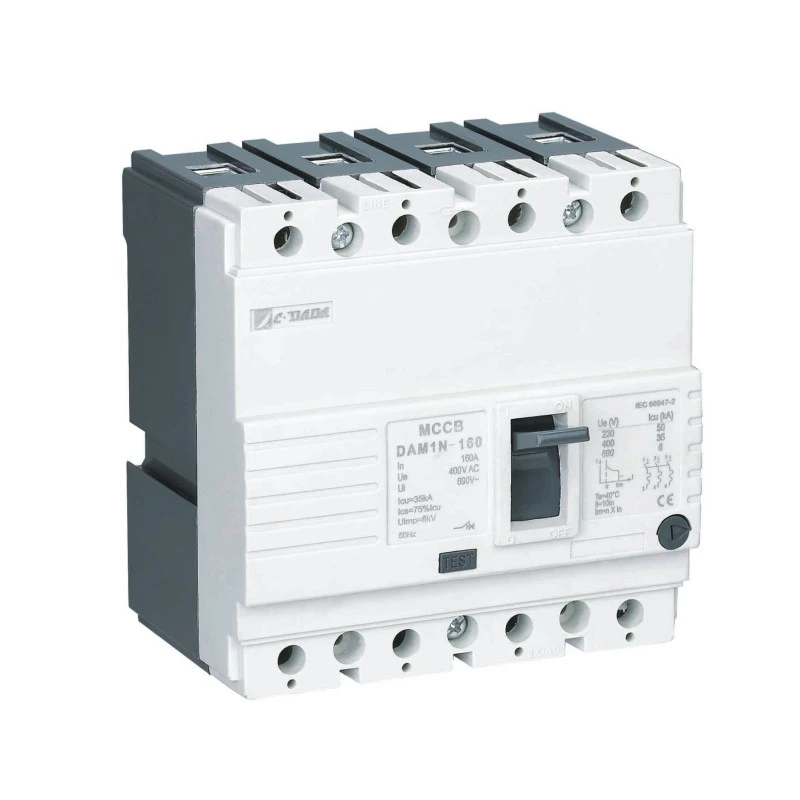

DAM1-160 |
B |
25 |
12.5 |
10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A |
750V |
400/415V |
3P / 4P |
8000 |
|
N |
35 |
26.25 |
|||||||
|
S |
50 |
37.5 |
|||||||
|
|

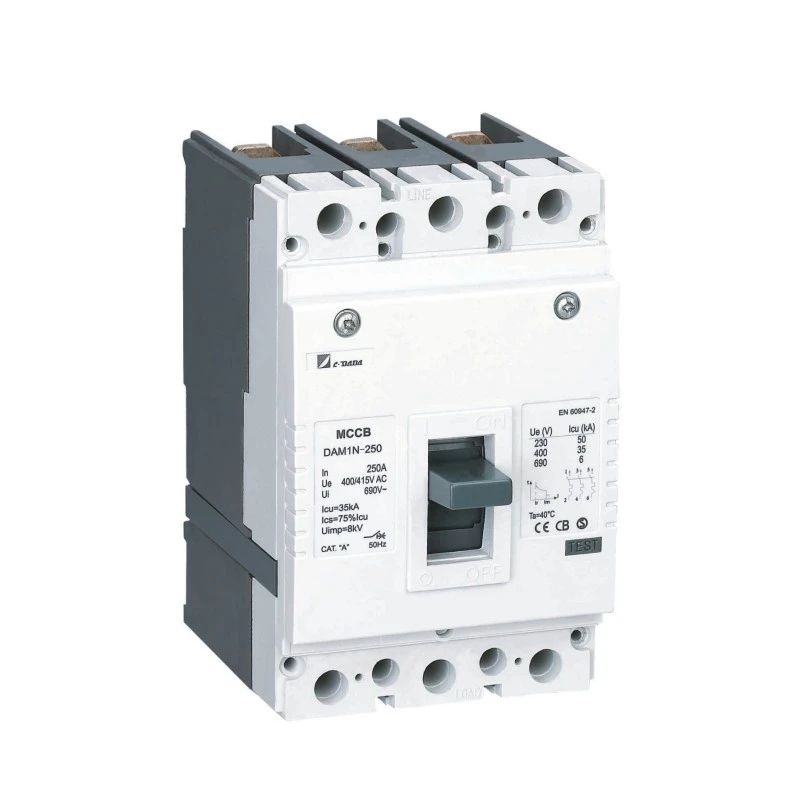

DAM1-250 |
N |
35 |
26.25 |
63 - 80-100-125 - 160(180) - 200(225) - 250(320)A |
750V |
400/415V |
3P /4P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
65 |
48.75 |
|||||||
|
G |
85 |
51 |
|||||||
|
|

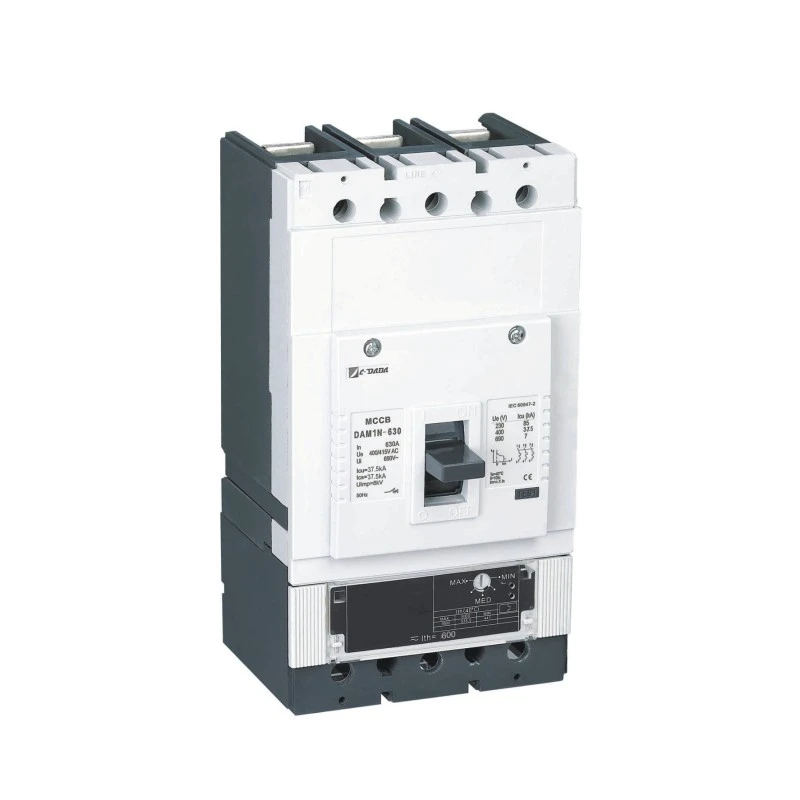

DAM1-630(400) |
N |
35 |
26.25 |
250 - 315 (350)- 400 - 500 - 630A |
750V |
400/415V |
3P /4P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
70 |
52.5 |
|||||||
|
G |
85 |
52.5 |
|||||||
|
|
DAM1-800 |
N |
35 |
35 |
400 - 500 - 630 (700)- 800 -1000A |
750V |
400/415V |
3P /4P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
70 |
52.5 |
|||||||
|
G |
85 |
52.5 |
|||||||
|
|
DAM1-1600 |
S |
65 |
50 |
800 -1000 - 1250 - 1600A |
750V |
400V |
3P / 4P |
8000 |
|
H |
85 |
50 |
|||||||
|
G |
100 |
50 |
|||||||
Zvinotaurwa Nezvakakosha
Muenzaniso: DAM1 Series Thermal Adjustable MCCB
Type: Molded Case Circuit Breaker (MCCB)
Matanda: 3P / 4P
Rated Voltage (Ue): 400V / 415V AC
Yakarongwa Yazvino (Mu): 16A - 1600A

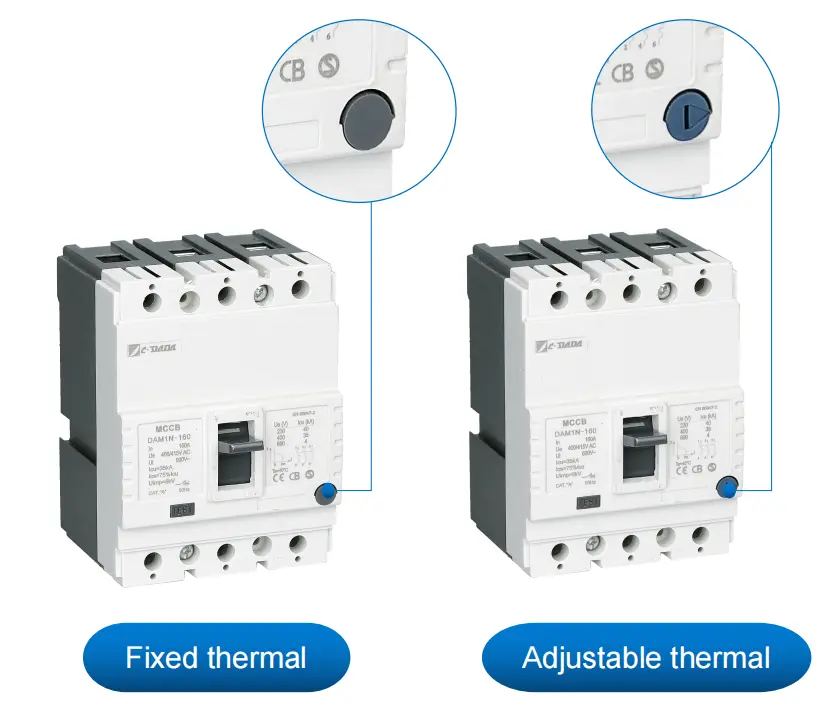

Inogadziriswa Thermal Setting: 70% - 100% In
Certifications: ASTA, KEMA, CE, CB, SEMKO, RoHS
Frame Size: 6 furemu saizi
Zvimwe Zvimiro: Push-to-trip bhatani, patsanura huru uye arcing contacts
|
MCCB Yakayerwa Yazvino (A) |
Thermal Rwendo Setting Min (0.7In) |
Thermal Rwendo Setting Max (1Mu) |
Adjustable Range (0.7–1In) |
|
16 |
11.2 |
16 |
11.2–16 |
|
32 |
22.4 |
32 |
22.4–32 |
|
63 |
44.1 |
63 |
44.1–63 |
|
100 |
70 |
100 |
70–100 |
|
250 |
175 |
250 |
175–250 |
|
400 |
280 |
400 |
280–400 |
|
630 |
441 |
630 |
441–630 |
|
800 |
560 |
800 |
560–800 |
|
1250 |
875 |
1250 |
875–1250 |
|
1600 |
1120 |
1600 |
1120–1600 |
Kushanda Nheyo & Dziviriro Mechanism
★ Thermal Protection (Overload)
Iyo inopisa chinhu mukati meDAM1 yakatevedzana inoshandisa bimetallic tambo inokotama kana ichipiswa neyakasimbiswa overcurrent (> yakayerwa ikozvino). Nekugadzirisa kugadzika kwekupisa pakati pe70% ne100% yeIn, vashandisi vanogona kugadzirisa nguva yekupindura yeanotyora kudzivirira nzendo dzinonetsa uku vachiona dziviriro inoshanda.★ Push-to-Trip Bhatani
Nezvinangwa zvekuyedza, bhatani rekusundidzira-ku-rwendo rinobvumira kutsika kwemaoko kweanopwanya, kuratidza kuvimbika kwayo kwekushanda pasina kuda kuunza mamiriro chaiwo ekukanganisa.★ Separate Main uye Arcing Contacts
Kuti uwedzere kusimba uye kuita, iyo DAM1 yakatevedzana inoratidzira yakapatsanurwa huru uye arcing mazita. Iyi dhizaini inovimbisa kuti makuru ekubatika anodzivirirwa panguva dzepamusoro-zvino zviitiko, kuwedzera hupenyu hweanotyora.
Application Scenarios
Iyo DAM1 Thermal Adjustable Molded Case Circuit Breaker (MCCB) yakanakira huwandu hwakawanda hwemashandisirwo uko kwakanyatso kudzora pamusoro pekuremerwa kuchengetedza kwakakosha. Izvi zvinosanganisira:
★ Maindasitiri Zvidyarwa: Kuve nechokwadi chekushanda kwakadzikama muzvigayo zvesimbi, zvidyarwa zvemakemikari, uye mapuratifomu emafuta.
★ Zvivakwa Zvekutengesa: Kuchengetedza masisitimu emagetsi munzvimbo dzekutengesera, zvivakwa zvemahofisi, nemahotera.
★ Utilities: Kuvimbika kugovera mune substations uye magetsi grids.
★ Data Centers: Kuchengetedza uptime mune yakakosha IT zvivakwa.
Sei uchisarudza CDADA?
1. Tine nyanzvi yeR & D timu, tine maitiro ekugadzirisa maitiro. Inogona kupa yakanakisa customized service.

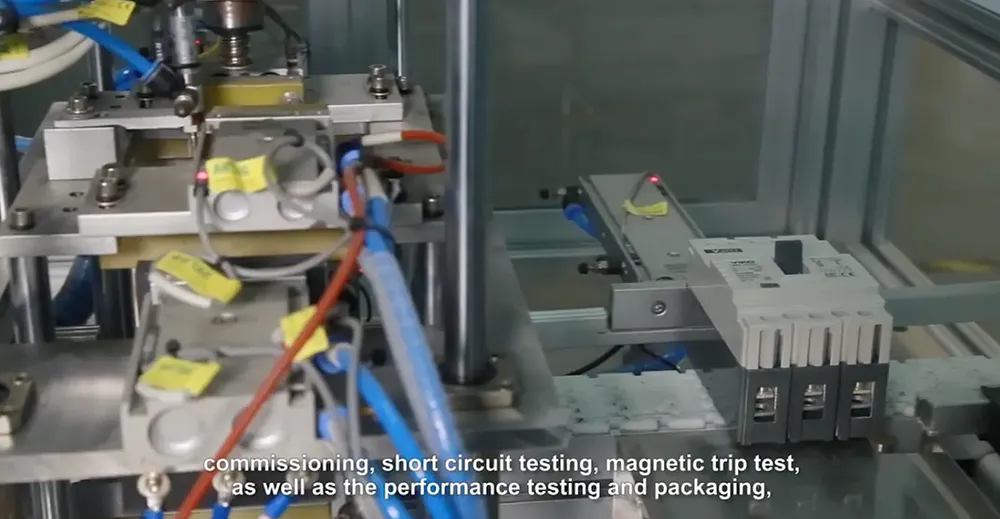

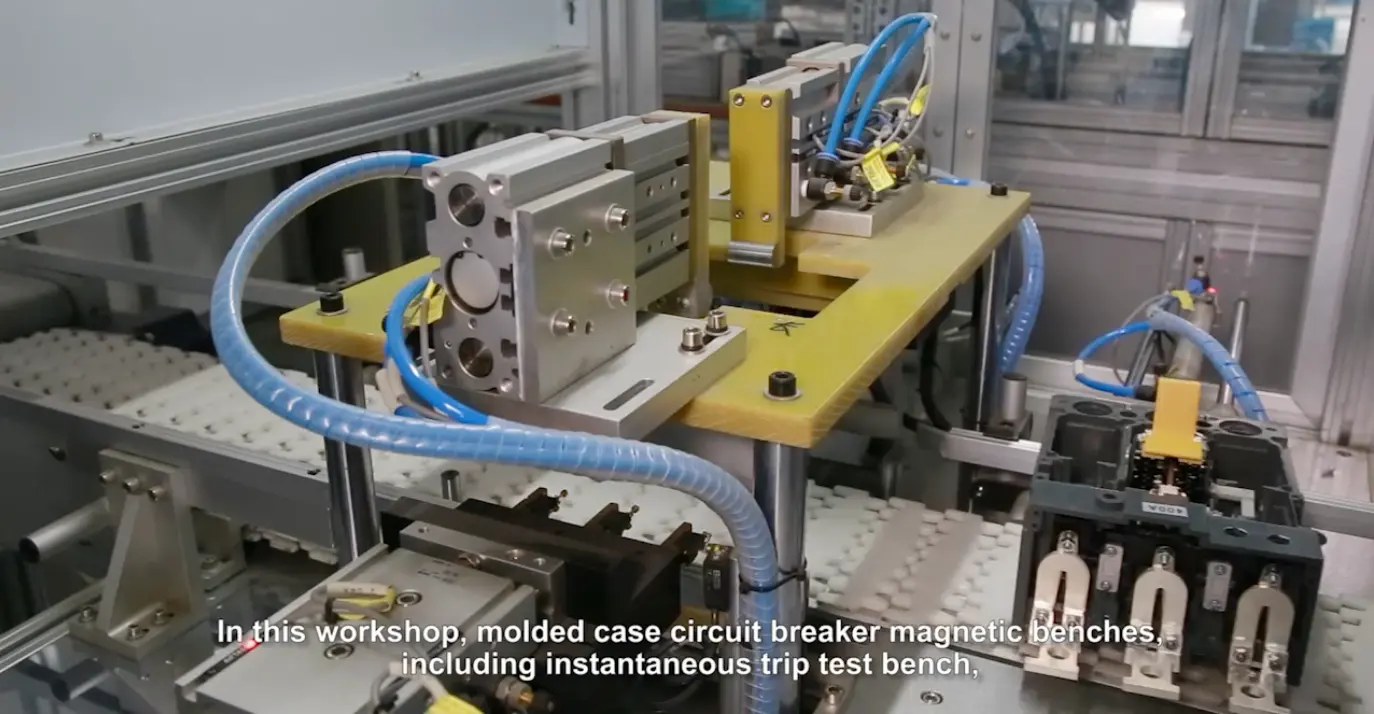

2. Isu tinogadzira dunhu remagetsi neatomatiki yekugadzira mutsara, Zvino, isu tine 6 otomatiki mitsara yekugadzira. Uye huwandu hwezuva nezuva hunodarika 1000pcs.

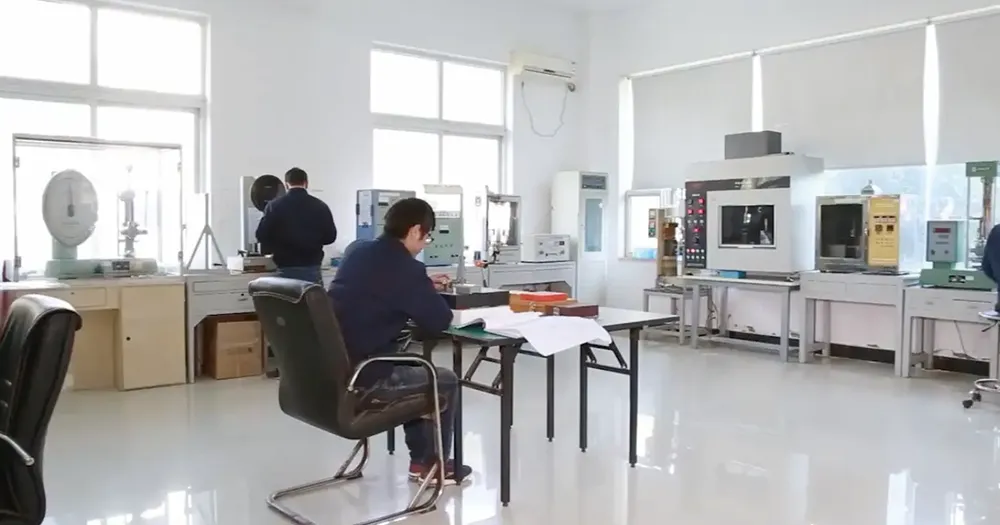

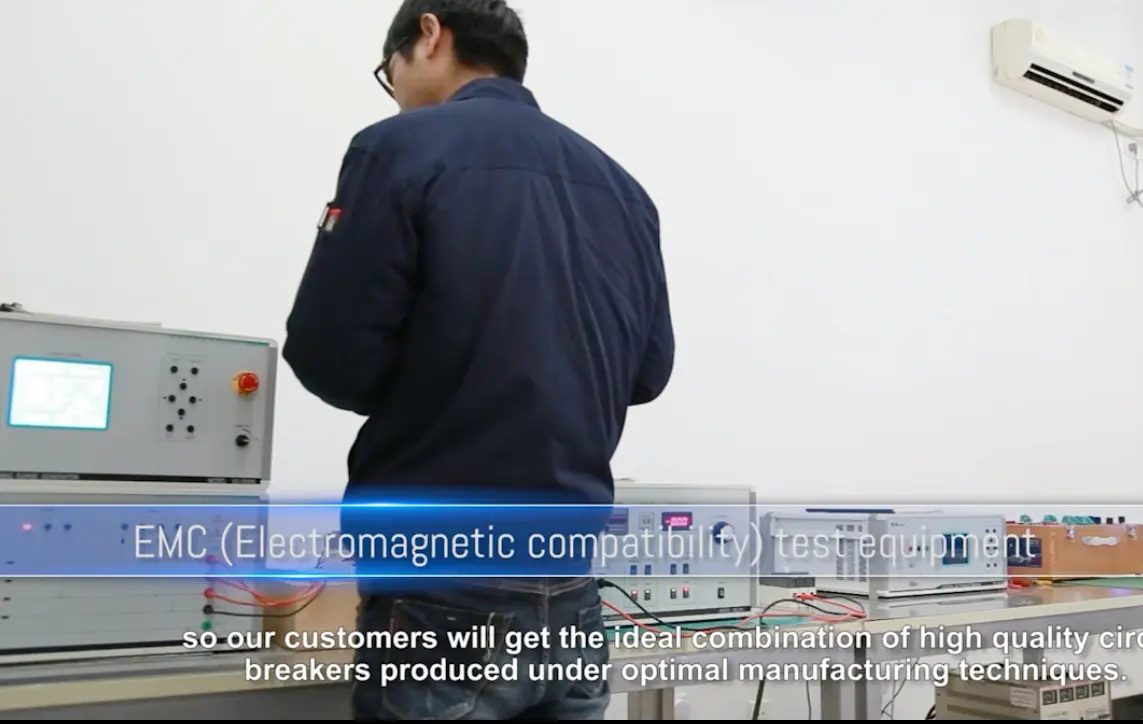

3. Tine rabhoritari inoshanda zvizere, rabhoritari yedu inogona kupupurira marabhoritari, tinogona kuita thermal load, magnetic, uye tripping limit, mechanism life, EMC murabhoritari yedu.
4. Tawana CB,CE,SEMKO,KEMA,ASTA,ROHS,SASO,CCC yepasi rose
FAQs
Q1: Ndeipi iyo inogadziriswa yekupisa yekuseta renji yeDAM1 MCCB?
A1: Thermal setting paDAM1 series inogona kugadziriswa pakati pe70% uye 100% yeIn, ichibvumira kunyatso kudzora pamusoro pekuchengetedzwa kwepamusoro.
Q2: Ko iyo DAM1 Thermal Adjustable Molded Case Circuit Breaker inogona kushandiswa mune zvese 3-pole uye 4-pole masisitimu?
A2: Hongu, iyo DAM1 yakatevedzana inowanikwa mune ese 3P uye 4P zvigadziriso, zvichiita kuti ive yakakodzera kune akasiyana mafomu.
Q3: Ko iyo DAM1 MCCB inouya nezvimwe zvekuwedzera zvekuyedza kana kugadzirisa?
A3: Ehe, iyo DAM1 nhevedzano inosanganisira bhatani-kune-rwendo bhatani kuti riyedze nyore uye kuoneswa kwekushanda kweanopwanya pasina kukonzera kukanganisa.
Q4: Iyo DAM1 MCCB inobata sei maseketi mapfupi?
A4: Iyo DAM1 yakatevedzana inosanganisira magineti yekufamba nzira iyo inopa kuchengetedzwa kwepakarepo kubva kune mapfupi maseketi, kuve nechokwadi chekukurumidza kubviswa kwekukanganisa kwemhepo.
Q5: Pane chero zvishongedzo zviripo zveDAM1 MCCB?
A5: Hongu, huwandu hwakawanda hwezvishandiso huripo, hunosanganisira maalarm contacts, anobatsira contacts, undervoltage release, uye magetsi ekushanda maitiro, kuwedzera kushanduka uye kushanda kweanoputsa. Sravana Sameeralu Serial 4th Hot Tags: Thermal Adjustable Molded Case Circuit Breaker, China, Mugadziri, Mutengesi, Fekitari
