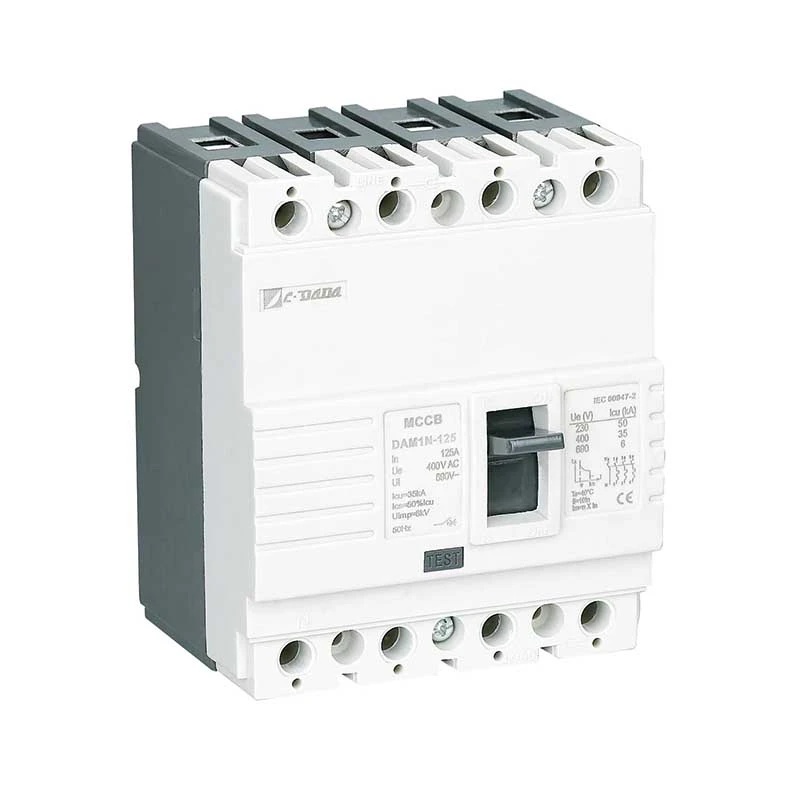

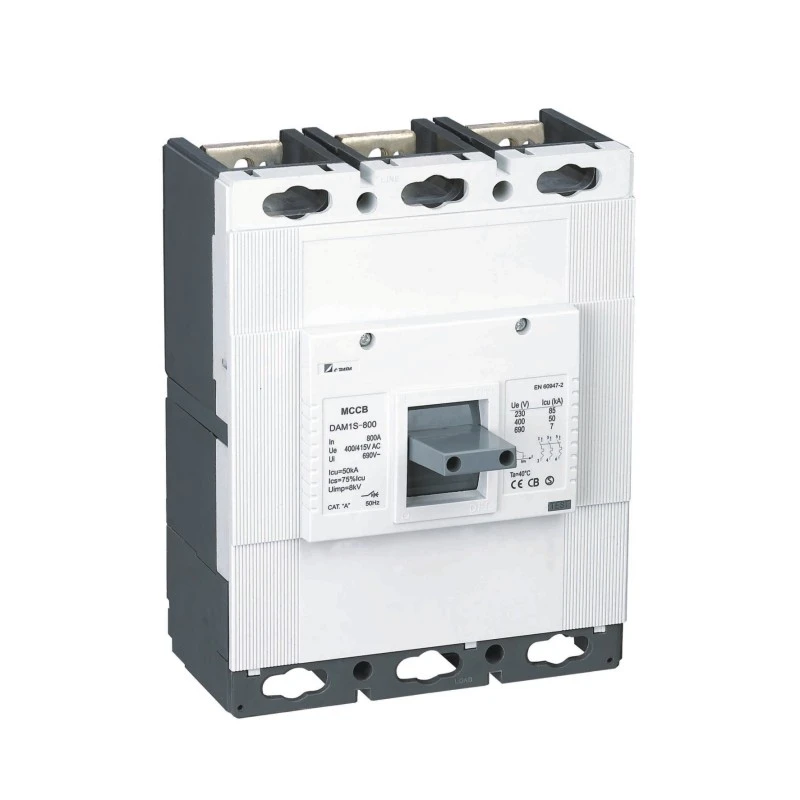

Yakagadziriswa Rudzi Yakaumbwa Nyaya Yesekete Breaker
Model:DAM1 Series
Kunobva mhando yepamusoro uye yepamusoro Fixed Type Molded Case Circuit Breaker (MCCB) kubva kuShanghai DADA Electric-yakasimbiswa (CE, CB, ASTA), thermal-magnetic protection, 12.5A-1600A. Yakanakira maindasitiri & kutengeserana mapaneru. Nyore DIN-njanji kana mapaneru gomo. OEM & maodha akawanda anogamuchirwa, sarudza CDADA semupi wako nechivimbo.

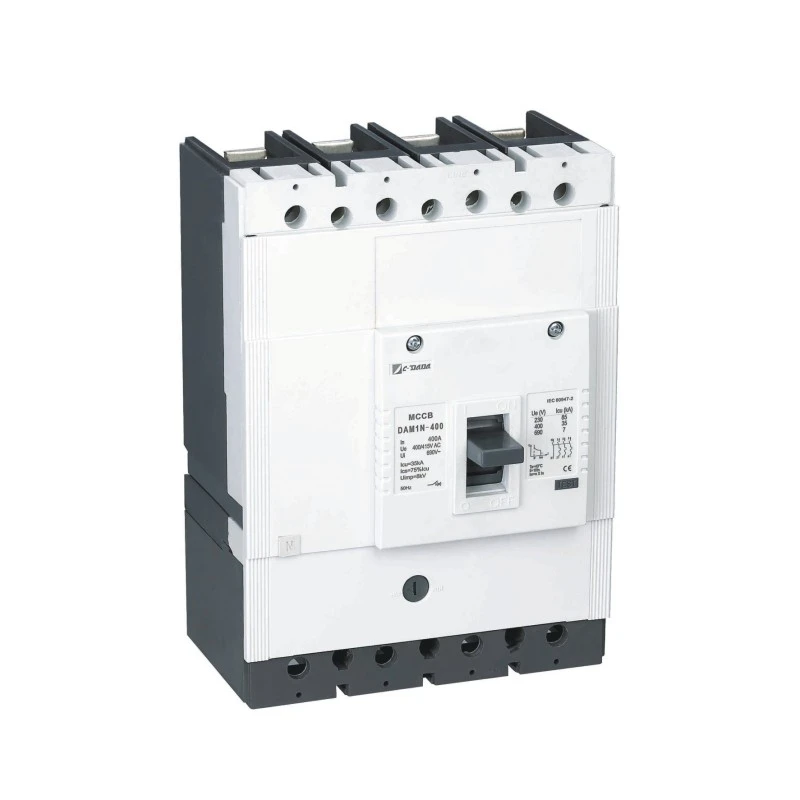

CDADA Fixed Type Molded Case Circuit Breaker (MCCB) DAM1 yakatevedzana inosangana nezvinodiwa zvechero application, kubva kune vadiki vashandisi kuenda kumaindasitiri transformer uye kugovera kuisirwa.
Iyo DAM1 nhevedzano ine nomwe furemu saizi, kusvika 1600A, kutyora simba kusvika ku100 kA, inoshanda voltage kusvika ku1000 Volts, inosangana nyore neakasiyana-siyana akazara emagetsi uye emuchina zvishongedzo zvinodiwa, inopa akasiyana ekuisa mhinduro kuti awedzere zvinodiwa zvechero simba system.
Nechitupa chepasi rose KEMA, ASTA, SEMKO, CB, CE, ROHS; DAM1 ndiyo yakanakisa sarudzo yepasirese magetsi ekushandisa zvidyarwa uye OEM.
Zvinotaurwa Nezvakakosha
Magetsi paramita yeDAM1 MCCB yakaumbwa kesi yedunhu redunhu
| Model | code | Icu (KA) | Ics (KA) | Rated Current -In | Ui(V) | Ue(V) | Pole | Uimp(V) |

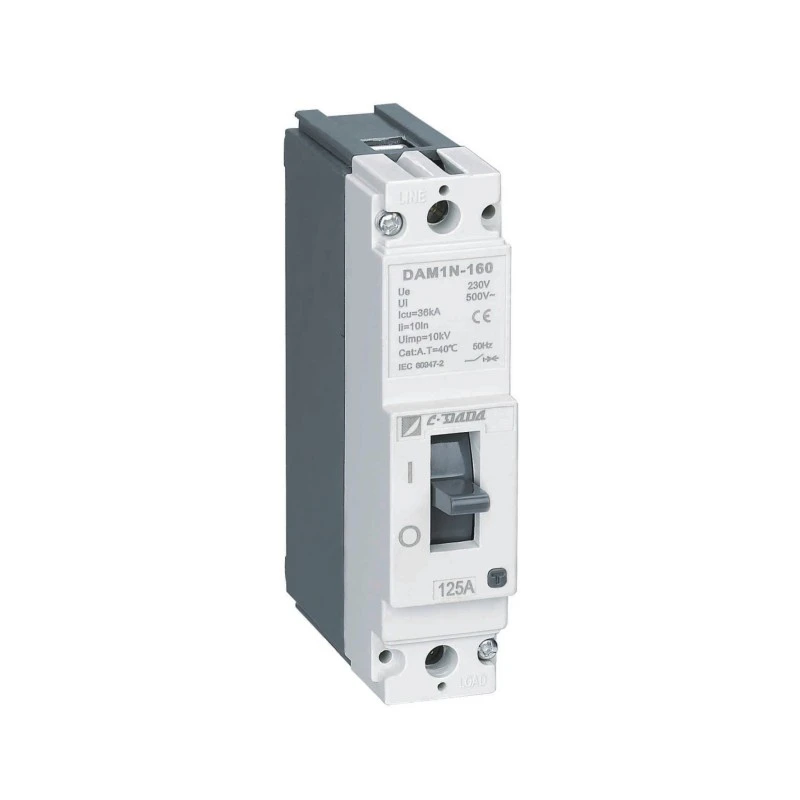

| DAM1-160 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63- 80 - 100 - 125-160A | 500V | 230V | 1P | 10000 |
| N | 36 | 27 | ||||||
| DAM1-200 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63- 80 - 100 - 125-160(200)A | 750V | 400V | 2P | 10000 |
| N | 36 | 27 | ||||||
| DAM1-125 | B | 25 | 12.5 | 10 - 12,5 - 16 - 20 - 25 - 32(30) - 40 - 50 - 63(60) - 80 - 100 - 125A | 750V | 400V | 3P / 4P | 10000 |
| N | 35 | 17.5 | ||||||
| S | 50 | 37.5 | ||||||
| DAM1-160 | B | 25 | 12.5 | 10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A | 750V | 400/415V | 3P / 4P | 8000 |
| N | 35 | 26.25 | ||||||
| S | 50 | 37.5 | ||||||
| DAM1-250 | N | 35 | 26.25 | 63 - 80-100-125 - 160(180) - 200(225) - 250(320)A | 750V | 400/415V | 3P /4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 65 | 48.75 | ||||||
| G | 85 | 51 | ||||||
| DAM1-630(400) | N | 35 | 26.25 | 250 - 315 (350)- 400 - 500 - 630A | 750V | 400/415V | 3P /4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM1-800 | N | 35 | 35 | 400 - 500 - 630 (700)- 800 -1000A | 750V | 400/415V | 3P /4P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM1-1600 | S | 65 | 50 | 800 -1000 - 1250 - 1600A | 750V | 400V | 3P / 4P | 8000 |
| H | 85 | 50 | ||||||
| G | 100 | 50 |
● Icu:O-t-CO bvunzo(O:Open maneuver,CO:Vhara-Yakavhurika maneuver,t:Kumirira nguva)
● Ics:O-t-CO-t-CO bvunzo(O:kuvhura maneuver,CO:Vhara-Yakavhurika maneuver,t:Kumirira nguva)
★ ON/I Position: Zvinotaridza kuti macontacts epabreaker akavharwa. Muchinzvimbo ichi, breaker lever iri panzvimbo yepamusoro
★ TRIP Position: Inoratidza kuti muputsi unovhurwa nekuda kwekutadza kupi zvako (pamusoro pemutoro kana pfupi pfupi). Muchiitiko ichi, breaker lever iri pakati pepakati pakati peON uye OFF nzvimbo. Kuti utore chinotyora, chiri munzvimbo yerwendo, kuenda ON chinzvimbo; sundidzira chinotyora chirevere pasi sezvakaratidzwa ne OFF sign
Breaker ichaiswa ne "click" sound.Mushure maizvozvo, dhonza lever sezvinoratidzwa ne ON sign kuti uvhare breaker.
★ OFF / 0 Position: Zvinoratidza kuti mameta ebreaker akazaruka. Nenzira iyi, iyo breaker lever iri munzvimbo yepasi.
Yenyama parameters yeDAM1-125 MCCB yakaumbwa kesi yedunhu breaker
| Chikamu (EN 60947-2/IEC 60947-2) | Kutsungirira |
|
||||||
| Model | Pole | Dielectric Propery (V) | kureba kureba (mm) | Total Cycles | Upenyu hweMagetsi | Mechanical Life | Main dunhu | Mubatsiri wedunhu |
| DAM1-160 | 1P | 2500 | ≤30/0 | 20000 | 3000 | 17000 | A/0 | AC-15 |
| DAM1-200 | 2P | 2500 | ≤30/0 | 15000 | 2500 | 12500 | A/0 | AC-15 |
| DAM1-125 | 3P / 4P | 2500 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM1-160 | 3P / 4P | 3000 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM1-250 | 3P /4P | 3000 | ≤30/0※ | 8000 | 1000 | 7000 | A/B | AC-15 |
| DAM1-630(400) | 3P /4P | 3000 | ≤60/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM1-800 | 3P /4P | 3000 | ≤80/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM1-1600 | 3P / 4P | 3000 | ≤80/0※ | 3000 | 500 | 2500 | A/B | AC-15 |
Kushanda Nheyo & Dziviriro Mechanism
★ Thermal Protection (Overload)
Iyo bimetallic strip inokotama kana ichipiswa neyakagadzika overcurrent (> yakayerwa ikozvino). Iko kumhanya kwekukotama kunoenzanirana nehukuru hwazvino — kuve nechokwadi chekufamba-famba kunotevedzera tambo yekudziya kwetambo, kudzivirira nzendo dzinonetsa uchidzivirira michina.
★ Magnetic Protection (Short Circuit)
Munguva pfupi yedunhu (somuenzaniso, chikamu-kusvika-chikamu kana chikamu-kusvika-pasi), yakakwirira-yazvino magineti pakarepo inodhonza solenoid plunger, ichisunungura latch mechanism mukati memilliseconds-kubvisa kukanganisa ikozvino kusati kwaitika kupisa kwemoto.
Product zvakanakira
★ Muviri neChivharo:
Fiber-girazi polyester resin yakashandiswa semuviri uye yekuvhara zvinhu zvinoenderana ne EN 60512-20-2 yakajairwa. Ichi chinyorwa, chinodaidzwa kuti BMC (Bulk Molding Compound) mumabhuku, chinofarirwa nekuda kwehupamhi hwemagetsi uye hunyanzvi hwemagetsi uye chinogona kuramba kusvika kune tembiricha ye160 ℃ nguva dzose. BMC zvinhu hazvipisi kana yasangana newaya patembiricha ye960 ℃ zvinoenderana neIEC 695-2-1.
Bimetal: Bimetal chinhu chinosanganisira kusanganiswa kwesimbi mbiri dzeplate ine akasiyana ekuwedzera coefficients kurwisa kupisa. Ikozvino inopfuura nepabreaker inopisa bimetal. Nekuda kwekuita kwekupisa uku. bimetal inokotama yakananga kune ndiro shoma-yekuwedzera. Sezvo kupisa kunowedzera sezvo ikozvino inopfuura nepabreaker inowedzera, bimetal inopisa zvakanyanya uye inokotama zvakanyanya. Nenzira iyi, inodzora nzira yekuvhura yekuvhura iyo breaker.

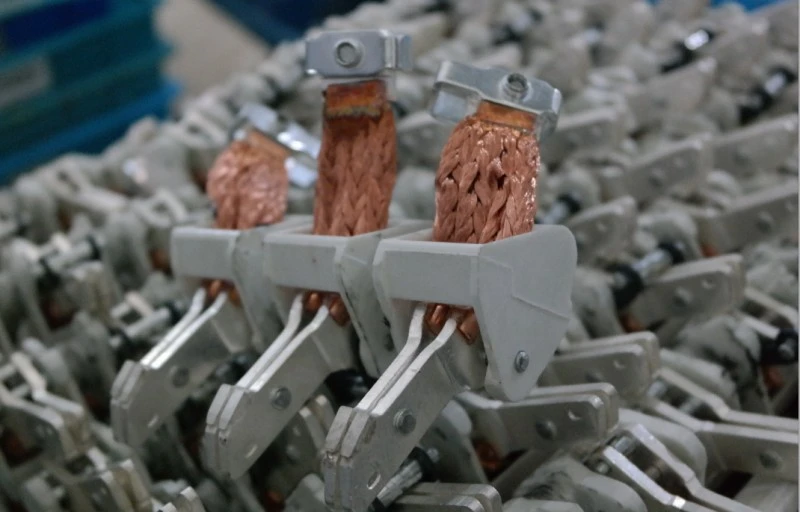

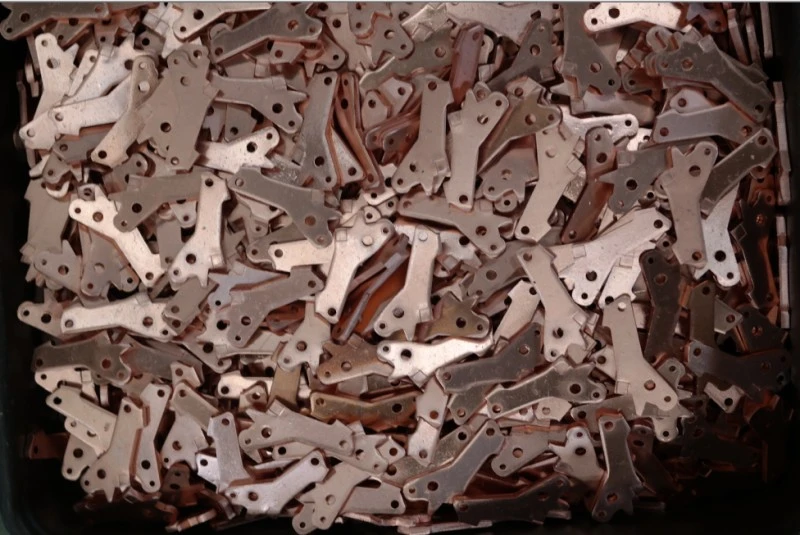

★ Contacts:
Contact alloy inotemerwa mabreaker nekufunga akaputsika uye akatakurwa azvino kukosha uye kuvaka Kazhinji sirivha, graphite, nickel, wolfram alloy contacts anoshandiswa mumabreaker Mazita, ayo anogadzirwa nesirivheri-graphite alloys ane yakatsetseka chimiro, anoshandiswa mune yakatarwa (pazasi) mabikirwo, sirivheri wolfram contacts, ayo akaomarara, anoshandiswa pakufamba. Chimiro che swaged chakave chechokwadi mukufambisa mabatiro. Nenzira iyi, madhizaini uye akaomeswa alloy anobatika ane nzvimbo pane yakapfava yakagadziriswa mabatiro mukuvhura kwega kwega-kuvhara.
Nenzira iyi, kushorwa kwakaderera kunosimbiswa.Kufambisa kusangana kunofanirwa kubata iyo yakagadziriswa kuonana zvakanyanya kuitira kuti ive nekushomeka kwekushomeka. Zvakadaro, kunyanyisa kubata kumanikidza simba kunokonzeresa kukuvadzwa kwevanobatika munguva pfupi kupfuura zvakajairwa.Contact alloys akakosha kwazvo pakuvhura-kuvhara kune hutano.
★ Arc Extinguisher Cell (Separator):
Separators anoshandiswa kudzima arc iyo inoumbwa panguva yekushanda kwebreaker inoshanda pasi pesimba. Nepo kufamba kunobata kwakaparadzaniswa kubva kune yakagadziriswa, ikozvino inoramba ichiyerera pakati pevanobata kwechinguva uye iyi inonzi arc.Iyi arc inofanira kutsakatika munguva pfupi.
★ Kutsakatika kweArc:
Arc inosundirwa yakananga kune vanoparadzanisa nekuda kweiyo magineti inoumbwa yakatenderedza arc. Nenzira iyi, arc inowedzerwa uye inova diki uye yakatsemuka kubva pakati pemapureti ekuparadzanisa (Mufananidzo-5). Nekuda kwehunhu hwezvinhu zvinoshandiswa pamadziro emadziro evanoparadzanisa, gasi rinobuda nekuda kwekupisa kwakanyanya kunokonzerwa nearc. Iri gasi rine simba rakakosha pakutsakatika kwearc.
Application
CDADA DAM1 Fixed Type Molded Case Circuit Breaker (MCCB) inovimbwa pane zvese zvakakosha zvivakwa:

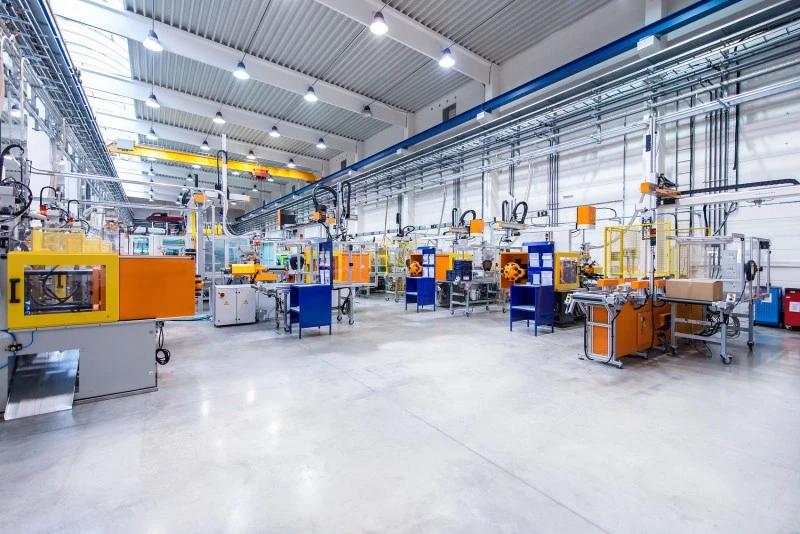

★ Maindasitiri: Zvigayo zvesimbi, oiri & gasi mapuratifomu, zvidyarwa zvemakemikari
★ Healthcare: Hospital main & sub-distribution board
★ Zvekufambiswa: Railway signing, airport baggage systems
★ Commercial: Skyscrapers, data centers, mashopu, nzvimbo dzemagungano
★ Nzvimbo Dzevanhu: Mabhaisikopo, nhandare, zvivakwa zvehurumende
Installation & Maintenance Advantages
★ Nyore Kubatanidzwa:
Standard kit inosanganisira mabhasi, zvipingamupinyi zvechikamu, uye hardware

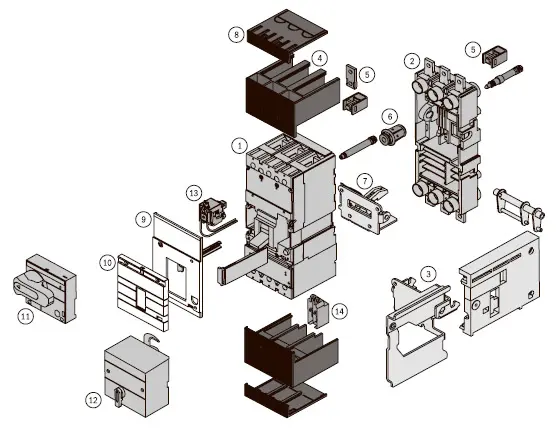

Optional accessories: maalarm contacts, shunt / undervoltage kuburitswa, magetsi ekushandisa maitiro

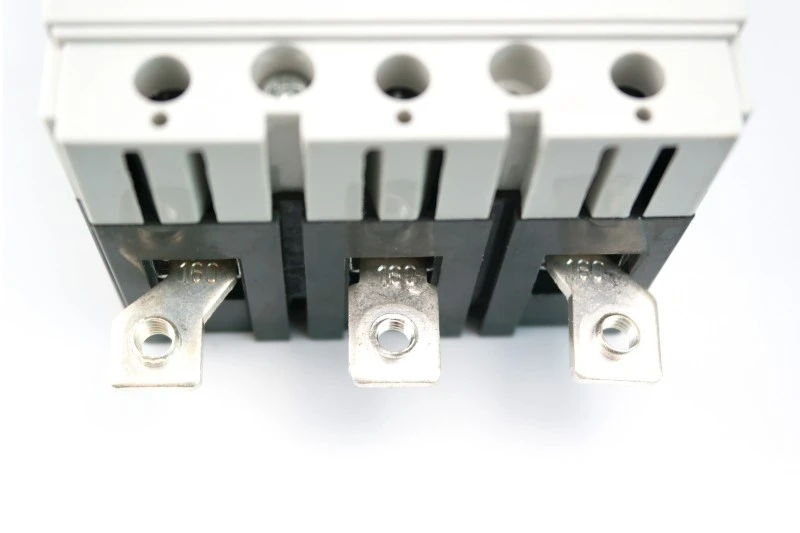

1) Batanidza nebhazi rakawedzerwa (mufananidzo 1)

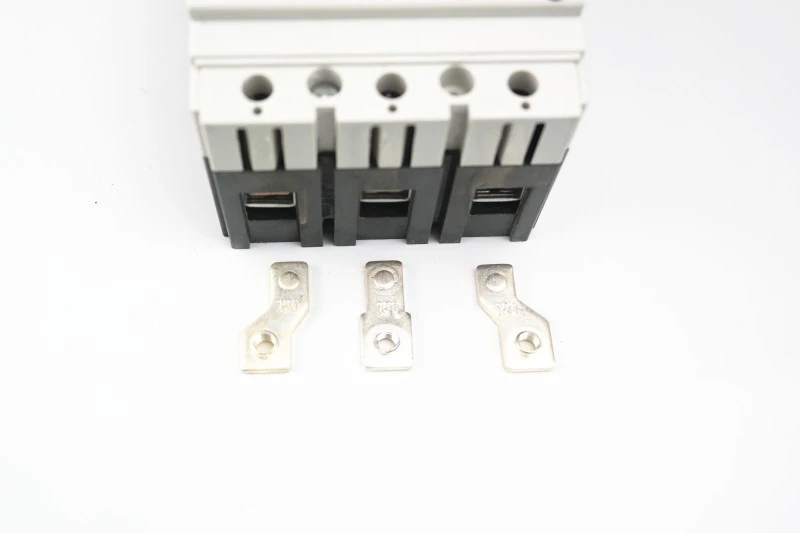

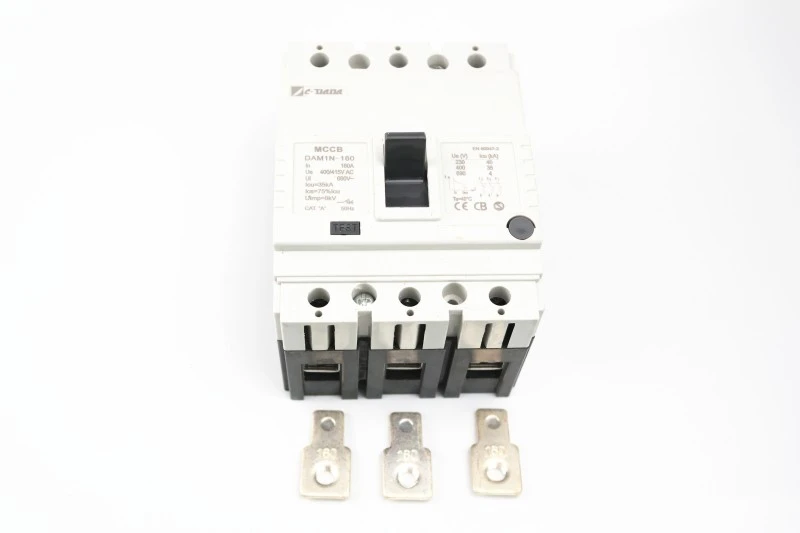

2) Batanidza neanoparadzira terminal (mufananidzo 2)

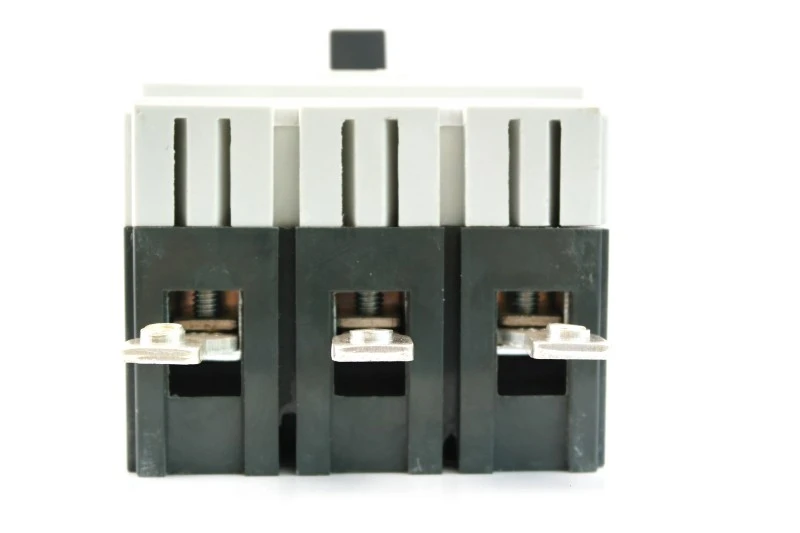

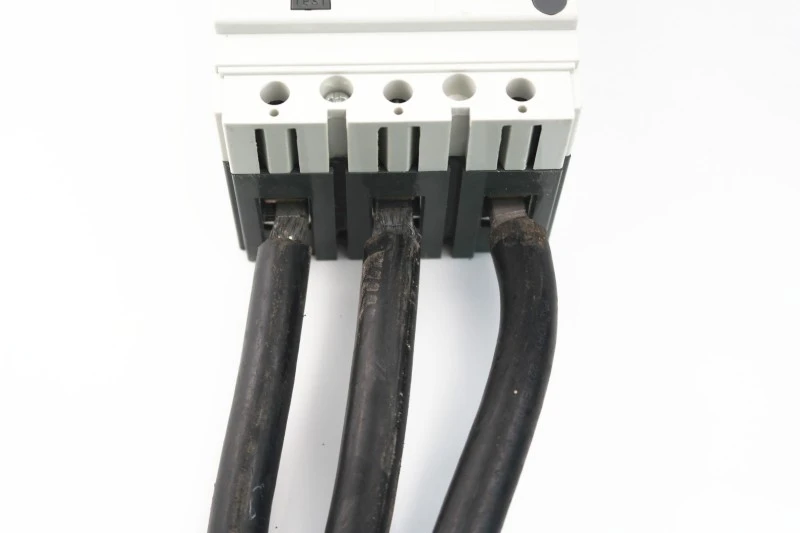

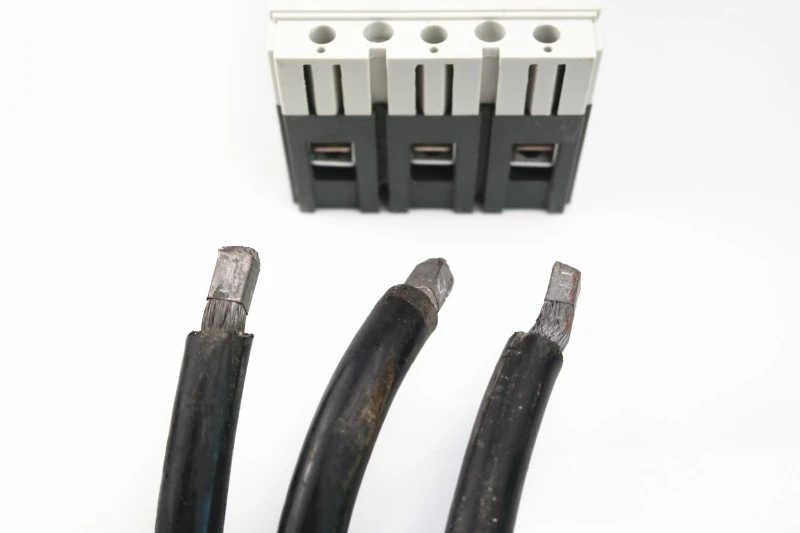

3) Batanidza zvakananga tambo (mufananidzo 3) pasina kushandisa tambo lugs.

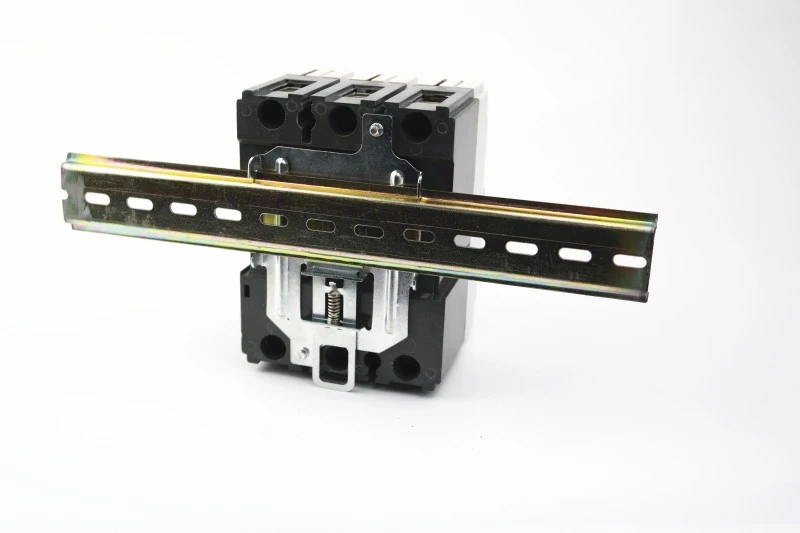

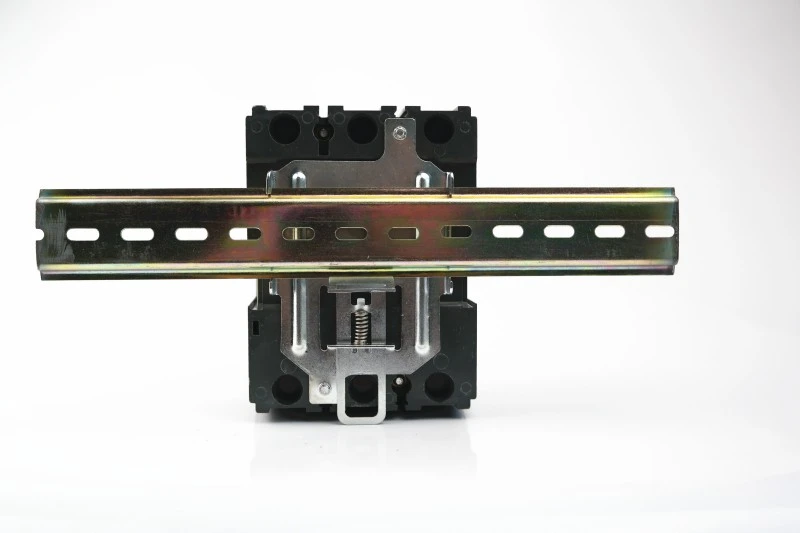

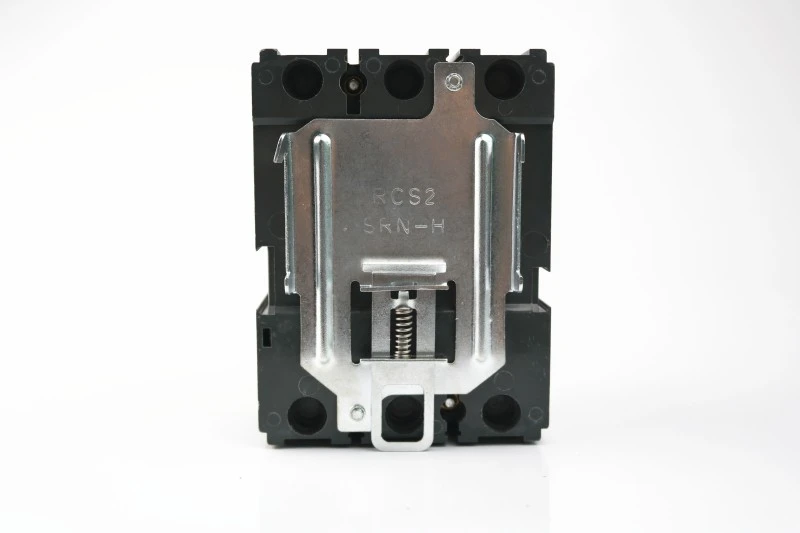

Nerubatsiro rweakakosha clamp 125 uye 160 mayunitsi anogona kuiswa paDIN-rail.
Breaker ine clamp
sunga neDIN njanji
sunga neDIN njanji
★Space-Saving Design:
10-20% yakareruka uye yakawanda compact pane dzimwe nzira dzepamba
Inogonesa madiki akavharirwa saizi → yakaderera zvinhu & mutengo wekutumira
★ Mushandisi-Inoshamwaridzana Reset:
Zvakajeka TRIP chiratidzo chinodzivirira mapofu kuvharika
Inonzwika "tinya" inosimbisa kwakaringana mechanic kuita
★ Ramangwana-Kugadzirira:
Inotsigira plug-in uye dhizaini kits (yekusarudza mhando)
Inoenderana neyakangwara yekutarisa ma-add-ons
Sei uchisarudza CDADA?
1. Isu tiri vagadziri vanotungamira kwe42+ makore. Kambani yedu yakavambwa muna 1983, inokura nekukurumidza mukati memakore makumi mana.

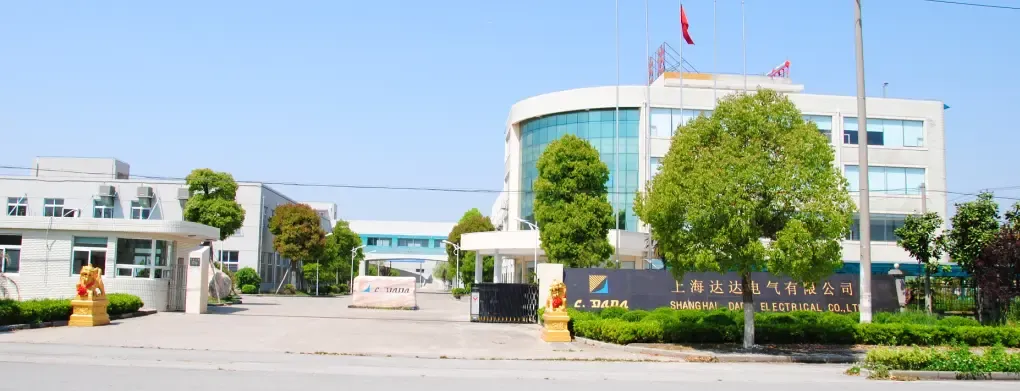

2. Boka, rine mafekitari matatu, rine nzvimbo yekugadzira inosvika 52,400m² uye rinoshandisa vashandi vanopfuura mazana mashanu. Takaisa mari inosvika miriyoni gumi yeyuan kuitira kuti tiwedzere kushanda kwedu nekusimudzira mashopu edu.
3. Fekitari yakaongororwa neINTERTEK, DEKRA & GMC
4. Makatoni akakwirira-simba, kuchengetedzwa kwepallet, yakanaka kune kureba kwekutakura kunze kwenyika
Mibvunzo Inowanzo bvunzwa (FAQ)
Q1: Ko iyo DAM1 Yakagadziriswa Type Molded Case Circuit Breaker inogona kuiswa paDIN njanji?
A1: Hongu-mienzaniso 125A uye 160A inogona kuiswa paDIN njanji uchishandisa sarudzo yakakosha clamp. Zviyero zvepamusoro zvinoiswa pane-panera chete.
Q2: Ndeapi macertification anobata DAM1 akateedzana?
A2: Inosimbiswa neEC, CB, ASTA, KEMA, SEMKO, uye RoHS, kuve nechokwadi chekutevedzwa kweEU, Middle East, Southeast Asia, uye mberi.
Q3: Ndinoita sei kuti ndigadzirise zvakare breaker mushure merwendo?
A3: Chekutanga, fambisa lever zvizere pasi ku OFF (iwe unonzwa kudzvanya), wozoikwevera kumusoro ku ON. Usambozvimanikidza kubva paTRIP kuenda paON.
Q4: Zvishandiso zvekubatsira zvinoenderana here?
A4: Hongu-alarm contacts, aixiliary contacts, shunt / undervoltage releases, uye magetsi emagetsi anogona kuwedzerwa pasina disassembly.
Q5: Iyo DAM1 yakakodzera here kutsiva vakuru vanotyora?
A5: Ndizvozvo. Yayo compact tsoka inobvumira kutsiva yakananga yenhaka MCCBs mune akawanda mapaneru - kuchengetedza nguva uye kusimudzira mitengo.
