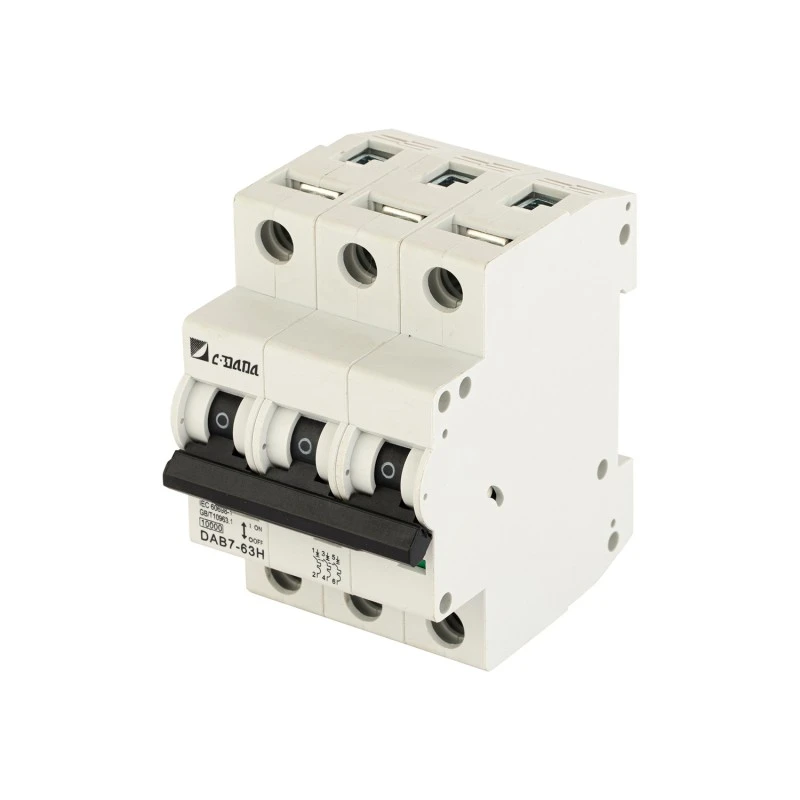

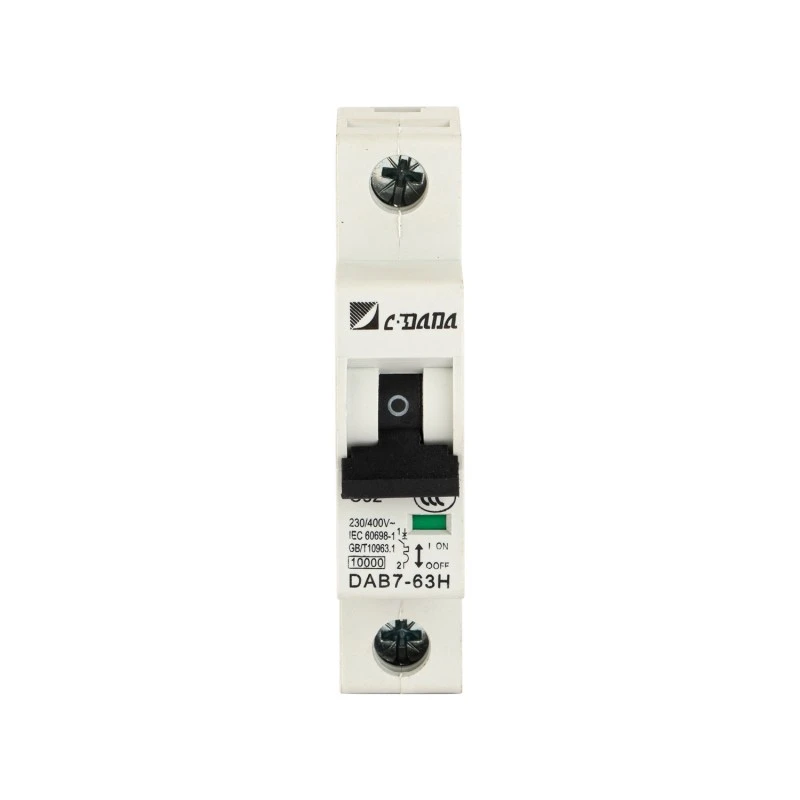

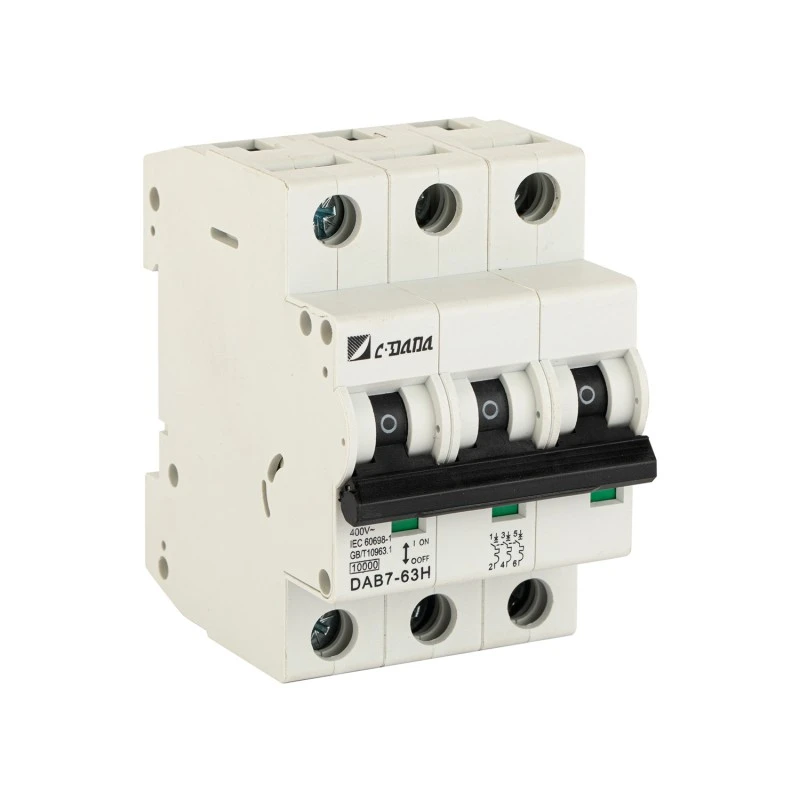

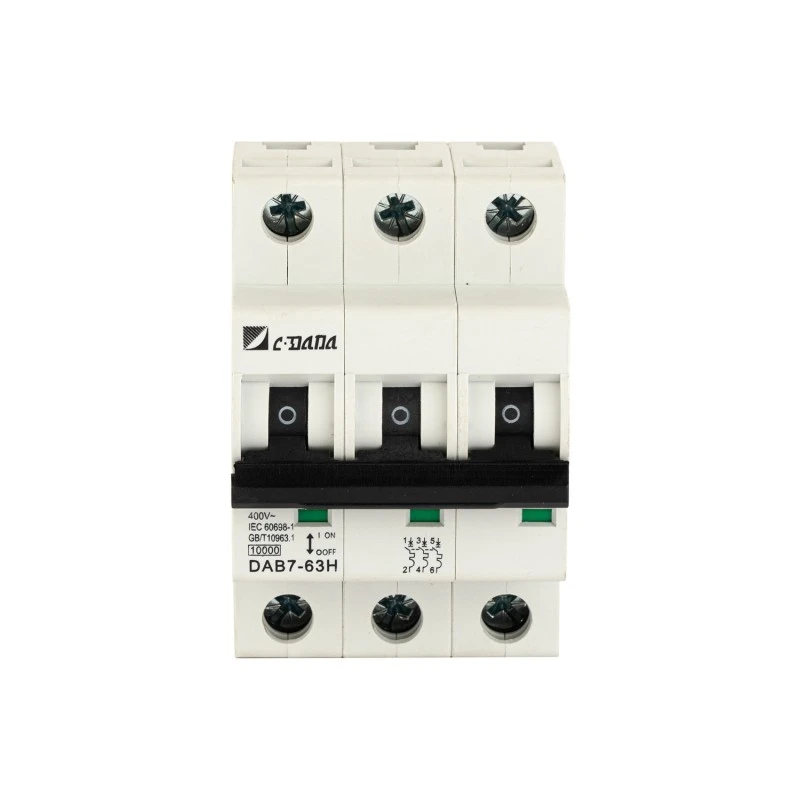

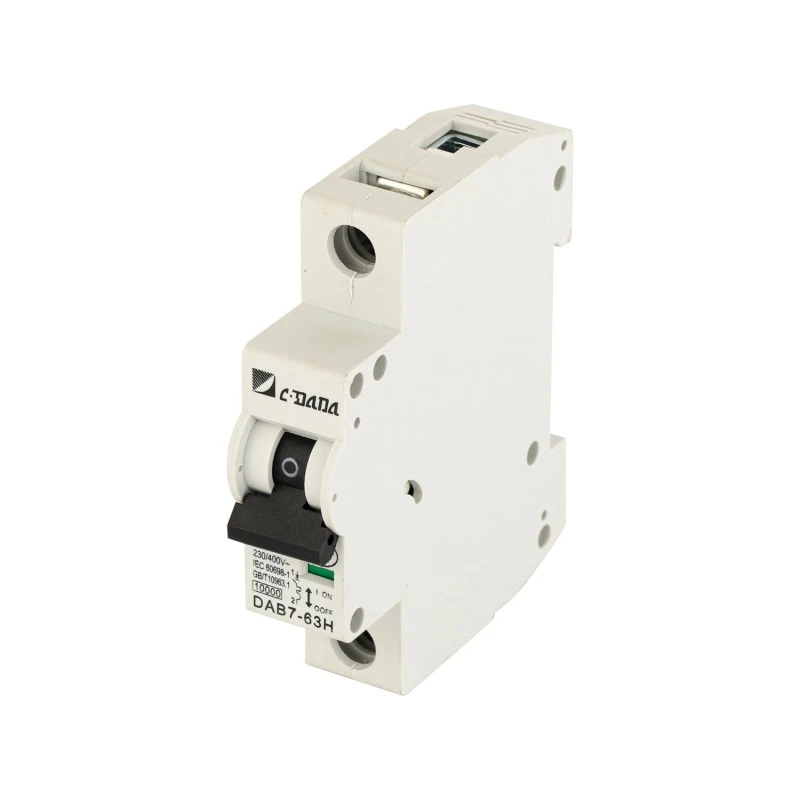

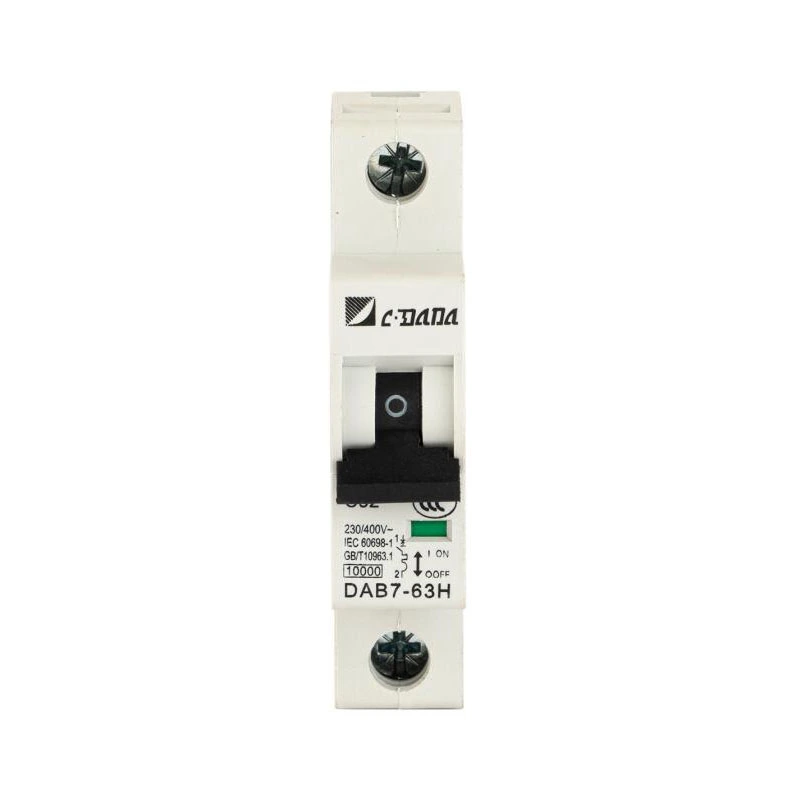

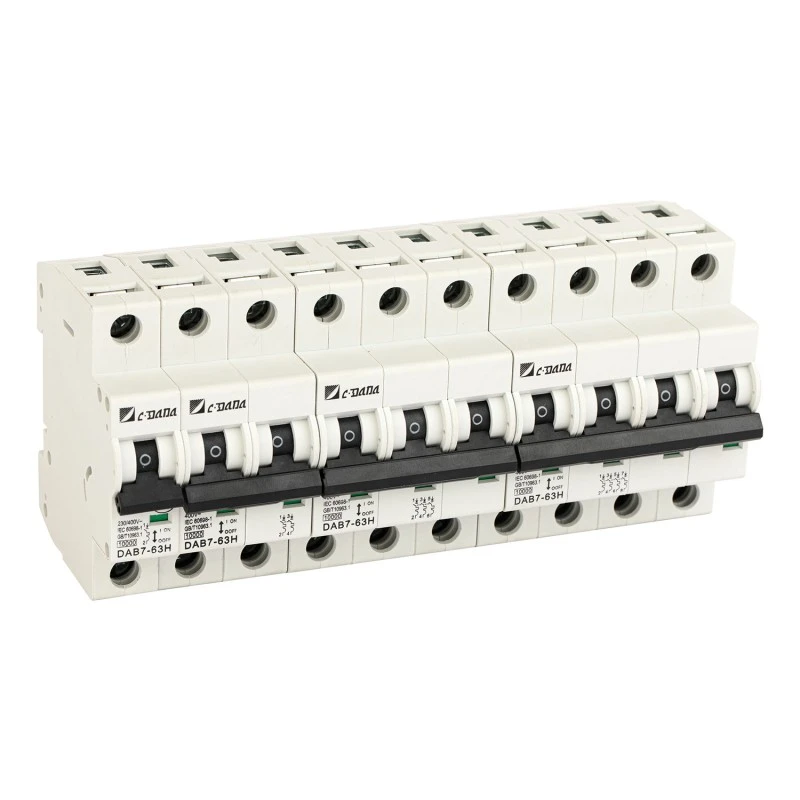

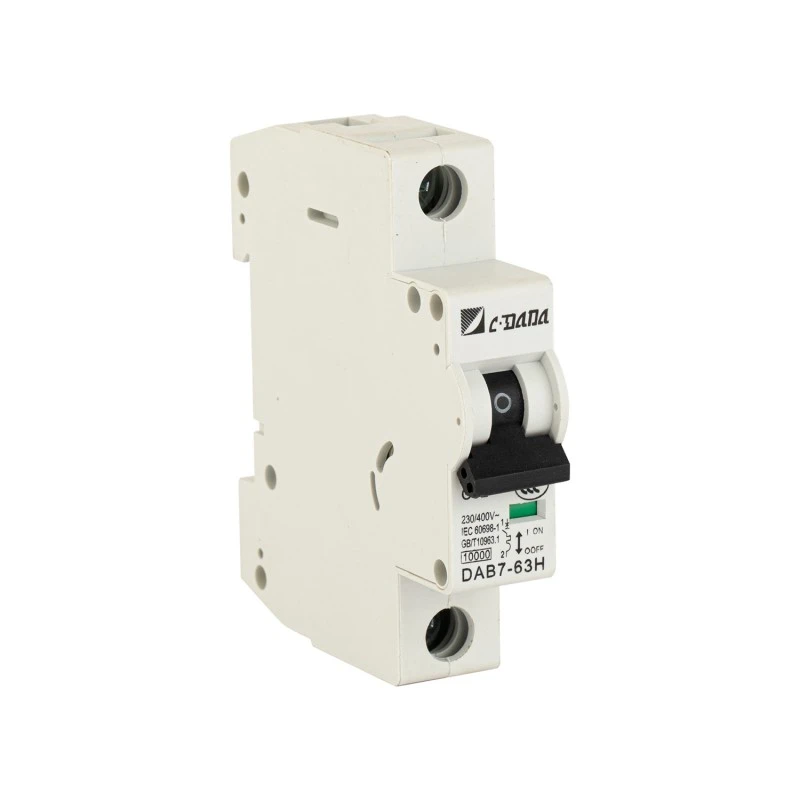

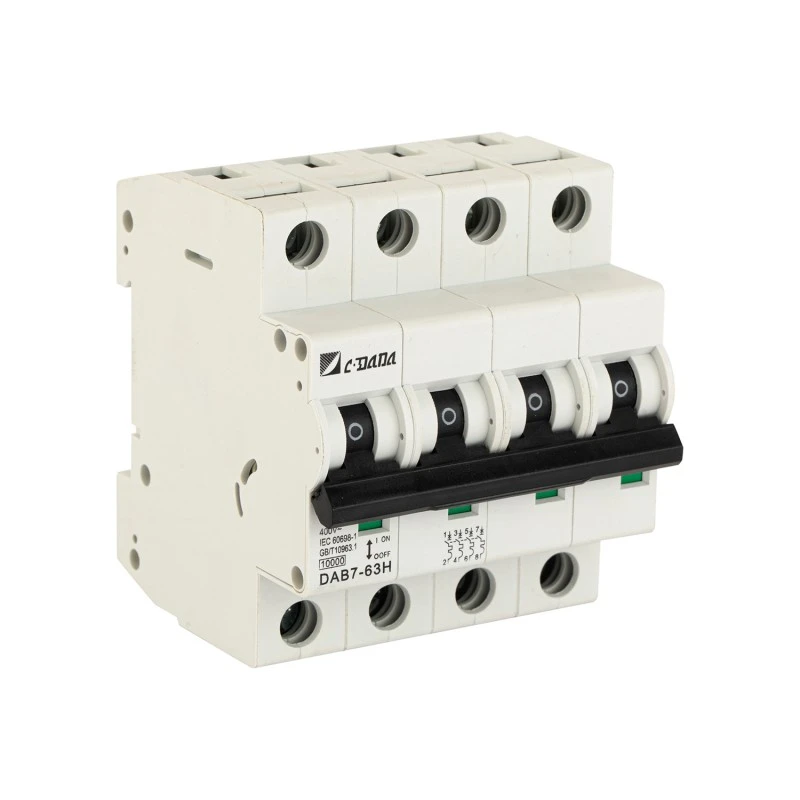

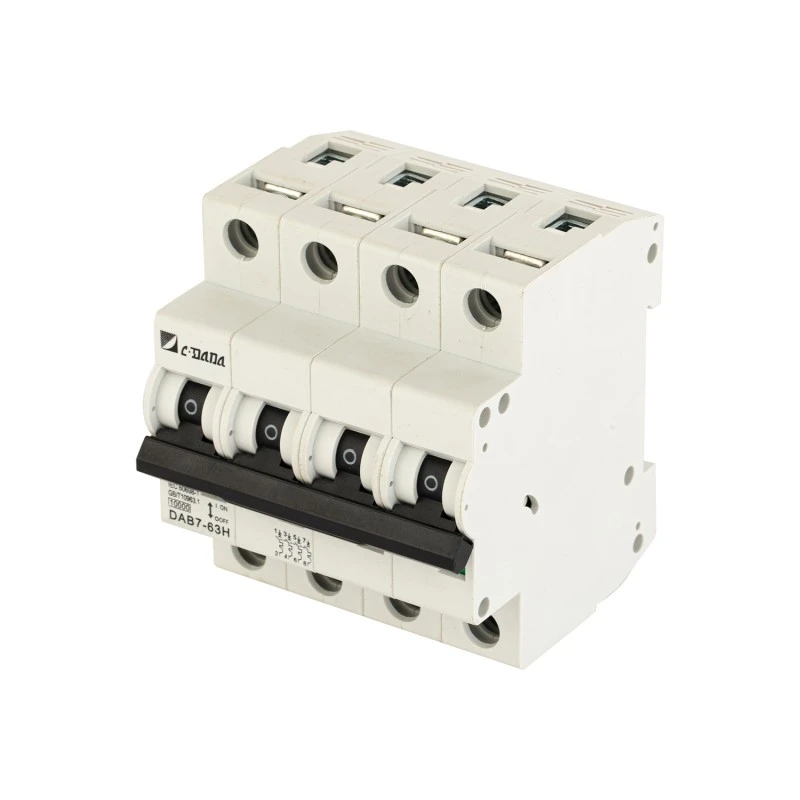

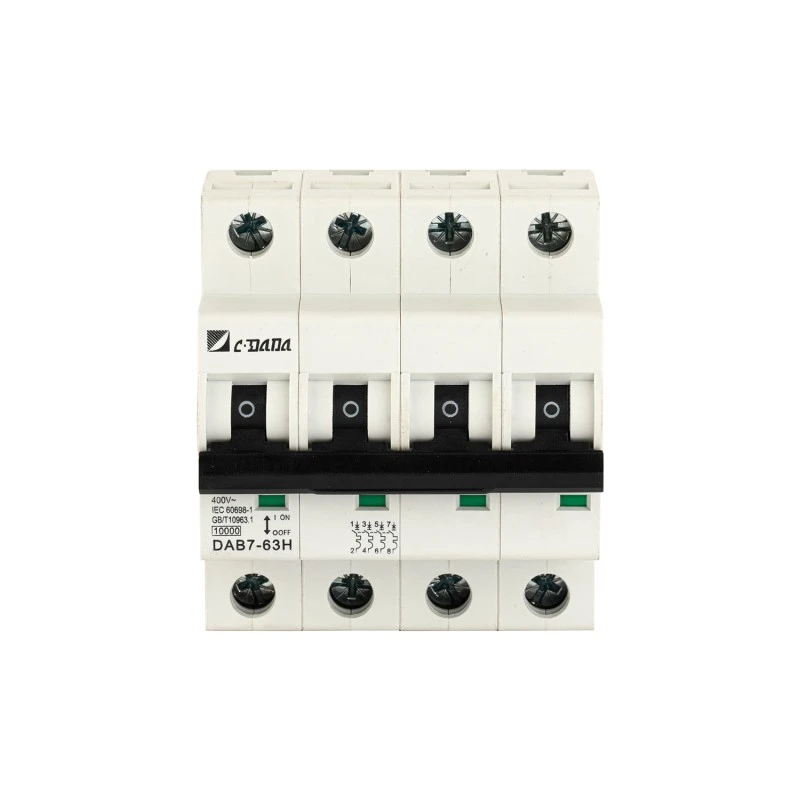

10KA AC Miniature Circuit Breaker
Model:DAB7-63H
10KA AC Miniature Circuit Breaker chigadzirwa chepamberi uye chepamusoro-soro, chinopihwa nemugadziri akavimbika CDADA, ine CE, CB, ASTA, SEMKO, uye ROHS yakasimbiswa. 1P/2P/3P, 6–63A, yakanakira maindasitiri nekutengesa mapaneru. High 10kA kutyora simba, -40 ° C kusvika +50 ° C kushanda, sirivheri-alloy contacts. OEM & maodha akawanda anogamuchirwa.
Zvekukumbira zvikumbiro uko kutadza kwepamusoro uye kuchengetedzeka kwakawedzerwa kusingagone kutaurirana, iyo CDADA DAB7-63H 10KA AC Miniature Circuit Breaker inopa dziviriro yeindasitiri-giredhi mune diki fomati. Engineered neShanghai DADA Electric CO., LTD., iyi 10kA miniature circuit breaker yakagadzirirwa mapaneru emapoka, mabhodhi ekugovera munzvimbo dzekugara, dzekutengeserana, uye dzakareruka dzemaindasitiri-inopa yakavimbika thermal (yakawandisa) uye electromagnetic (pfupi-circuit) dziviriro pa8 ikozvino ratings (6A-63A) uye 1P/2P/3P magadzirirwo.

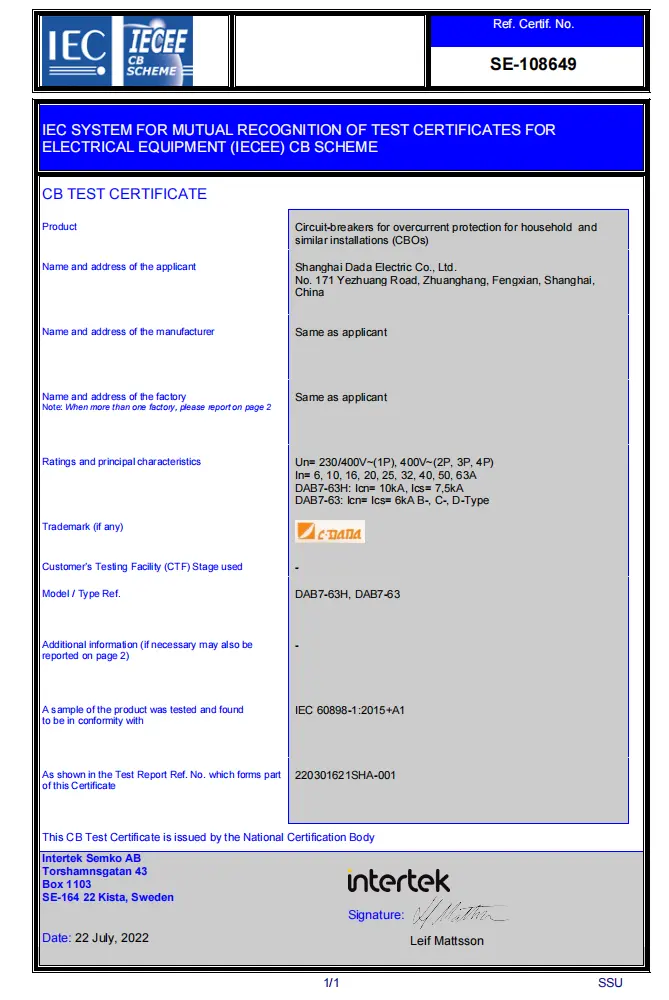

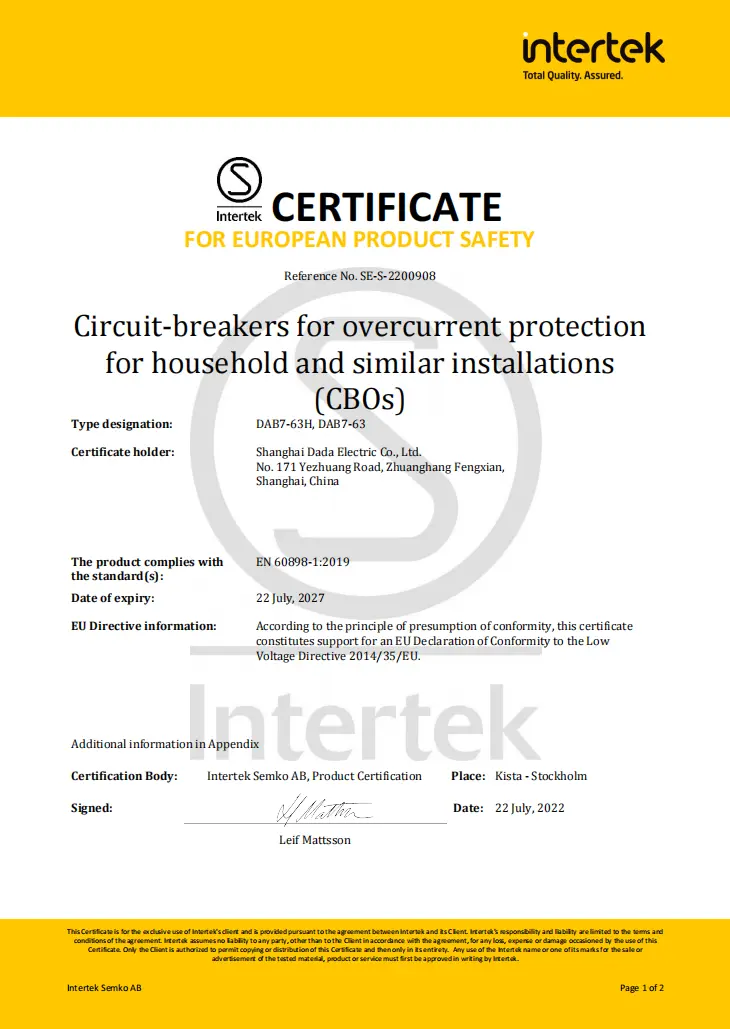

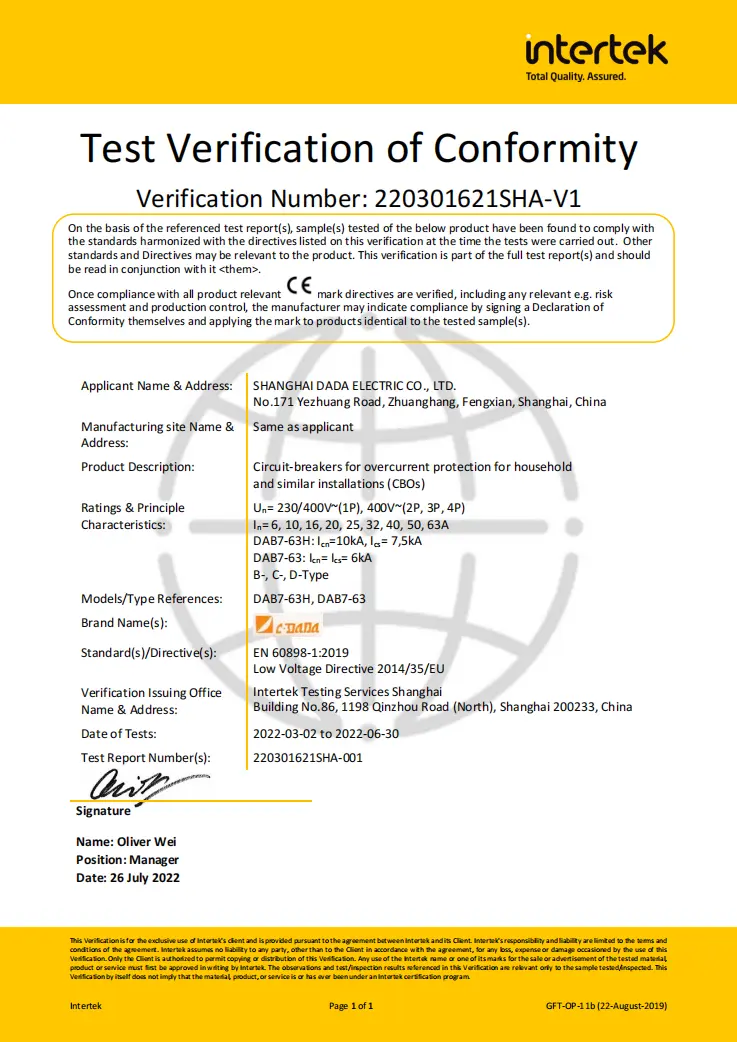

Certified to CE, CB, ASTA, uye SEMKO, inosangana neyakaomesesa kuchengetedzwa kwepasirese zviyero. Iine 13-plate arc chamber, silver-containing contact alloy, uye mbiri dzekubatanidza sarudzo (PIN/FORK), iyo DAB7-63H inova nechokwadi chekutsakatika kwearc nekukurumidza, kuderera kwekupisa, uye hupenyu hwemagetsi hwakawedzerwa-kunyangwe pasi pekuchinja nguva nenguva kana tembiricha yakakwira.
Zvinotaurwa Nezvakakosha
Muenzaniso: DAB7-63H Series
Type: AC Miniature Circuit Breaker (MCB)
Kutyora Kugona: 10kA @ 230/400V AC

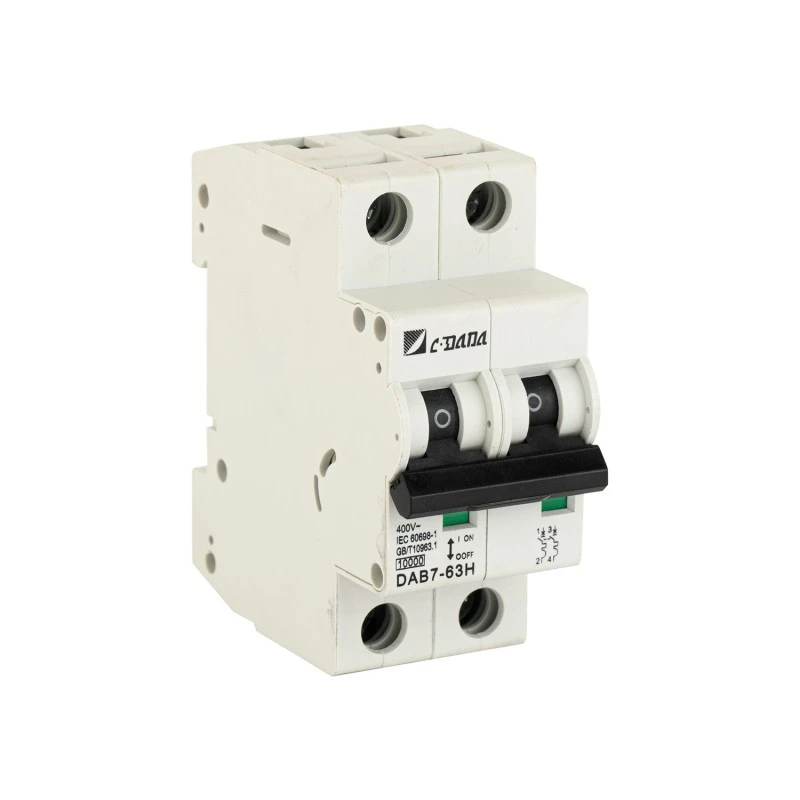

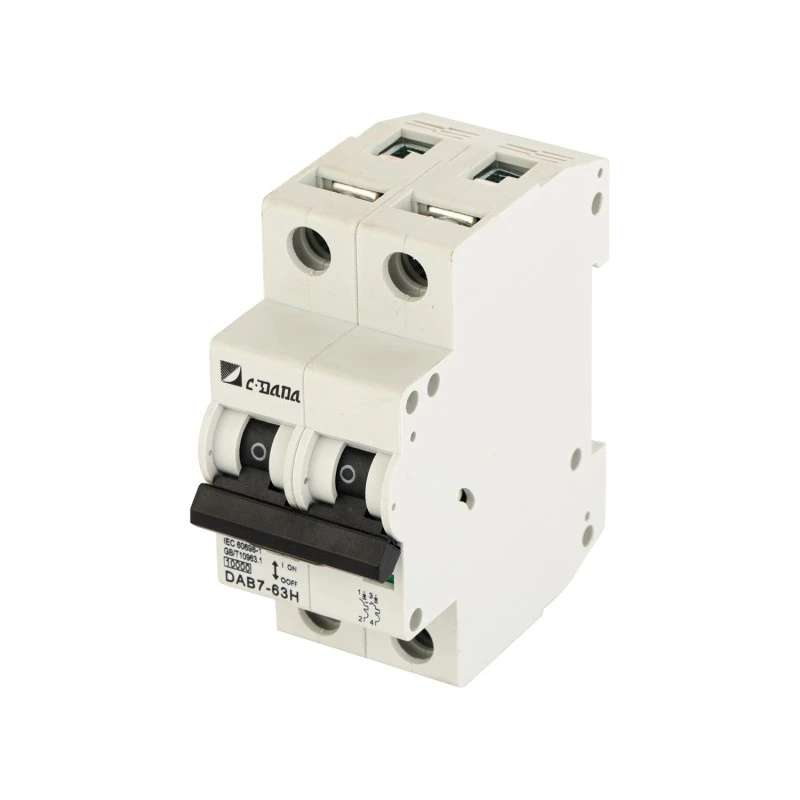

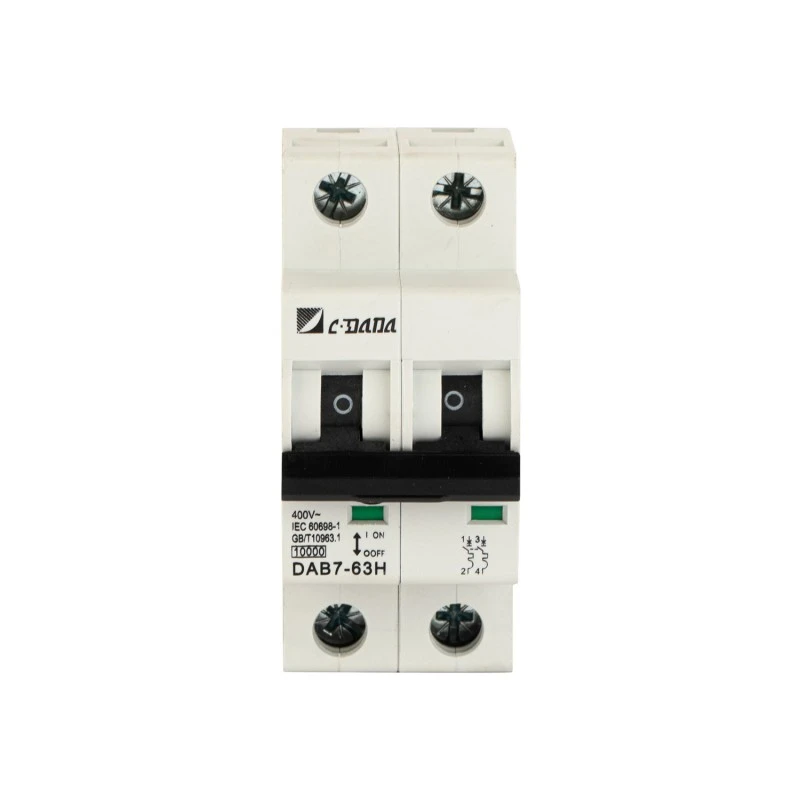

Mapango: 1P, 2P, 3P
Yakarongwa Yazvino (Mu): 1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A
Kushanda Tembiricha: -40°C kusvika +50°C

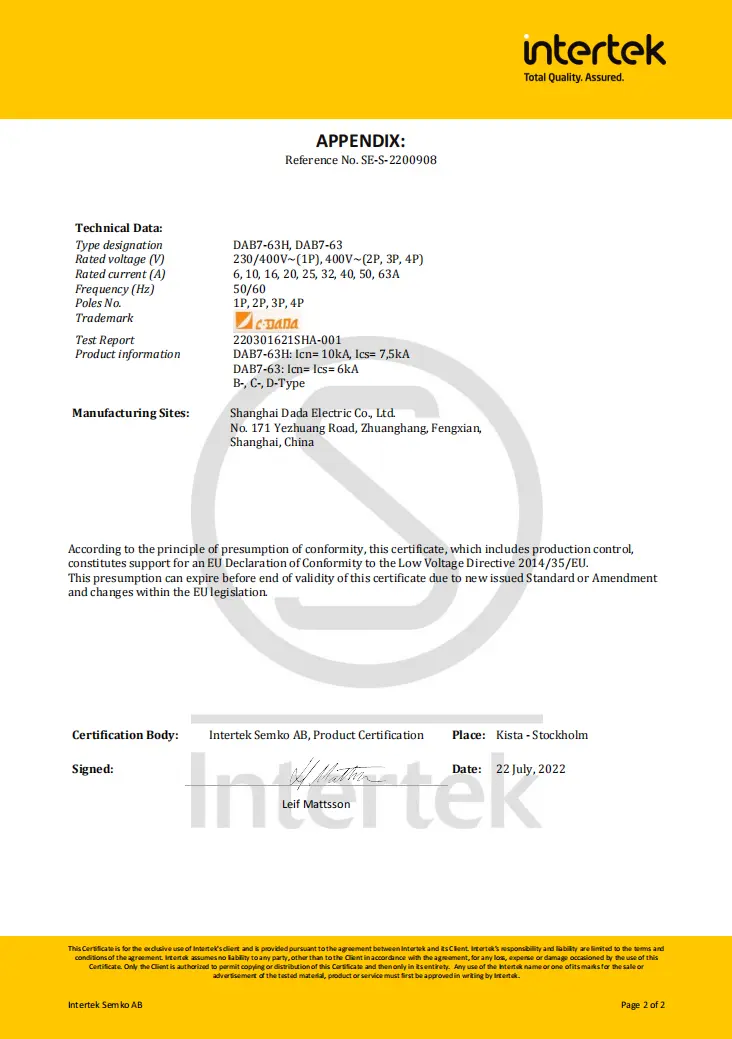

Certifications: CE, CB, ASTA, SEMKO

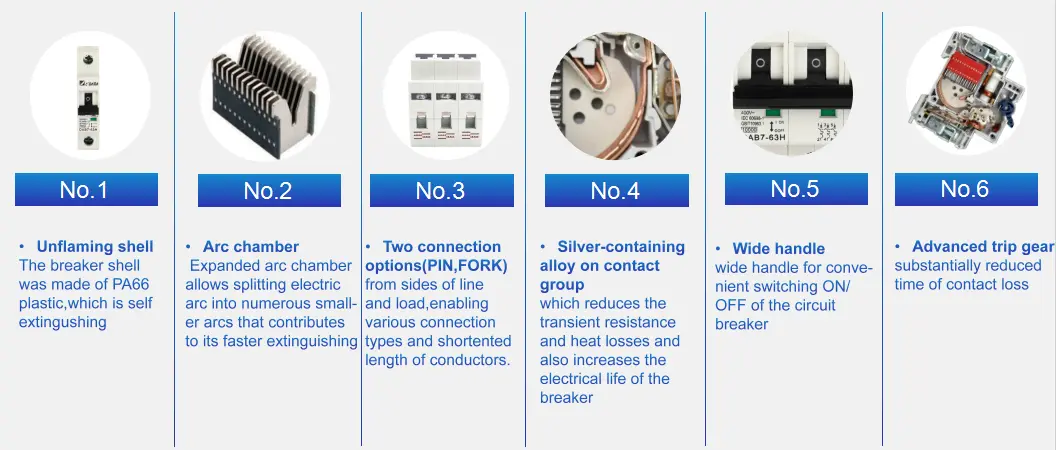

Key Design Features:
13-plate arc kamuri → yekupedzisira-inokurumidza arc kupatsanura & kupera
Silver-alloy contacts → yakaderera kuramba, hupenyu hurefu
Dual terminal sarudzo: PIN kana FORK (mutsara & mutoro wedivi)
Visual ON/OFF/trip indicator window
Yakakura ergonomic mubato wekushanda nyore
Murazvo-unodzoreredza, anti-yellowing imba (UL94 V-0 yakaenzana)
Super torque screws (yakaedzwa kusvika ku3 Nm) ine + / - misoro inoshanda
DIN njanji latch ine mbiri yekuvhara zvinzvimbo → kuchengetedzwa kwakachengeteka
Technical Data Sheet
|
MCB DAB7-63 |
|||||||
|
Nekudzivirira kwekugovera kwemagetsi kwakawanda (IEC/EN 60898-1) |
|
|
|
|
|||
|
Poles |
1P |
2P |
3P |
4P |
|||
|
Kuita kwemagetsi |
|||||||
|
Mabasa |
pfupi dunhu dziviriro, overload kudzivirira, isolationg, control |
||||||
|
Yakatemerwa frequency f (Hz) |
50-60Hz |
||||||
|
Rated kushanda voltage Ue V AC |
230/400 |
400 |
|||||
|
Yakatemerwa ikozvino mu(A) |
1,2,3,4,5,6,10,16,20,25,32,40,50,63 |
||||||
|
Rated insulated voltage Ui (V) |
500 |
||||||
|
Impulse inomira voltage Uimp kV |
4 |
||||||
|
Instantaneous tripping type |
DAB7-63N |
B/C/D |
|||||
|
DAB7-63H |
B/C/D |
||||||
|
Rated short circuit Icn(kA) |
DAB7-63N |
6 |
|||||
|
DAB7-63H |
10 |
||||||
|
Release type |
Thermal magnetic type |
||||||
|
Hupenyu hwesevhisi(O~C) |
Mechanical |
Kukosha chaiko |
20000 |
||||
|
Standard value |
4000 |
||||||
|
Zvemagetsi |
Kukosha chaiko |
8000 |
|||||
|
Standard value |
4000 |
||||||
|
Kubatanidza uye kuisa |
|||||||
|
Dhigirii rekudzivirira |
IP20 |
||||||
|
Wire mm² |
1~35 |
||||||
|
Kushanda tembiricha |
-5 ℃+40℃ |
||||||
|
Kupokana nekunyorova uye kupisa |
Kirasi 2 |
||||||
|
Altitude pamusoro pegungwa |
≤2000 |
||||||
|
Hunyoro hwehukama |
+20℃ , ≤90% ;+40℃ , ≤50% |
||||||
|
Dhigirii rekusvibisa |
2 |
||||||
|
Installation environment |
Dzivisa kuvhunduka uye kudedera kuri pachena |
||||||
|
Kuiswa kirasi |
Kirasi II, Kirasi III |
||||||
|
Mounting |
DIN35 njanji |
||||||
|
Kusanganiswa nemidziyo |
|||||||
|
Mubatsiri kuonana |
Ehe |
||||||
|
Alarm contact |
Ehe |
||||||
|
Shunt release |
Ehe |
||||||
|
Undervoltage release |
Ehe |
||||||
|
Yekubatsira kubata+Alarm contact |
Ehe |
||||||
|
Dimensions(mm) (WxHxL) |
a |
18 |
36 |
54 |
72 |
||
|
b |
80 |
80 |
80 |
80 |
|||
|
c |
72 |
72 |
72 |
72 |
|||
Sei Sarudza CDADA AC MCB 10kA?
★ Industrial-Grade Performance muMiniature Form
Nepo maMCB akajairwa achipa 6kA, iyo 10kA chiyero cheDAB7-63H inoita kuti ive yakakodzera nzvimbo dziri padyo nenzvimbo huru-semakamuri ekugovera epasi, pasi pekutengesa, kana maworkshop akareruka maindasitiri - uko kunenge kuine mhosva kwakakwira.★ Kuwedzeredzwa Kuchengetedza & Kusimba
● Goko risingatsviridzike rinoramba kubatidzwa uye kushanduka ruvara
● Kudzima kaviri grid kunodzivirira kupisa gasi ejection
● Nzira isina rwendo inoita kuti pave nekudimburwa kunyange kana mubato wakabatiswa
★ Lower Lifetime Cost
Silver-alloy contacts uye optimized terminals inoderedza kurasikirwa kwemafuta uye kubata welding, kuwedzera hupenyu hwesevhisi-kunyanya mu-high-cycle application.★ Global Acceptance
Ne ASTA (UK), SEMKO (Nordic), CE (EU), uye CB (pasi rose), CDADA MCBs inogamuchirwa munyika dzinopfuura makumi manomwe-yakanakira vanovaka mapaneru ekunze.
★ Installer-Hushamwari Dhizaini
★ Wider mubato = nyore kushanda
★ Cross-functional screws = hapana akadonha fasteners
★ Bvisa chimiro hwindo = pakarepo kuona kwekuona

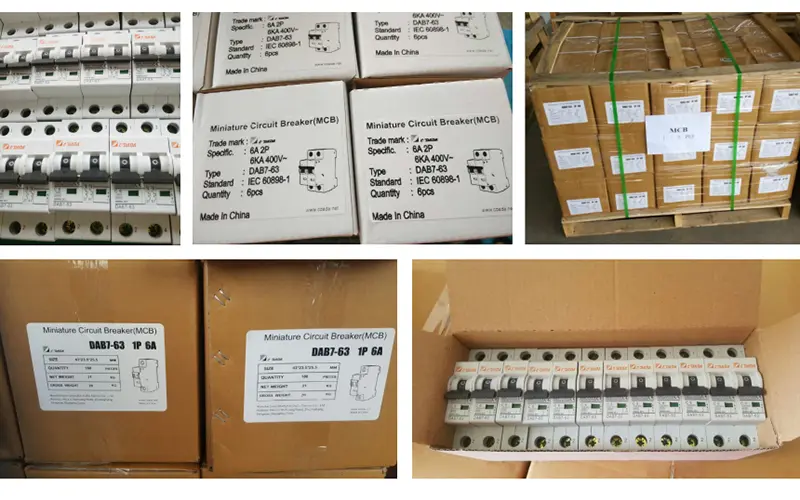

★ Makatoni ane simba guru, kuchengetedzwa kwepallet, yakanaka kune kureba kwekutakura kunze kwenyika
★ Kurumidza kutumira nguva yemirairo yakanaka.
Ideal Applications
Zvivako zveCommerce: Floor kugovera mapaneru, maseva makamuri, zvitoro zvekutengesa
Chiedza Indasitiri: Maseketi ekudzora emuchina, madiki emagetsi ekufambisa, masokisi emusangano
Public Infrastructure: Zvikoro, zvipatara, mahofisi ehurumende
High-Density Residence: Apartment blocks ine centralized metering
Export Panels: Zvemapurojekiti anoda zvitupa zvepasi rese
Mibvunzo Inowanzo bvunzwa
Q1: Ndeupi musiyano pakati pe6kA ne10kA MCBs?
A1: 10kA MCBs inogona kukanganisa zvakachengeteka mafambiro epamusoro-ichiita kuti akwanise kuisirwa padyo ne transformer kana main incomer, uko pfupi-circuit mazinga anopfuura 6kA. Shandisa 10kA mune zvekutengesa / maindasitiri sub-panels; 6kA inowanzokwana kumagumo maseketi mudzimba.
Q2: Iyo 10KA AC Miniature Circuit Breaker inowanikwa mu3P yematatu-chikamu masisitimu?
A2: Hongu! Iyo DAB7-63H inowanikwa mu1P, 2P, uye 3P-yakakwana kune matatu-chikamu mwenje, HVAC, kana muchina maseketi.
Q3: "Silver-ine alloy pane vanobatika" inorevei pakuita?
A3: Inoderedza kupikisa kurambana, inoderedza arcing panguva yekuchinja, uye inowedzera hupenyu hwemagetsi-kunyanya kukosha mumasekete ane kushanda nguva dzose kana inductive mitoro.
Q4: Ndingashandisa forogo-mhando yekubatanidza neiyi MCB?
A4: Ndizvozvo! Iyo inotsigira ese maPIN uye FORK zviteshi pamutsetse uye kuremedza mativi-inogonesa kuchinjika, yakaderera-mbiri wiring uye ipfupi tambo inomhanya.
Q5: Sei uchisarudza CDADA pane mamwe 10kA MCB mhando?
A5: CDADA inomira pachena nekuti:● Chokwadi 10kA chiyero chine zvizere zvitupa (kwete kungonzi)
● Advanced arc chamber (13 plates) yekukanganisa kwepamusoro
● Dual terminal sarudzo kashoma kuwanikwa mukirasi ino
● -40 ° C kusvika + 50 ° C kushanda-yakafara kupfuura vakawanda vakwikwidzi
● OEM-yakagadzirira: unhu hunoenderana, rubatsiro rweChirungu, mutengo wakawanda
