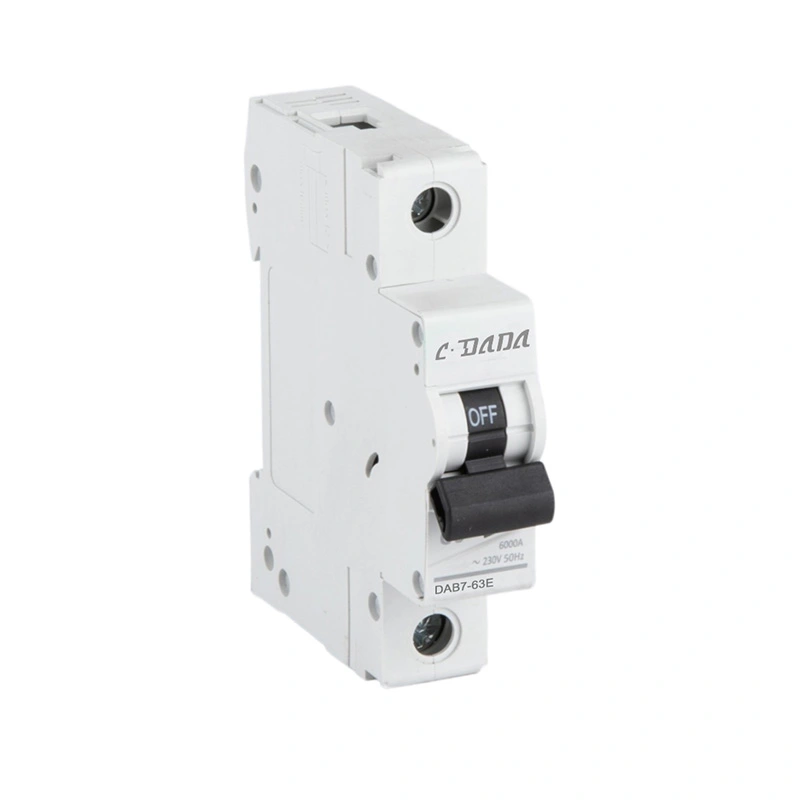

1P 6kA AC Miniature Circuit Breaker
Model:CDADA Series AC MCB
Inzwa wakasununguka kubata CDADA, uye tora yedu 1P 6kA AC Miniature Circuit Breaker ine fekitori mutengo wakananga, ichipa yakavimbika yakawandisa uye pfupi-yedunhu chengetedzo ine compact DIN-rail dhizaini. Ichi chigadzirwa chinoratidza chaiyo thermal-magnetic kutsika uye yakajeka chimiro chiratidzo, nyore kuisa nekuchengetedza. Inopa kushanda kwakagadzikana kwekugara uye chiedza chekutengesa maseketi, kuve nechokwadi chekuchengetedza magetsi nehupenyu hurefu hwebasa.
CDADA 1P 6kA AC Miniature Circuit Breaker imhando yepamusoro imwe-pole miniature circuit breaker yakagadzirirwa AC low-voltage systems. Inopa kuchengetedzwa kwakavimbika kubva kune zvakawandisa uye mapfupi maseketi, zvinobudirira kuchengetedza maseketi emagetsi uye midziyo yakabatana. Yakagadzirwa kune yakasimba mitemo yepasirese, iyi AC MCB yakanakira vanogovera, maOEM nemakondirakiti emagetsi ari kutsvaga akasimba, anodhura-anochengetedza mhinduro.
Product Features & Zvakanakira
★ Compact Dhizaini: Chimiro chekuchengetedza nzvimbo chakakodzera mabhodhi ekugovera akajairwa
★ High Breaking Capacity: 6kA short-circuit interruption inokwanisa kuitira kuchengetedzwa kwakawedzerwa
★ Precision Tripping: Thermal-magnetic trip unit inova nechokwadi chekuremedza uye kuchengetedzwa kwepfupi-yedunhu
★ Yakajeka Status Chiratidzo: Inooneka ON / OFF hwindo rekukurumidza redunhu mamiriro ekuongorora
★ Yakachengeteka Wiring: Yepamusoro-mhando terminals ine yakagadzikana yekubatanidza, inoderedza kusangana kuramba
★ Durable Construction: Dzimba dzinopisa moto nepamusoro pekushisa
★ Easy Installation: Standard 35mm DIN-njanji gomo kuti nokukurumidza kusangana
★ Kuvimbika Unhu: 100% yakazara yekuongorora isati yatumirwa, inopindirana kushanda
Applications
★ CDADA 1P 6kA AC Miniature Circuit Breaker inoshandiswa zvakanyanya mu:
★ Zvivakwa zvekugara, dzimba nemavillas
★ Zvivakwa zvemuhofisi, zvitoro nenzvimbo dzekutengesa
★ Zviedza zvemaindasitiri workshops uye zvigadzirwa zvekugadzira
★ Nzvimbo dzekutengera, mahotera nemaresitorendi
★ Zvivakwa zveveruzhinji nemapurojekiti ezvivakwa
★ Magetsi emagetsi uye madiki ekudzivirira emidziyo yemagetsi
Technical Parameters
|
Item |
Tsanangudzo |
|
Model |
CDADA Series AC MCB |
|
Standard |
IEC60898 |
|
Type |
AC MCB (Miniature Circuit Breaker) |
|

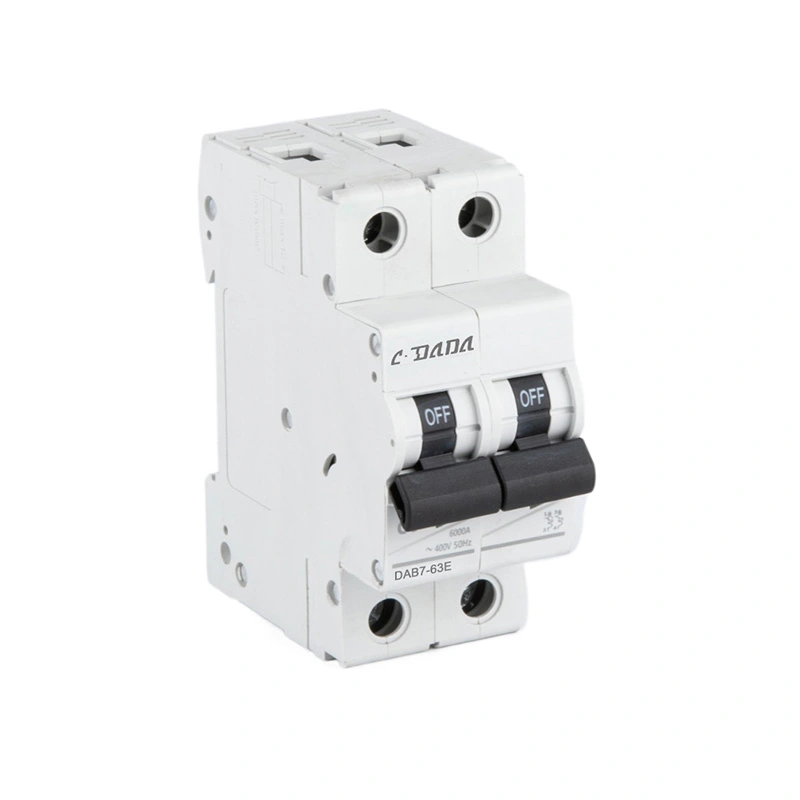

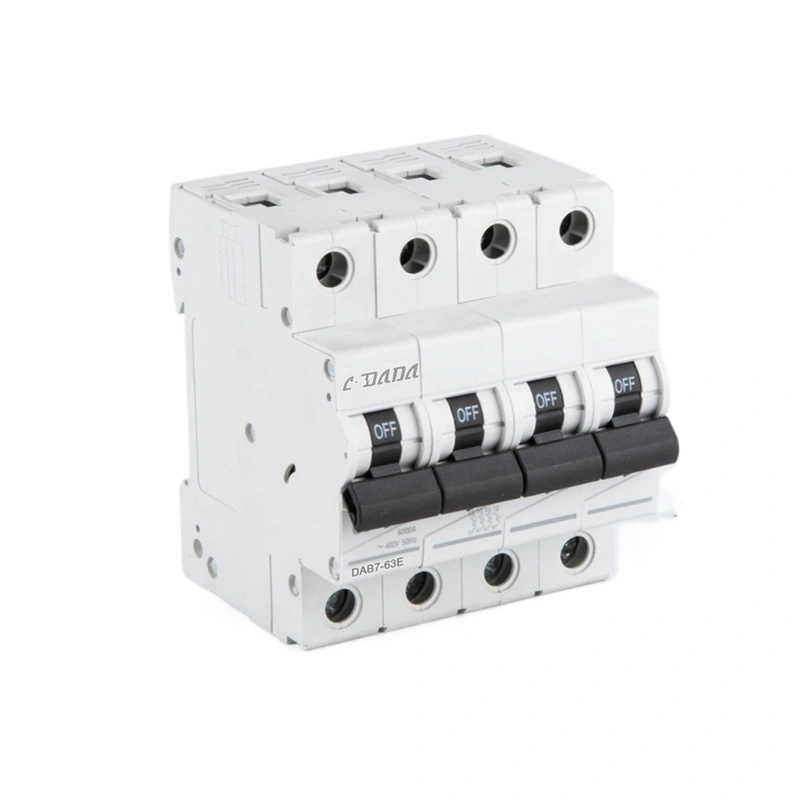

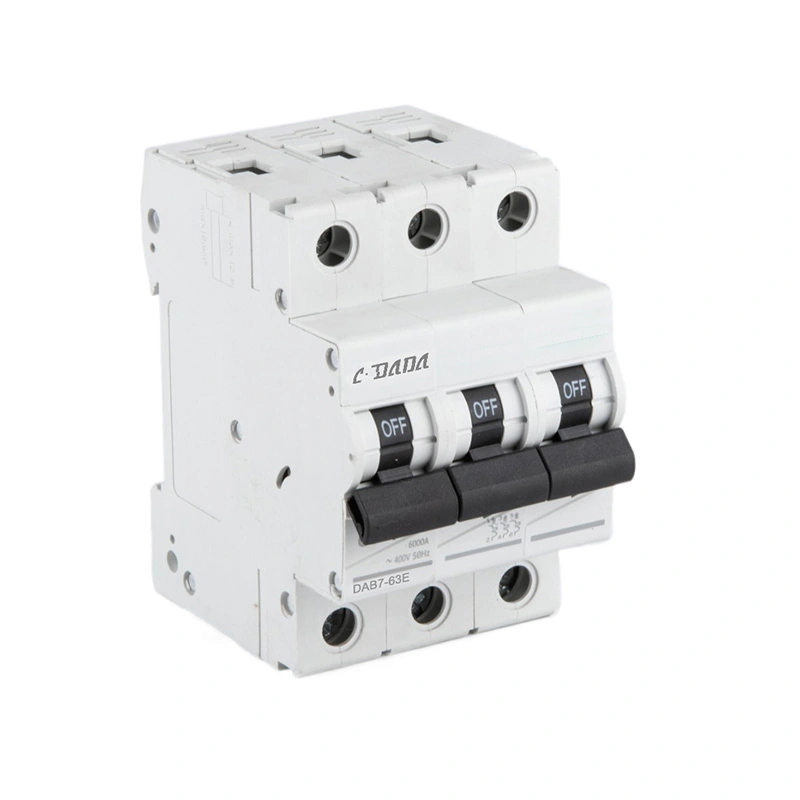

Poles |
1P,2P,3P,4P |
|
Breaking Capacity |
6kA |
|
Rated Current |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Tripping Curve |
B, C, D (kusarudza) |
|
Rated Voltage |
AC 230V, 400V |
|
Insulation Voltage |
600V |
|
Impulse Voltage |
6kV |
|
Dziviriro Dhigirii |
IP20 |
|
Installation |
35mm DIN Rail |
|
Operating Temperature |
-5 ℃ ~ +40 ℃ |
|
Mechanical Life |
≥20,000 mashandiro |
|
Upenyu hweMagetsi |
≥4,000 mashandiro (payakayerwa ikozvino) |
|
Kutevedza Mitemo |
IEC60898-1, IEC60898-2 |
Rondedzera Dimensions
★ Kufara: 17.8mm padanda (standard single-pole size)
★ Urefu: Inenge 85-92mm (inosiyana nechiyero chazvino)
★ Kudzika: Inenge 68-72mm
★ Wiring Capacity: 1.5-16mm² inochinjika kana yakasimba copper tambo
★ Standard Kuenderana: Inokodzera ese 35mm DIN njanji masisitimu (TS35/7.5, TS35/15)
IEC 60898-1

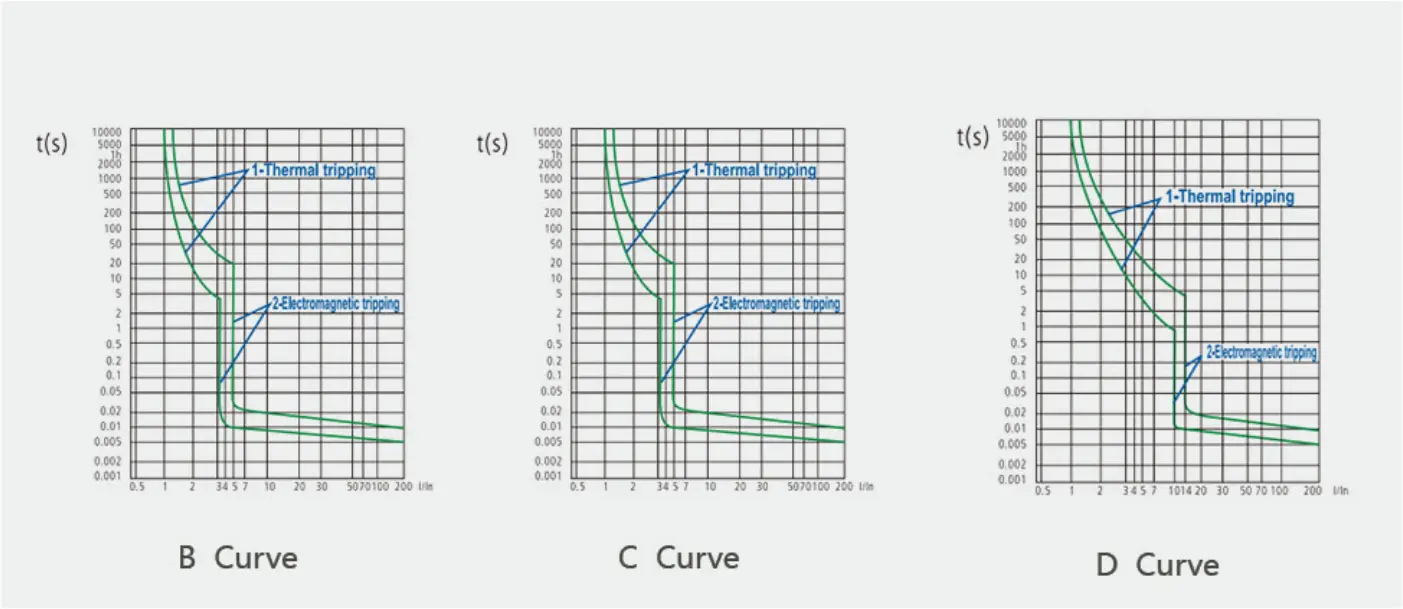

Magnetic Release
Kana dunhu diki redunhu rikaitika, kukwanuka pakarepo kunowanikwa nemagineti ine musimboti wesimbi. Zvinoenderana neiyo 1EC60898 yakajairwa, chigadzirwa ichi chinogona kupatsanurwa mumhando nhatu: B, C, uye D.
|
|
Test current |
Nguva yekufamba |
Applications |
|
B Curve |
3ln 5ln |
0.1 |
Type B inongoshanda kune inoshanda mitoro: -Electric heater-Mvura hita-Electric furmace |
|
C Curve |
5In 10ln |
0.1 |
Type C inokodzera mitoro yakajairika: -Lamp -Simba remagetsi -Small simba mota |
|
D Curve |
10ln 20In |
0.1 |
Dzora uye chengetedza maseketi nekuvhiya kwazvino (mamota makuru) |
Thermal Release
● Kamwe kuwandisa kunoitika munharaunda, bimetallic strip ye circuit breaker ichakotama nekuda kwekupisa, zvichiita kuti vanobatana vasununguke uye zvichikonzera kupisa kwemhepo;
● Muyero weIEC unotsanangura rwendo rwekufamba kwenguva yakasiyana-siyana yakawandisa;
●Tembiricha yenzvimbo yekuongorora i30 °C.
|
Test current |
Nguva yekufamba |
|
1.13ln |
t z 1h(mu ≦ 63A) |
|
1.45ln |
t<1h(Mune ≦ 63A) |
|
2.55ln |
1s<1h<60s(In≤32A)1s |

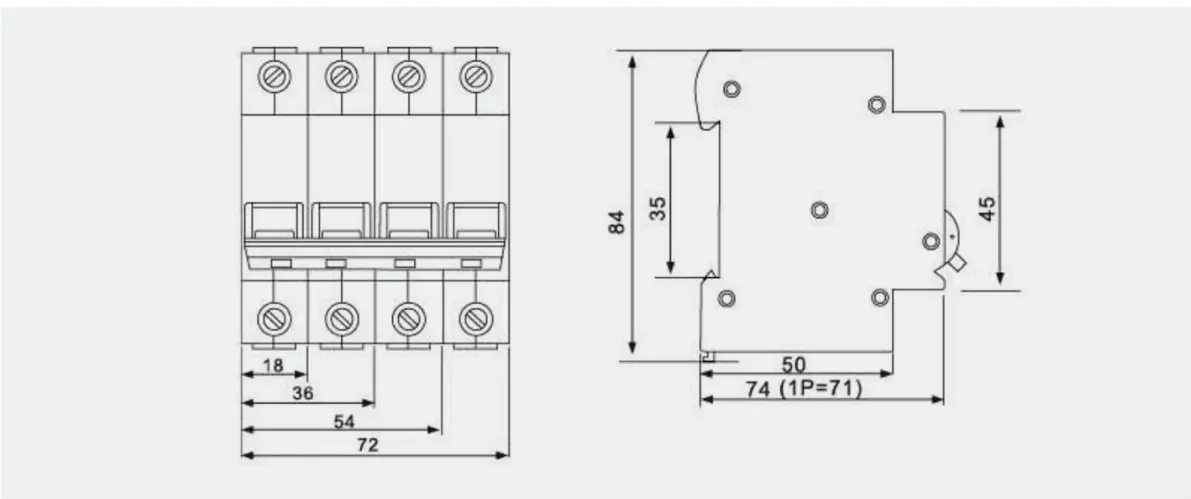

● Zvigadzirwa uye zviyero zvekuisa (MM)
Chigadzirwa chacho chakaiswa pane njanji inotungamira ine yakakura yekubatanidza huwandu hwe25mm2.
Quality Control

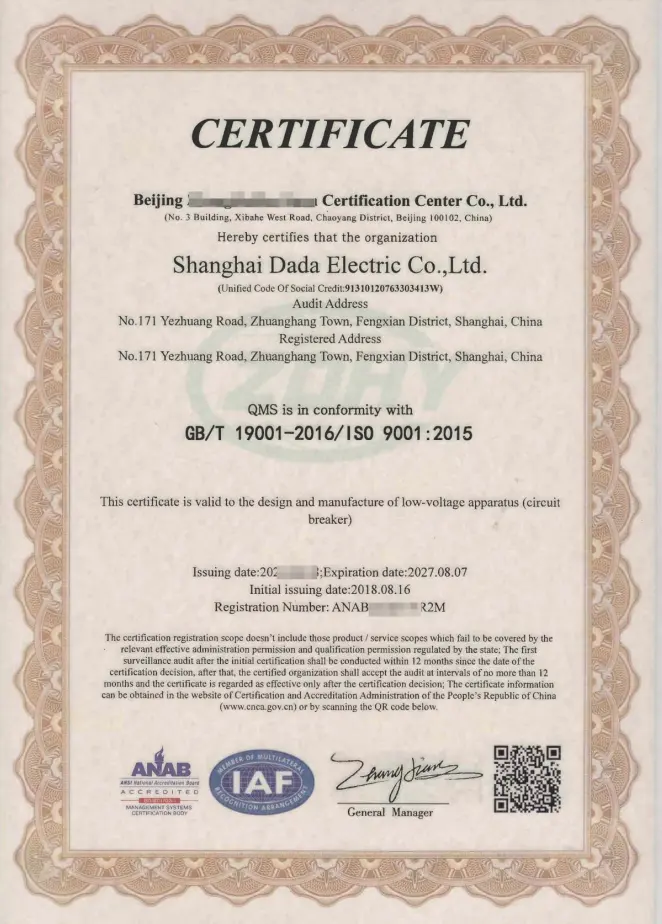

★ ISO9001 Certified Manufacturing: Strict quality management system mukati mekugadzira
★ Comprehensive Testing: 100% kuongorora kunosanganisira kugumburwa maitiro, tembiricha kukwira uye voltage bvunzo
★ In-Imba Kugadzirwa: 90% yezvikamu zvakakosha zvinogadzirwa mukati kuti zvive nehutano hunoenderana
★ Environmental Testing: High/low tembiricha kushanda, humidity kuramba verification
★ Kuvimbika Kuvimbika: Yenguva refu yekusimba kuyedzwa kwehupenyu hwesevhisi hwakawedzerwa
Packaging & Shipping
★ Standard Export Packaging: Makotoni ane Corrugated ane dziviriro
★ Clear Labeling: Nhamba yemuenzaniso, chiyero chazvino, nhamba yepole, huwandu uye ruzivo rwechitupa
★ Protective Packaging: bhokisi reboka re12 unit kudzivirira kukanganisa panguva yekufambisa
★ Shipping Options: Inokodzera gungwa, mhepo uye nyika yekufambisa; iripo yekutakura yakawanda
★ Tsika Packaging: OEM yekurongedza sarudzo dziripo kune brand partners
Mutengi Kubudirira Nyaya
★ CDADA 1P 6kA AC Miniature Circuit Breaker yakagadzira kubatana kwenguva refu nevatengi pasi rese:
★ Mapurojekiti Ekugara: Anopihwa kuvagadziri vedzimba muSoutheast Asia, Middle East neSouth America
★ Kumisikidzwa Kwezvekutengeserana: Kudyidzana nevemagetsi makondirakiti muEurope, Africa neAsia kumapurojekiti ekuvaka ekutengesa
★ Kudyidzana kweOEM: Yakabatanidzwa nemhando dzemagetsi epasi rose ekunyora mazita ega uye mhinduro dzakagadzirirwa
★ Industrial Applications: Yakapiwa kune zvivako zvekugadzira zvemichina nekudzivirira kwemidziyo
★ Distributor Networks: Kushanda nevashambadzi vedunhu munyika dzinopfuura makumi matatu kusangana nemusika wemuno
