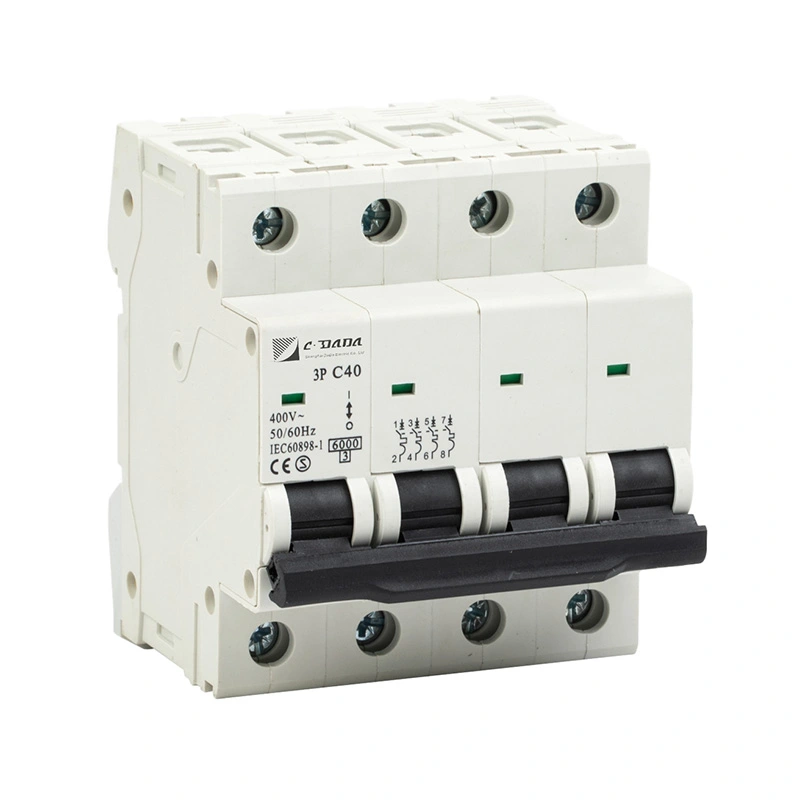

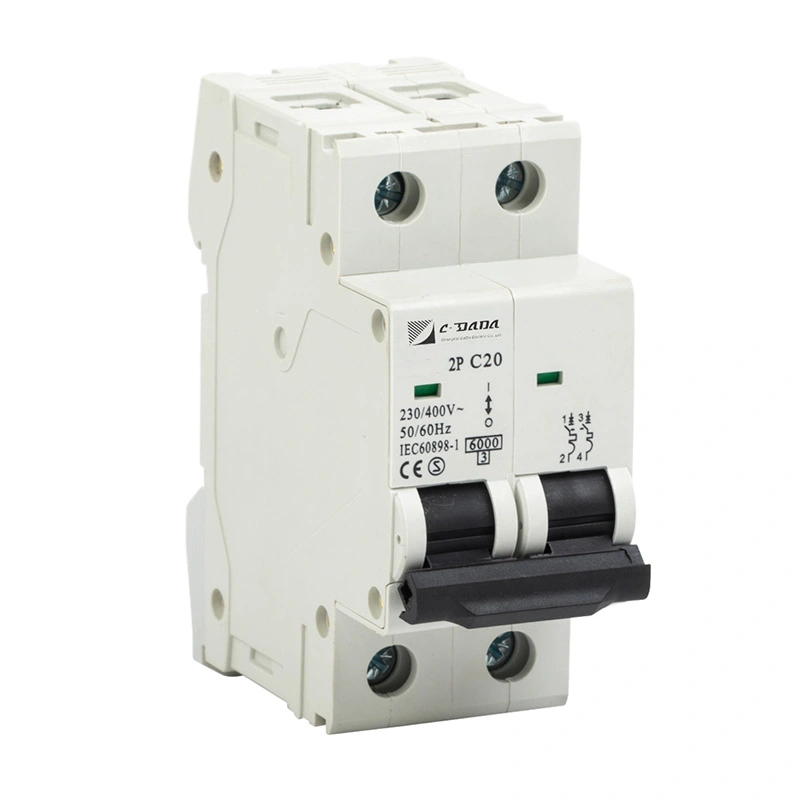

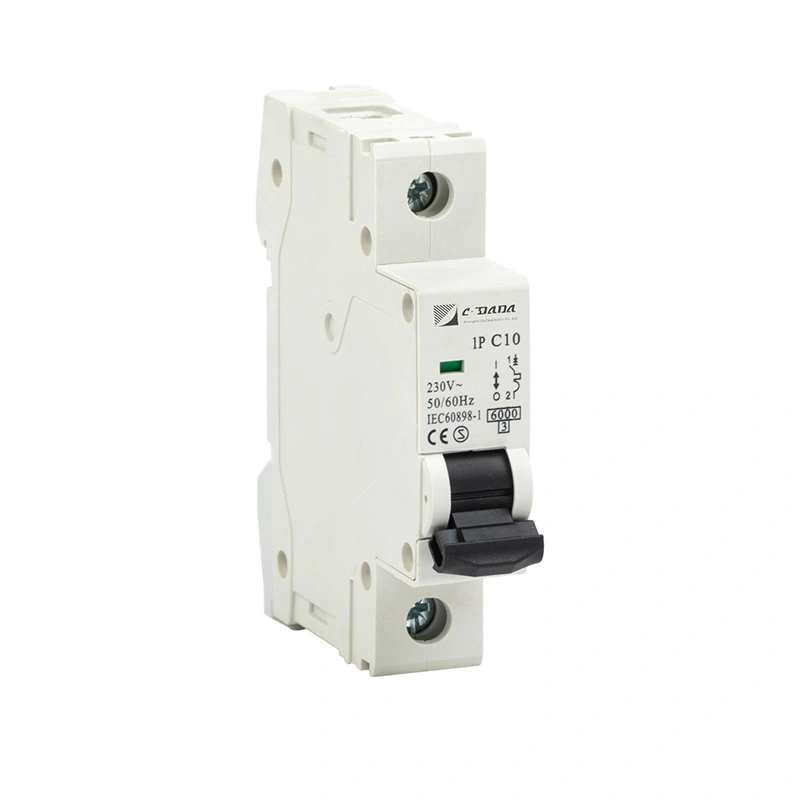

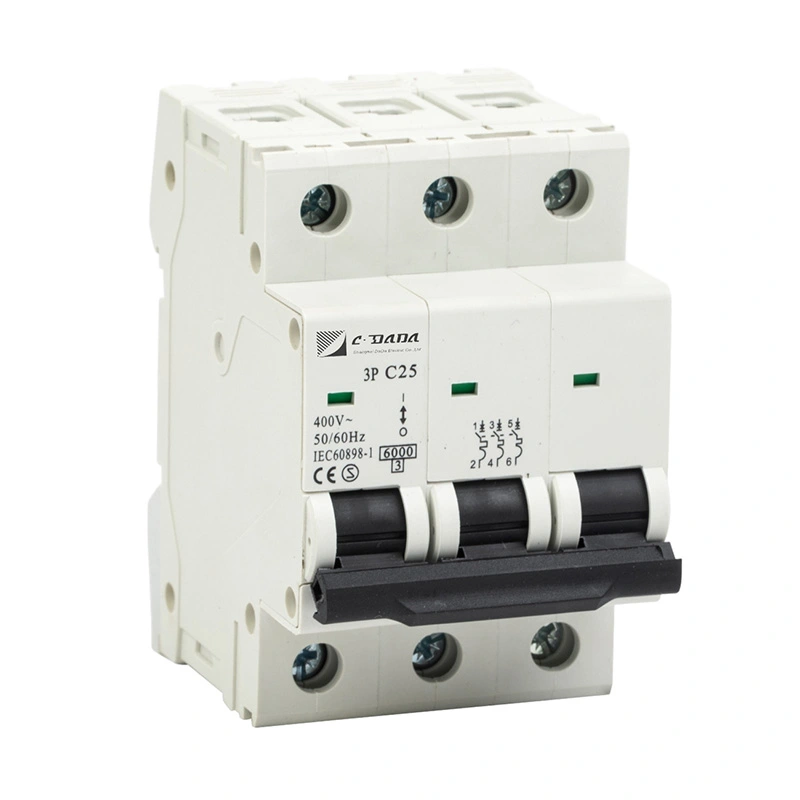

4.5kA 6kA Miniature Circuit Breaker
Model:ALFHA
CDADA inyanzvi yekugadzira 4.5kA 6kA Miniature Circuit Breaker, yakasimbiswa neCCC uye ISO9001 yekuchengetedzwa kwedunhu. Inoshandisa murazvo unodzoreredza goko uye chaiyo yekupisa-magineti kufamba, iri nyore kukwira paDIN njanji uye iri nyore kuchengetedza. Inobatanidza kushanda kwakagadzikana nehupenyu hurefu hwebasa, yakanakira nzvimbo dzekugara, dzekutengesa uye dzeindasitiri simba rekugovera.
CDADA ALFHA 4.5kA 6kA Miniature Circuit Breaker imhando yepamusoro diki yedunhu redunhu, rinopihwa nefekitori yedu nemitengo yakananga. Inopa yakavimbika kuremerwa uye pfupi dunhu kuchengetedza kune yakaderera voltage magetsi masisitimu, ane B/C/D anotsika macurves kuti aenderane nemitoro yakasiyana.
Yakavakwa nezvinhu zvinodzoreredza murazvo uye zvinhu zvakaringana, inovimbisa kushanda kwakachengeteka kwezvivakwa, mafekitori uye mabhodhi ekugovera.
Product Features & Zvakanakira
★ Rinodzoreredza murazvo, goko risingatsvi, rinodzivirira tembiricha yakakwira, risingaite yero
★ Visual inoratidza hwindo: tsvuku ye ON, yegirini ye OFF yemamiriro akajeka
★ Mapiritsi maviri anowedzera kusimba kwecasing kune yakachengeteka wiring
★ Notched terminal clamps inoderedza kupisa uye inovandudza kugadzikana kwekubatanidza
★ Kukiya kaviri DIN njanji clip yekumisikidza nekukurumidza, kwakasimba
★ 90% yezvikamu zvinogadzirwa mukati meimba yehutano hwakagadzikana
★ 100% yakazara kuedza isati yatumirwa
Applications
CDADA 4.5kA 6kA Miniature Circuit Breaker inoshandiswa zvakanyanya mu:
★ Zvivakwa zvekugara, mafurati, mavillas
★ Mahofisi, zvitoro, zvivakwa zveveruzhinji
★ Industrial workshops, magetsi ekugovera mapaneru
★ Mafeni, compressors, pombi, hoisting michina
★ Magetsi emagetsi uye midziyo yemagetsi maduku
Technical Parameters
|
Item |
Tsanangudzo |
|
Model |
ALFHA |
|
Standard |
IEC60898 |
|
Breaking Capacity |
4.5kA, 6kA |
|
Rated Current |
1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Poles |
1P, 1P+N, 2P, 3P, 3P+N, 4P |
|
Tripping Curve |
B / C / D |
|
Rated Voltage |
AC 230/400V, 400/415V |
|
Insulation Voltage |
500V |
|
Impulse Voltage |
4kV |
|
Dziviriro Dhigirii |
IP20 |
|
Installation |
35mm DIN njanji |
|
Working Temp |
-5 ℃ ~ +40 ℃ |
|
Mechanical Life |
20,000 kutenderera |
|
Upenyu hweMagetsi |
4,000 ~ 8,000 kutenderera |
|
Zvitupa |
ISO9001, CCC, ASTA |
Rondedzera Dimensions
★ Standard upamhi: 17.8mm padanda
★ Inokodzera 35mm DIN njanji inokwira
★ Compact structure yemabhokisi akajairwa ekugovera
★ Wiring capacity: 1–35mm² flexible/rigid cable
Quality Control
★ ISO9001 quality management system
★ 100% fekitori calibration: 1.13In isiri-rwendo, 1.45In rwendo, 2.55In bvunzo
★ Magnetic uye kupisa kutsika kuzere kuongororwa
★ Yakakwirira uye yakaderera tembiricha kutsungirira bvunzo
★ Kugadzira otomatiki uye nemazvo welding
Packaging & Shipping
★ Standard ekisipoti katoni kurongedza
★ Bhokisi rimwe nerimwe rakanyorwa nemuenzaniso, ikozvino, mapango, huwandu
★ Shockproof yemukati zvinhu zvekutakura zvakachengeteka
★ Inokodzera gungwa, mhepo uye nyika kutumira
Mutengi Kubudirira Nyaya
CDADA 4.5kA 6kA Miniature Circuit Breaker yakapihwa vatengi vari muEurope, Southeast Asia, Middle East, Africa neSouth America.
★ Zvivakwa zvekuvaka zvekugara muUAE neSaudi Arabia
★ Kugoverwa kwesimba rekutengeserana muNigeria neAngola
★ Industrial fekitori michina muGermany neTurkey
★OEM kubatana nemhando dzemagetsi dzepasi rose
★ Kupihwa kwenguva refu kwehuwandu kune vanogovera uye makondirakiti
Sravana Sameeralu Serial 4th Hot Tags: 4.5kA 6kA Miniature Circuit Breaker, China, Mugadziri, Mutengesi, Fekitari
