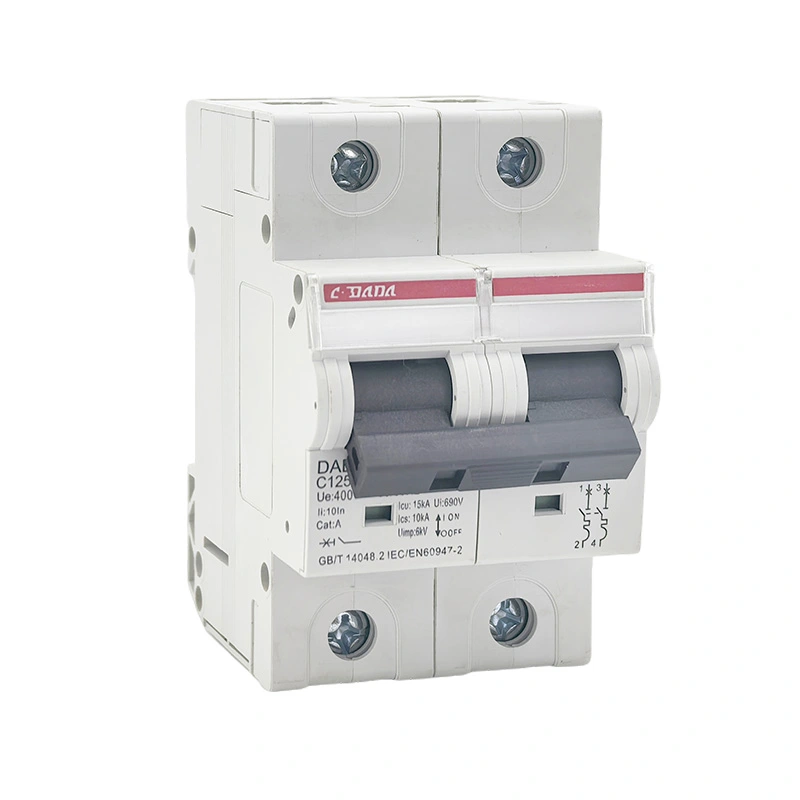

A 125 15KA Miniature Circuit Breakeryakagadzirirwa masisitimu emagetsi anoda zvese zvakakwirira zvazvino uye inovimbika pfupi-circuit kudzivirira. Kusiyana neakajairwa akaderera-akayerwa maMCBs, 125A yakakwirira-inopwanya-simba mudziyo inogona kugadzirisa inoda kugovera maapplication uko kunokanganisa mafambiro angave akakwira zvakanyanya. Chinyorwa ichi chinotsanangura mashandiro anoita 125 15KA MCB, zvinorehwa nemakiyi ayo, kwainogona kushandiswa, kusarudza nekuiisa nemazvo, uye kuti ndezvipi zvikwata zvinotenga zvinofanirwa kuongorora zvisati zvaisa odha. Inoongororawo maitiro anoshanda ekugadzira eiyo DAB7-125 akatevedzana kubva kuShanghai DaDa Electric Co., Ltd., kusanganisira thermal-magnetic dziviriro, ikozvino-kumisa dhizaini, hombe tambo terminals, uye 15kA yekutyora simba.
Zviri Mukati
- Chii chinonzi 125 15KA Miniature Circuit Breaker?
- Sei 125A uye 15KA Zvine basa?
- Iyo Dziviriro Mechanism Inoshanda Sei?
- Ndezvipi Zvimiro Zvinovandudza Kuita Kunoshanda?
- Ndekupi 125 15KA MCB Inogona Kushandiswa?
- Madiro Anokosha Okuongorora
- Nzira yeKusarudza Kugadzirisa Kwakarurama
- Kuisa uye Maintenance Kufunga
- Matambudziko Akajairika uye Zvekutenga Zvinonetsa
- Nei Shanghai DaDa Electric Co., Ltd.?
- Mibvunzo Inowanzo bvunzwa
- Mafungiro Okupedzisira
Chii chinonzi 125 15KA Miniature Circuit Breaker?
A 125 15KA Miniature Circuit Breaker mudziyo wekudzivirira wepamusoro-zvino wakagadzirirwa kukanganisa maseketi emagetsi kana mamiriro asina kujairika aitika. Mukudanwa kwechigadzirwa, "125" inowanzo ratidza yakayerwa ikozvino inosvika 125A, nepo "15KA" ichireva 15kA pfupi-sekete yekutyora simba pasi pemamiriro ebvunzo anoshanda uye chiyero.
Nhamba mbiri idzi dzinotsanangura maitiro emagetsi akasiyana. Iyo 125A chiyero inobata ikozvino iyo breaker yakagadzirirwa kutakura pasi pemamiriro ekushanda akatsanangurwa. Iyo 15kA nhamba inoenderana nehuwandu hweanogona kupfupi-sekiti ikozvino iyo inotyora inogona kukanganisa zvakachengeteka pasi pemamiriro ayo akatsanangurwa.
Musiyano uyu wakakosha kana mainjiniya achienzanisa vanopwanya matunhu. Iyo yakakwira yakayerwa ikozvino hairevi zvinorevesa yakakwirira-pfupi-sekete yekutyora simba. Zvose zviri zviviri zvinofanirwa kuongororwa zvichienderana nemagetsi maitiro ekuiswa.
Iyo DAB7-125 yakatevedzana kubva kuShanghai DaDa Electric Co., Ltd. Ruzivo rwayo rwechigadzirwa rwakaburitswa runozivisa 125A yepamusoro yakayerwa ikozvino uye yakakwira yekutyora simba sarudzo dzinosanganisira 15kA. Mugadziri wacho anotsanangurawo thermal-magnetic dziviriro uye yazvino-inomisa dhizaini.
Sei 125A uye 15KA Zvine basa?
Magetsi ekugovera masisitimu anogona kuve neakakura kukanganisa simba, kunyanya padyo neshanduko, mabhodhi ekugovera, michina yemaindasitiri uye mikuru mikuru yemagetsi. Kana chishandiso chekudzivirira chikaoneswa kune chikanganiso chiri pamusoro pekugona kwayo kukanganiswa, mhedzisiro yacho inogona kusanganisira kukuvadzwa kwemidziyo, arcing yakawandisa uye njodzi dzakakomba dzekuchengetedza.
Iyo 15kA yekutyoka simba inopa yakakwira yekuvhiringidza muganho pane akawanda akajairwa akaderera-anopwanya-anogona MCBs. Iko kukodzera chaiko, zvisinei, kunoenderana neanotarisirwa mapfupi-sekete ikozvino panzvimbo yekuisa uye zvinodiwa zveiyo inoshanda yemagetsi mwero.
| Parameter | Zvarinoratidza | Nei Zvichikosha |
|---|---|---|
| 125A | Rated current | Inosarudza iyo yakajairika ikozvino-inotakura huwandu hweinotyora. |
| 15kA | High short-circuit kukanganisa kugona | Inobatsira breaker kukanganisa yakataurwa yakakwira kukanganisa mafungu. |
| Rwendo rwekupisa | Overload protection | Inopindura kumamiriro ekunze akawandisa. |
| Magnetic rwendo | Short-circuit kudzivirira | Inopa kukurumidza kushanda panguva yakaoma kukanganisa mamiriro. |
| Current limiting | Kuderedzwa kwesimba rekukanganisa | Inogona kubatsira kuderedza kushushikana kunoiswa pamidziyo yepasi. |
Paunenge uchigadzira dhizaini yekugovera, iyo breaker inofanirwa kusarudzwa kubva kune chaiyo mutoro kuverenga, conductor rating, kukanganisa-ikozvino kuverenga, voltage, frequency, pole kumisikidza uye coordination zvinodiwa kwete kubva pane yazvino chiyero chete.
Iyo Dziviriro Mechanism Inoshanda Sei?
Iyo MCB yemazuva ano inowanzobatanidza misimboti miviri yekutanga kutsika: kudzivirira kwemafuta uye kudzivirira magineti. Nzira mbiri idzi dzinotarisa marudzi akasiyana ezviitiko zve overcurrent.
Kudzivirirwa kwemafuta kunopindura kune zvakawandirwa mamiriro anoenderera nekufamba kwenguva. Kana yazvino ichidarika iyo yaitarisirwa chiyero chekushanda, kupisa kunoita kuti thermal element ishande uye kuvhura dunhu.
Magnetic dziviriro inotarisirwa kune yakakwirira-ikozvino kukanganisa mamiriro. Yakasimba magineti mhinduro inogona kumisa nzira yerwendo nekukasira kana dunhu diki rakasimba rikaitika.
Kana vanobatana vakaparadzana panguva yekukanganiswa, arc yemagetsi inogona kuumba. Internal arc-management zvimiro zvinobatsira kudzora uye kudzima arc panguva yekukanganisa.
Ikozvino-kumisa kuvakwa kunogona kuderedza simba rinobvumirwa kupfuura dunhu panguva yechiitiko chepfupi, zvichibatsira kuderedza kushushikana pazvikamu zvakabatana.
Iyo DAB7-125 ruzivo rwechigadzirwa inotsanangura kupisa uye magineti rwendo basa, rwendo-yemahara mashini, uye yazvino-inomisa dhizaini. Aya maficha anonyanya kukosha kune zvikumbiro apo mudziyo wekudzivirira unofanirwa kupindura zvinoenderana kune zvese zvakarebesa kuremerwa uye zvikanganiso zvazvino.
Ndezvipi Zvimiro Zvinovandudza Kuita Kunoshanda?
Midziyo yekudzivirira yemagetsi haiongororwe chete nemusoro wenyaya wazvino chiyero. Mechanical kuvaka, terminal dhizaini, yekubata zvinhu, yekumisikidza nzira uye yemukati arc-control marongero anogona kukanganisa kushanda kwekushandisa.
- High breaking capacity:Iyo 15kA yakatarwa inopa yakakwirira-yepakati-yekukanganisa kukanganisa kugona kupfuura akawanda akajairwa akaderera-anotyora-simba MCBs.
- Makuru matambo emagetsi:Iyo DAB7-125 akatevedzana akagadzirwa ane materminals mahombe akakodzera mhangura uye aluminium conductor anosvika 35mm² zvichienderana neruzivo rwakaburitswa nemugadziri.
- Nzira yemahara:Iyo inoputika inogona kuchengetedza basa rayo rekudzivirira kunyange kana nzira yekushanda iri kubatwa munzvimbo ye ON.
- Positive kuonana chiratidzo:Chiratidzo chakajeka chechimiro chekusangana chinogona kuita kuti kuongorora uye kugadzirisa kuve nyore.
- Thermal-magnetic kushanda:Mamiriro ezvinhu akasiyana-siyana anogona kugadziriswa kuburikidza nekugadzirisa nzira dzekufamba.
- DIN-rail mounting:Modular mounting inorerutsa kuisirwa mukati inoenderana yekugovera michina.
- Nzvimbo inodzivirira moto:Iyo yakaburitswa DAB7-125 ruzivo inotsanangura PA66 inodzoreredza murazvo wemba.
Aya ma data ane basa kune vanogovera uye masystem ekubatanidza nekuti kuisirwa kuita basa uye kushanda zvakanaka kunogona kukanganisa iyo yakazara yekushanda chiitiko, kwete chete mutengo wekutanga wekutenga.
Ndekupi 125 15KA MCB Inogona Kushandiswa?
Iyo 125A yakakwirira-inopwanya-inogoneka MCB inogona kutariswa semagetsi ekugovera masisitimu uko dunhu razvino uye kukanganisa kwenhanho inowira mukati meiyo mudziyo wakatarwa wekushandisa. Mamiriro ekushandisa akajairika anogona kusanganisira zvivakwa zveindasitiri, zvivakwa zvekutengesa, mapaneru ekugovera michina uye mamwe maseketi epamusoro-azvino.
| Application | Chinodiwa Chinodiwa | Inogona Kubatsira |
|---|---|---|
| Kugoverwa kwemaindasitiri | Yepamusoro mitoro yemazuva ano uye inoda mamiriro ezvikanganiso | High ikozvino simba nepfupi-circuit kudzivirira |
| Zvivakwa zvekutengesa | Kuvimbika kuchengetedzwa kwekugovera | Compact modular dziviriro yekugovera maseketi |
| Michina masisitimu | Kudzivirirwa kwemidziyo yemagetsi uye mafeeders | Thermal uye magnetic overcurrent mhinduro |
| Distribution panels | Zvishandiso zvinodzivirira zvemuchadenga | DIN-njanji yekuisa uye modular kuvaka |
| Zvishandiso zvemagetsi zvine simba | Higher circuit current | Kusvikira ku125A yakayerwa-ikozvino gadziriso zvichienderana nemhando yakasarudzwa |
Kukodzera kwechikumbiro kunofanirwa kugara kuchisimbiswa kune yakazara magetsi dhizaini. Voltage, frequency, inotarisirwa kukanganisa ikozvino, saizi yekondakita, ambient tembiricha, gadziriso yepole uye inoshanda yekuisa mitemo inogona kushandura yakakodzera breaker kusarudzwa.
Madiro Anokosha Okuongorora
Vatengi vanowanzotarisa "125A" uye "15kA" nokuti zviri nyore kunzwisisa. Nekudaro, kutenga kwehunyanzvi kunoda ongororo yakawedzera.
| Tsanangudzo | Kutenga Mubvunzo |
|---|---|
| Rated current | Chiyero chakasarudzwa chinoenderana here neakaverengerwa wedunhu mutoro uye conductor kugona? |
| Kuputsa simba | Iyo yakatsanangurwa 15kA huwandu hwakakodzera kune inotarisirwa kukanganisa ikozvino? |
| Rated voltage | Iyo breaker inoenderana neiyo system voltage uye kugovera kurongeka here? |
| Nhamba yematanda | Iyo dunhu inoda 1P, 2P, 3P, 4P kana imwe gadziriso? |
| Trip curve | Iyo yakasarudzwa yekuburitsa hunhu inoenderana nemutoro wakabatana here? |
| Inoshanda mwero | Chigadzirwa chacho chinosangana nechiyero chinodiwa pamusika unotarwa uye kuiswa? |
| Terminal capacity | Ko materminal anogona kugadzika conductor ataurwa zvakachengeteka here? |
| Kuisa nzira | Kuiswa kweDIN-njanji kana kumwe kukwirisa kunodiwa here? |
Semuyenzaniso, IEC 60947-2 uye IEC / EN 60898-1 inoshandisa akasiyana kupatsanura uye yekuyedza masisitimu kune vanotyora dunhu. Yakadhindwa mugadziri data saka inogona kuve neese Icu uye Icn terminology zvichienderana neyakajairwa uye chigadzirwa chikamu. Mutengi anofanirwa kunyatsoona kuti ndeipi chiyero chinoshanda pamagetsi uye nemamiriro ekushanda ezvakarongwa kuisirwa.
Nzira yeKusarudza Kugadzirisa Kwakarurama
Kusarudza 125 15KA Miniature Circuit Breaker kunofanirwa kutanga nemagetsi system pane kurongedza chigadzirwa. Nzira yekusarudza yakapusa inogona kuderedza njodzi yekukanganisa muputsi nedunhu.
- Sarudza ikozvino kugadzira.Verenga zvinotarisirwa kuenderera uye nepakati mutoro ikozvino.
- Tarisa chiyero chekondakita.Chidziviriro chekudzivirira chinofanira kubatanidzwa netambo inobvumirwa ikozvino pasi pemamiriro chaiwo ekuisa.
- Sarudza anotarisira pfupi-yedunhu ikozvino.Iyo yakasarudzwa yekutyora simba inofanirwa kuve yakakwana kune yekukanganisa nhanho panzvimbo yekuisa.
- Simbisa voltage uye frequency.Ita shuwa kuti breaker yakayerwa yemagetsi system.
- Sarudza danda rekugadzirisa.Funga zvinodikanwa zvechikamu uye nekwaakarerekera conductor.
- Wongorora maitiro erwendo.Rwendo rwekutenderera runofanira kunge rwakakodzera kune yakabatana mutoro uye inotarisirwa inrush mamiriro.
- Simbisa zviyero uye zvitupa.Tarisa zvinodikanwa zvemusika unotangwa, kutsanangurwa kweprojekiti uye mitemo yemagetsi yemuno.
- Simbisa kuenderana kwemuviri.Simbisa zviyero, saizi yechigumira, DIN-njanji inoenderana uye nzvimbo yepaneru.
Kuisa uye Maintenance Kufunga
Kuisa kwakaringana kwakakosha kune chero yakakwirira-ikozvino inodzivirira mudziyo. Kunyange dhizaini yakanyatsogadzirwa haigone kubhadhara ma conductors akaenzana, mabheti akasununguka, zvivharo zvisina kukodzera kana maitiro asina kunaka ekuisa.
- Simbisa iyo breaker modhi uye chiyero usati waiswa.
- Kusiyanisa magetsi ekupa uye tevera maitiro ekuchengetedza anoshanda.
- Simbisa kuti conductor cross-section inoenderana neiyo terminal.
- Gadzirira maconductor nemazvo uye dzivirira kukuvadzwa kana kubviswa zvisina kufanira matambo etambo.
- Simbisa materminals maererano nezvinodiwa nemugadziri.
- Ita shuwa kuti breaker yakagadzikwa zvakachengeteka pane inoenderana DIN njanji.
- Tarisa kuti iyo yakavharirwa inopa dziviriro yakakodzera uye kubvumidzwa.
- Ongorora materminal nguva nenguva kuona zviratidzo zvekupisa, kushanduka kwemavara kana kuregedzeka kwemuchina.
- Edza iyo inodzivirira system zvinoenderana nezvinodiwa zvekuchengetedza zvekuisa.
Zvirongwa zvekuchengetedza zvinofanirwa kuratidza nharaunda uye kutenderera kwebasa. Kumisikidzwa kwemaindasitiri ane mitoro yakakwira, kuchinjika kazhinji, guruva, vibration kana tembiricha yakakwira zvingada kuongororwa kakawanda pane kurodha masisitimu ekuparadzira mukati.
Matambudziko Akajairika uye Zvekutenga Zvinonetsa
Vatengi vepamusoro-azvino MCBs vanowanzosangana nematambudziko akati wandei. Kugadzirisa nyaya idzi kusati kwatengwa kunogona kudzivirira kunonoka uye matambudziko ekuisa.
Mamwe mazita echigadzirwa anongotaura nezve "yakanyanya kutyora kugona." Vatengi vanofanirwa kukumbira iyo chaiyo chiyero, yakajairwa, voltage uye yekuyedza hwaro.
Kusarudza 125A pasina kutarisa tambo kugona uye chaiyo dhizaini yazvino inogona kugadzira matambudziko ekubatanidza.
Maconductor akakura anoda materminal akagadzirirwa kugamuchira inodiwa nzvimbo yepakati. Terminal kuenderana kunofanirwa kusimbiswa usati watenga.
Vatengi vepasi rese vanowanzoda tekinoroji yakatarwa, zvitupa, kudhirowa uye ruzivo rwechigadzirwa kuitira kubvumidzwa kweprojekiti.
Mutengesi ane hunyanzvi anofanira kunge achikwanisa kupa yakajeka chigadzirwa data uye kubatsira vatengi kuti vanzwisise mutsauko uripo pakati peyakayerwa ikozvino, kutyora kugona, maitiro erwendo uye zvinodiwa zvekumisikidza.
Nei Shanghai DaDa Electric Co., Ltd.?
Iyo kambani Shanghai DaDa Electric Co., Ltd.inogadzira uye inogadzira zvigadzirwa zvekudzivirira zvedunhu zvemaindasitiri uye ekutengesa magetsi ekushandisa. Yayo yakaburitswa chigadzirwa portfolio inosanganisira MCBs, MCCBs, RCBOs, RCCBs uye zvine chekuita nedziviriro yedunhu michina.
Iyo DAB7-125 yakatevedzana yakamisikidzwa kune zvikumbiro zvinoda yakakwirira ikozvino kugona uye yakakwirira pfupi-yepakati-yekutyora kugona. Zvakaburitswa zvinosanganisira 15kA yakakwira yekutyora simba, thermal-magnetic rwendo basa, ikozvino-inomisa dhizaini, yakanaka yekubata chiratidzo uye materminal akakodzera maconductor akakura. :contentReference[oaicite:1]{index=1}
Ruzivo rwefekitori yemugadziri zvakare inotsanangura yakatsaurirwa kutsika, nzvimbo-welding, riveting, jekiseni-kuumba uye musangano wemusangano, uchitsigira kugadzirwa kwezvose MCB uye MCCB zvigadzirwa. :contentReference[oaicite:2]{index=2}
Kune vanogovera, vatengesi vemagetsi, vagadziri vepaneru uye vatengi veOEM, iyi mhando yekugadzira inogona kubatsira kana inowirirana chigadzirwa, zvinyorwa zvehunyanzvi uye tsigiro yekumisikidza zvikamu zvakakosha zvechisarudzo chekutenga.
| Mutengi Zvinodiwa | Inoenderana DAB7-125 Hunhu |
|---|---|
| High-current circuit protection | Yakayerwa ikozvino kusvika ku125A |
| Higher short-circuit zvinodiwa | Kusvika ku15kA kutyora simba zvinoenderana neyakaburitswa chigadzirwa ruzivo |
| Overload protection | Thermal rwendo basa |
| Short-circuit mhinduro | Magnetic rwendo basa |
| Makondakita makuru | Makuru etambo materminal akagadzirirwa maconductor anosvika 35mm² zvichienderana neruzivo rwemugadziri |
| Panel installation | Modular DIN-rail inokwira dhizaini |
Madimikira echigadzirwa anofanirwa kugara achisimbiswa achipesana neazvino magwaro ehunyanzvi pamberi pekupedzisira kubvumidzwa kweprojekiti, kunyanya kana breaker ichaiswa munzvimbo yakakwirira-inotadza-ikozvino kana yakagadziriswa magetsi system.
Mibvunzo Inowanzo bvunzwa
15KA inoreva 15kA ipfupi-sekiti yekutyora simba pasi peiyo inoshanda yakatsanangurwa bvunzo mamiriro. Iyo inoratidza nhanho yeanotarisira pfupi-yedunhu ikozvino mudziyo wakagadzirirwa kukanganisa zvinoenderana neayo anoshanda chiyero uye chiyero.
Kwete. Kusarudzwa kunofanirwa kufunga nezve kondakita kugona, mutoro hunhu, system voltage, ambient mamiriro, kukanganisa ikozvino, danda configuration uye anoshanda magetsi zvinodiwa.
125A inosanganiswa neyakayerwa ikozvino yeanopwanya, nepo 15kA inoreva kugona kwayo kupfupi-kukanganisa kwepakati. Vanotsanangura maitiro akasiyana emudziyo wekudzivirira.
Inogona kutariswa kune akakodzera maindasitiri ekugovera maseketi kana iyo yemagetsi sisitimu inowira mukati meiyo chigadzirwa chiyero chakatarwa uye chekuisa zvinodiwa.
Kwete. Kutyora simba chinhu chimwe chete chekusarudza. Voltage, yakayerwa ikozvino, maitiro erwendo, conductor kurongeka, gadziriso yemapole uye mamiriro ekuisa anofanirwawo kuongororwa.
Thermal kuchengetedza kero yakaramba ichiremerwa mamiriro, nepo magineti kudzivirira inopindura nekukurumidza kune yakakwirira-ikozvino kukanganisa mamiriro senge mapfupi maseketi.
Shanghai DaDa Electric yakabudiswa ruzivo rweDAB7-125 inotaura kuti matambo ayo mahombe akakodzera tambo dzemhangura nealuminium kusvika ku35mm². Iyo chaiyo conductor kurongeka kunofanirwa kugara kuchisimbiswa neazvino magwaro ehunyanzvi asati aiswa.
Vatengi vanofanirwa kukumbira dhatabheti rehunyanzvi, zviyero zvinoshanda, yakayerwa voltage, kutyora-simba data, maitiro erwendo, dhizaini inodhirowa, ruzivo rwekupedzisira, zvitupa uye kurongedza zvinhu zvinoenderana nemusika wekuenda.
Mafungiro Okupedzisira
A 125 15KA Miniature Circuit Breaker inogadzirisa musanganiswa wezvinodikanwa: yakawedzera huwandu hwazvino uye yakakwidziridzwa yepfupi-kukanganisa kukanganisa kugona. Kune mainjiniya nezvikwata zvinotenga, kunzwisisa zvinomiririrwa nechiyero chega chega kwakakosha pakuita sarudzo yehunyanzvi.
Zvinonyanya kukosha zvinotaridzirwa zvinopfuurira mberi kwe "125A" uye "15kA" nhamba. Ongororo yakazara inofanirwa kusanganisira yakayerwa voltage, yazvino kukanganisa, maitiro erwendo, gadziriso yedanda, kuenderana kwekondukita, zviyero zvinoshanda, nharaunda yekuisa uye zviyero zvemuviri.
Iyo DAB7-125 yakatevedzana kubva kuShanghai DaDa Electric Co., Ltd. inobatanidza kuchengetedzwa kwepamusoro-ikozvino ne thermal-magnetic operation, ikozvino-kumisa dhizaini, matambo makuru etambo uye yakadhindwa yekutyora simba inosvika ku15kA. Aya maitiro anoita kuti chigadzirwa chive chakakodzera kune akasiyana maindasitiri uye ekutengesa ekushambadzira mashandisirwo kana akanyatsoenderana nemagetsi system.
Gadzira Yakanyanya Kuvimbika Dziviriro Solution
Kutsvaga 125 15KA Miniature Circuit Breaker yekugovera maindasitiri, masisitimu emagetsi ekutengesa, mapaneru emagetsi kana mapurojekiti eOEM?Iyo kambani Shanghai DaDa Electric Co., Ltd.inogona kupa ruzivo rwechigadzirwa uye tsigiro yehunyanzvi kune zvaunoda zvekushandisa.
Govera yako yakayerwa ikozvino, system voltage, danda kumisikidzwa, inodiwa kutyora uye mamiriro ekushandisa nechikwata chedu. Zvekutsanangurwa kwechigadzirwa, kubvunzana kweprojekiti kana zvakawanda zvekutenga zvinodiwa,taura nesukukurukura sarudzo yekudzivirira yedunhu yakakodzera.
