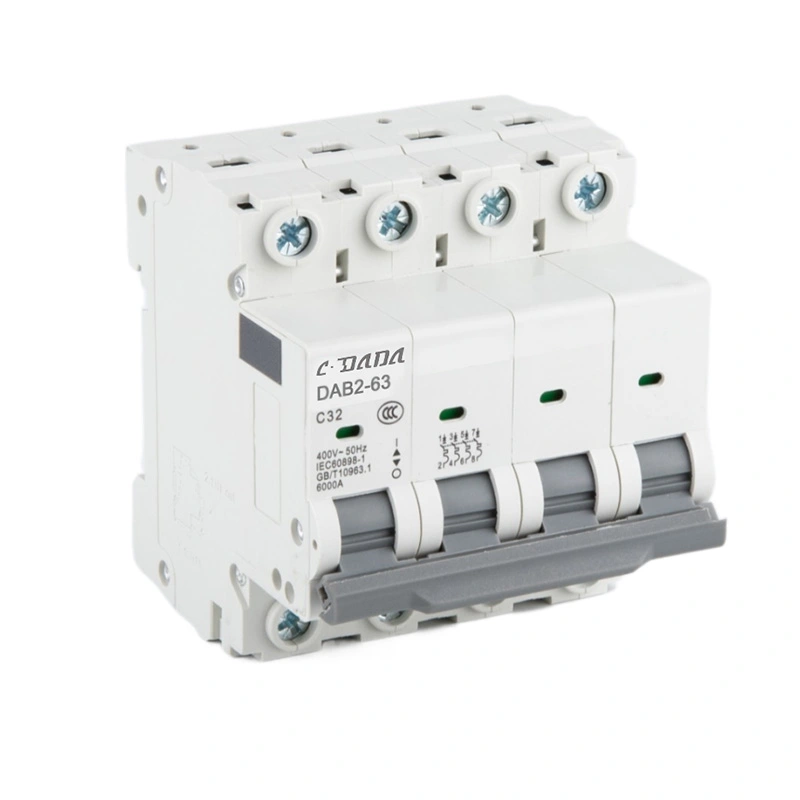

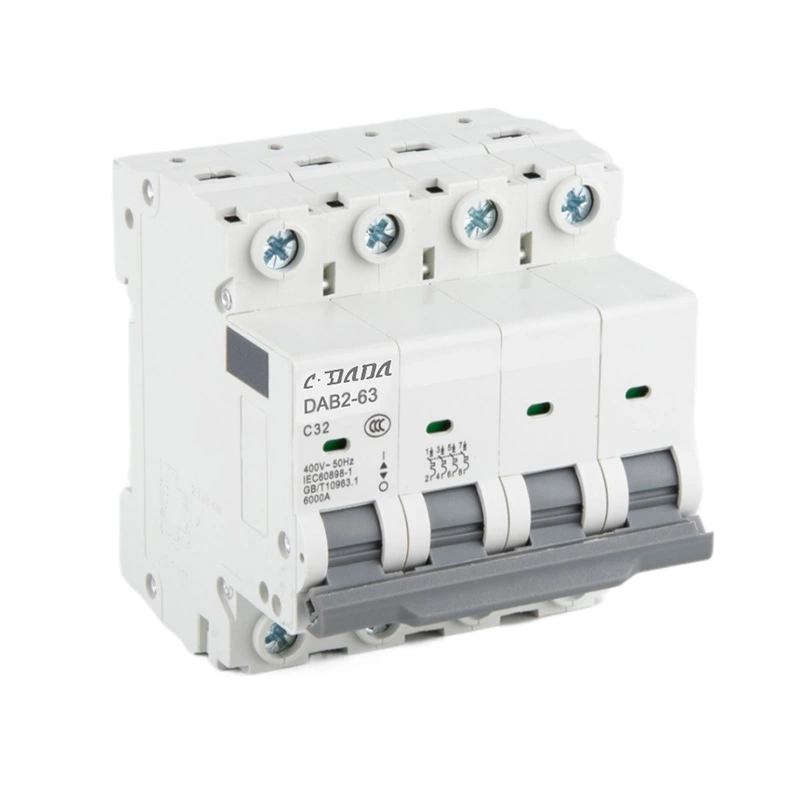

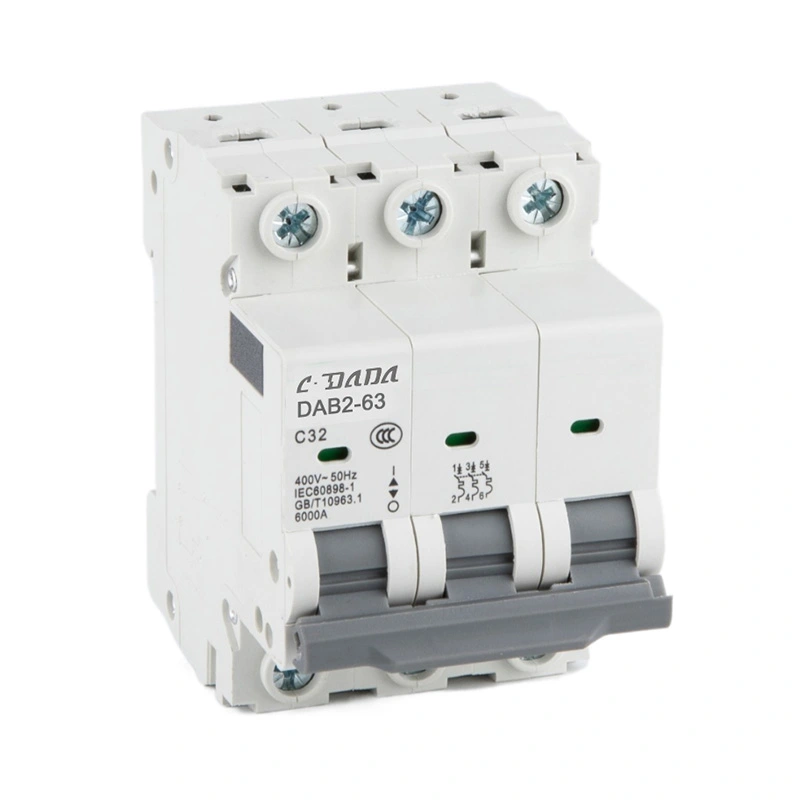

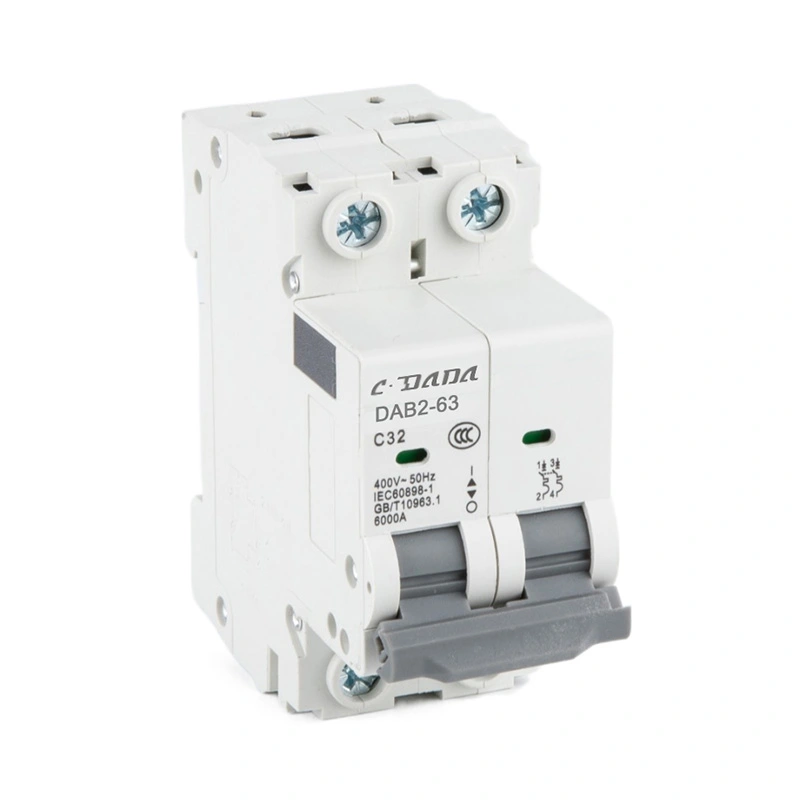

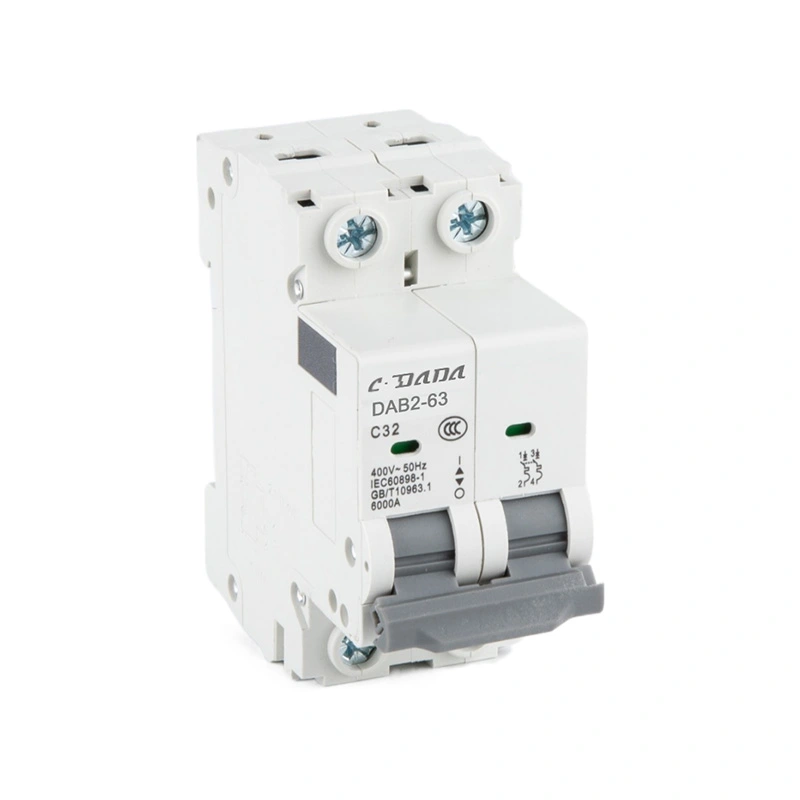

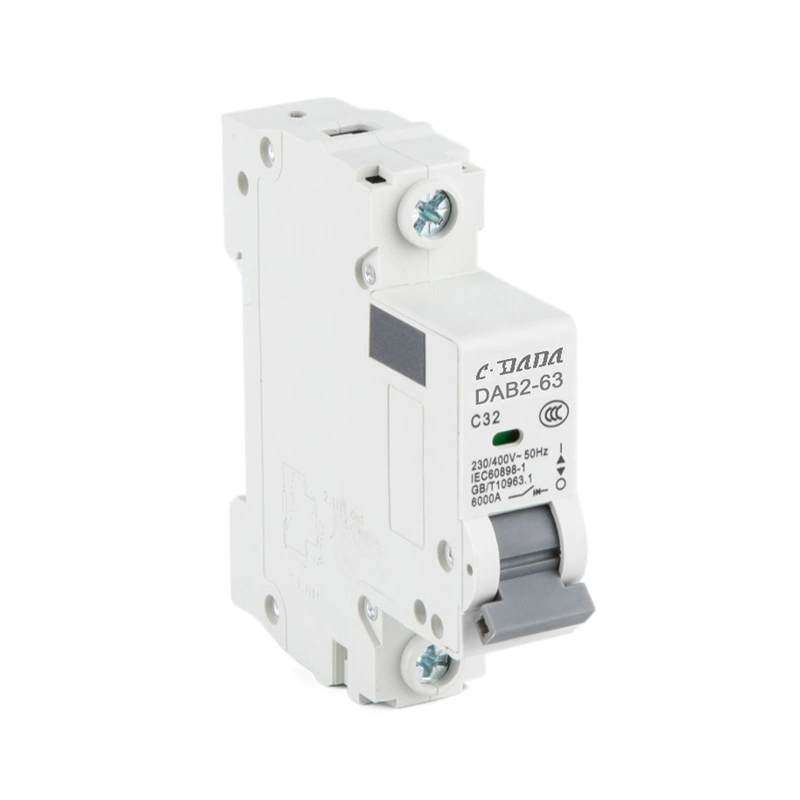

3 Phase MCB Breaker
Model:DAB2-63
Sarudza CDADA semugadziri wako uye mutengesi, uye tora yedu 3 Phase MCB Breaker, CE CB CCC yakasimbiswa ine 6kA yekutyora simba rekugovera magetsi eindasitiri nekutengesa. Ichi chigadzirwa chinoshandisa murazvo-retardant shell uye chaiyo thermal-magnetic tripping, iri nyore kukwira paDIN njanji uye iri nyore kuchengetedza. Inobatanidza kushanda kwakagadzikana nehupenyu hurefu hwemagetsi uye magetsi, kuve nechokwadi chekuchengetedzwa kwedunhu rakachengeteka kune matatu-phase power systems.
CDADA DAB2-63 3 Phase MCB Breaker ndeyemhando yepamusoro diki redunhu redunhu rakagadzirirwa matatu-chikamu AC magetsi ekugovera masisitimu. Inopa kuzara kwakazara uye kupfupi-sekete dziviriro, iine B/C/D yekutsika macurves kuti ienderane nemitoro yakasiyana.
Yakavakwa nezvinhu zvinodzoreredza moto uye zvinhu chaizvo, iyi 3-phase MCB inoshandiswa zvakanyanya mumabhodhi ekugovera, zvishandiso zvemaindasitiri, uye kuvaka masisitimu emagetsi.
Makomborero Anokosha
★ 3-phase compact dhizaini, yakakodzera kune yakajairwa kugovera mabhokisi
★ 6kA yakakwira yekutyora simba yekudzivirira yakavimbika pfupi-yedunhu
★ Visual inoratidza hwindo: tsvuku ON / girini OFF yemamiriro akajeka
★ Wide mubato wekushanda kwakagadzikana uye yakachengeteka kubatana
★ Notched terminal clamps kuderedza kupisa uye kuvandudza wiring kugadzikana
★ kaviri-kukiya DIN njanji clip yekukurumidza, kugadzika kwakasimba
★ Flame-retardant shell, high temperature resistance
★ 100% yakazara fekitari yekuongorora isati yatumirwa
Applications
★ CDADA 3 Phase MCB Breaker inoshandiswa zvakanyanya mu:
★ Nzvimbo dzekugara, dzekutengeserana uye dzekugovera zvivakwa zveveruzhinji
★ Industrial workshops, mafekitari, uye diki magetsi midziyo
★ Mafeni, compressors, pombi, kusimudza muchina
★ Magetsi masisitimu, zvigadziko zvemagetsi, uye matatu-chikamu mota maseketi
★ Zvivakwa, magidhi emagetsi, nemapurojekiti ekhabhati yemagetsi
Technical Parameters
|
Item |
Tsanangudzo |
|
Model |
DAB2-63 1P/1P+N/2P/3P/3P+N/4P |
|
Standard |
IEC60898-1, GB10963.1 |
|
Zvitupa |
CE, CB, CCC, ASTA |
|
Breaking Capacity |
4.5kA, 6kA |
|
Rated Current |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Tripping Curve |
B(3-5In), C(5-10In), D(10-20In) |
|
Rated Voltage |
400/415V AC |
|
Insulation Voltage |
500V AC |
|
Impulse Voltage |
4kV |
|
Dziviriro Dhigirii |
IP20 |
|
Installation |
35mm DIN njanji |
|
Mechanical Life |
20,000 kutenderera |
|
Upenyu hweMagetsi |
10,000 cycles |
|
Flame Kirasi |
UL94 V0 |
|
Ambient Temp |
-25 ℃ ~ +45 ℃ |
|
Wiring Range |
0.75-35mm² yakasimba / yakasungwa |
Rondedzera Dimensions
★ Standard upamhi: 17.8mm padanda
★ 3P yakazara hupamhi: 53.4mm
★ Kukwirisa: 35mm DIN njanji (chero chinzvimbo)
★ Wiring torque: 3.5N · m
★ Compact chimiro chemaitiro emagetsi makabati
Quality Control
★ ISO9001 quality management system
★ 90% yezvikamu zvakakosha zvakagadzirwa mumba
★ 100% calibration: 1.13In isiri-rwendo, 1.45In rwendo
★ Magnetic tripping test (5In / 10In yeC-curve)
★ Yakakwirira uye yakaderera tembiricha kutsungirira bvunzo
★ Kuchembera uye mechanical life verification
Packaging & Shipping
★ Standard ekisipoti katoni ane shockproof lining
★ Clear label: modhi, mapango, zvazvino, huwandu, certs
★ Boka bhokisi kurongedza kudzivirira kukwenya uye kukuvara
★ Yakakodzera zvifambiso zvegungwa, mhepo, uye pasi
★ Tsigira OEM kurongedza uye tsika kunyora
Mutengi Kubudirira Nyaya
★ CDADA 3 Phase MCB Breaker ine kushanda kwenguva refu nevatengi vepasirese:
★ Zvirongwa zvekuvaka zvekugara & zvekutengesa muEurope, Southeast Asia, Middle East
★ Industrial fekitori kugovera magetsi muAfrica, South America, Asia
★OEM & ODM kudyidzana nemagetsi epasi rose
★Kupihwa kwenguva refu kwehuwandu hwevashambadziri vepasi rose & makondirakiti
★ Inoshandiswa zvakanyanya mumagetsi emagetsi, zvivakwa, uye magetsi system integrators
