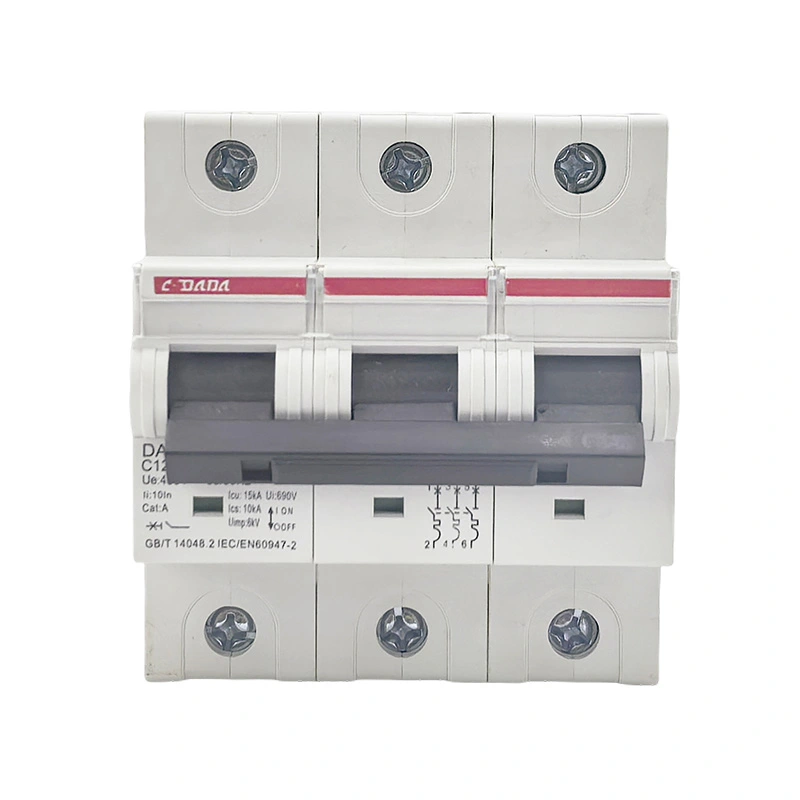

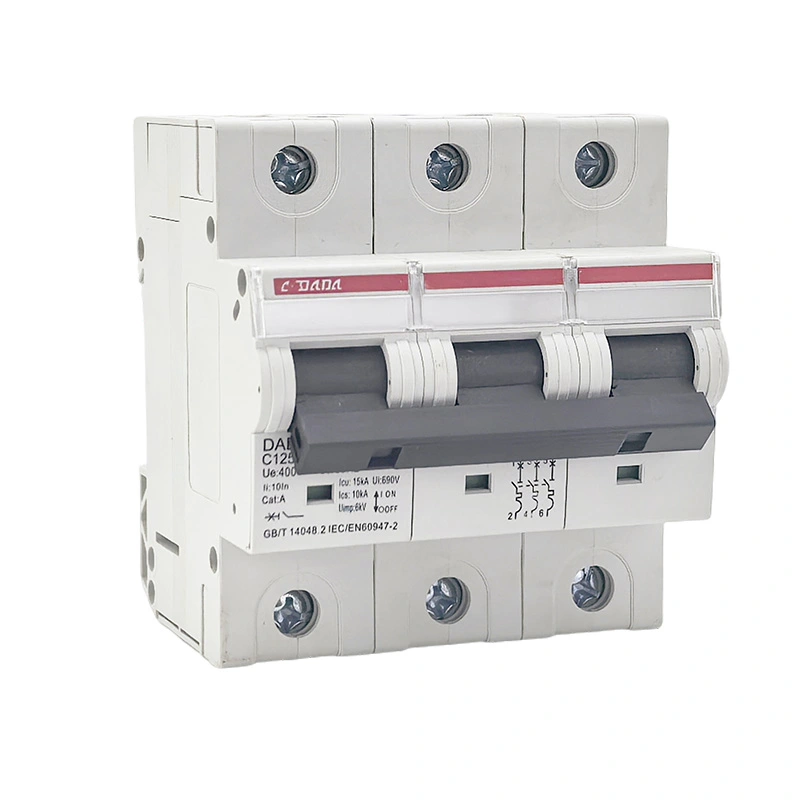

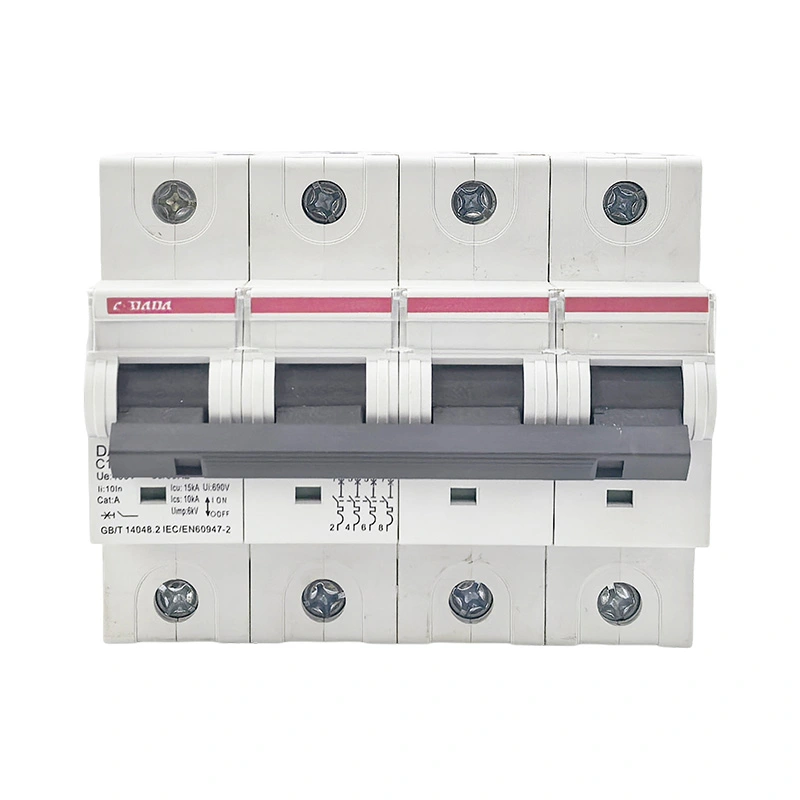

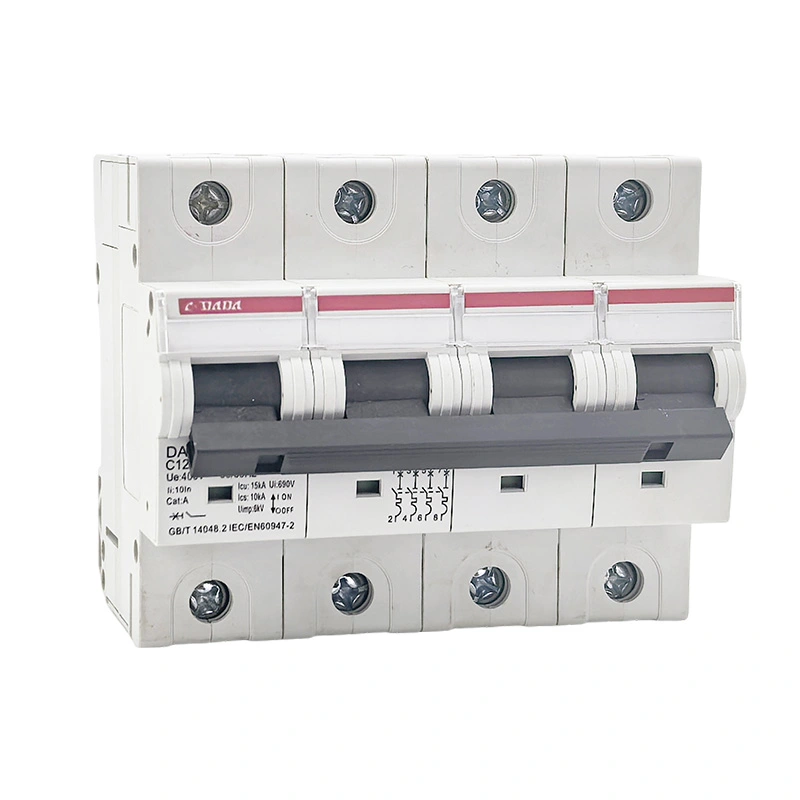

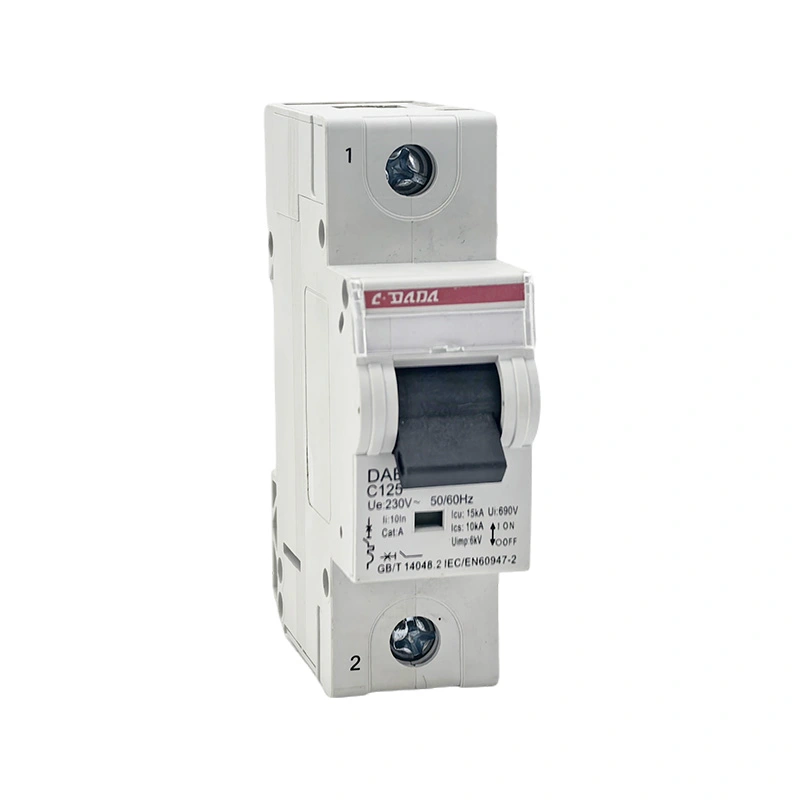

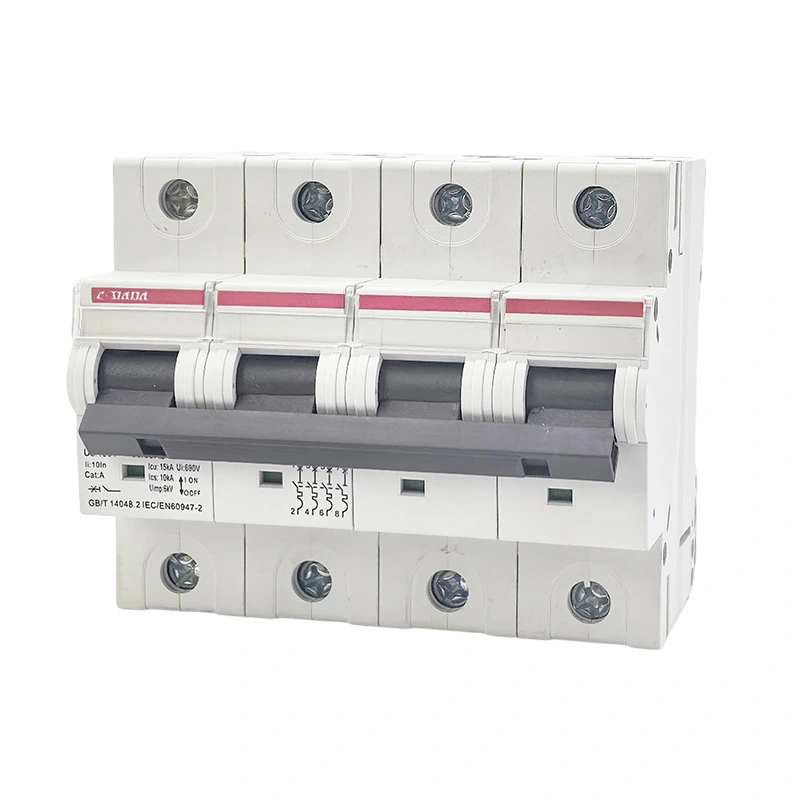

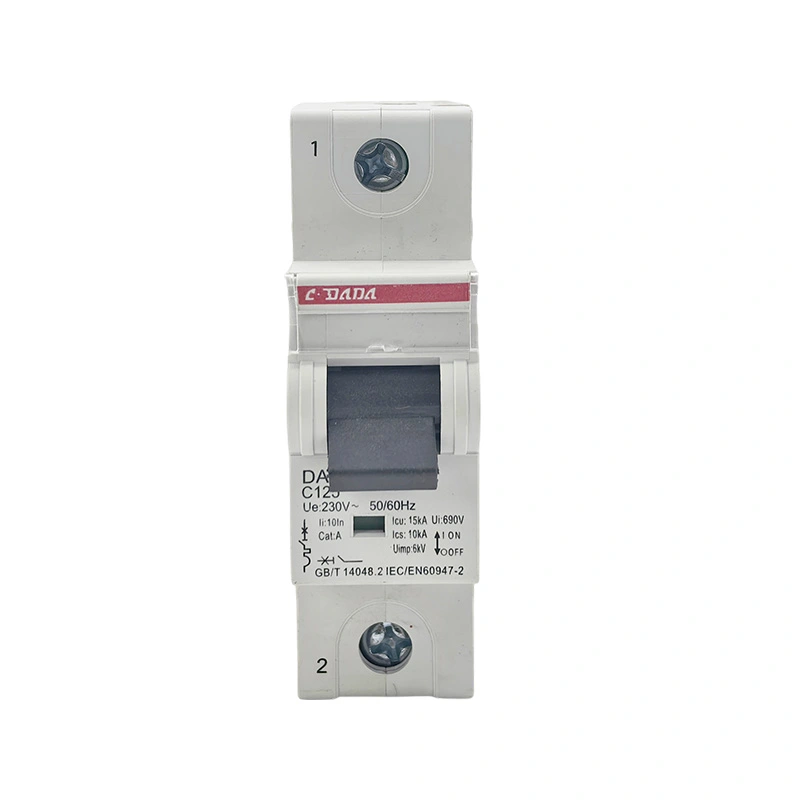

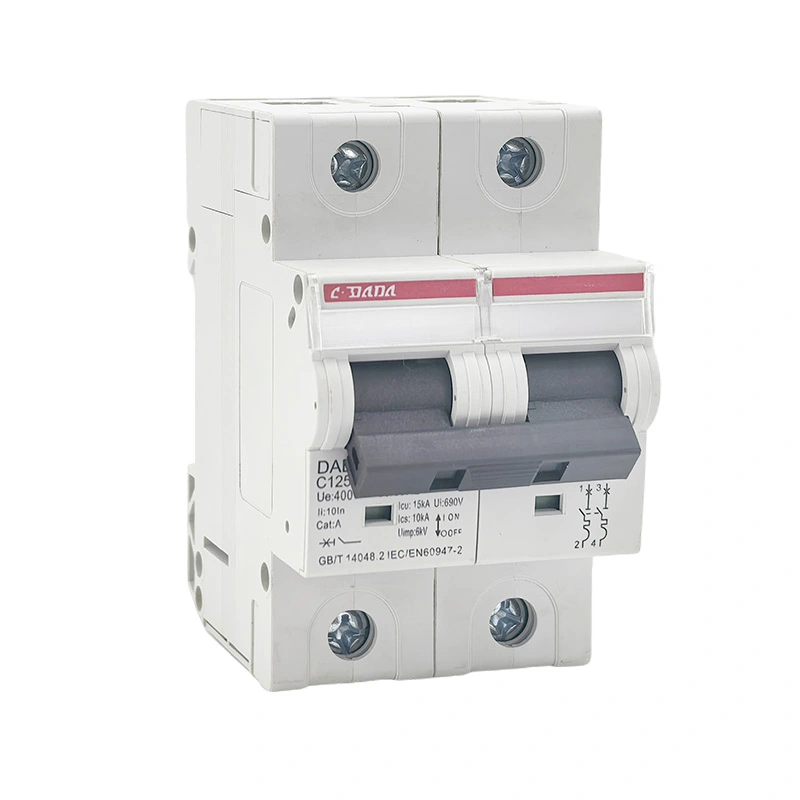

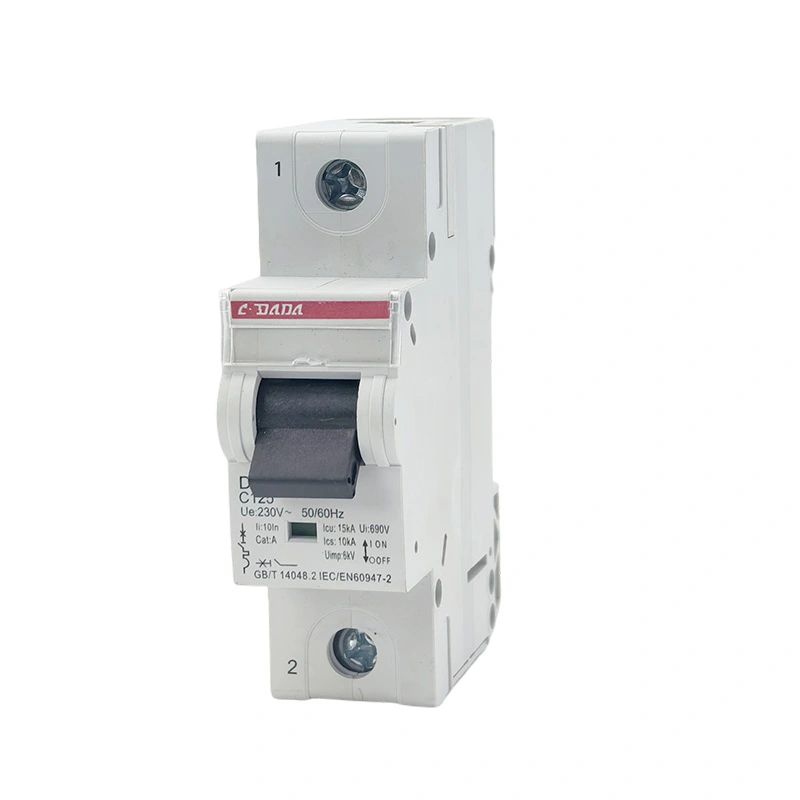

125 15KA Miniature Circuit Breaker
Model:DAB7-125N / DAB7-125H
Semugadziri akavimbika we125 15KA Miniature Circuit Breaker, chigadzirwa cheCDADA chinoshanda chepamusoro-soro 125A MCB ine 15kA inotyora simba rekugovera simba rinorema-basa. Inoshandisa PA66 murazvo-inodzoreredza goko uye maviri maviri arc kamuri dhizaini, iri nyore kukwira paDIN njanji uye iri nyore kuchengetedza. Iyo inosanganisa silvered yekubatanidza chimiro neindasitiri-giredhi kusimba, kuwana yekupedzisira-yakareba hupenyu hwesevhisi kune makuru-azvino maseketi.
CDADA DAB7-125 125 15KA Miniature Circuit Breaker irema-basa guru rekupwanya diki redunhu redunhu rakazvimiririra rakagadzirwa neShanghai DADA Electric. Iine 10kA/15kA yekupedzisira-yakakwirira kutyora simba, 125A hombe yakayerwa ikozvino, uye 27mm (1.5M) compact upamhi, inogona kutsiva echinyakare akaumbwa makesi edunhu mabreak ekudzivirira-inorema-ikozvino.
Kutora mbiri mbiri arc chamber, silvered contacts, uye PA66 flame-retardant material, inopa yakachengeteka uye yakagadzikana kuwandisa, pfupi-circuit, uye yekudzivirira yekuzviparadzanisa nevamwe kumaindasitiri, kutengeserana, uye ekugara emagetsi emagetsi maseketi.
Product Mabasa
★ Overload kudzivirira
★ Dziviriro pfupi-yedunhu
★ Kuzviparadzanisa kwedunhu kwakachengeteka
★ Manual on/off control
★ Yakagadzikana huru-ikozvino kutapurirana

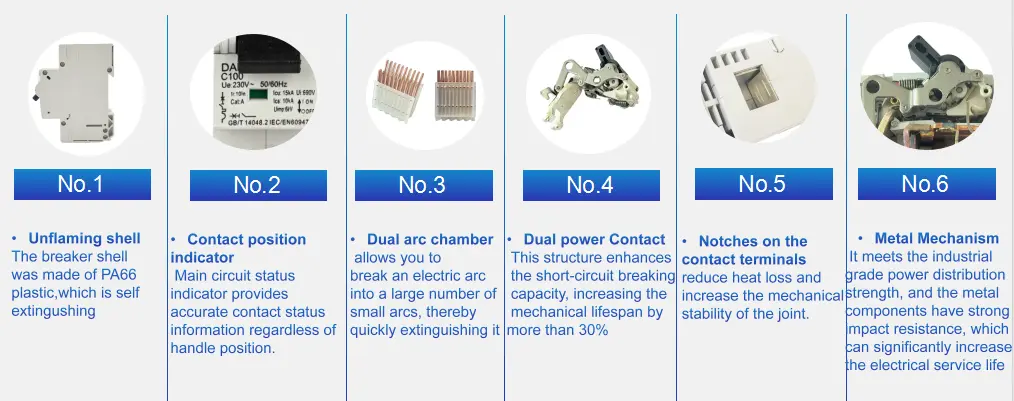

Key Product Advantages
★ 15kA Ultra-yakakwirira kutyora simba, inotsiva MCCB yekushandisa inorema-basa
★ Dual arc chamber, arc yekudzima kumhanya yakawedzera ne30%
★ Silvered spring contacts, yakaderera kupisa kurasikirwa, hupenyu hurefu hwebasa
★ PA66 murazvo-inodzoreredza goko, inodzima-inodzima, yakakwirira tembiricha kuramba
★ Dual simba kuonana chimiro, yakasimba pfupi-dunhu kutsungirira
★ Notched terminals, yakakwira mechanic kugadzikana uye kusimba kwewaya
★ Indasitiri-giredhi simbi michina, simba kukanganisa kuramba
★ 27mm yakamanikana upamhi, inochengetedza kugovera kabati nzvimbo

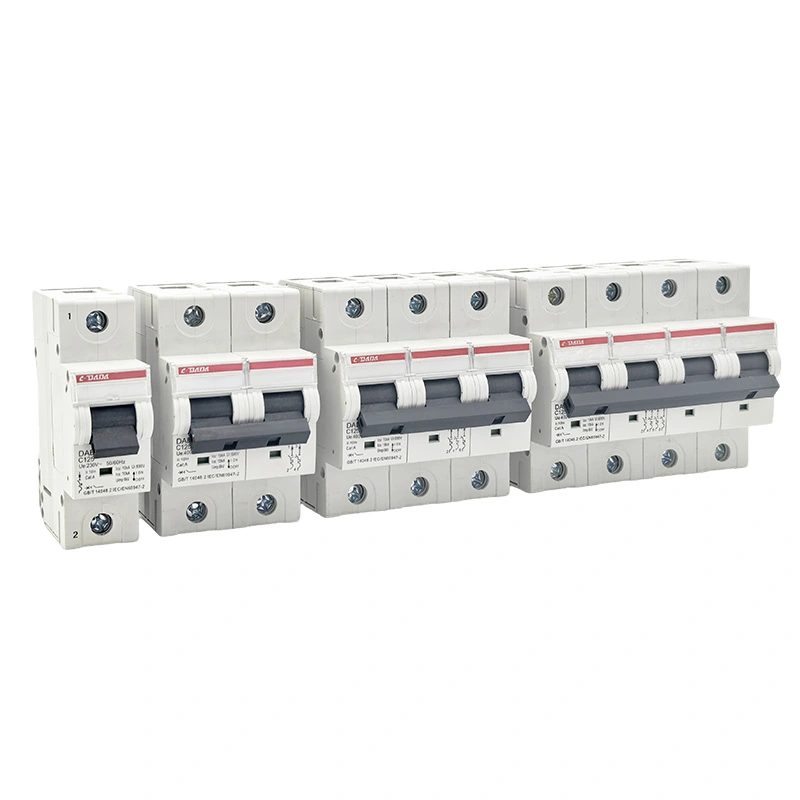

★ 1P/2P/3P/4P matanda akazara, yakafara ikozvino siyana kusvika 125A
★ Inotsigira mhangura & aluminium waya yekubatanidza
Zvishandiso & Kushandisa Mamiriro ezvinhu
★ CDADA 125 15KA Miniature Circuit Breaker inoshandiswa zvakanyanya mu:
★ Mafekitori emaindasitiri, maworkshop, uye hombe midziyo magetsi
★ Zvivakwa zvekutengesa, zvitoro, mahotera, uye zvivakwa zvehofisi
★ Dzimba dzekugara, zvivakwa zvepamusoro-soro, uye matunhu makuru anouya
★ Makabati ekugovera magetsi, bhokisi-mhando substations, uye yekupedzisira kugovera masisitimu
★ Mapombi emagetsi makuru, mafeni, macompressor, nemasekete emota
★ Zvivakwa, kuvaka, nekugadzirisa zvirongwa
Technical Parameters Tafura
|
Item |
Tsanangudzo |
|
Model |
DAB7-125N / DAB7-125H |
|
Product Name |
MCB 125 15KA |
|
Standard |
IEC60898-1 |
|
Rated Current |
Kusvika ku125A |
|
Breaking Capacity |
10kA (N), 15kA (H) |
|
Poles |
1P, 2P, 3P, 4P |
|
Rated Voltage |
400/415V AC |
|
Frequency |
50/60Hz |
|
Insulation Voltage |
500V |
|
Impulse Voltage |
4kV |
|
Tripping Curve |
B, C, D |
|
Dziviriro Dhigirii |
IP20 |
|
Mechanical Life |
8,500 nguva |
|
Upenyu hweMagetsi |
4,000–15,000 nguva |
|
Wiring Capacity |
1–35mm² |
|
Operating Temp |
-5 ℃ ~ +40 ℃ |
|
Installation |
35mm DIN njanji |
|
Upamhi |
27mm (1.5M) |
Rondedzera Dimensions
★ Kufara: 27mm (1P), 54mm (2P), 81mm (3P), 108mm (4P)
★ Kureba: 90mm
★ Kureba: 75.5mm
★ Mounting: Standard 35mm DIN njanji
★ Inokodzera mabhokisi akajairwa akaderera-voltage
Standard Testing Items
★ 1.13Mubvunzo usiri wekufamba (≥1h)
★ 1.45In tripping test (<1h)
★ 2.55In overload chiito bvunzo
★ Magnetic instantaneous tripping test
★ Tembiricha yekukwira bvunzo
★ Dielectric inomira voltage test
★ 10kA/15kA pfupi-circuit breaking test
★ Mechanical & yemagetsi hupenyu bvunzo
★ High & yakaderera tembiricha kushanda bvunzo
Quality Control
Test Process
★ 1. Raw zvinhu zvinouya kuongorora
★ 2. Automatic stamping & jekiseni kuumba
★ 3. Precision musangano & semi-yakapedza bvunzo
★ 4. 100% yakazara kutsika calibration
★ 5. Kutsungirira voltage & insulation test
★ 6. Short-circuit kutyora kugona verification
★ 7. Chitarisiko & chiyero chekuongorora
★ 8. Yakapedzwa chigadzirwa kuchembera & yekupedzisira bvunzo

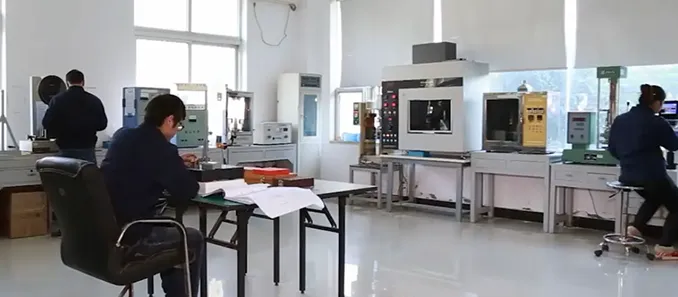

Testing Equipment
★ otomatiki kutsika calibration system
★ Short-circuit yekuongorora chikuva
★ Tembiricha inokwira bvunzo kamuri
★ Kutsungirira voltage tester
★ Life-cycle yekuedza muchina
★ High & yakaderera tembiricha zvakatipoteredza kamuri

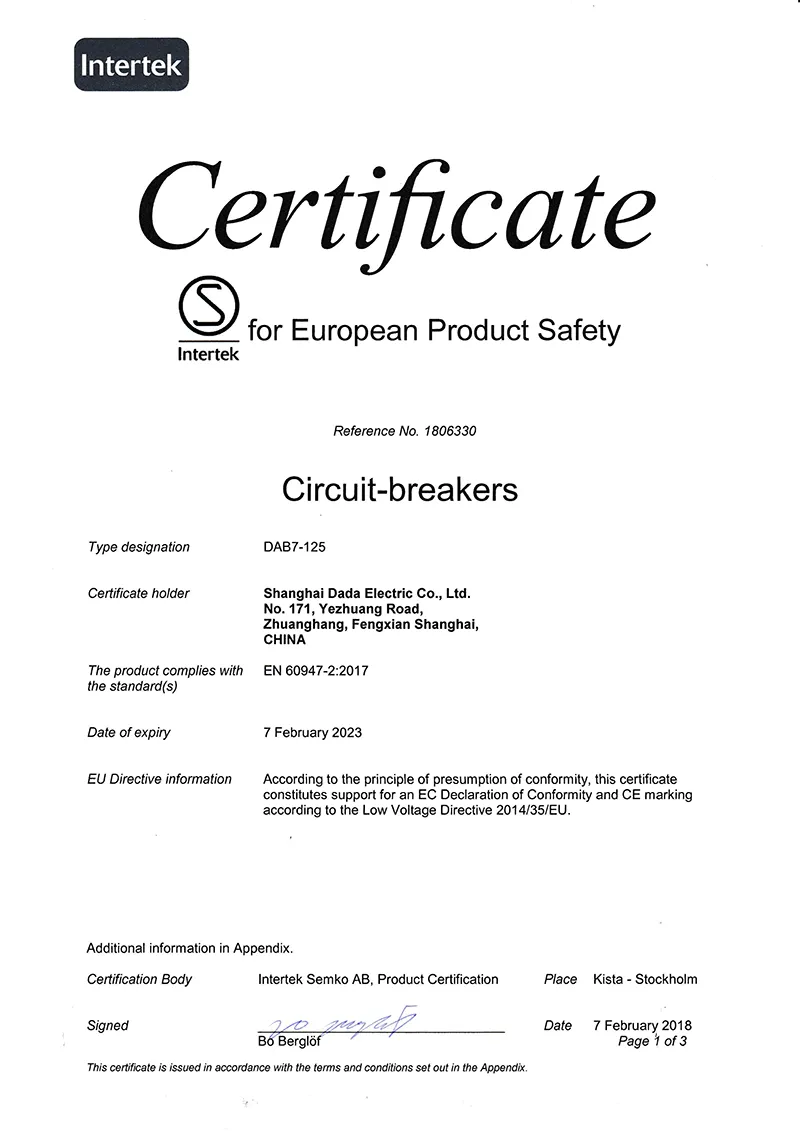

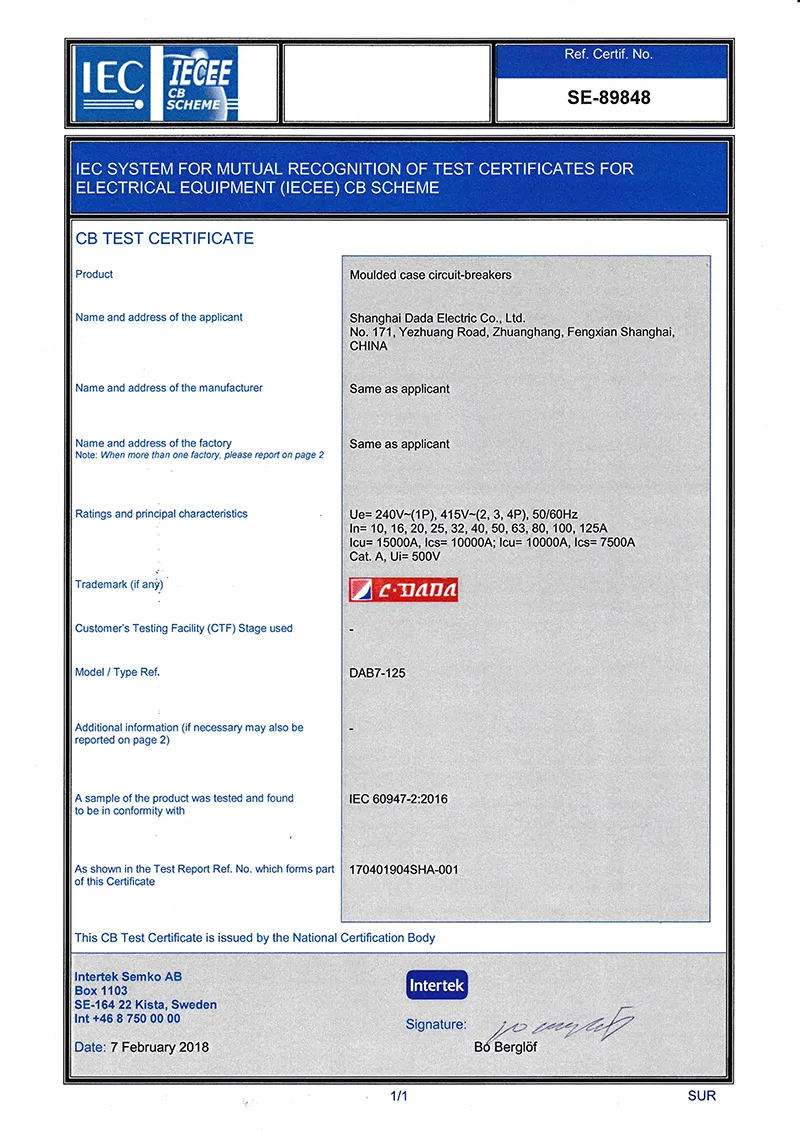

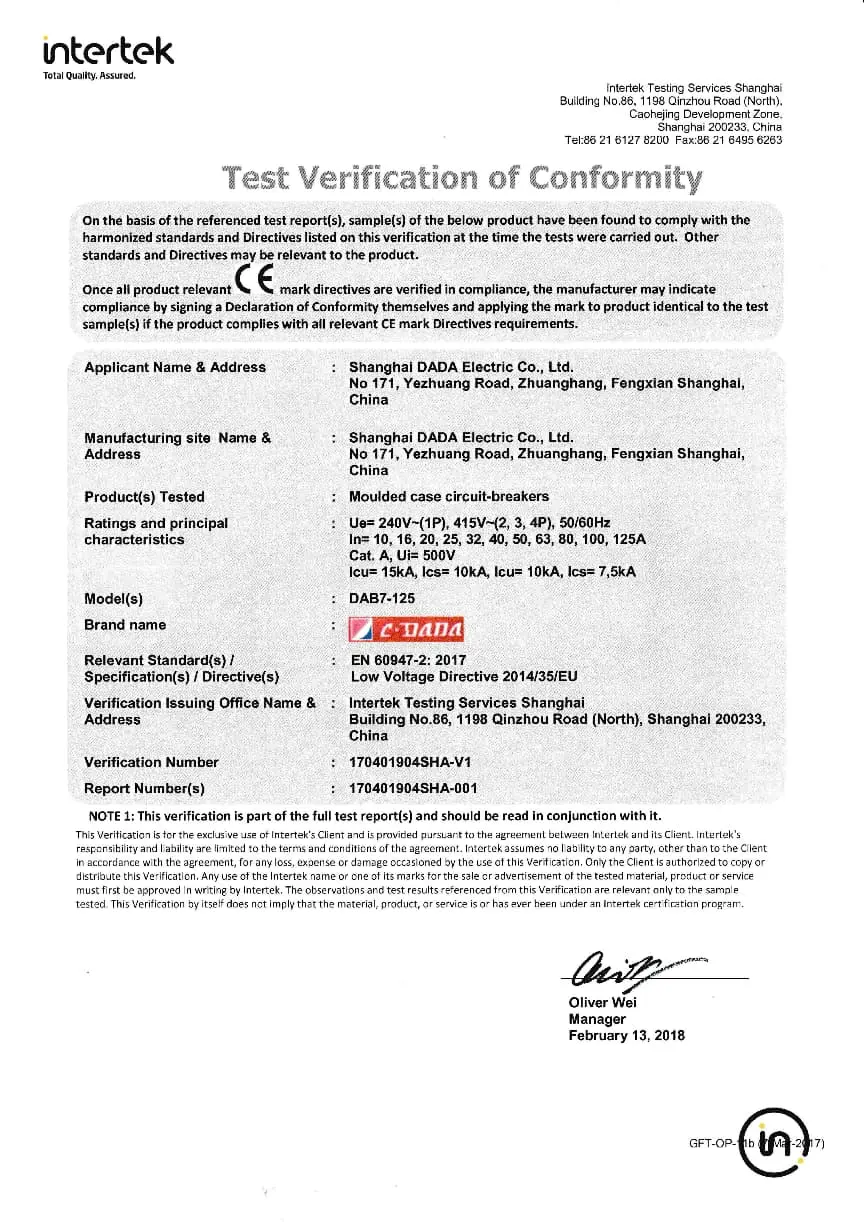

Certifications
CE, CB, IEC60898-1, ISO9001, CCC, ROHS
Packaging & Shipping
★ Standard ekisipoti katoni + shockproof yemukati lining
★ Kurongedza kweboka kune chimwe nechimwe chigadzirwa
★ Clear label: modhi, zvazvino, mapango, huwandu, chitupa
★ Inokodzera kugungwa, mhepo, kutakura kwenyika
★ Tsigira OEM kurongedza & tsika logo
Mutengi Applications & Success Cases
★ Indasitiri huru yekudzivirira yedunhu muEurope, Southeast Asia, Middle East
★ Hombe dzekugara & dzekutengesa kuvaka mapurojekiti emagetsi anouya
★OEM kubatana nemhando dzemagetsi dzepasi rose
★ Yenguva yakareba yakawanda yakawanda yevashambadziri vemarudzi ose
★ Kugovera magetsi kumapurojekiti ezvivakwa muAfrica neSouth America
★ High-current midziyo inotsigira mafekitari nemigodhi

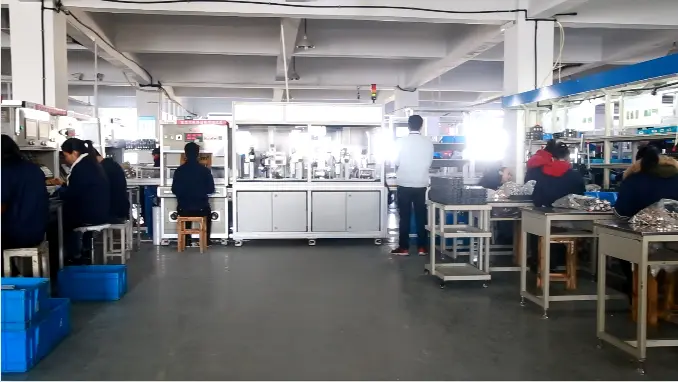

CDADA Factory Simba
★ 40+ makore nyanzvi R&D uye kugadzira ruzivo
★ 50,000 ㎡ yemazuva ano yekugadzira base
★ Yakazara-otomatiki jekiseni, stamping, welding, mitsetse yegungano
★ 90% yakakosha zvikamu zvinogadzirwa mumba
★ Professional R&D timu & yemhando yekudzora timu
★ Mwedzi simba pamusoro 5 miriyoni zvimedu
★ Kuzadza mold kukura & customization kugona
Sei Sarudza CDADA?
★ Hunhu hwakagadzikana, 100% yakazara yekuongorora isati yatumirwa
★ Ultra-yakakwira mutengo-kuita, inotsiva MCCB nemutengo wakaderera
★ Fast delivery, hombe stock for standard modhi
★ Professional technical support & after-sales service
★ Gamuchira OEM / ODM kugadzirisa
★ Global certification, yakakodzera misika yepasirese
★ Kudyidzana kwenguva refu nevatengi vanobva ku80+ nyika
Mutengi Feedback
"CDADA 125 15KA Miniature Circuit Breaker yakagadzikana uye yakavimbika, yakanakira maseketi edu makuru eindasitiri. Kutyora simba ndeye 15kA chaiyo, mhando yakanaka semhando dzekuEurope. Tave nemakore mashanu tichishandira pamwe, kuendesa nenguva, sevhisi yakanaka." - Distributor
