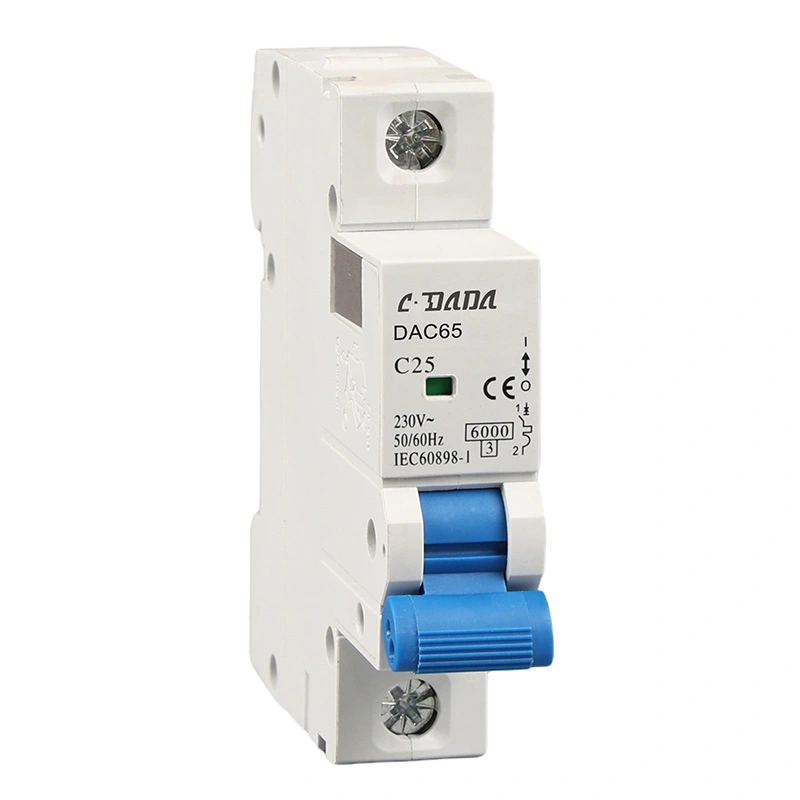

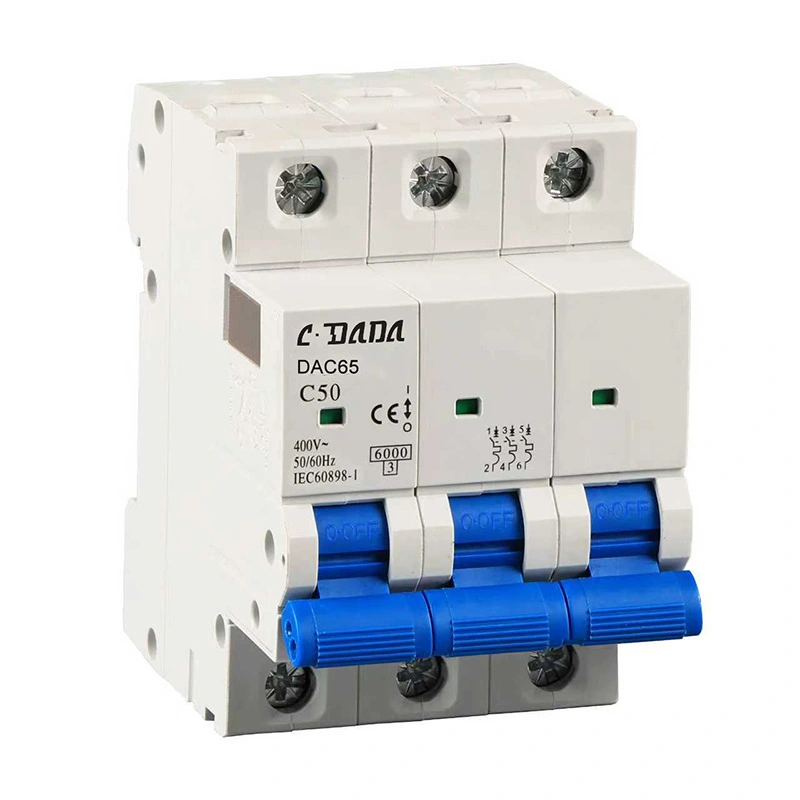

Miniature Circuit Breaker REAL 6KA
Model:DAC65
Bata CDADA nhasi uye ngative mutengesi wako weMiniature Circuit Breaker REAL 6KA, yemhando yepamusoro diki yedunhu redunhu rinoenderana neIEC/EN60898 yekuchengetedza yakavimbika yedunhu. Iyo inoratidzira kupisa kwemagineti kutsika uye ganda rinodzora murazvo, iri nyore kuisa paDIN njanji, uye iri nyore kuchengetedza. Iyo inosanganisa kuita kwakagadzikana neyakagadzika dhizaini, kuwana hupenyu hurefu hwebasa rekugara uye maindasitiri simba kugovera.
CDADA DAC65 Miniature Circuit Breaker REAL 6KA ndeyepamusoro-inoita diki redunhu redunhu rakagadzirirwa AC 50/60Hz masimba emagetsi. Inopa kurongeka kunoshanda uye kuchengetedzwa kwepfupi-redunhu, ine B/C/D yekutsika macurves kuti ikwane mitoro yakasiyana. Inoshandiswa zvakanyanya mumabhodhi ekugovera, zvivakwa zvekugara, mafekitori, uye zvivakwa zvekutengesa, ndiyo sarudzo yepamusoro yevatengi vepasirese uye vanobatana neOEM.
Makomborero Anokosha
★ REAL 6kA yakakwirira kutyora simba kune yakagadzikana yekudzivirira-yedunhu kuchengetedzwa
★ Thermal-magnetic kusunungurwa kwechokwadi uye nekukurumidza kufamba
★ Compact size: 17.8mm per pole, nzvimbo-yekuchengetedza makabati
★ IP20 dhigirii redziviriro, yakachengeteka kubata uye kushanda
★ Wide wiring range: inotsigira 0.5-63A, flexible uye yakaoma tambo
★ DIN njanji kukwira kuti kukurumidza kugadzwa
★ Flame-retardant shell, high temperature resistance
★Stable performance in -5℃~+40℃ ambient environment
Applications
CDADA Miniature Circuit Breaker REAL 6KA inoshandiswa zvakanyanya mu:
★ Zvivakwa zvekugara, mafurati, mavillas
★ Mahofisi, zvitoro, mahotera, zvivakwa zveveruzhinji
★ Industrial workshops, diki magetsi midziyo
★ Magetsi masisitimu, zvigadziko zvemagetsi, mapaneru ekugovera
★ Mafeni, pombi, compressors uye madiki mota
★ Infrastructure uye magetsi ekugadzirisa mapurojekiti
Technical Parameters
| Item | Tsanangudzo |
| Model | DAC65 MCB CHAIKO 6KA |
| Standard | IEC/EN60898 |
| Breaking Capacity | 6kA |
| Rated Current | 0.5,1,2,3,4,5,6,10,16,20,25,32,40,50,63A |

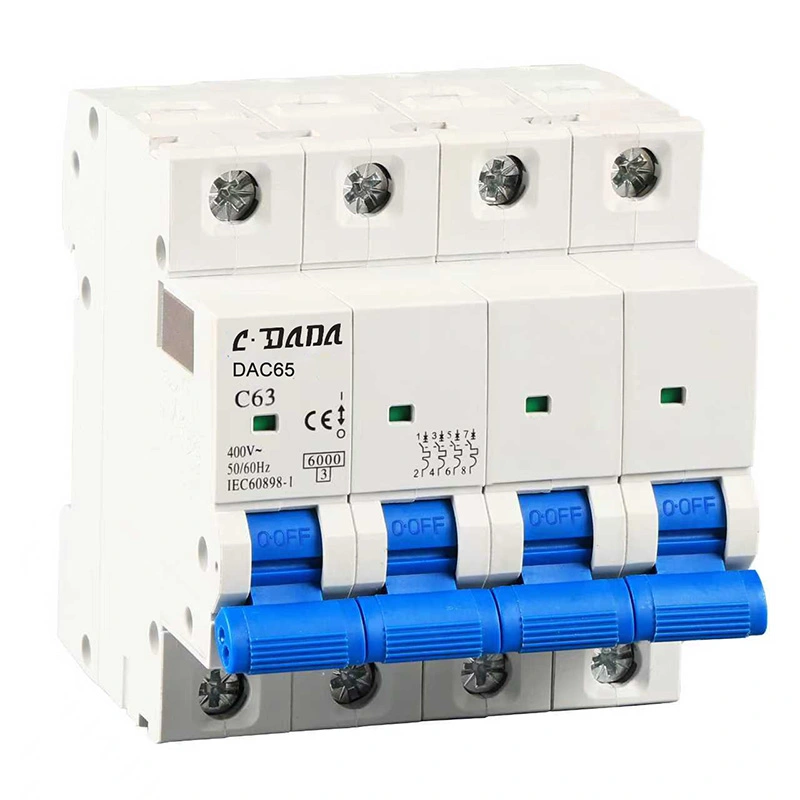

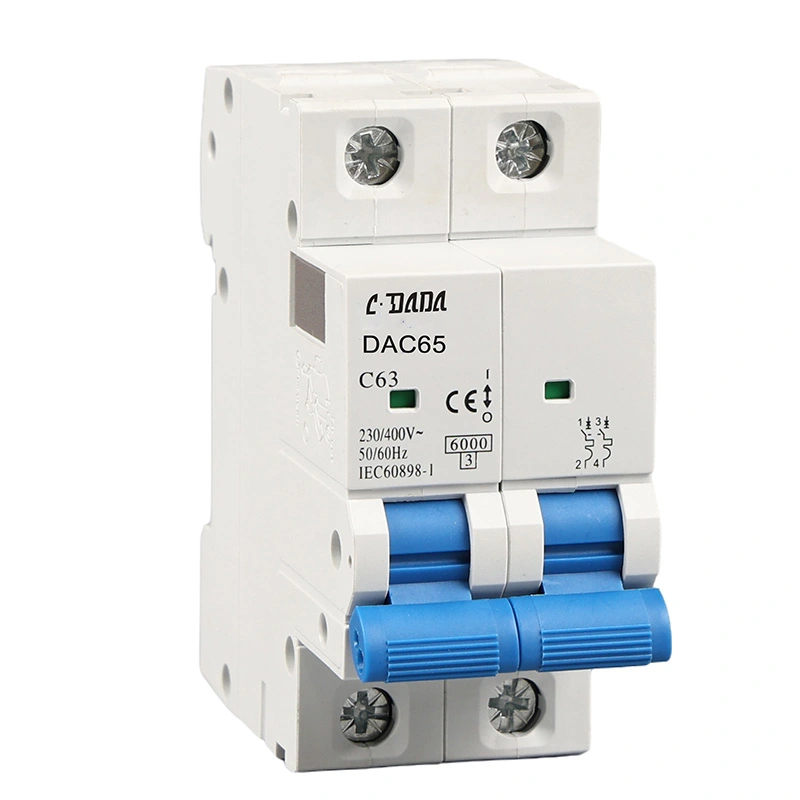

| Poles | 1P,1P+N,2P,3P,3P+N,4P |
| Tripping Curve | B(3-5In), C(5-10In), D(10-20In) |
| Rated Voltage | 1P:240V; 2P:240/415V; 3P/4P:415V |
| Insulation Voltage | 500V |
| Impulse Voltage | 6kV |
| Kirasi yeKuderedza Simba | 3 |
| Dziviriro Dhigirii | IP20 |
| Installation | 35mm DIN njanji |
| Terminal Type | Rug rudzi / Pini mhando |
| Ambient Temperature | -5 ℃ ~ +40 ℃ |

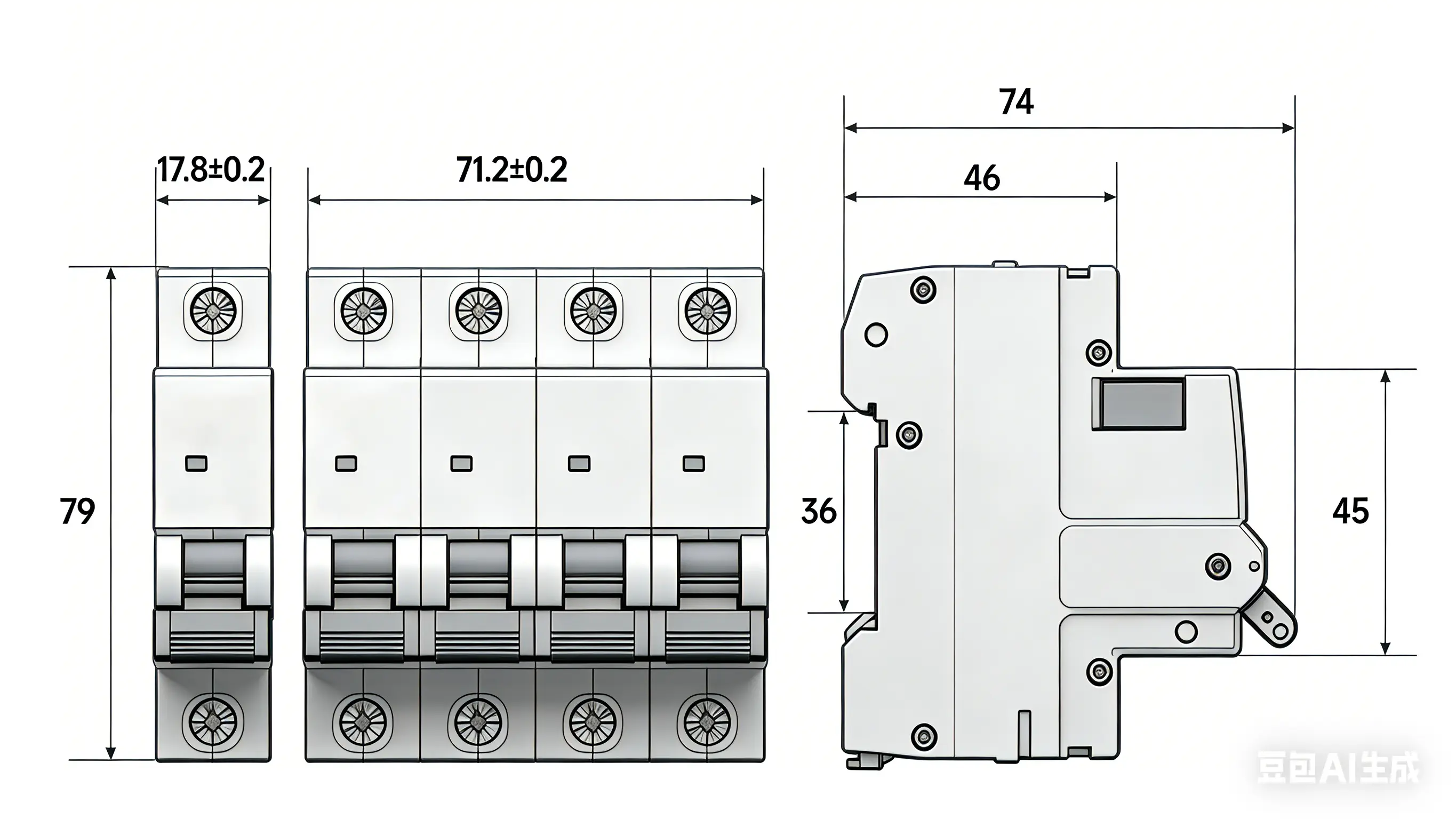

Rondedzera Dimensions
★ Upamhi: 17.8mm padanda
★ Mounting: Standard 35mm DIN njanji
★ Wiring capacity: Kusvika 35mm² rigid cable
★ Compact structure yemabhokisi akajairwa ekugovera
Standard Testing Items
★ 1.13Mubvunzo usiri wekufamba (≥1h)
★ 1.45In tripping test (<1h)
★ Magnetic tripping hunhu bvunzo
★ Tembiricha yekukwira bvunzo
★ Dielectric voltage inomira bvunzo
★ Short-circuit breaking capacity test (6kA)
★ Mechanical & yemagetsi kutsungirira bvunzo

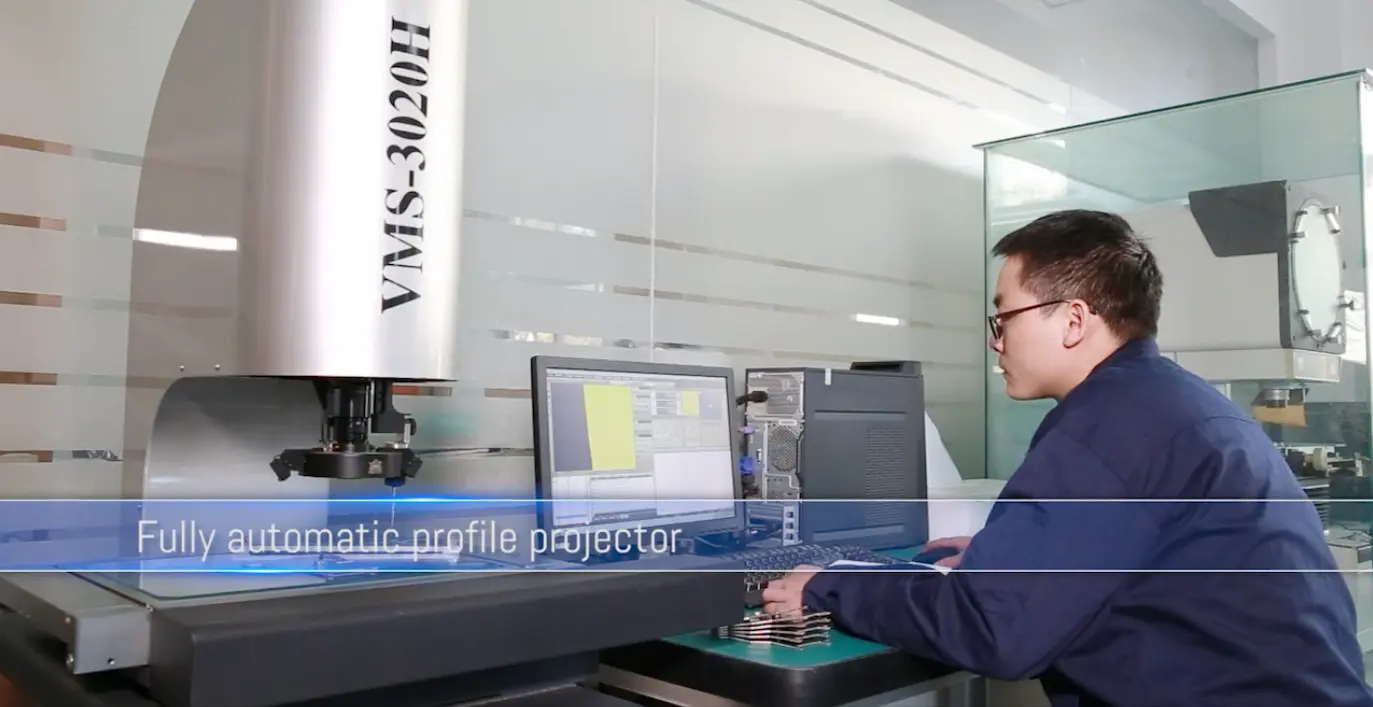

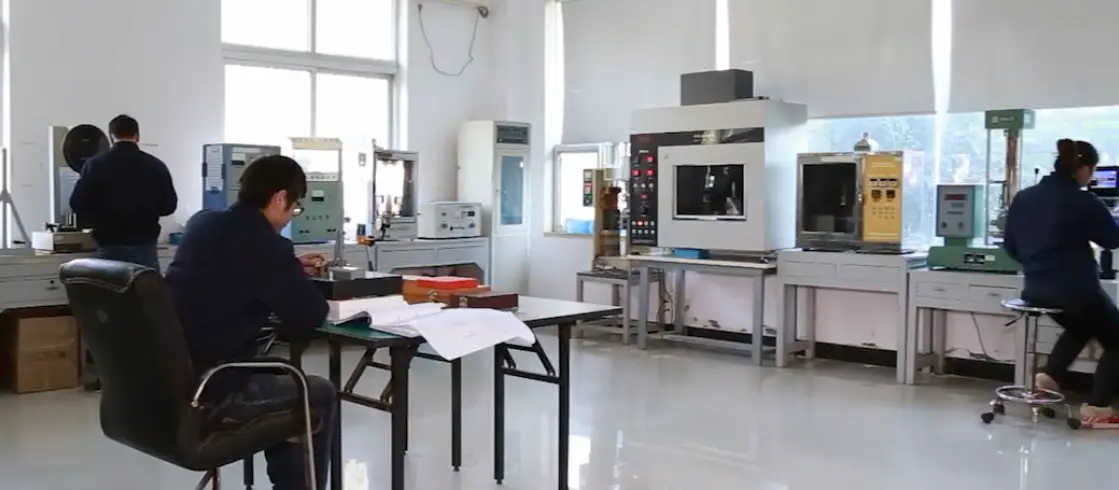

Quality Control Process
1. Raw material inouya yekuongorora
2. Kugadzira otomatiki & nemazvo kusangana
3.100% yakazara kutenderera calibration
4. High / yakaderera tembiricha kumhanya bvunzo
5. Kutsungirira voltage & insulation test
6. Chitarisiko & chiyero chekuongorora
7. Kuongorora kwekupedzisira kusati kwarongedza
Packaging & Shipping
★ Standard Export carton ine shockproof yemukati lining
★ Bvisa label: modhi, ikozvino, mapango, huwandu, chitupa
★ Boka bhokisi kurongedza kudzivirira kukwenya uye kukuvara
★ Yakakodzera kutakura gungwa, mhepo uye pasi
★ Tsigira OEM label & tsika kurongedza
Mutengi Kubudirira Nyaya
CDADA Miniature Circuit Breaker REAL 6KA ine kudyidzana kwenguva refu pasi rese:
★ Kupihwa kwehuwandu kune vanogovera vekuEurope uye makondirakiti
★ Zvirongwa zvekugara & zvekutengesa muMiddle East & Africa
★OEM kubatana nemhando dzemagetsi dzepasi rose
★ Simba rekugovera masisitimu muSoutheast Asia & South America
★ mirairo yenguva refu kubva kune vanopinza uye vanobatanidza magetsi
