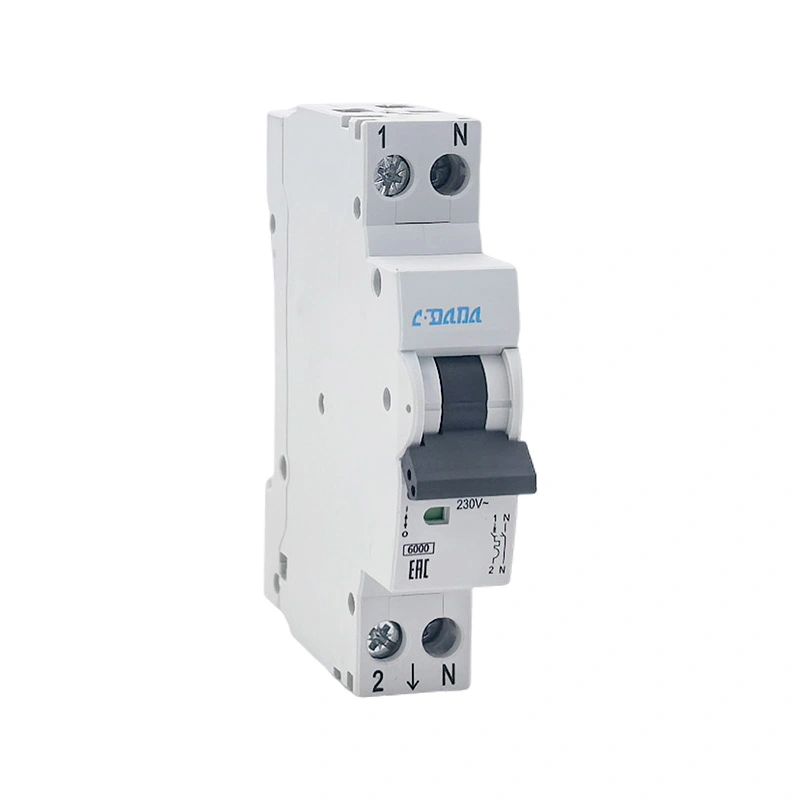

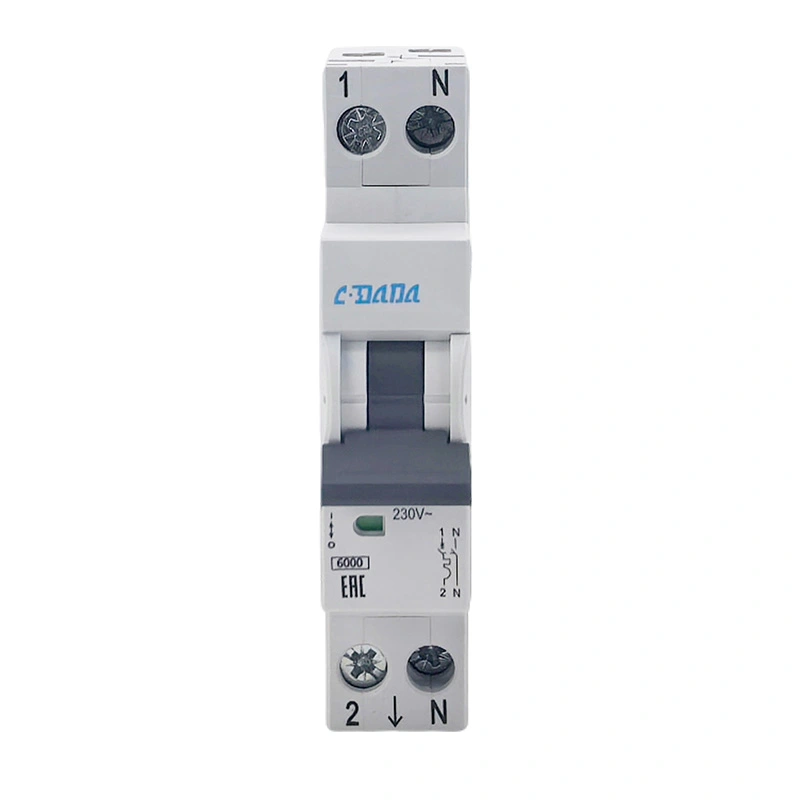

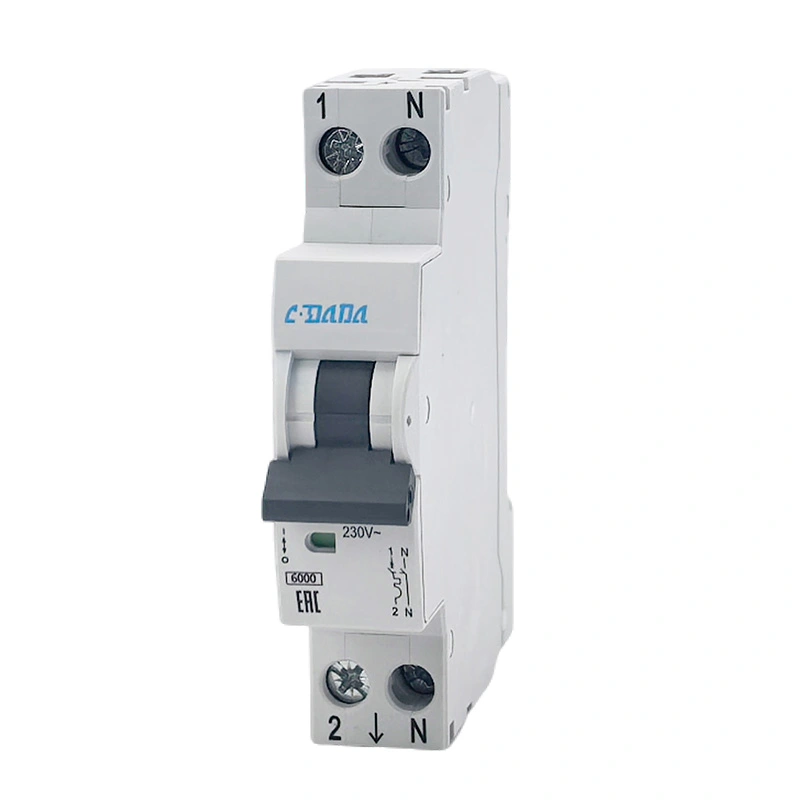

Miniature Circuit Breaker DPN 6KA
Model:DAB7N
CDADA Miniature Circuit Breaker DPN 6KA yakanakira kutenga kwakawanda, yemhando yepamusoro 1P+N diki redunhu redunhu rinoenderana neIEC60898-1 yekuchengetedza imba yakachengeteka uye yekutengeserana yedunhu kuchengetedza. Inoshandisa dhizaini mbiri-yepakati uye yakagadzikana yekupisa-magineti kutsika, iri nyore kuisa paDIN njanji uye iri nyore kuchengetedza. Inosanganisa chimiro chakavimbika nehupenyu hurefu hwesevhisi, kuve nechokwadi chekuchengetedza magetsi kune akasiyana-siyana akaderera-voltage magetsi masisitimu.
CDADA DAB7N Miniature Circuit Breaker DPN 6KA inyanzvi 1P+N dual-break miniature circuit breaker yakazvimiririra yakagadziridzwa neShanghai DADA Electric, mugadziri akavimbika ane makore makumi mana+ echiitiko. Iine 6kA yakakwirira yekutyora simba, synchronous operation, uye N-pole "ita kutanga, kuputsa gare gare" dhizaini, inovandudza zvinobudirira kuita kwearc yekudzima uye inodzivirira maseketi nemidziyo zvakachengeteka. Inoshandiswa zvakanyanya mumabhokisi ekugovera, kushongedzwa kwemba, simba rekutengesa, uye maseketi emwenje, ndiyo yekutanga sarudzo yevatengi vepasirese, vaparidzi uye vatengi veOEM.

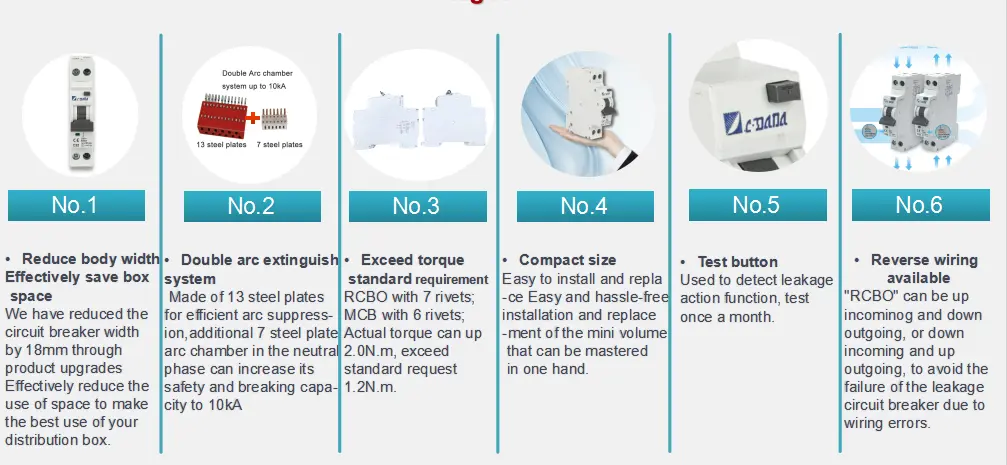

Ndezvipi Zvakanakira MCB DPN 6KA?
★ 1P + N DPN chimiro, mbiri dzekuputsika mapoinzi, yakachengeteka uye yakavimbika
★ N danda rinogadzira kutanga uye rinotyora gare gare, rinowedzera arc kutyora kugona
★ 6kA chaiyo yekutyora simba, yakasimba yekudzivirira pfupi-yedunhu
★ Compact 17.8mm upamhi, inochengetedza kabhineti nzvimbo
★ B / C kutenderera macurves anowanikwa kune akasiyana mitoro
★ IP20 giredhi yekudzivirira, yakachengeteka kubata
★ Wide wiring range: 1–25mm² flexible cable
★ DIN njanji inokwira, inokurumidza uye yakagadzikana yekuisa
★ High uye yakaderera tembiricha kuramba: -25℃~+50℃
★ Hupenyu hurefu hwemakina kusvika ku20,000 nguva
Applications
CDADA Miniature Circuit Breaker DPN 6KA inoshandiswa zvakanyanya mu:
★ Zvivakwa zvekugara, mafurati, mavillas, kushongedza kwemba
★ Mahofisi, zvitoro, mahotera, zvikoro, zvipatara
★ Magetsi emagetsi, zvigadziko zvemagetsi, midziyo yemagetsi maduku
★ Zvishandiso zvemumba: zvidziva zvemvura, ma air conditioners, magetsi emagetsi
★ Old redunhu kuvaka uye kugovera bhokisi kusimudzira
★ Zvekutengesa uye zvehurumende low-voltage magetsi ekugovera masisitimu
Technical Parameters Tafura
| Item | Tsanangudzo |
| Model | DAB7N-40 |
| Product Name | MCB DPN 6KA |
| Standard | IEC60898-1 |
| Poles | 1P+N (2P) |
| Breaking Capacity | 6kA |
| Rated Current | 6A,16A,20A,25A,32A,40A |
| Rated Voltage | AC 220/230/240V |
| Frequency | 50/60Hz |
| Tripping Curve | B / C |
| Insulation Voltage | 500V |
| Impulse Voltage | 4kV |
| Dziviriro Dhigirii | IP20 |
| Mechanical Life | 20,000 nguva |
| Upenyu hweMagetsi | 6,000 nguva |
| Terminal Torque | 1.5Nm |
| Wiring Capacity | 1–25mm² |
| Operating Temp | -25 ℃ ~ +50 ℃ |
| Dimensions | 82.5×73.2×17.8mm |
Rondedzera Dimensions
★ Kureba: 82.5mm
★ Kureba: 73.2mm
★ Kufara: 17.8mm (standard 1-module upamhi)
★ Mounting: 35mm DIN njanji
★ Wiring: yakakodzera 1–25mm² flexible/rigid cable
★ Busbar ukobvu: 0.8–2mm
Standard Testing Items
★ 1.13Muyedzo isiri-yekufamba (≥1 awa)
★ 1.45Mukufamba bvunzo (<1 awa)
★ 2.55In overload chiito bvunzo
★ Magnetic instantaneous tripping test (3In/5In yeB/C curve)
★ Dielectric inomira voltage test
★ Tembiricha yekukwira bvunzo
★ Short-circuit breaking capacity test (6kA)
★ Mechanical & yemagetsi hupenyu bvunzo
★ High & yakaderera tembiricha kushanda bvunzo

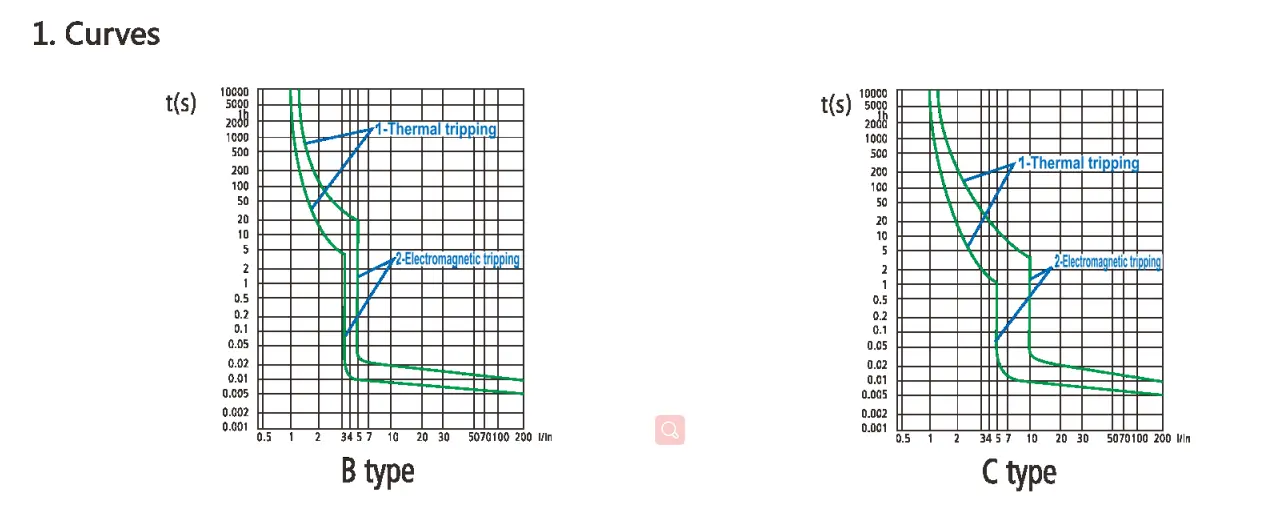

Tripping Characteristic Curves
IEC 60898-1
Magnetic Release
Kana dunhu diki redunhu rikaitika, kukwanuka pakarepo kunowanikwa nemagineti ine musimboti wesimbi. Zvinoenderana neiyo IEC60898 yakajairwa, chigadzirwa ichi chinogona kukamurwa kuita mhando nhatu: B, C, uye D.
|
|
Test current | Nguva yekufamba | Applications |
| B Curve | 3ln 5ln |
0.1 |
Type B inongoshanda kune inoshanda mitoro: -Electric heater-Mvura hita-Electric furmace |
| C Curve | 5Mu10ln |
0.1 |
Type C inokodzera mitoro yakajairwa: -Lamp -Power socket -Small power mota |
Thermal Release
● Kamwe kuwandisa kunoitika munharaunda, bimetallic strip ye circuit breaker ichakotama nekuda kwekupisa, zvichiita kuti vanobatana vasununguke uye zvichikonzera kupisa kwemhepo;
● Muyero weIEC unotsanangura rwendo rwekufamba kwenguva yakasiyana-siyana yakawandisa;
●Tembiricha yenzvimbo yekuongorora i30 °C.
| Test current | Nguva yekufamba |
| 1.13ln | t z 1h(mu ≦ 63A) |
| 1.45ln | t<1h(Mune ≦ 63A) |
| 2.55ln | 1s<1h<60s(In≤32A)1s |

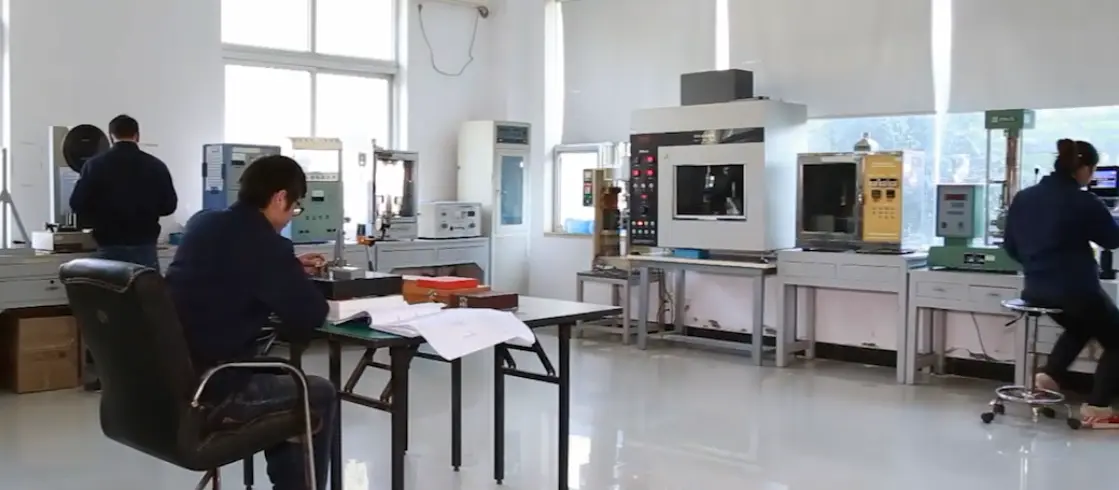

Quality Control Process
1. Raw material inouya yekuongorora & certification verification
2. Otomatiki jekiseni kuumba & nemazvo simbi stamping
3. Semi-yakapedza chigadzirwa musangano & calibration
4. 100% yakazara kutsika hunhu bvunzo
5. Kutsungirira voltage & insulation performance test
6. High uye yakaderera tembiricha kuchembera bvunzo
7. Chitarisiko, dimension & logo yekuongorora
8. Kupeta kwekupedzisira & kuongororwa kwekutumira
Packaging & Shipping
★ Standard ekisipoti katoni ane shockproof lining
★ Boka bhokisi rakaputirwa kudzivirira kukwenya
★ Bvisa label: modhi, ikozvino, mapango, huwandu, chitupa
★ Yakakodzera kutakura gungwa, mhepo uye pasi
★ Tsigira OEM kurongedza, tsika logo uye label
Mutengi Kubudirira Nyaya
CDADA MCB DPN 6KA yakatengeswa kunze kwenyika dzinopfuura makumi mashanu nematunhu:
★ Yakareba-yakareba yakawanda yekugovera kune vekuEurope neAsia vanogovera
★ Mapurojekiti ekugadzirisa matunhu edzimba kuMiddle East & Africa
★OEM kubatirana pamwe neanozivikanwa emhando dzemagetsi epasi rose
★ Simba rekugovera kutsigira kune real estate Developers
★ Yakagadzikana mirairo kubva kune magetsi makondirakiti uye system integrators
Sei Sarudza DADA Magetsi?
★ 40+ makore ehunyanzvi ruzivo mune redunhu breaker R&D nekugadzira
★ 90% core components yakagadzirwa mukati meimba, yakagadzikana yehutano hwekutonga
★ ISO9001 certified, kutevedzera kwakazara nemitemo yenyika
★ Complete certification: CE, CB, CCC, nezvimwe.
★ Huru hwekugadzira huwandu, kukurumidza kuendesa kune akawanda maodha
★ Professional technical support uye after-sales service
★ Gamuchira OEM & ODM kugadzirisa kusangana nemusika zvinodiwa
★ Global Logistics system, yakachengeteka uye inosvika panguva
