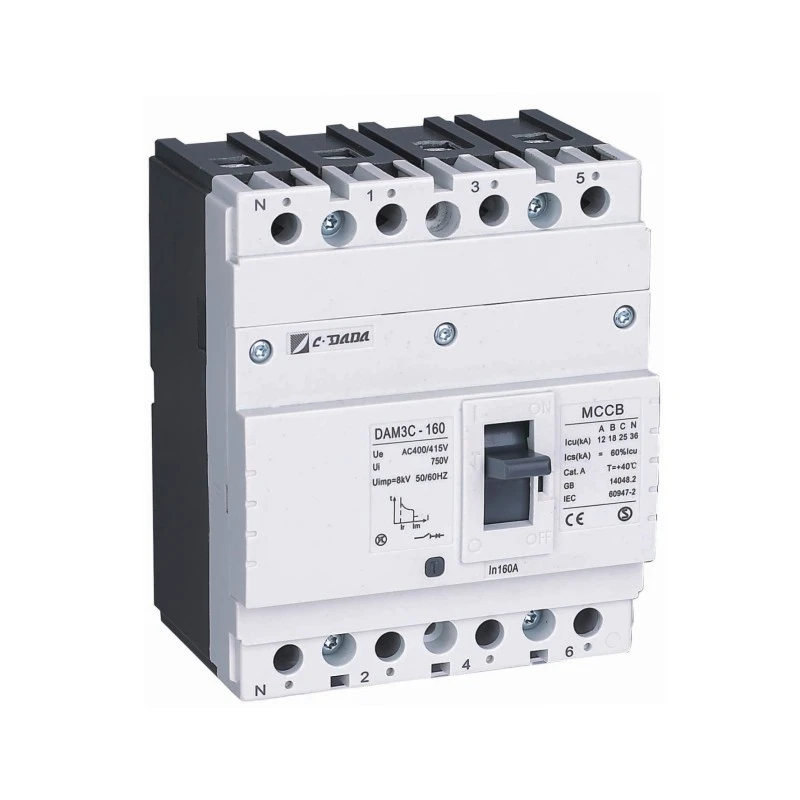

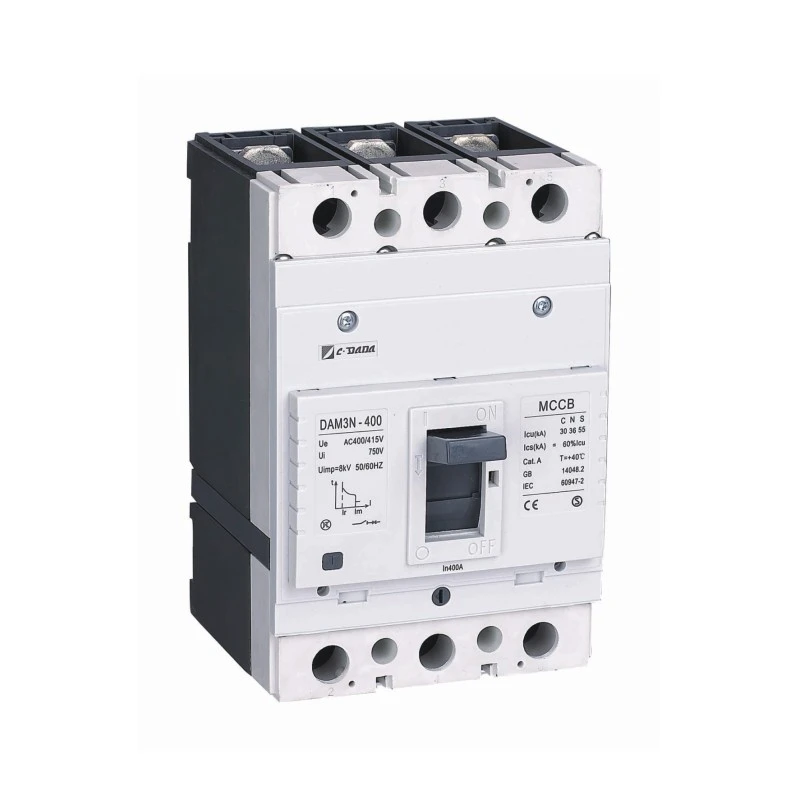

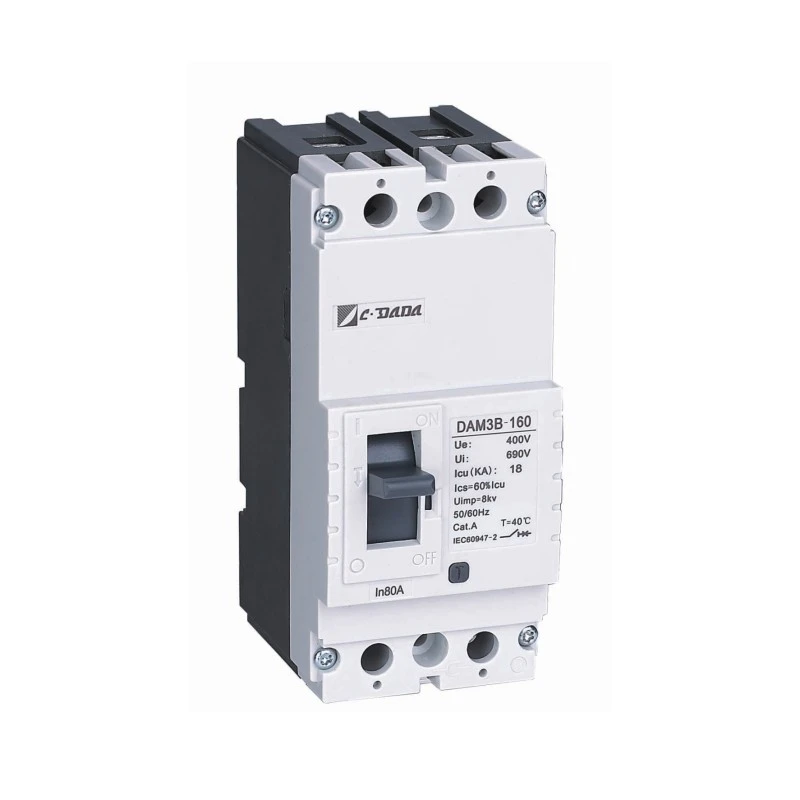

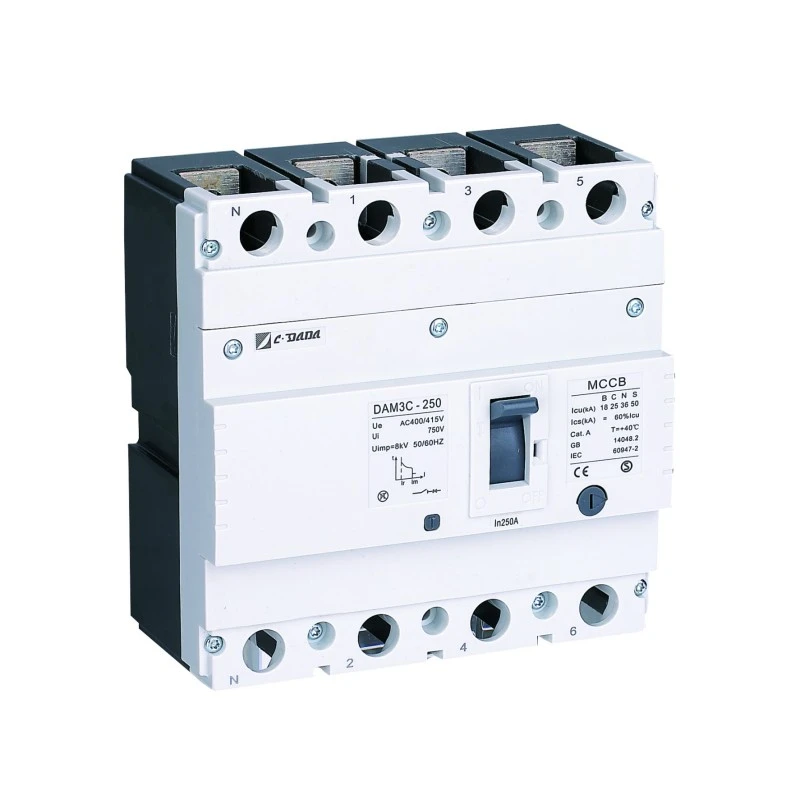

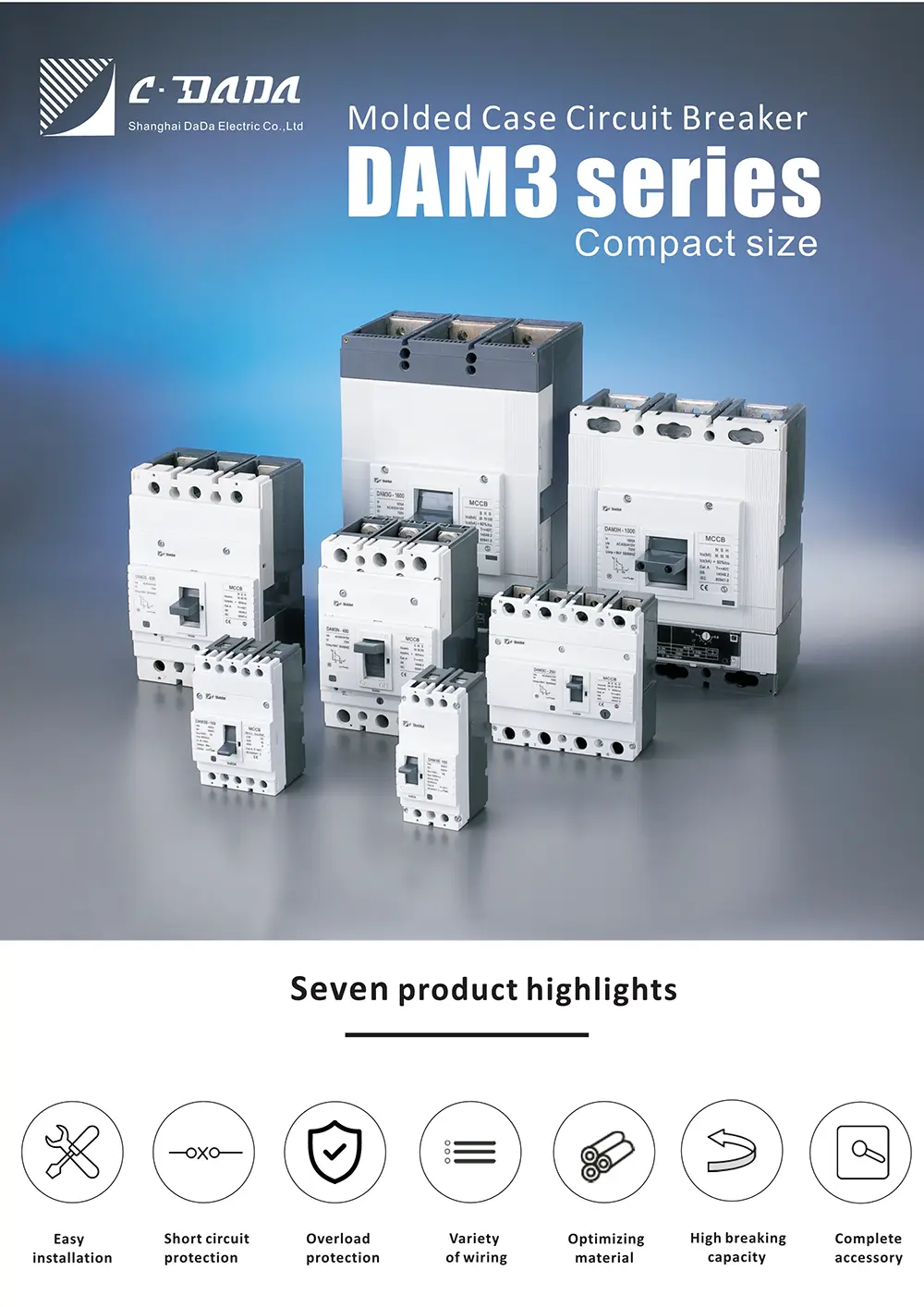

Compact Molded Case Circuit Breaker
Model:DAM3 Series
CDADA, inogadzira relibale uye mutengesi kubvira 1983, inogona kupa zvemhando yepamusoro DAM3 Series Compact Molded Case Circuit Breaker, diki asi ine simba, yakayereswa 16A–1600A, inosvika 70kA yekutyoka. Dhizaini inochengetedza nzvimbo inoderedza saizi yepaneru ne25%. Yakanakira OEMs & mapaneru vavaki. CE & IEC yakasimbiswa.
Kana nzvimbo yakaoma asi kuita hakugone kukanganisika, iyo CDADA DAM3 Compact Molded Case Circuit Breaker inopa chiyero chakakwana. Engineered neShanghai DADA Electric CO., LTD., iyi mini MCCB inotsanangudza kushanda zvakanaka neyakaderedzwa zvinoshamisa tsoka-isina kurega kuvimbika kana kutyora kugona.
Yakatemerwa kubva pa16A kusvika 1600A uye ichipa kukanganiswa-pfupi-kukanganisa kusvika 70kA pa415V, iyo DAM3 nhevedzano yakavakirwa-chinangwa mafekitori eOEM, mapaneru ekubatanidza, uye zvikwata zvekuisa zvinoda kusarudzwa kwakapusa, wiring nyore, uye yakawanda kabati nzvimbo yekuchengetedza. Zvisinei nehukuru hwayo, inogovera zvese zvemukati zvishongedzo neyakaomeswa DAM1 nhevedzano-kuve nechokwadi chekuenderana uye kushanda kune yako yese system.
Zvinotaurwa Nezvakakosha
Muenzaniso: DAM3 Series - Compact Molded Case Circuit Breaker
Yakarongwa Yazvino (Mu): 16A - 1600A
Matanda: 2P / 3P / 4P
Rated Insulation Voltage (Ui): 1000V
Kuputsa Kugona (Icu): 10kA - 70kA @ 415V (inotsamira pamuenzaniso)

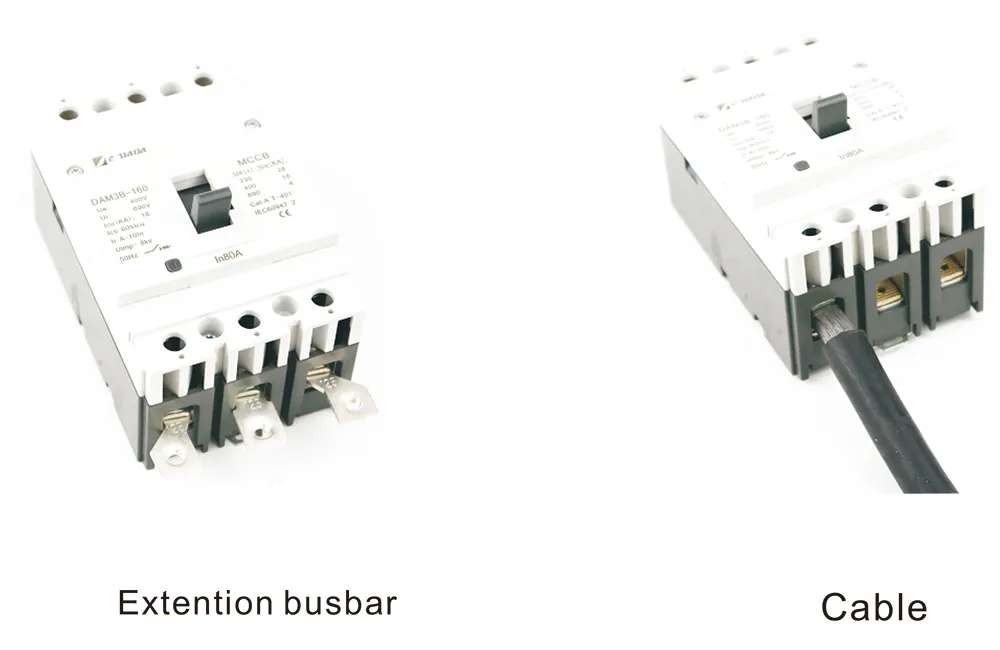

Cable Kuguma: M8 tambo lugs kana bhokisi terminals (yakajairwa)
Kukwirisa: Panel-yakaiswa (ine inosarudzika DIN njanji adapta yemafuremu madiki)
|
Yakayerwa ikozvino yefuremu saizi inm [A] |
160 |
250 |
400 |
630 |
1000 |
1600 |
|
|
Yakayerwa ikozvino [A] |
12.5-160 |
100-250 |
200-400 |
315-630 |
630 800 1000 |
1000 1250 1600 |
|
|
Nhamba yematanda |
2/3/4 |
2/3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
|
|
Rated operating walge |
AC)50-60HZ [V] |
4001690 |
4001690 |
4001690 |
4001690 |
4001690 |
4001690 |
|
DC |
250V1000 |
250V1000 |
250V1000 |
250V1000 |
250V1000 |
250V1000 |
|
|
Rated impulse inomira voltage ulmp [kv] |
8 |
8 |
8 |
8 |
8 |
8 |
|
|
Rated insulation voliage Ul [V] |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
Edza voltsge pa induslrial frequency ye1 min [V] |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
|
Yakatemerwa uhimate shart redunhu kutyora kugona lcu [kA] |
A |
C |
N |
N |
N |
S |
|
|
(AC)50-60HZ 220/230V [KA] |
18 |
25 |
36 |
36 |
36 |
55 |
|
|
(AC)50-60HZ 400/415V [KA] |
10 |
15 |
25 |
25 |
36 |
36 |
|
|
(AC)50-60HZ 690V [KA] |
6 |
8 |
15 |
15 |
15 |
20 |
|
|
Yakatemerwa sevhisi pfupi-yedunhu kutyora kugona, lca [KA] |
|
||||||
|
(AC)50-60HZ 220/230V [%lcu] |
60% |
60% |
60% |
60% |
60% |
60% |
|
|
(AC)50-60HZ 400/415V [%lcu] |
60% |
60% |
60% |
60% |
60% |
60% |
|
|
(AC)50-60HZ 690V [%lcu]] |
60% |
60% |
60% |
60% |
60% |
60% |
|
|
chikamu chekushandiswa (EN 60947.2) |
A |
A |
A |
A |
A |
A |
|
|
Kutsungirira |
Total cycles |
10000 |
10000 |
8000 |
6000 |
5000 |
5000 |
|
Kutsungirira kwemagetsi |
1500 |
1500 |
1000 |
1000 |
1000 |
1000 |
|
|
Mechanical kutsungirira |
8500 |
8500 |
7000 |
5000 |
4000 |
4000 |
|
Chainobatsira
★ Kusvika pa25–30% idiki pane maMCCB enguva dzose mukirasi imwe chete yazvino
★ Kugarisana: Zvese zvemukati accessories zvinochinjika neDAM1 dzakateedzana
★ Zviyero: Zvinoenderana neIEC/EN 60947-2
Sei Sarudza CDADA Compact MCCB?
★ Zvishandiso zvakasiyana-siyana zvingasarudzwa,
★ Kukura kwakaderedzwa zvakanyanya.
DAM3, iyo inobatanidza ese maficha emhando yepamusoro, kuvimbika kwepamusoro uye kureruka kweDada yemagetsi, ndeyechokwadi yakapusa uye inoshanda Molded Case Circuit Breaker.
Saizi yakaderedzwa, asi inovimbisa kuita kwakanakisa uye kuvimbika. Zvichienzaniswa nezvose zvakafanana circuit breaker zvigadzirwa pamusika, ine yakakwirira performance dimension ratio., iyo inogona kupa yakawanda nzvimbo kune vashandisi kuitisa tambo wiring uye kuderedza saizi yekabati.
Compact size ine zvakanakira zvikuru. Iyo inonyanya kukodzera mafekitori eOEM, mafekitori epaneru, uye vashandi vekuisa.
★ Yakareruka Kutenga & Kuisa
● Bvisa modhi yekodhi → nyore kuodha
● Zvishandiso zvakamisikidzwa → hapana zvidimbu zvakasarudzika zvinodiwa
● Rupo rwekupedzisira kuwana → nekukurumidza kumisa tambo
★ Mutengo & Space Savings
Madiki mabreaker = madiki akavharirwa = zvinhu zvakaderera, kutumira, uye mari yekuisa. Yekuwedzera yemukati nzvimbo zvakare inovandudza kupisa kupisa uye kugadzirisa kuwana.
★ Kuvimbika kwakaratidza
Yakavakwa pamakumi emakore eDADA engineering ruzivo. Inogovanisa zvikamu zvepakati nemunda-yakaratidza DAM1 nhevedzano-yakavimbika muzviuru zvekuisa pasi rese.
★ Scalable Across Applications
Kubva pa32A mini MCCB yekudzora maseketi kusvika ku1600A main breaker yevanodyisa maindasitiri-iyo DAM3 chikuva chinoivhara zvese neinopindirana dhizaini pfungwa.
Ideal Use Cases
★ OEM Michina: Embed mune compact control makabhati (semuenzaniso, kurongedza, CNC, marobhoti)
★ Commercial Panels: Mwenje, HVAC, uye sub-kugovera mune yakakwirira-inokwira
★ Renewable Energy: Solar musanganisi mabhokisi & inverter kudzivirira
★ Infrastructure: Telecom magetsi mayuniti, EV kuchaja zviteshi
★ Retrofit Projects: Tsiva huru legacy breakers pasina kugadzira patsva mapaneru

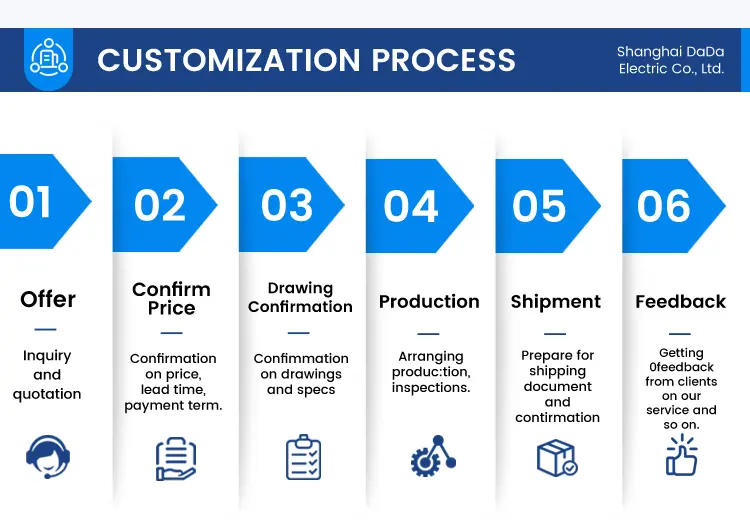

Kuronga & Kugadzirisa
Isu tine simba rakasimba reOEM/ODM uye tinokwanisa kugadzira nekugadzira zvigadzirwa zvichibva pane ako ehunyanzvi kudhirowa uye zvakatemwa.
Shipping & Logistics
Tine ruzivo rwakakura rwekutumira kunze. Isu tinokwanisa kuronga zvese zvekutumira, zvinyorwa, uye ekisipoti tsika yekubvumidza maitiro kwauri.
FAQs
Q1: Chii chinoita kuti DAM3 ive "compact" MCCB?
A1: Magadzirirwo ayo emuchina i25-30% madiki pane akajairwa MCCBs mune imwecheteyo renji renji-inowanikwa kuburikidza neakagadziridzwa arc chambers, compact trip units, uye inoshanda bhara routing-ichichengetedza yakazara 70kA yekupwanya kugona.
Q2: Iyo 32A compact MCCB inowanikwa mu3-pole?
A2: Hongu! Iyo DAM3 yakatevedzana Compact Molded Case Circuit Breaker inopa 2P, 3P, uye 4P zvigadziriso mukati mese 16A-1600A renji, kusanganisira yakakurumbira ratings se32A, 63A, 100A, uye 160A.
Q3: Ndingashandisa zvishongedzo zvakafanana neDAM1?
A3: Chokwadi-zvese zvemukati uye zvekunze zvishongedzo (shunt nzendo, vabatsiri vanobatana, undervoltage kuburitswa, nezvimwewo) zvinonyatsoenderana neDAM1 nhevedzano, kurerutsa inventory.
Q4: Ko compact size inokanganisa kutyora kuita?
A4: Kwete. Pasinei nehukuru hwayo hudiki, DAM3 inopa kusvika ku70kA kukanganisa simba pa415V-kupfuura vakwikwidzi vakawanda vakakura-kuvonga kune teknolojia yepamusoro ye arc-quenching.
Q5: Sei uchisarudza CDADA pane mamwe "mini" MCCB mhando?
A5: CDADA inomira pachena nekuti:
● Kuvhara kwechokwadi kwepamusoro-ikozvino (kusvika ku1600A mune compact fomu)
● 70kA kupaza simba mumhando dzakasarudzwa (kashoma kune "mini" MCCBs)
● Full accessory ecosystem uye DAM1 kuenderana
● Global compliance focus (IEC, CE, RoHS)
● OEM-yakatarisana nerutsigiro: Chirungu zvinyorwa, kukurumidza sampling, yakawanda mitengo
