Electronic Type Molded Case Circuit Breaker

Kune masisitimu emagetsi emazuva ano anoda kunyatsojeka, hungwaru, uye kuvimbika, iyo Electronic Type Molded Case Circuit Breaker neShanghai DADA Electric CO., LTD. inoisa mwero mutsva mukudzivirirwa kwakaderera-voltage. Kusiyana netsika dzechinyakare dzinopisa-magineti dzinopwanya, iyi yakangwara MCCB inoshandisa microprocessor-based electronic trip unit kuendesa zvakanyatsorongeka, programmable overcurrent dziviriro-immune kune ambient tembiricha kushanduka.

Nezvigadziriso zvinogadziriswa kubva ku40% kusvika ku100% Mu (thermal) uye 1.5 × kusvika 12 × In (magnetic), inopa kushanduka kusingaenzaniswi kwekugadzirisa kwakaoma munzvimbo dze data, zvidyarwa zvemaindasitiri, zvipatara, uye maitiro emagetsi ekugadzirisa. Yakarongerwa kubva ku100A kusvika ku1600A pa400V/415V, inosanganisa compact dhizaini ine advanced functionality-uye inosanganisira kutadza-yakachengeteka-yakananga-rwendo panguva yekukanganisa kwakanyanya, kunyangwe kana magetsi akatadza.

Zvinotaurwa Nezvakakosha

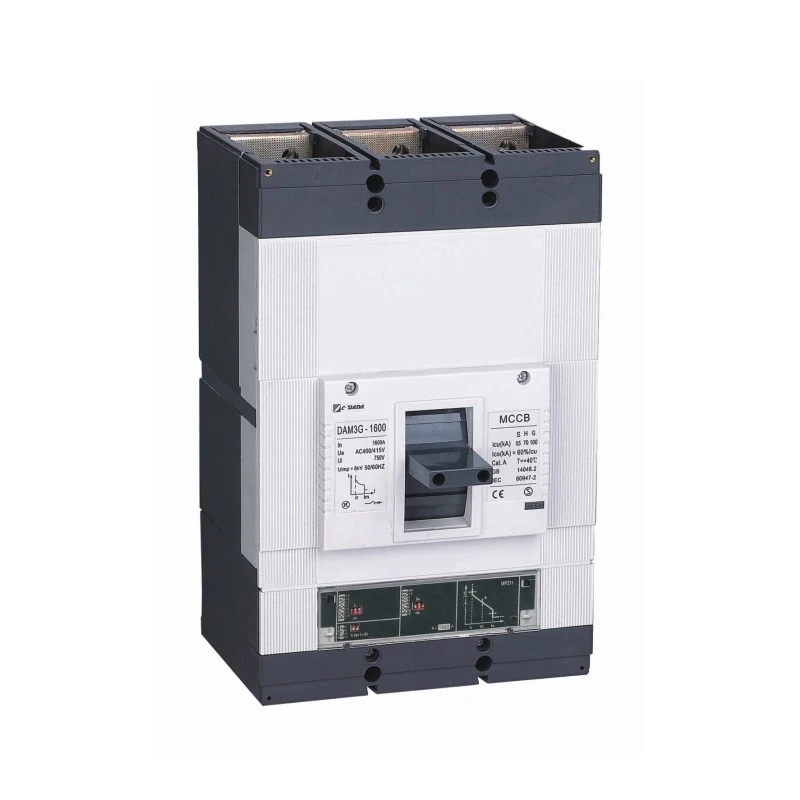

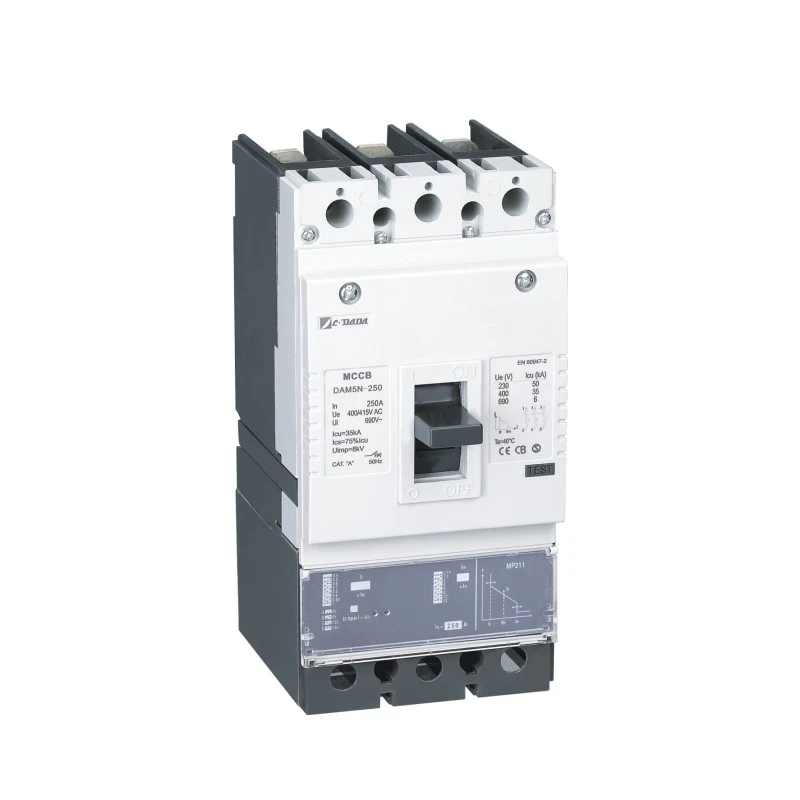

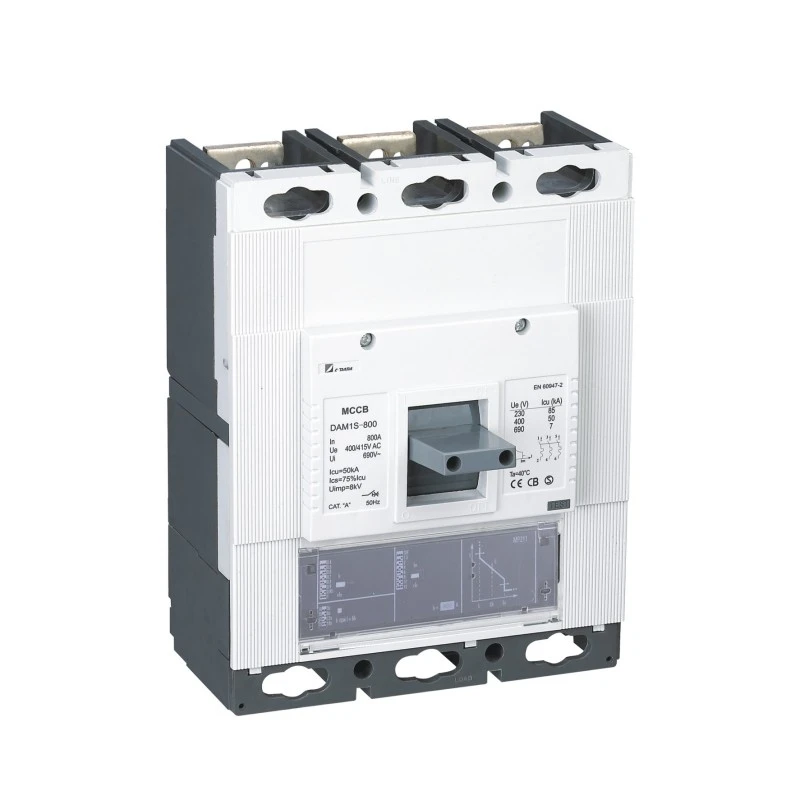

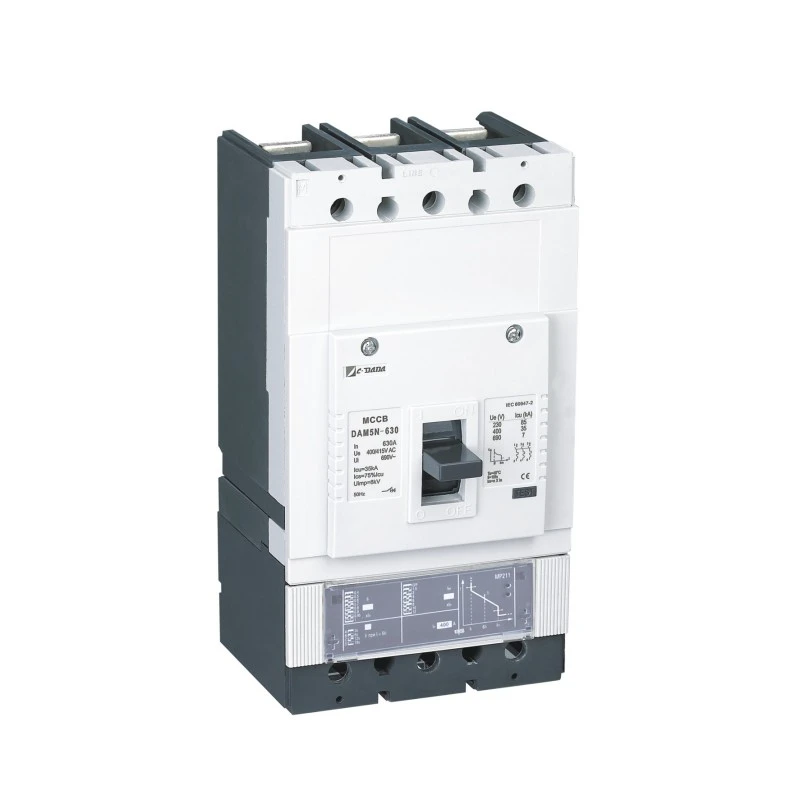

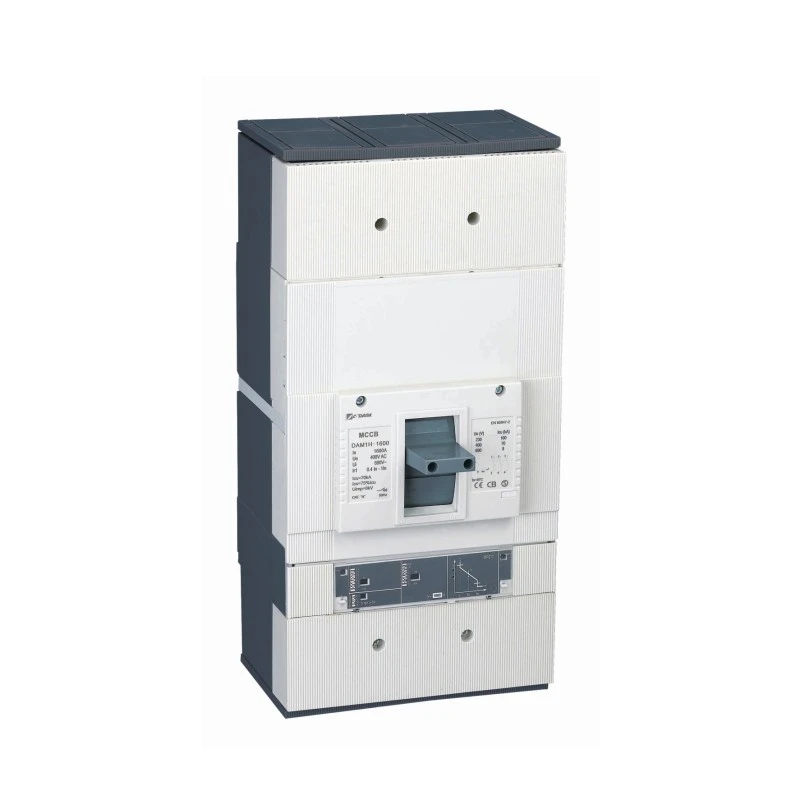

Muenzaniso: CDADA DAM2 / DE Series (Electronic Type Molded Case Circuit Breaker)

Type: Electronic Molded Case Circuit Breaker

Matanda: 3P / 4P

Rated Voltage (Ue): 400V / 415V AC

Yakatemerwa Yazvino (Mu): 100A - 1600A

Trip Unit: Microprocessor-based electronic release

Thermal Adjustment (Ir): 40% - 100% yeIn

Magnetic Adjustment (Im): 1.5 × - 12 × In

Zvakanakira

★ Wide range:100A kusvika 1600A(AC)

★ Compact dimensions

★ Kugadziriswa kwekupisa kwekushisa (40-100%)In.

★ Inogadziriswa magineti kuseta(1.5-12times)In.

★ Sunda kune rwendo bhatani kupa.

★ Kusiyanisa makuru uye arcing mazita

★ Wide zvakasiyana-siyana zvekushandisa.

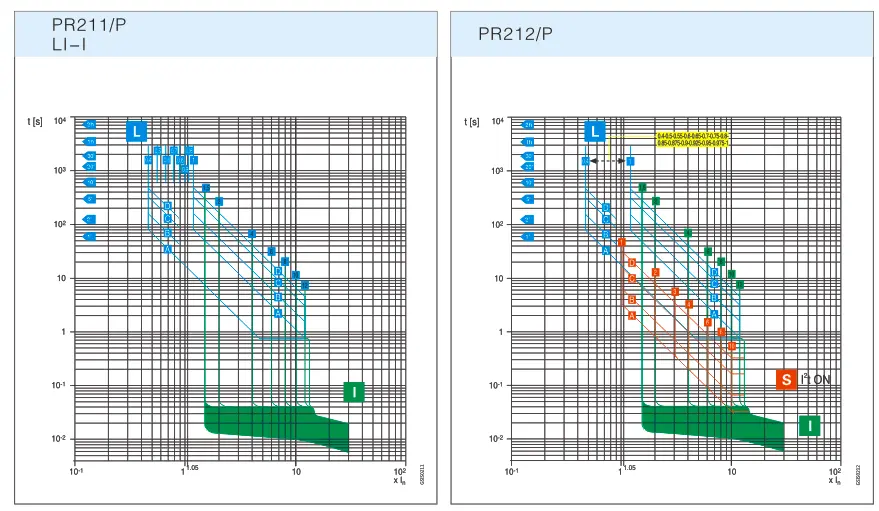

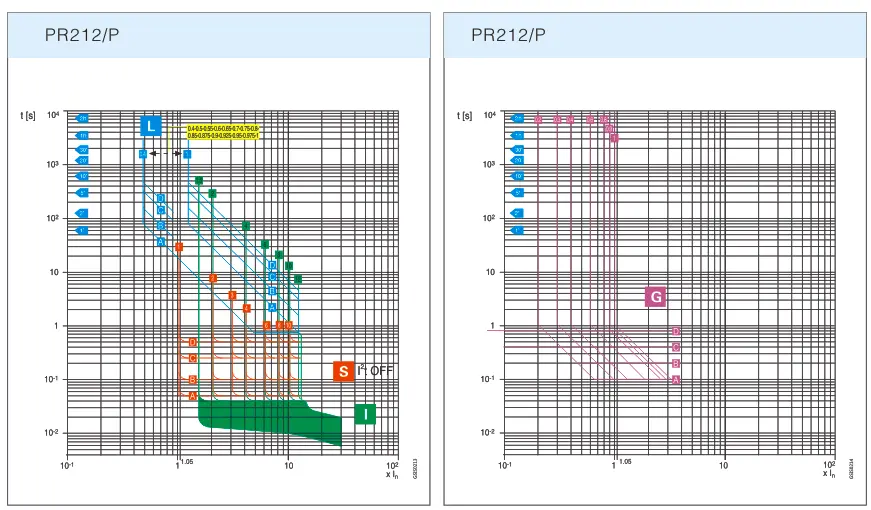

Electronic release characteristic curve

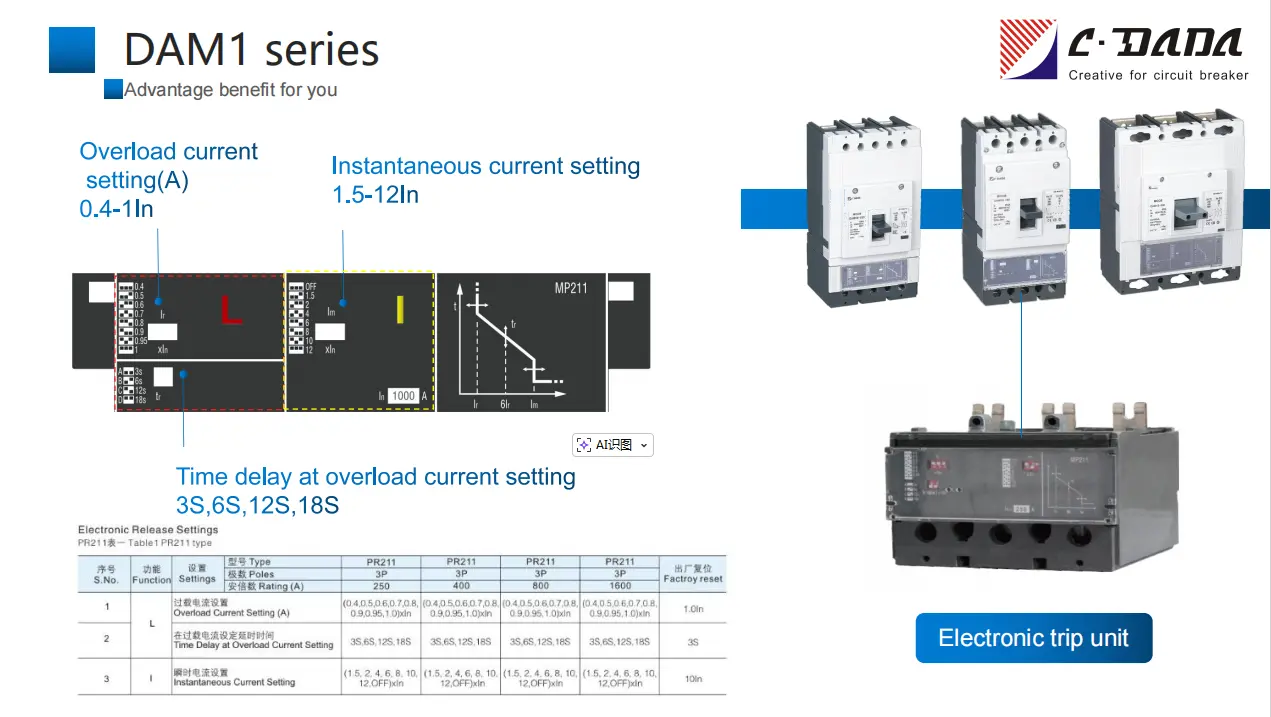

Magetsi parameters

Tafura 1 PR211 mhando

S.No.

Function

Settings

Type

PR211

PR211

PR211

PR211

Factroy reset

Poles

3P

3P

3P

3P

Rating (A)

250

400

800

1600

1

L

Yakawandisa Yezvino Setting (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0In

2

Kunonoka Kwenguva Pakuwedzeredza Yazvino Setting

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Instantaneous Current Setting

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

10In

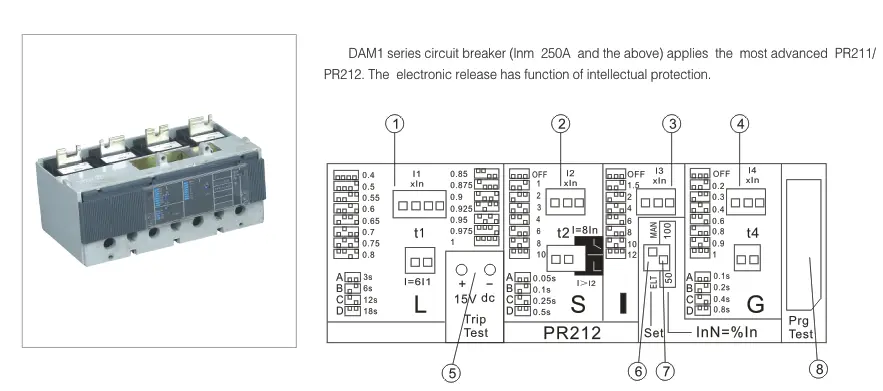

Tafura 2 PR212 mhando

S.No.

Function

Settings

Type

PR212

PR212

PR212

PR212

Factroy reset

Poles

3P

3P

3P

3P

Rating (A)

250

400/630

800

1600

1

L

Yakawandisa Yezvino Setting (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

1.0In

2

Kunonoka Kwenguva Pakuwedzeredza Yazvino Setting

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Pfupi - Setting Yezvino Yedunhu (A)

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

(1, 2, 3, 4, 6, 8, 10,OFF)xIn

(1, 2, 3, 4, 6, 8, 10,OFF)xIn

(1, 2, 3, 4, 6, 8, 10,OFF)xIn

6In

4

Kunonoka Kwenguva paShort Circuit Current Setting

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Instantaneous Current Setting

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

10In

6

G

Ground Fault Current Setting (A)

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

1.0In

7

Nguva Inononoka paGround Fault Setting

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

Kusarudzwa kwemagetsi kana emagetsi parameters set

Basa SET (chinja ELT/MAN)

9

Inoshandiswa kuseta ma parameter e dip switch ye zero line

InN=%In,chinja 50/100

10

Socket yekubatanidza yekuyera mudziyo

Panel socket

Sei Kusarudza CDADA Electronic MCCB?

★ Kungwara Kwechokwadi, Kwete Kungoita otomatiki
Iyo microprocessor inoramba ichiongorora mafungu azvino, ichigonesa chaiyo inverse-nguva, chaiyo-nguva, uye nekukasira kuchengetedzwa-isina kukukurwa nekuda kwekupisa kana kuchembera.

★ Yakakundikana-Yakachengeteka Dhizaini
Kunyangwe iyo yemagetsi dunhu ikatadza, yakananga electromagnetic latch inova nechokwadi chekuti inopwanya nzendo panguva dzakakomba mapfupi maseketi-kusangana neIEC 60947-2 kuchengetedza redundancy zvinodiwa.

★ Superior Coordination
Ultra-wide gadziriso mitsara (40–100% Ir, 1.5–12 × Im) inobvumira kurongeka kwakaringana nemichina yekumusoro/kudzika-kuderedza nzvimbo dzekudzima.

★ Future-Proof Infrastructure
Inoenderana nesarudzo yekutaurirana mamodule (Modbus RTU, Profibus) yekubatanidzwa muBuilding Management Systems (BMS) kana smart grid.

★ Global Quality, Competitive Price

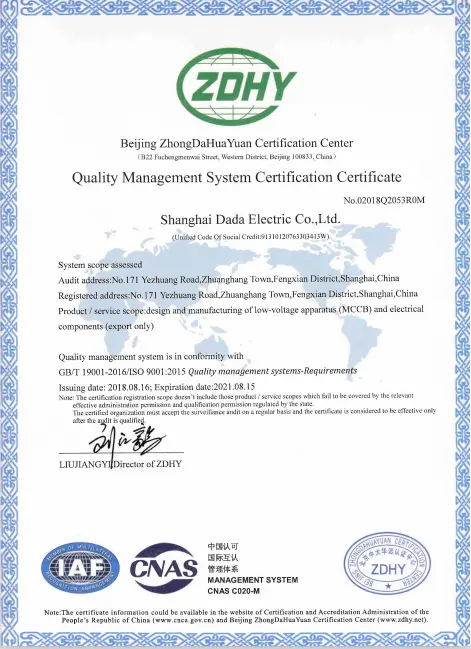

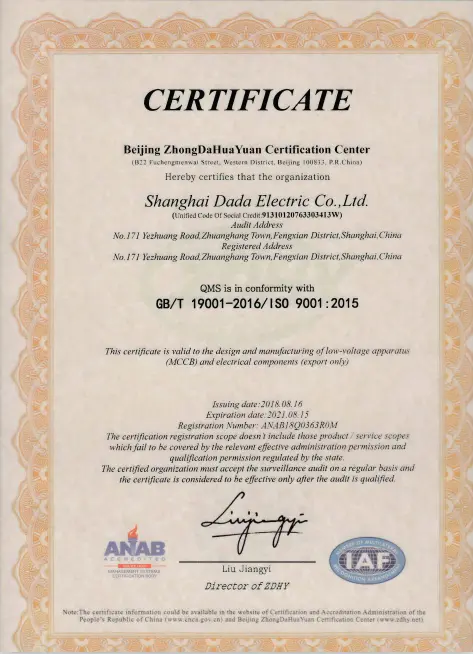

Yakagadzirwa pasi peISO 9001 muShanghai, ine zvitupa zvepasi rose-inopa European-level performance paAsia mutengo kunyatsoshanda.

★ Tine boka rakazvitsaurira remainjiniya gumi neshanu akatarisana nekuvandudzwa kwechigadzirwa, kuvandudza, uye kugadzirisa.

Ideal Applications

Data Centers: Dzivirira kutadza kudonha nekunyatso kusarudza kutsika

Zvipatara: Iva nechokwadi chesimba risingapindiki rehurongwa hwekutsigira hupenyu

Industrial Automation: Rongedza neVFDs, zvinyoro zvinotanga, uye marobhoti

Solar / Wind Farms: Shandura kune akasiyana chizvarwa profiles

Smart Commercial Zvivakwa: Gonesa simba rekutarisa pasina mamwe mamita

Mibvunzo Inowanzo bvunzwa (FAQ)

Q1: Chii chinoita kuti MCCB yemagetsi isiyane neinopisa-magineti?

A1: Electronic Type Molded Case Circuit Breakers vanoshandisa microprocessor kuongorora ikozvino uye kukonzera nzendo nehupamhi hwepamusoro. Iwo haabatike neambient tembiricha, inopa yakafara gadziriso marenji, uye anogona kupa mutoro wekutora data-kusiyana bimetal/solenoid-based thermal-magnetic marudzi.

Q2: Iyo 1600A yemagetsi MCCB inowanikwa mune 4-pole kumisikidzwa?

A2: Hongu-ese maCDADA emagetsi MCCBs kubva 250A kusvika 1600A anowanikwa mune ese 3P uye 4P shanduro.

Q3: Chii chinoitika kana yemagetsi rwendo unit ikakundikana panguva pfupi yedunhu?

A3: The breaker inosanganisira mechanical backup: panguva yakanyanyisa kukanganisa currents (> 12 × In), magnetic latch inokonzera kuvhurika kwakananga-kuvimbisa kuchengeteka kunyange nemagetsi pasina.

Q4: Ndinogona kutarisa chaiyo-nguva yazvino kukosha?

A4: Hongu-yemagetsi rwendo unit inoratidza pakarepo, max, min, uye avhareji ikozvino pane inosarudzwa nguva mahwindo (semuenzaniso, 24h), inobatsira pakugadzirisa simba.

Q5: Sei uchisarudza CDADA pane mamwe akangwara MCCB mhando?

A5: CDADA inopa:

● Kugadziriswa kwechokwadi kweviri-renji (vakwikwidzi vazhinji vanoganhura Im kusvika ≤10×)

● Fail-safe mechanical backup (haasi ose e“electronic” MCCB ane izvi)

● Compact size — inokwana legacy panel pasina kugadziridzwa

● Yakasimba pasi rose certification portfolio (ASTA, KEMA, CE)

● OEM-inoshamwaridzika mitengo nerutsigiro rwehunyanzvi muChirungu
