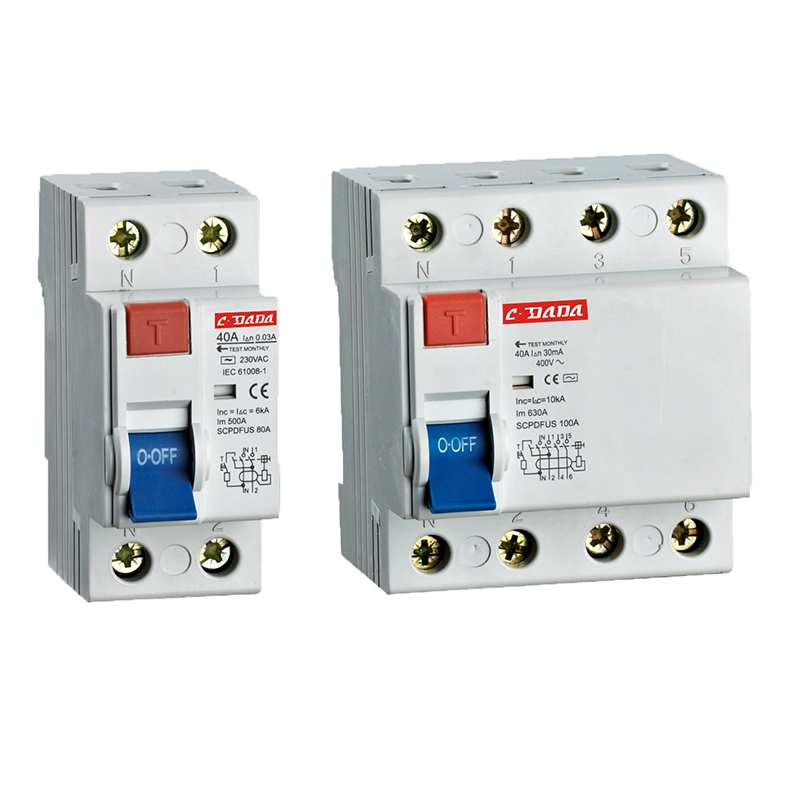

Chii chinonzi Residual Current Circuit Breaker?

A Residual Current Circuit Breaker(RCCB) chinhu chakakosha chekuchengetedza magetsi chakagadzirirwa kuchengetedza vanhu nemidziyo kubva mukuvhunduka kwemagetsi, njodzi dzemoto, uye kubuda kwemhepo. Mune masisitimu emagetsi emazuva ano, uko mitoro yekugara, yekutengesa, uye maindasitiri iri kuramba ichinetsa, maRCCB anoita basa rakakosha mukuona kugoverwa kwesimba kwakachengeteka. Chinyorwa ichi chinopa gwara rakazara rekunzwisisa mashandiro anoita RCCBs, nei achikosha, maitiro ekusarudza mhando yakakodzera, maitiro ekuisa akajairwa, matipi ekugadzirisa, uye maapplication epasirese. Inobatsirawo vaverengi kugadzirisa mapoinzi anoshanda ekurwadza senge nhanho kukwira, saizi isina kufanira, uye nyaya inoenderana nehurongwa.

Zviri Mukati

• 1. Nhanganyaya kune Residual Current Circuit Breaker
• 2. Mashandiro Akaita Residual Current Circuit Breaker
• 3. Mhando dzeRCCBs uye Kusiyana Kwadzo
• 4. Mabhenefiti Akakosha uye Nzira Dziviriro
• 5. RCCB vs MCB vs RCBO
• 6. Ungasarudza sei RCCB Yakarurama
• 7. Installation Guidelines uye Best Maitiro
• 8. Matambudziko Anowanikwa uye Kugadzirisa
• 9. Maintenance uye Testing
• 10. Zvikumbiro muMaindasitiri Akasiyana
• 11. Mitemo Yekuchengetedza uye Kuteerera
• 12. Mibvunzo Inowanzo bvunzwa
• 13. Mhedziso

1. Nhanganyaya kune Residual Current Circuit Breaker

A Residual Current Circuit Breaker (RCCB) chishandiso chemagetsi chekudzivirira chinodimbura dunhu pese parinowona kusaenzana pakati pemhepo mhenyu uye isina kwayakarerekera. Kusaenzana uku kunowanzoratidza kubuda kwemvura kuyerera pasi, izvo zvinogona kuva nengozi kuvanhu kana kuti zvinogona kukonzera moto wemagetsi.

Kusiyana nemidziyo yekudzivirira yakajairwa, maRCCB haadzivirire kubva pakuremerwa kana mapfupi edunhu. Pane kudaro, basa ravo rekutanga ndere kuona kuchengetedzeka kwemunhu nekuona kunyange madiki ekudonha-kazhinji akaderera se30mA.

2. Mashandiro Akaita Residual Current Circuit Breaker

Nheyo yekushanda yeResidual Current Circuit Breaker inobva pamutemo weKirchhoff wemazuva ano, iyo inotaura kuti ikozvino inopinda munharaunda inofanira kuenzana neyazvino inoisiya. Kana pane musiyano, zvinoratidza kuvuza.

Mukati meRCCB, shanduri yazvino inoramba ichitarisa mhenyu uye isina kwayakarerekera conductors. Mumamiriro ezvinhu akajairika, magineti minda inodzima mumwe nemumwe. Nekudaro, kana kuvuza kuchiitika, kusaenzana kunokonzera nzira yerwendo.

• Mamiriro ezvinhu: Rarama ikozvino = Neutral current
• Kukanganisa mamiriro: Rarama ikozvino ≠ Neutral ikozvino
• Chiito cherwendo: Dunhu rinodimbura ipapo ipapo (mamilliseconds)

Iyi mhinduro inokurumidza ndiyo inoita kuti maRCCB ashande zvakanyanya mukudzivirira kuvhunduka kwemagetsi.

3. Mhando dzeRCCBs uye Kusiyana Kwadzo

Zvishandiso zvakasiyana zvinoda marudzi akasiyana eRCCBs. Pazasi pane kupatsanurwa kwemhando dzakajairika:

4. Mabhenefiti Akakosha uye Nzira Dziviriro

MaRCCB anopa akawanda akaturikidzana edziviriro anoita kuti ave akakosha mumagetsi emazuva ano masisitimu:

• Electric shock protection:Inodzivirira tsaona dzinouraya nekubvisa maseketi asina kukwana ipapo ipapo.
• Kudzivirira moto:Inomisa kubuda kwemvura kunogona kupisa waya.
• Equipment protection:Inoderedza kukuvadzwa kunokonzerwa nekukanganisa kwepasi.
• High sensitivity:Inoona kubuda kwakadzika se10-30mA.
• Inokurumidza kupindura nguva:Nzendo mukati memilliseconds.

Aya mabhenefiti anoita kuti maRCCB ave akakosha mune ese ekugara uye maindasitiri emagetsi zvivakwa.

5. RCCB vs MCB vs RCBO

Vazhinji vashandisi vanovhiringa maRCCB neMCBs uye RCBOs. Tafura iri pasi apa inojekesa kusiyana:

Mukuisa kwakawanda, maRCCB anoshandiswa padivi peMCBs kuwana dziviriro yakakwana.

6. Ungasarudza sei RCCB Yakarurama

Kusarudza iyo RCCB chaiyo kwakakosha pakuona kuchengetedzeka uye kushanda zvakanaka kwehurongwa. Funga nezvezvinhu zvinotevera:

• Rated current:Match ine system load (semuenzaniso, 25A, 40A, 63A).
• Sensitivity level:30mA yekuzvidzivirira pachako, 100mA-300mA yekudzivirira moto.
• Nhamba yemapango:2-pole ye-single-phase, 4-pole yematatu-phase masisitimu.
• Kusarudzwa kwemhando:AC, A, kana B zvichienderana nekuremerwa maitiro.
• Kuvimbika kweBrand:Sarudza vagadziri vakasimbiswa vane marekodhi akachengetedzwa ekuchengetedza.

7. Installation Guidelines uye Best Maitiro

Kuiswa kwakakodzera kwakakosha pakuita kweRCCB. Wiring isiriyo inogona kukonzeresa kugumburwa kana kutadza kufamba.

• Ita shuwa kuti chikamu chakakodzera uye chakasarudzika kubatana.
• Isa RCCB kumusoro kwekupedzisira maseketi.
• Dzivisa kusanganisa waya dzisina kwazvakarerekera pakati pemasekete.
• Yedza mudziyo mushure mekuisa uchishandisa test bhatani.
• Tevera makodhi emagetsi emunharaunda uye zviyero.

8. Matambudziko Anowanikwa uye Kugadzirisa

Kunyangwe emhando yepamusoro maRCCB anogona kusangana nematambudziko. Heano matambudziko akajairika uye mhinduro:

• Dambudziko rekufamba:Kazhinji inokonzerwa nekudonha kubva kune akawanda madivayiri kana kushomeka kwekudzivirira.
• Kutadza kuseta patsva:Inogona kuratidza kukanganisa kwepasi kunoramba kuripo.
• Hapana rwendo panguva yebvunzo:Mudziyo unogona kunge usiriwo uye unoda kutsiviwa.
• Kupisa zvakanyanya:Inokonzerwa nekusagadzikana kwekubatanidza kana kuwandisa mamiriro.

9. Maintenance uye Testing

Kugara kuchengetedzwa kunovimbisa kuvimbika kwenguva refu kweRCCBs:

• Dzvanya bhatani rekuyedza mwedzi wega wega kuti uone kushanda.
• Ongorora kubatanidza wiring gore negore.
• Tsiva midziyo yechinyakare makore 8–10 ega ega.
• Tarisa uone zviratidzo zvekushanduka kwemavara kana kutsva.

10. Zvikumbiro muMaindasitiri Akasiyana

Residual Current Circuit Breakers inoshandiswa zvakanyanya munzvimbo dzakasiyana siyana:

• Zvivakwa zvekugara:Kicheni, dzimba dzekugezera, uye matunhu ekunze.
• Nzvimbo dzekutengesa:Mahofisi, zvitoro, uye mahotera.
• Industrial plant:Michina yekudzivirira uye control panel.
• Nezveutano:Masisitimu akakosha ekutsigira hupenyu uye marabhu.
• EV kuchaja zviteshi:High-sensitivity leakage yekuona.

11. Mitemo Yekuchengetedza uye Kuteerera

MaRCCB anofanirwa kutevedzera mitemo yekuchengetedzwa kwenyika kuti ive nechokwadi chekuvimbika uye kuita. Aya mazinga anotsanangura maparamendi akadai senguva yerwendo, leakage senitivity, uye kutsungirira kuyedzwa.

Kuteerera kunovimbisa kuti mudziyo unoshanda nguva dzose pasi pemamiriro ekukanganisa uye unosangana nekuchengetedzwa kwepasirese zvinotarisirwa.

12. Mibvunzo Inowanzo bvunzwa

Q1: Ko RCCB inodzivirira kubva kune mapfupi maseketi?
Aiwa, inongodzivirira kubva pakudonha kwepasi. MCBs inodiwa pakudzivirira kwedunhu pfupi.

Q2: Sei RCCB yangu ichifamba kazhinji?
Izvi zvinogona kunge zvichikonzerwa nemidziyo isina kunaka, nyaya dzekudzivirira, kana kuwanda kwekudonha.

Q3: Ko RCCB inogona kushanda isina pasi?
Hazvikurudzirwi. Kudzika kwakakodzera kunovimbisa kushanda kunobudirira.

Q4: MaRCCB anofanira kuongororwa kakawanda sei?
Kamwe chete pamwedzi uchishandisa yakavakirwa-mukati bvunzo bhatani.

Q5: Ndeipi hupenyu hweRCCB?
Kazhinji 8-10 makore zvichienderana nemamiriro ekushandisa.

13. Mhedziso

A Residual Current Circuit Breaker ndechimwe chezvinhu zvakakosha zvekuchengetedza mune chero magetsi system. Inopa kuchengetedzwa kwekuchengetedza hupenyu nekuona kubuda kwemvura uye kubvisa maseketi mukati memilliseconds. Angave achishandiswa mudzimba, mafekitari, kana kuti zvivako zvokutengeserana, RCCBs inoderedza zvikuru ngozi yemagetsi nengozi dzemoto.

Kusarudza mhando yakakodzera, kuiisa nenzira kwayo, uye kuichengeta nguva dzose kunovimbisa kuchengetedzeka kwenguva refu uye kugadzikana kwehurongwa. Sezvo zvinodiwa zvemagetsi zvichiramba zvichikura, maRCCB anoramba ari chinhu chakakosha chemazuva ano ekugovera magetsi masisitimu.
