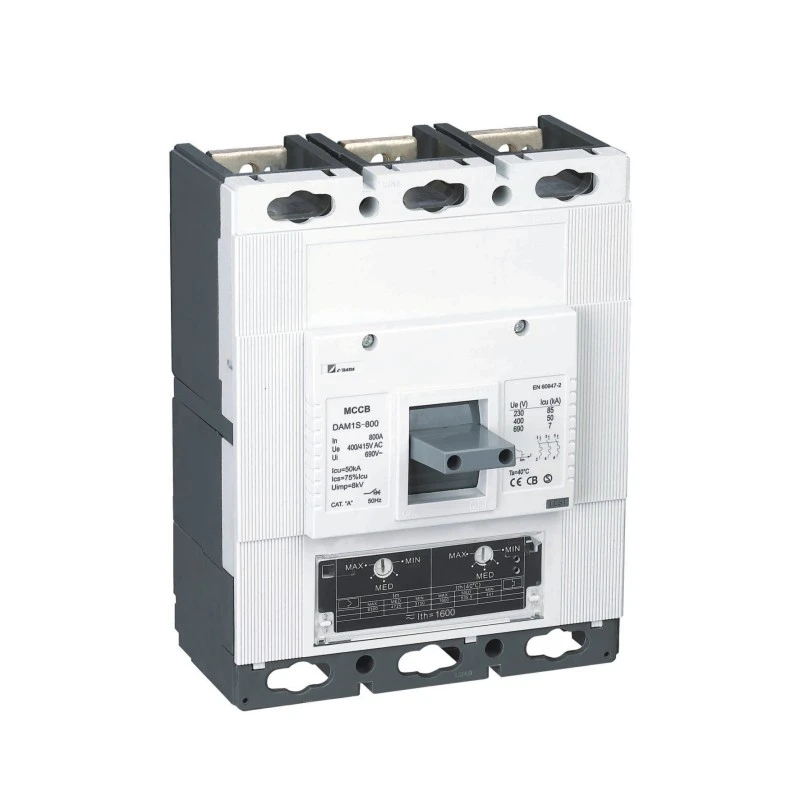

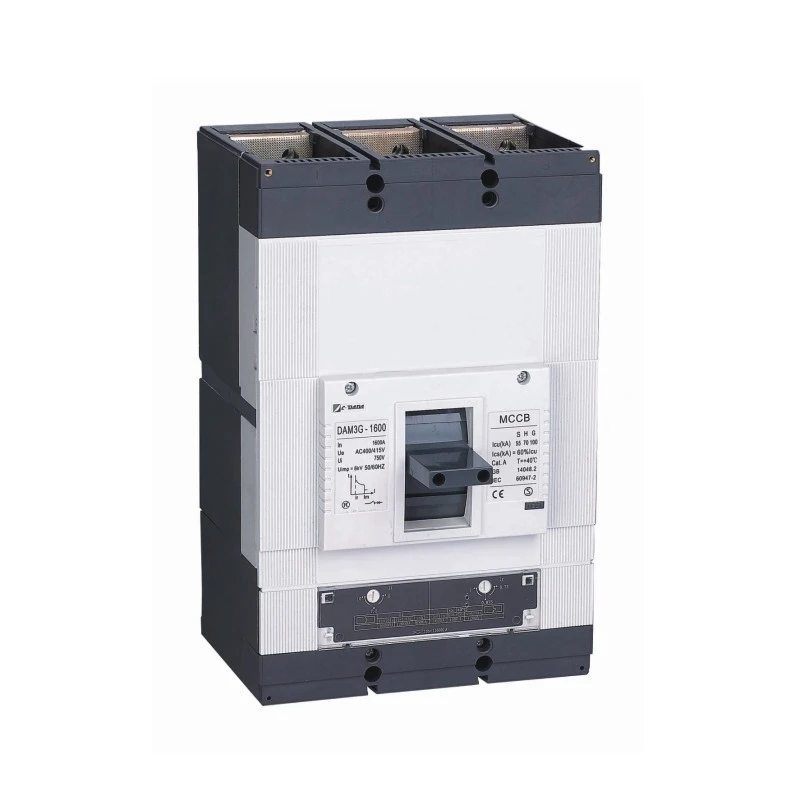

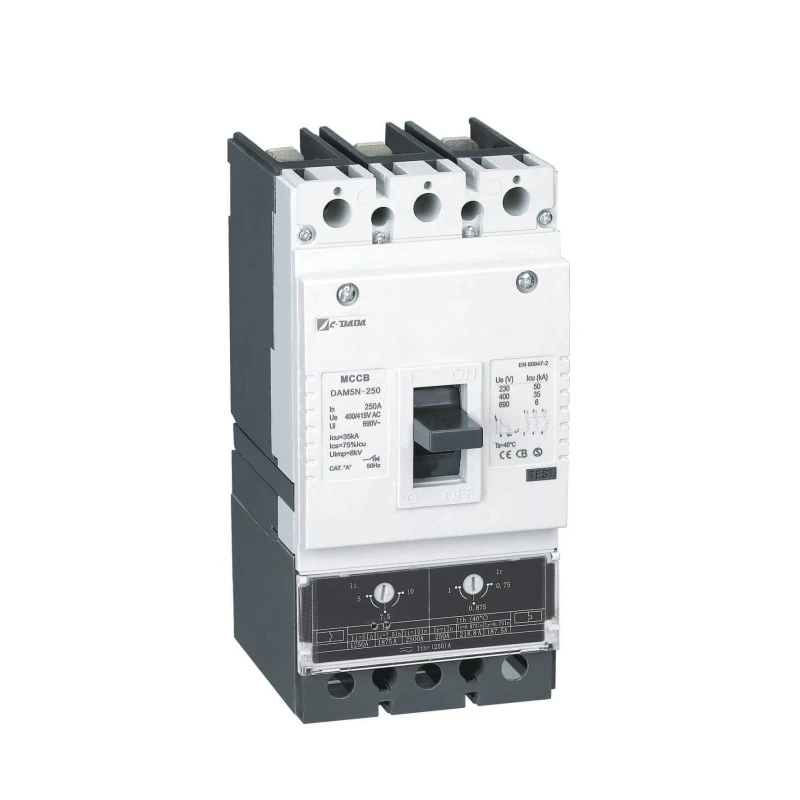

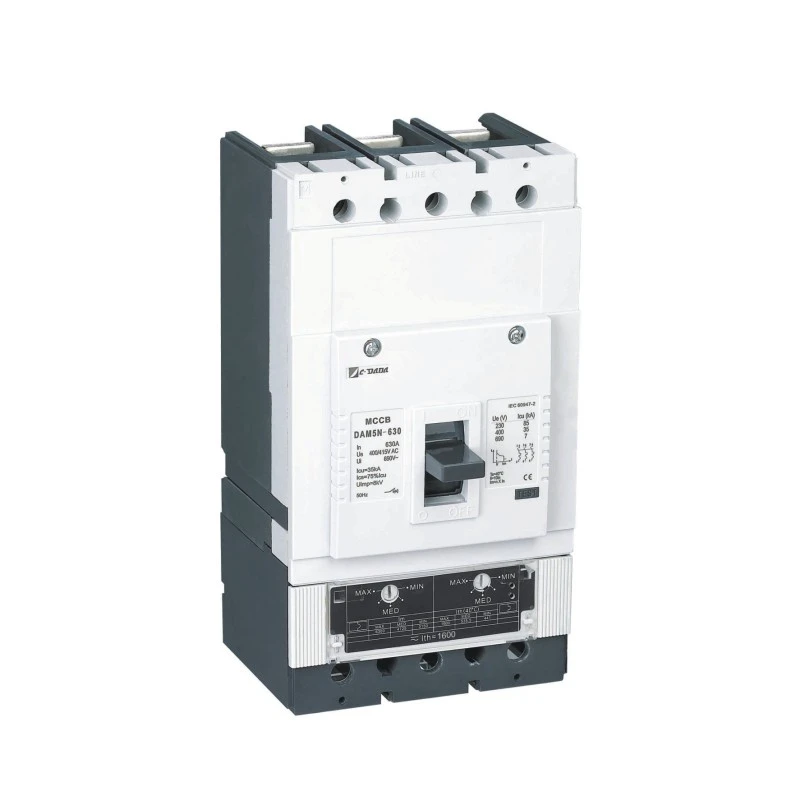

Thermal Magnetic Adjustable MCCB

Iyo CDADA DAM1 Series Thermal Magnetic Adjustable MCCB, yakagadzirwa neShanghai DADA Electric, mutengesi akavimbika, inopa zvizere customizable overload uye pfupi-circuit dziviriro yekuda yakaderera-voltage application. Yakatemerwa kusvika ku1600A pa400V/415V, iyi 3P/4P breaker inoratidzira yakazvimiririra kugadziridzwa kwekupisa (70-100% In) uye magineti (5-10 × In) zvikumbaridzo zverwendo, zvichigonesa kurongeka kwakanyanya mumasisitimu akaomarara ekugovera.

Certified to CE, CB, ASTA, KEMA, SEMKO, uye RoHS, inosangana nekuchengetedzwa kwepasirese uye zvakatipoteredza mwero-ichiita kuti ive yakanakira OEMs, makondirakiti, uye masystem anobatanidza pasi rese.

Zvakanakira

★ Wide range:160A kusvika 1600A(AC)

★ Compact dimensions

★ Kugadziriswa kwekupisa kwekushisa (70-100%)In.

★ Inogadziriswa magineti kurongedza(5-10nguva)Mukati.

★ Sunda kune rwendo bhatani kupa.

★ Kusiyanisa makuru uye arcing mazita

★ Wide zvakasiyana-siyana zvekushandisa.

Zvinotaurwa Nezvakakosha

Muenzaniso: DAM1 Series - Thermal Magnetic Adjustable MCCB

Type: Molded Case Circuit Breaker (MCCB)

Matanda: 3P / 4P

Rated Voltage (Ue): 400V / 415V AC

Yakarongwa Yazvino Range: 160A - 1600A

Thermal Adjustment: 70% - 100% yeIn (yakawandisa kudzivirira)

Magnetic Kugadziriswa: 5 × - 10 × Mu (pfupi-yedunhu rwendo pakarepo)

Certifications: CE, CB, ASTA, KEMA, SEMKO, RoHS

● Icu:O-t-CO bvunzo(O:Open maneuver,CO:Vhara-Yakavhurika maneuver,t:Kumirira nguva)

● Ics:O-t-CO-t-CO bvunzo(O:kuvhura maneuver,CO:Vhara-Yakavhurika maneuver,t:Kumirira nguva)

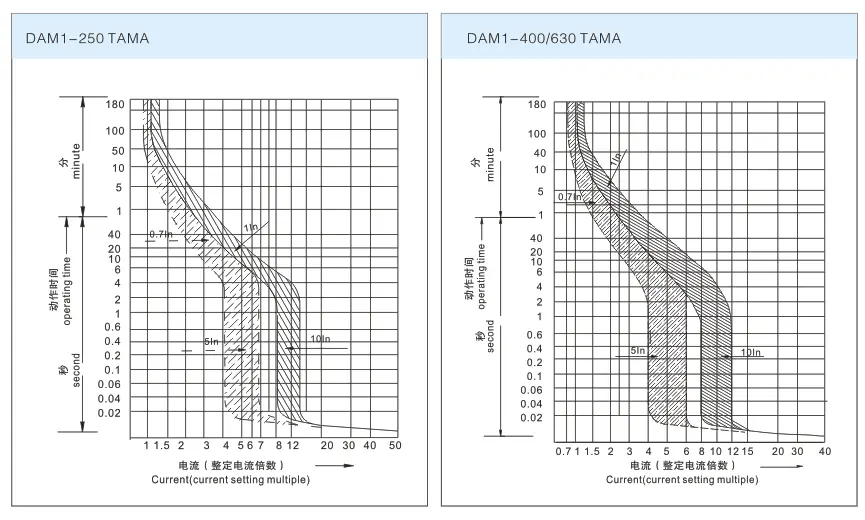

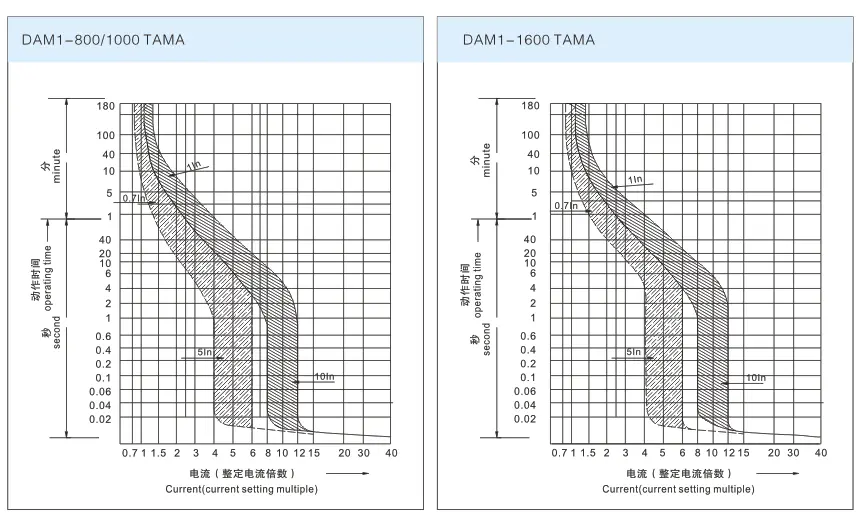

Characteristic curve yeTAMA MCCB.

Sei Sarudza CDADA?

★ Precision Engineering
Kusiyana neyakajairwa MCCBs ine yakagadzika nzendo macurves, CDADA's thermomagnetic inogadzirika dhizaini inobvumira mainjiniya kunyatso-tune dziviriro kuti ienderane netambo ratings uye yakadzika midziyo-kuderedza nzendo dzinonetsa uye kugadzirisa sisitimu sarudzo.

★ Global Compliance, Rutsigiro rweMunzvimbo
Ne ASTA (UK), KEMA (Netherlands), CE (EU), CB (pasi rose), uye RoHS certification, CDADA zvigadzirwa zvinogamuchirwa munyika dzinopfuura makumi matanhatu-zvichitsigirwa nerutsigiro rwehunyanzvi kubva kuShanghai.

★ Kubatsira kwezvinhu zvakanaka

Isu tine yakasimba manejimendi system yevatengesi uye mbishi zvinhu. Isu tinowanzo sarudza yakanakisa mhando yezvinhu zvemadunhu mabreak.

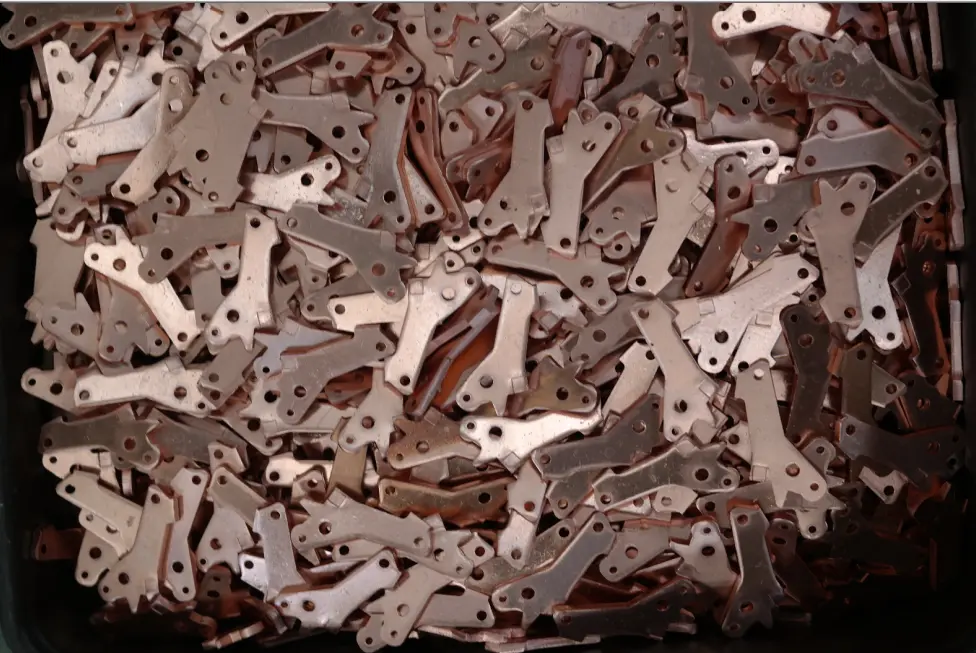

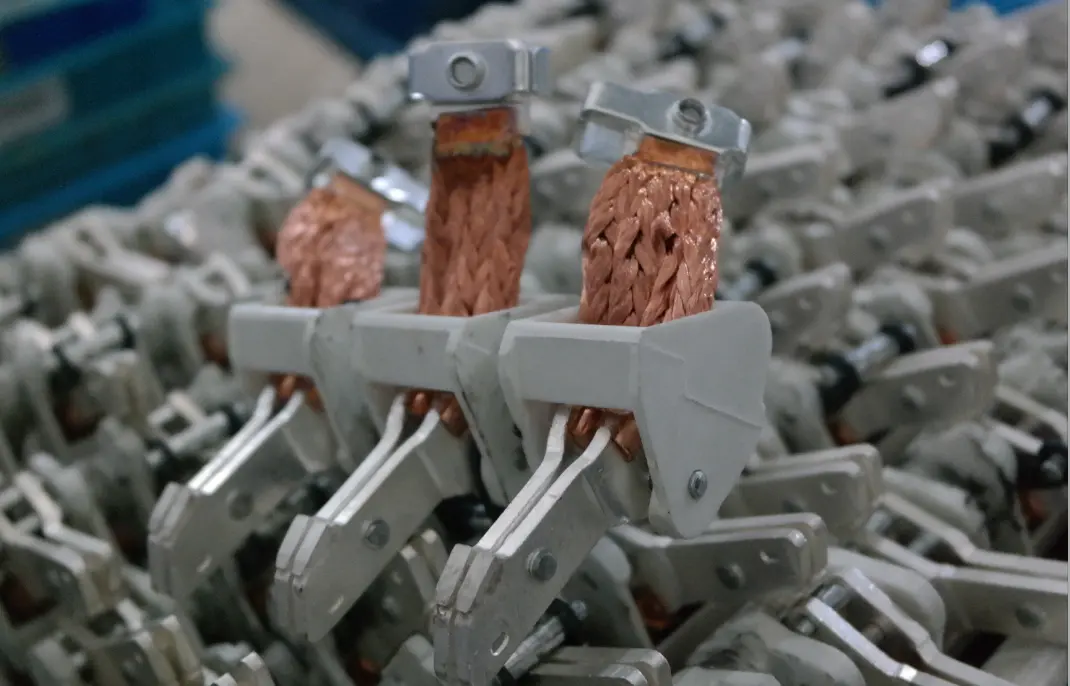

1) Mhangura yakashandiswa T2> 99.9%,

2) Silver kuonana (Inofamba nzvimbo:50%,Stationary point:85%),

3) Iyo yepakati shaft yakashandisa BMC-1 ((girazi fibre: 25%, resin yakakwirira, yakanyanya kusimba).

4) Kavha uye muviri BMC (girazi fibre: 22%, yakakwirira resin, yakakwirira kusimba)

★ OEM & Retrofit Hushamwari
Compact dimensions inogonesa kutsiva kwakananga kwemabreaker ekare pasina gadziriso yepaneru. Modular accessories inorerutsa kukwidziridzwa kweramangwana.

✅ Mari-Inoshanda Dziviriro
Kugadziriswa kunobvisa kudiwa kwekutengesa akawanda akatemerwa-chiyero mabreaker-imwe CDADA DAM1 unit inovhara akawanda mitoro mamiriro.

Typical Applications

★ Industrial Motor Control Centers (MCCs) - Match mota inotanga ikozvino pasina kutsika

★ Data Center PDU Panels - Rongedza neIT mutoro profiles

★ Renewable Energy Systems - Shandura kune akasiyana solar / mhepo inobuda mamiriro

★ Marine & Offshore Platforms - Kuvimbika kushanda munzvimbo dzakaoma

★ Commercial Building Substations - Gadzirisa dziviriro yeHVAC, maelevator, mwenje

Mibvunzo Inowanzo bvunzwa (FAQ)

Q1: Chii chinonzi "thermal magnetic inogadziriswa" inorevei muDAM1 MCCB?

A1: Zvinoreva zvese zvakawandirwa (zvinopisa) uye pfupi-dunhu (magineti) rwendo zvikumbaridzo zvinogona kugadziriswa nemaoko:

● Thermal: 70% -100% yemazuva ano yakayerwa (In)

● Magnetic: 5 kusvika ku10 nguva In Izvi zvinobvumira tsika dziviriro macurves kune yako chaiyo application.

Q2: Iyo 250A thermomagnetic MCCB inowanikwa mune 3P kumisikidza?

A2: Hongu-ese maDAM1 anochinjika mamodheru kubva 160A kusvika 1600A anowanikwa mune 3P uye 4P shanduro.

Q3: Ndinogadzirisa sei zvirongwa zverwendo?

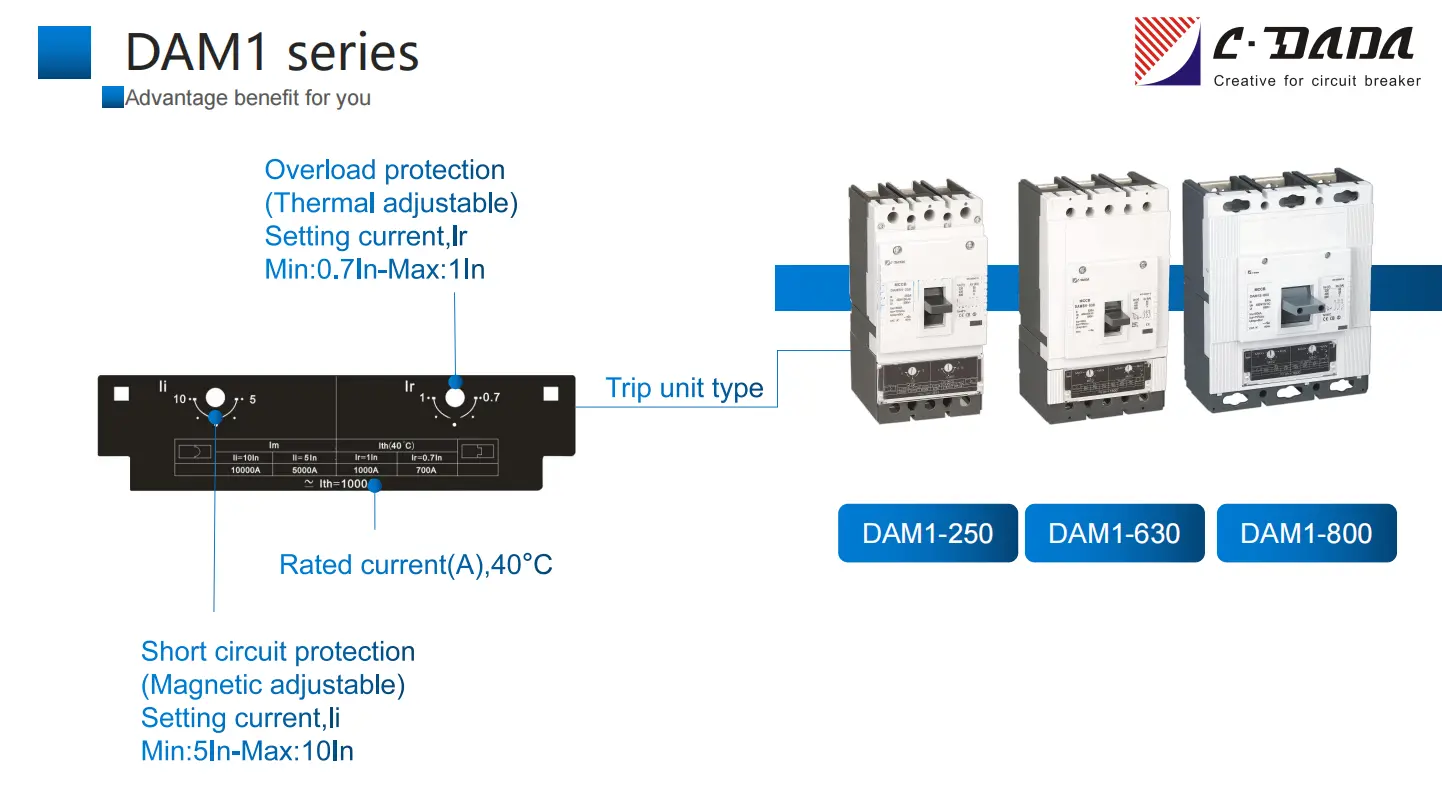

A3: Shandisa madhiri maviri ekunze kana screw slots kumberi kwepaneru: imwe yekupisa (yakanyorwa "Ir"), imwe yemagnetic (yakanyorwa "Im"). Hapana disassembly inodiwa.

Q4: Ndinogona kuyedza iyo breaker pasina kugadzira kukanganisa chaiko?

A4: Hongu-iyo yakavakirwa-mukati yekusundira-ku-rwendo bhatani inoteedzera mamiriro erwendo rwekusimbisa kushanda panguva yekugadzirisa.

Q5: Sei uchisarudza CDADA pane mamwe maChinese MCCB mhando?

A5: CDADA inomira pachena ne:

● Chokwadi mbiri-inogadziriswa (vakwikwidzi vazhinji vanongopa gadziriso yekupisa)

● Zvitupa zvepasi rose (kwete chete CCC)

● Consistent quality control (ISO 9001 fekitari yakasimbiswa)

● Zvinyorwa zveunyanzvi muChirungu zvezvirongwa zvepasi rose
