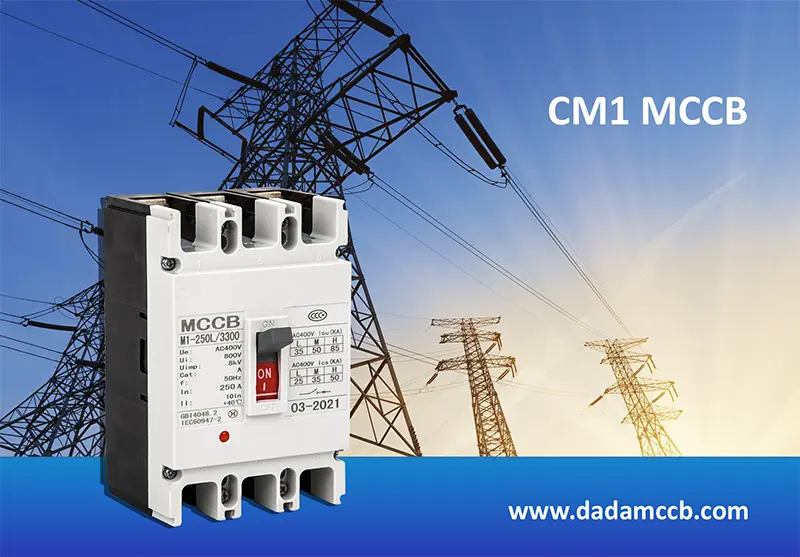

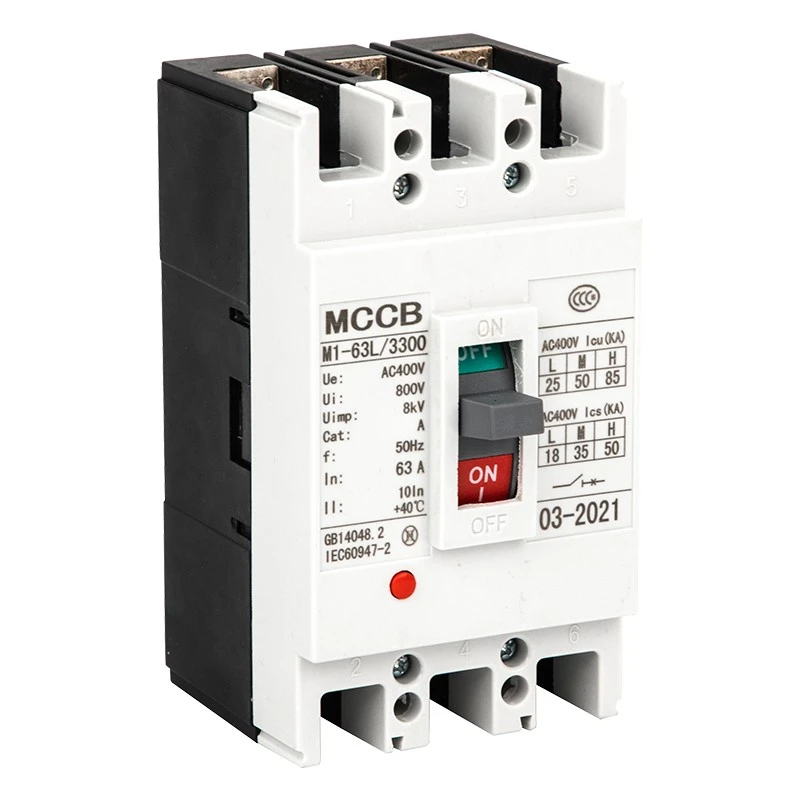

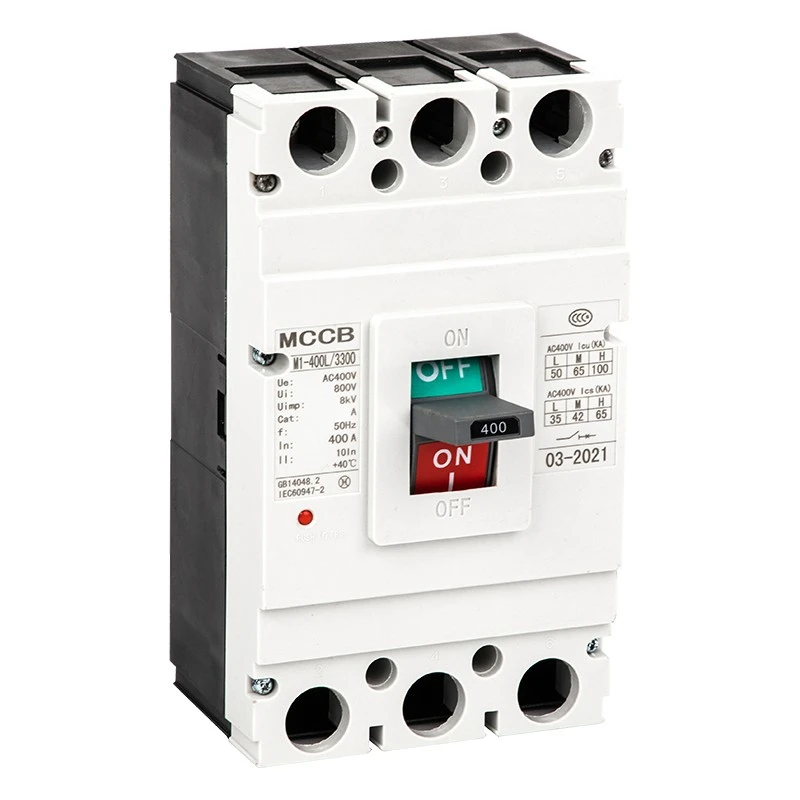

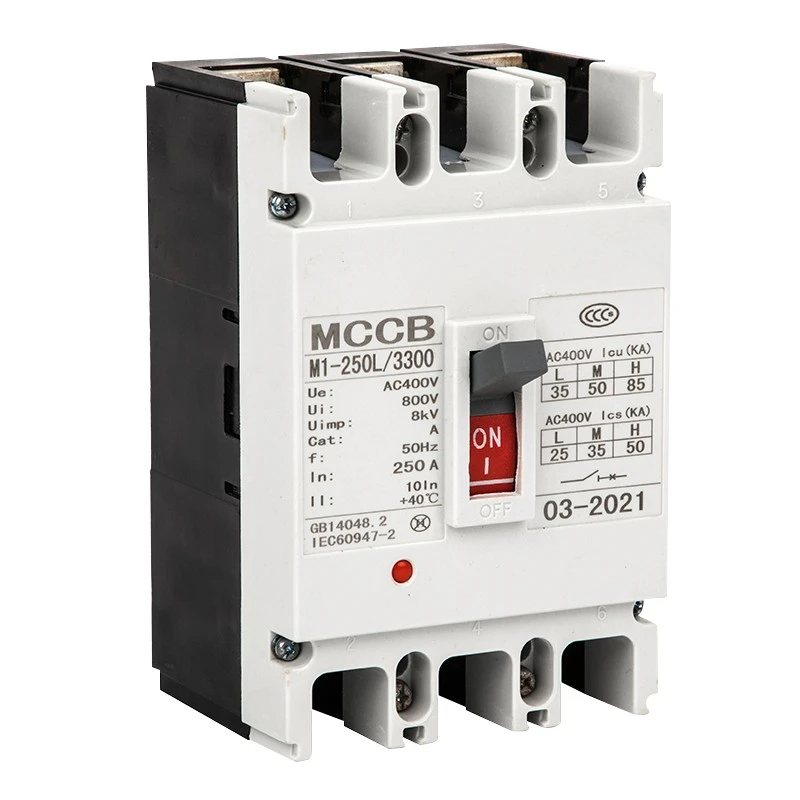

CM1 Yakaumbwa Mhosva Yedenderedzwa Breaker
Model:DAM2 (CM1) Series
Iyi CDADA CM1 Molded Case Circuit Breaker (MCCB) yakavakirwa kutenga zvakawanda, ine IEC60947-2 certification uye yakagadzikana mashandiro emaindasitiri emagetsi masisitimu. Iyo CM1 MCCB inoshandisa yakakwirira-simba chimiro uye yakavimbika nhanho nzira, iri nyore kuisa nekuchengetedza. Inosanganisa kuchengetedzwa kwakangwara neyakagadzika dhizaini, kuve nechokwadi chehupenyu hurefu hwesevhisi mukugovera magetsi uye inorema maindasitiri kunyorera.

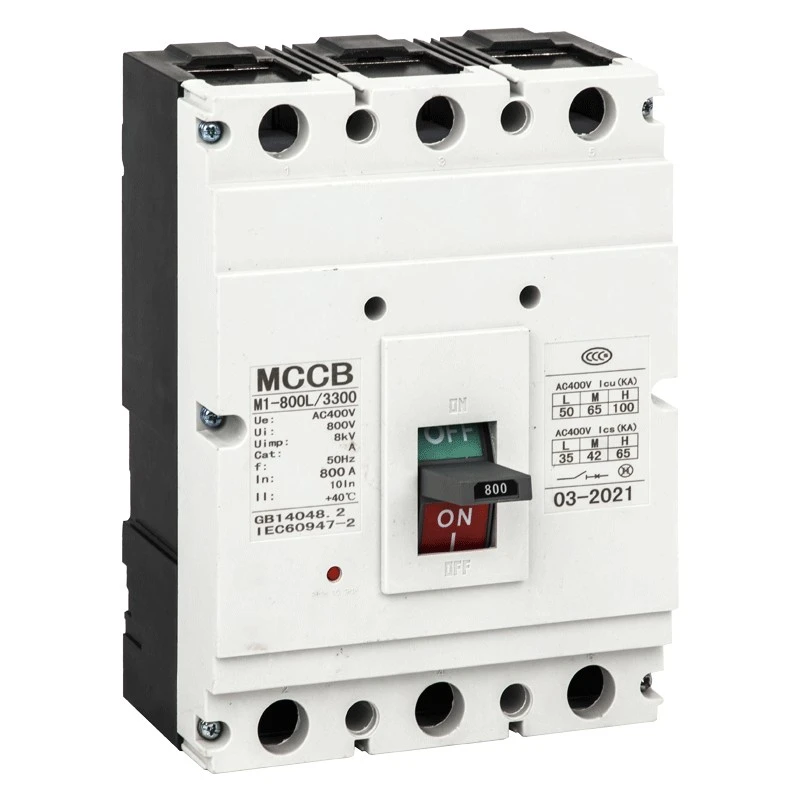

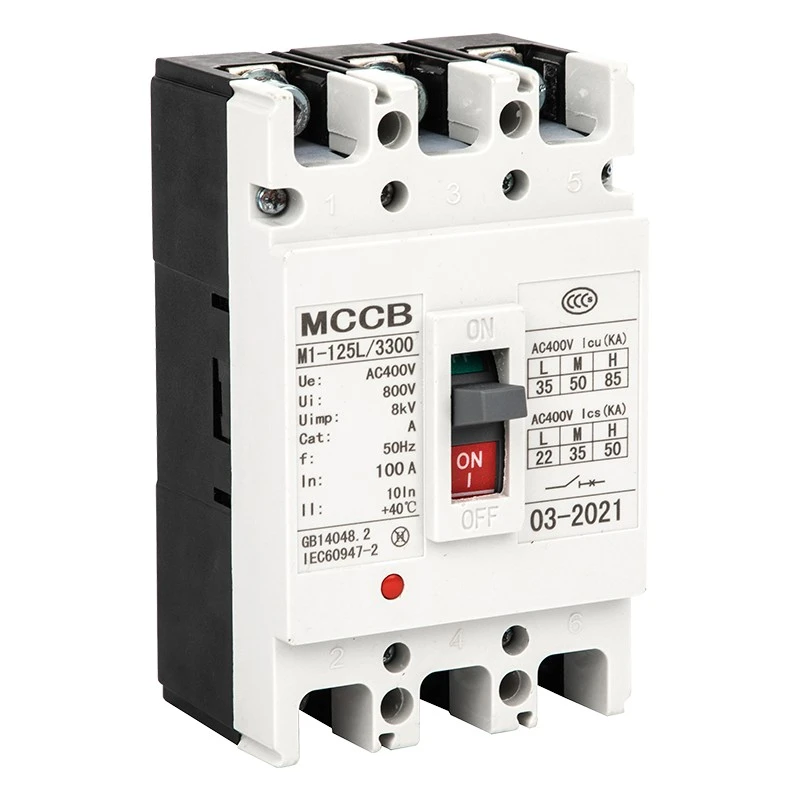

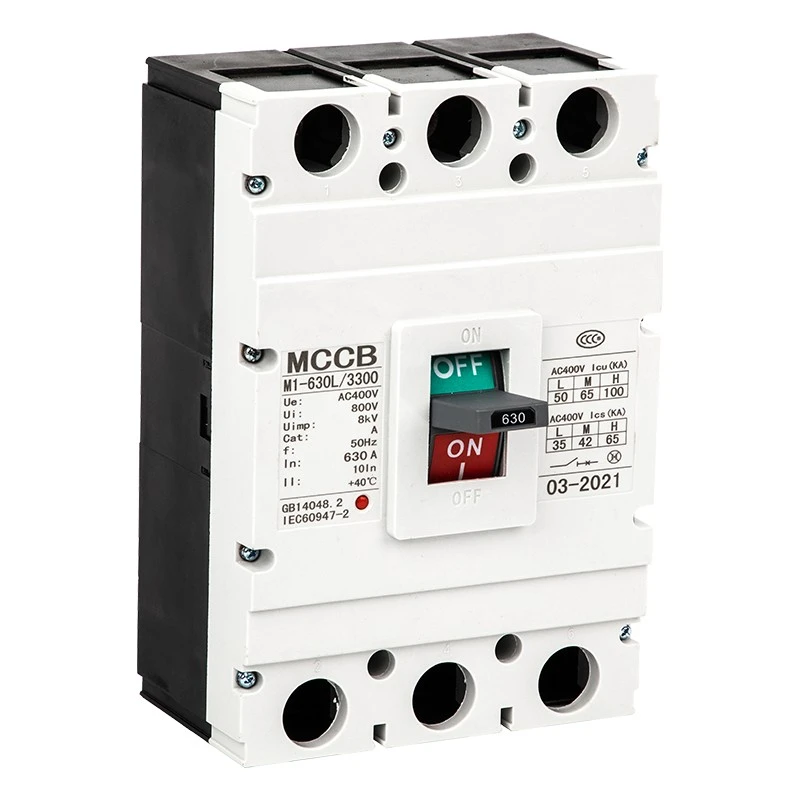

Iyi DAM2 (CM1) yakatevedzana CM1 Molded Case Circuit Breaker ndeye yakakwirira-inoita yakaderera-voltage yekudzivirira mudziyo unogadzirwa neShanghai DADA Electric Co., Ltd., akavimbika mugadziri uye mutengesi muChina. Iine rated insulation voltage kusvika ku800V, yakayerwa kushanda voltage 400V/690V, uye yakayerwa ikozvino kubva pa63A kusvika 1600A, inoshandiswa zvakanyanya pakugovera magetsi, kudzivirira dunhu, kutonga kwemota uye kusawanzochinja.
Iyi nhevedzano inotsigira yakamira uye yakachinjika kuisirwa, inoenderana neIEC60947-2 yakajairwa, uye inopa yakazara kuwanda, pfupi-sekiti uye pasi-voltage dziviriro yemidziyo yemagetsi.
Product Features
★ Rated insulation voltage: 800V; Kushanda magetsi: 400V / 690V
★ Nzvimbo iripo: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Kutyora simba: L mwero, M svikiro, H yakakwirira kutyora mhando
★ Thermal-magnetic & electromagnetic dual release modes
★ Vertical / horizontal installation, yakakodzera kushandiswa kwega
★ Wide ambient tembiricha siyana: -5℃~+40℃
★ Altitude ≤2000m, kusvibisa dhigirii 3
Applications
CDADA CM1 Molded Case Circuit Breaker inoshandiswa zvakanyanya mumaindasitiri nemagariro emagetsi ekugovera masisitimu, anosanganisira mafekitori, zvivakwa, nzvimbo dzedata, zviteshi zvemagetsi, zvivakwa, michina yemagetsi, uye makabati ekugovera magetsi. Iyo inoshandiswawo kudzivirira mota, kutendeuka kwedunhu, uye yakachengeteka magetsi mukuvaka, simbi, petrochemical uye mamwe maindasitiri.
Technical Parameters
★ Mitemo: IEC60947-2, GB14048.2
★ Frequency: AC 50Hz/60Hz
★ Pole: 1P, 2P, 3P, 4P
★ Kuburitswa: Thermal-magnetic (kaviri), electromagnetic (pakarepo)
★ Kurongeka kwepakarepo: Kugovera mhando 10In±20%; Motokari mhando 12In±20%
★ Kuiswa: Front wiring, kumashure wiring, plug-in mhando
★ Kushanda: Manual, magetsi ekushanda nzira
|
Model |
Pole |
Rated current (A) |
Rated kushanda voltage (V) |
Rated insulation voltage (V) |
Yakatemerwa yekupedzisira pfupi - wedunhu kutyora simba (Icu) |
Flashover chinhambwe (mm) |
||
|
Test voltage (V) |
Icu (kA) |
Ics (kA) |
||||||
|
DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400 × 1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3, 4 |
50 |
35 |
|||||
|
DAM2L-100 |
3, 4 |
16, 20, 25, 32, 40, 50, 63,80,100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
DAM2M-100 |
2, 3, 4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3, 4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2, 3, 4 |
20 |
10 |
|||||
|
DAM2L-225 |
3, 4 |
100, 125, 140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
DAM2M-225 |
2, 3, 4 |
50 |
35 |
|||||
|
DAM2H-225 |
3 |
85 |
50 |
|||||
|
DAM2L-225 |
3, 4 |
690 |
10 |
5 |
||||
|
DAM2M-225 |
2, 3, 4 |
20 |
10 |
|||||
|
DAM2L-400 |
3 |
225, 250, 315, 350,400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3, 4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3, 4 |
20 |
10 |
|||||
|
DAM2L-630 |
3 |
400,500,630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3, 4 |
65 |
42 |
|||||
|
DAM2H-630 |
3 |
100 |
65 |
|||||
|
DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3, 4 |
20 |
10 |
|||||
|
DAM2M-800 |
3 |
630, 700,800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM2-1250 |
3 |
800, 1000, 1250 |
400 |
800 |
85 |
42 |
||
|
DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Outline & Installation Dimensions
Yedu CM1 MCCB inopa yakazara dimension data ye63A-1600A modhi, kusanganisira yekumberi wiring, yekumashure wiring uye plug-in mhando. Yakasiyana furemu saizi (63/100/225/400/630/800/1250/1600) akafananidza H, H1, H2 zviyero zveyakajairwa kabati kuisirwa. Manual uye magetsi ekushandisa meshini kureba zvakare yakamisikidzwa kuitira nyore kusangana.
Zvishandiso & Mabasa
Internal Accessories
★ Shunt kusunungurwa: 70% -110% yakayerwa voltage yekufamba kwakavimbika
★ Under-voltage release: 35% -70% voltage donho rekudzivirira otomatiki
★ Yekubatsira kubata & alarm kubata: Signal mhinduro uye kukanganisa alarm
★ Pre-paid mita yakatsaurirwa kusunungurwa: Kunonoka kutsika 0.5–2s
External Accessories
★ Manual yekushandisa michina
★ Magetsi (motor) anoshanda mashandisirwo
★ Phase separators, mounting screws, busbars kits

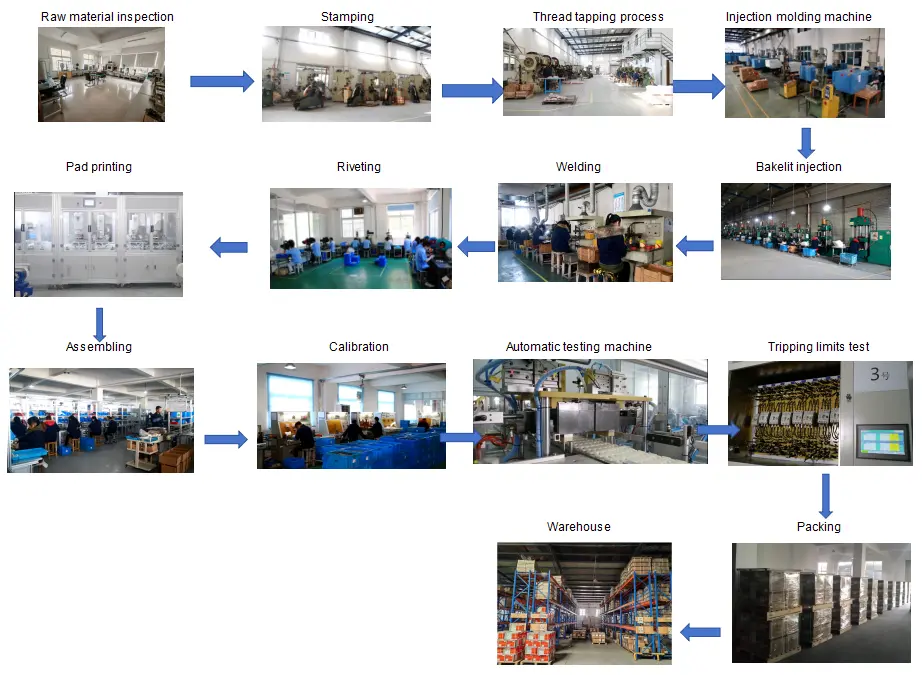

Quality Control Flow
Kuongorora kwezvinhu zvakasvibirira → Kugadziriswa kwekugadzira → Mutsetse weGungano → Rwendo hunhu bvunzo → Tembiricha yekukwira bvunzo → Pfupi-yedunhu bvunzo → Kuchembera bvunzo → Chitarisiko & chiyero chekutarisa → Kurongedza → Kuongorora kwekupedzisira isati yatumirwa

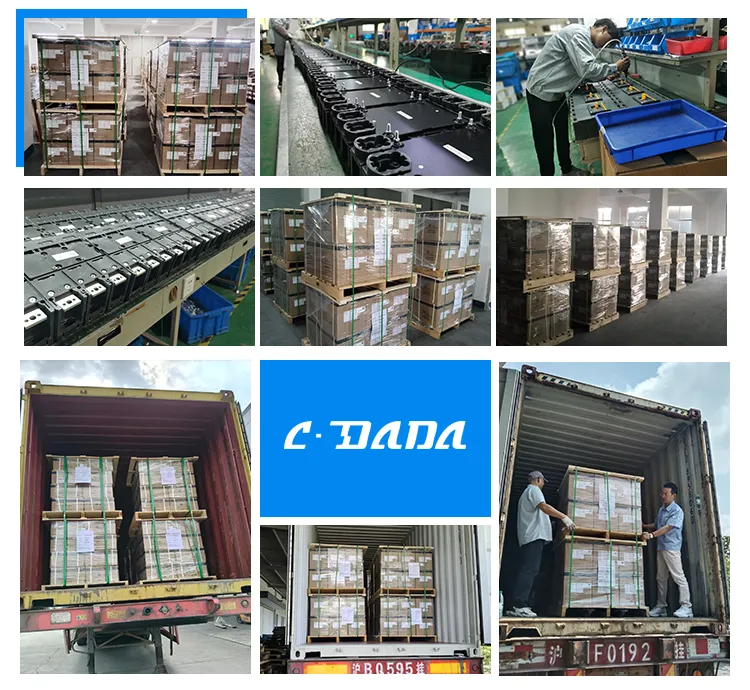

Packaging & Shipping
★ Yakajairwa ekisipoti katoni + yemapuranga pallet yekufambisa yakachengeteka
★ Label: modhi, zvazvino, danda, huwandu, chitupa
★ Inokodzera gungwa, mhepo uye land logistics
Certifications
IEC60947-2, GB14048.2, CE, CB, ROHS uye zvimwe zvibvumirano zvepasi rose.

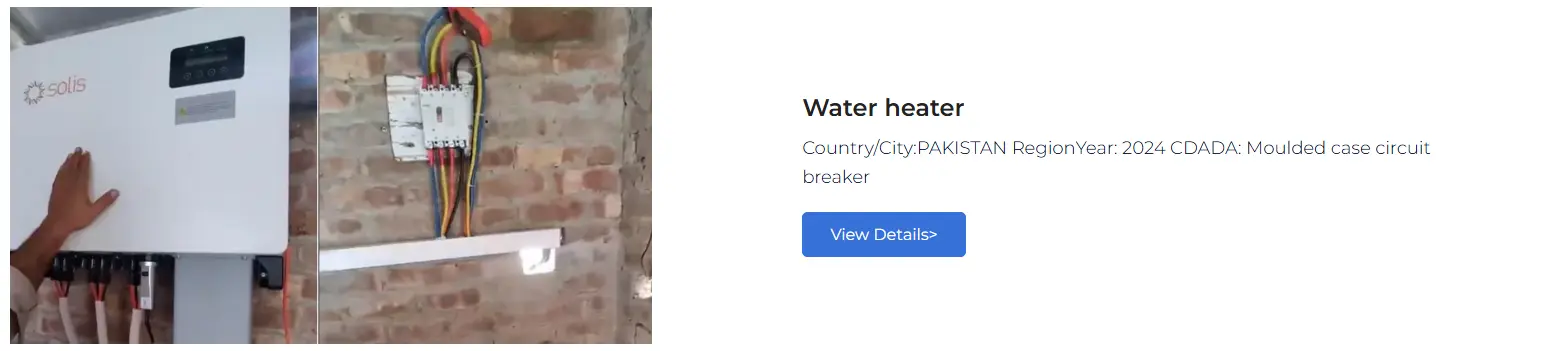

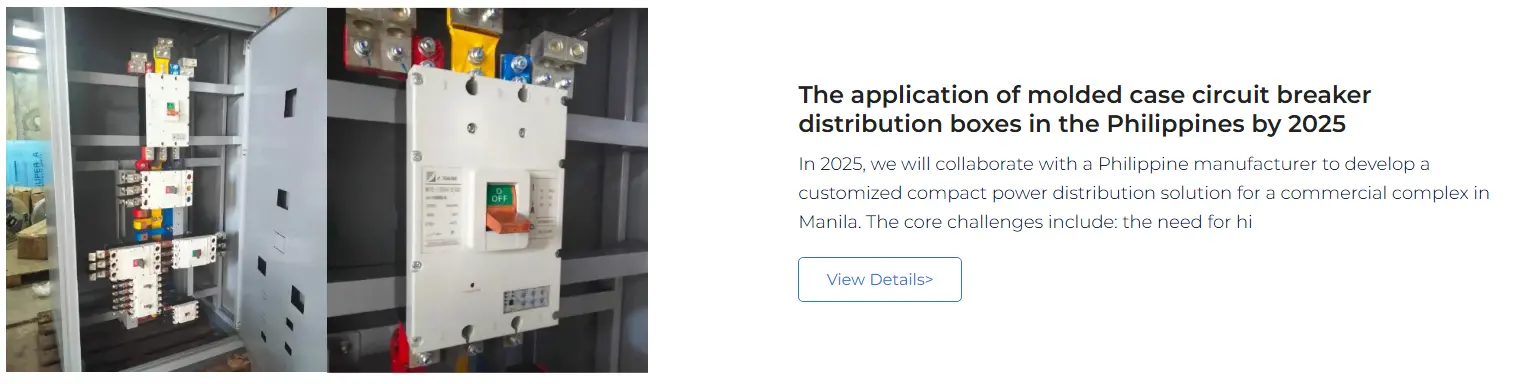

Customer Cooperation Nyaya
CDADA DAM2 yakatevedzana MCCB yakapihwa kune vatengi vepasirese, kusanganisira magetsi ekugovera masisitimu ekubatanidza, vagadziri vemidziyo yemaindasitiri, mafekitori emagetsi, makondirakiti ekuvaka uye mhando dzeOEM muEurope, Southeast Asia, Middle East, Africa neSouth America. Isu tinopa yakagadzikana yakawanda yekugovera uye yakagadziridzwa mhinduro kune venguva refu vadyidzani.
