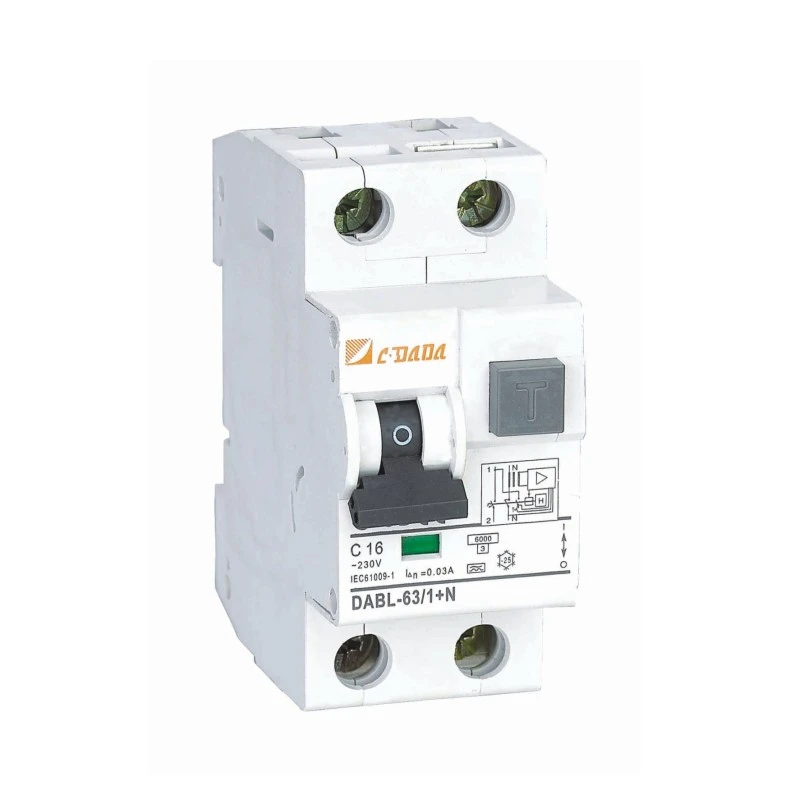

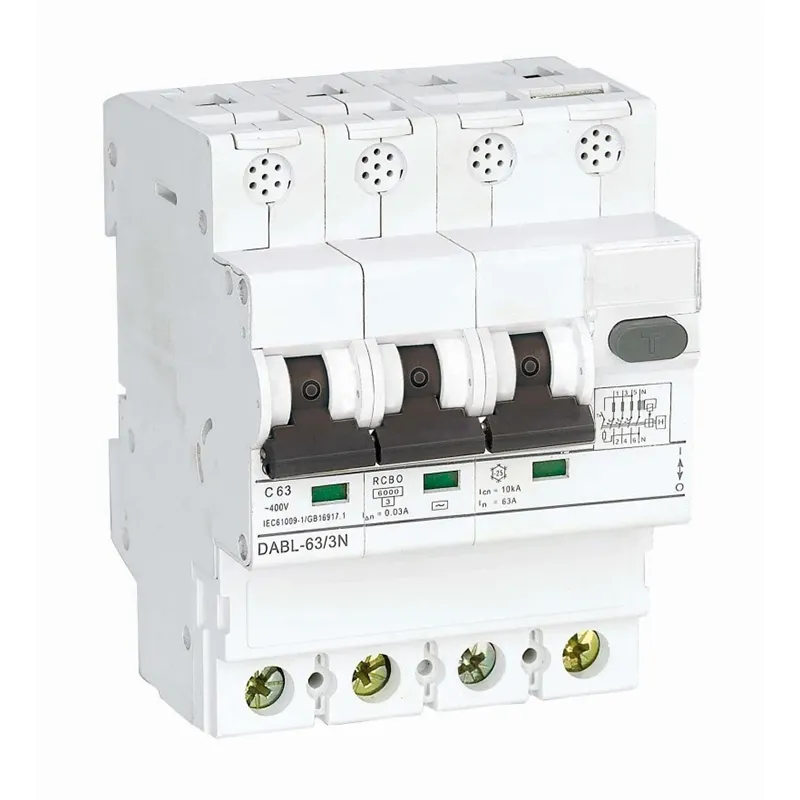

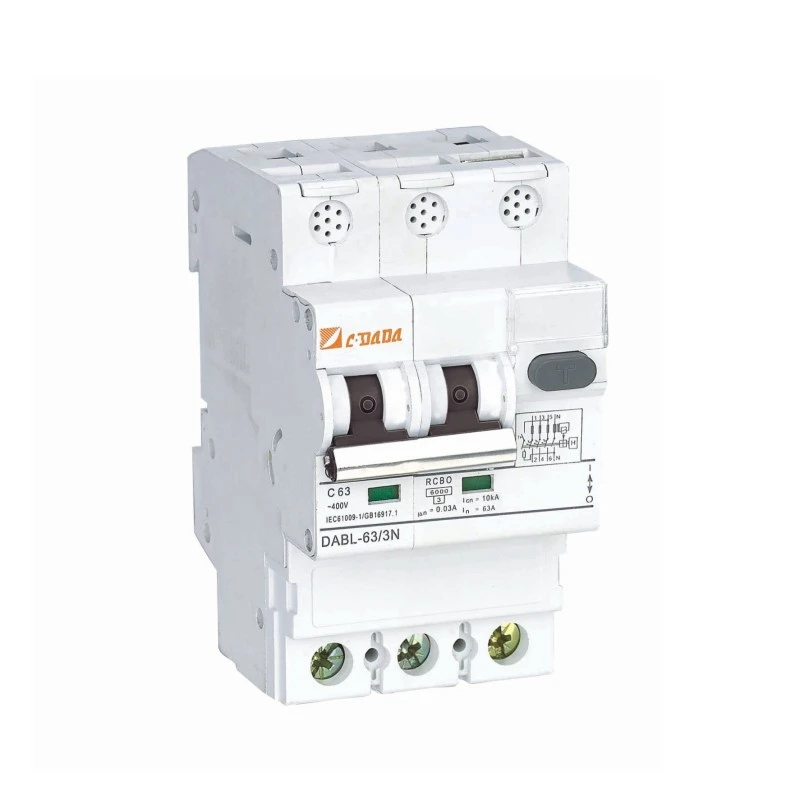

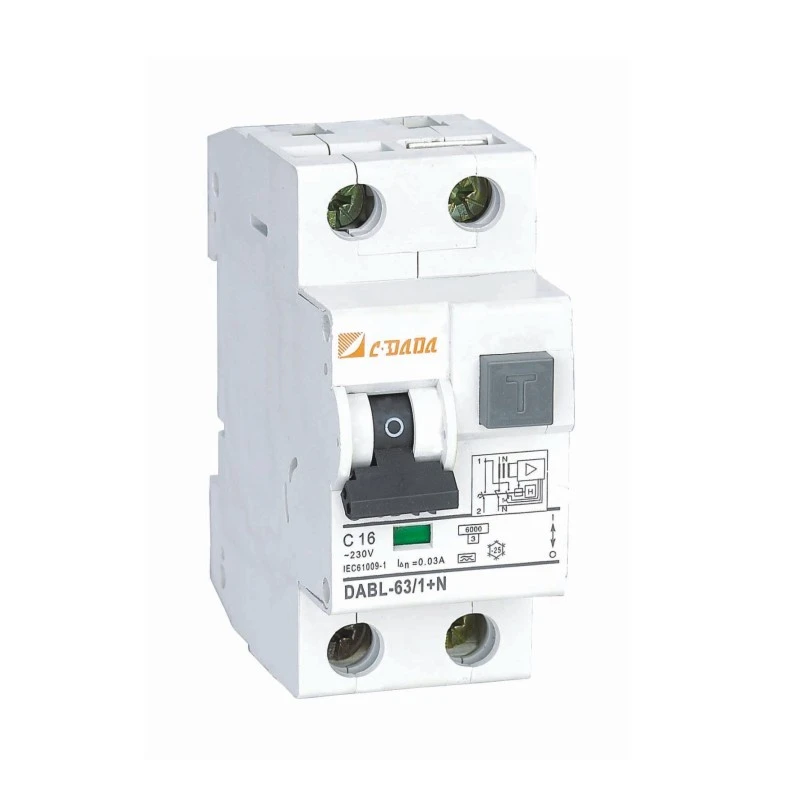

2P 4P Electronic Type RCBO
Model:DABL-63
Iwe unogona kuzorora uine chokwadi chekusarudza CDADA seyako 2P 4P Electronic Type RCBO (DABL-63) mugadziri uye mutengesi. Chigadzirwa chedu CE/CB/RoHS chakasimbiswa. Inosanganisa 30mA kuvuza + kuwandisa + kupfupi-kutenderera kuchengetedza. 6kA, -25 ° C kusvika +40 ° C, yakanakira kunze / garaji maseketi.
Wedzera kuchengetedzeka mumagetsi emazuva ano ekuisa neCDADA DABL-63 2P 4P Electronic Type RCBO-ine compact, yakangwara yasara yemazuva ano inotyora inotyora ine overcurrent dziviriro yakagadzirwa neShanghai DADA Electric CO., LTD. Yakagadzirirwa 2P (1+N) uye 4P (3+N) maapplication, iyi yemagetsi RCBO inopa ina-mu-imwe dziviriro:
Kudzivirirwa kwemagetsi kuvhundutsa (kuburikidza ne30mA yasara kuona ikozvino),
Overload protection,
Kukanganiswa kwepfupi-dunhu (6kA kutyora kugona),
Surge kudzvinyirira (yakabatanidzwa D-kirasi varistor).
Yakanakira zvigadziko zvekunze, mwenje wegaraji, maseketi epasi, uye mafeedi emidziyo, iyo DABL-63 inosangana neEC, CB, uye RoHS zviyero uye inoratidzira yemagetsi mutsauko module yekutarisisa kutadza kuona. Iine 2-module DIN hupamhi, yakazvimirira yekubata chinzvimbo chiratidzo, uye -25 ° C kusvika + 40 ° C inoshanda renji, yakavakirwa kuvimbika munzvimbo dzakasiyana siyana uye pekugara/yekutengesa marongero.
Zvinotaurwa Nezvakakosha
Muenzaniso: DABL-63 Series
Type: Electronic RCBO (Residual Current Breaker ine Overcurrent Protection)
Mapango: 2P (1+N) kana 4P (3+N)
Yakayerwa Yazvino (Mu): Kazhinji 6–63A (yakavakirwa paDAB7-63 papuratifomu)
Residual Sensitivity (I△n): 30mA (yakajairwa kudzivirira munhu)
Kuputsa Kugona: 6kA, 10kA
Dziviriro Mabasa:
Residual current (leakage)
Overload (thermal)
Short circuit (electromagnetic)
Surge overvoltage (kuburikidza yakavakirwa-muD-kirasi varistor)

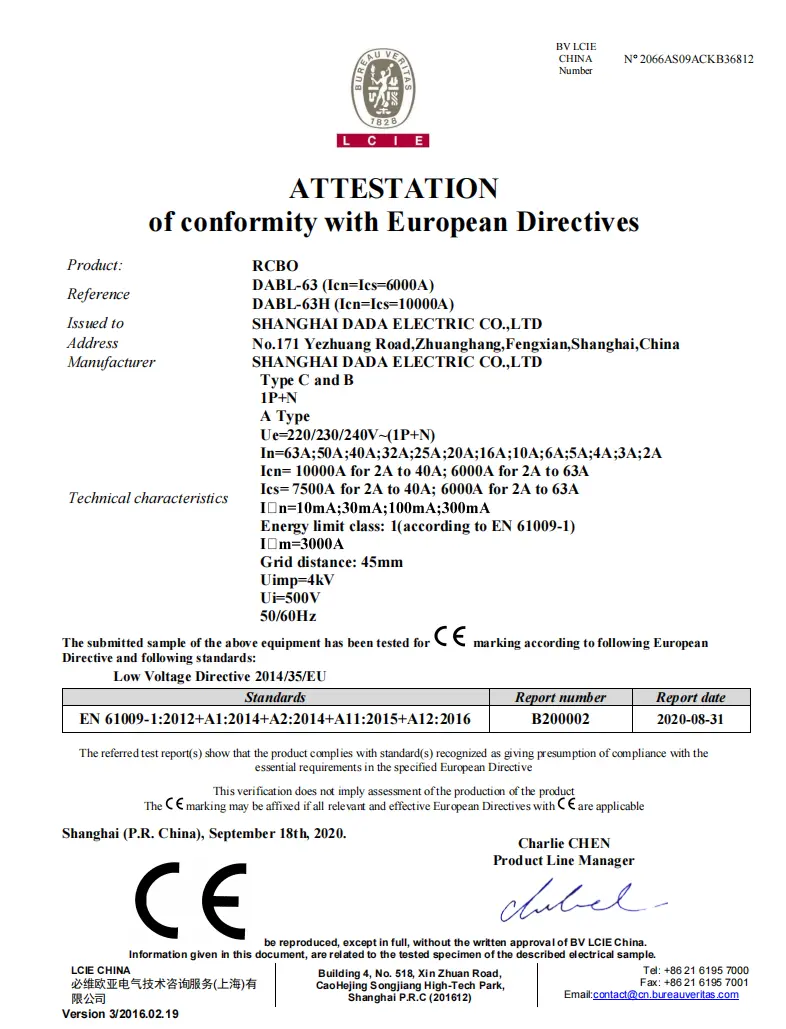

Certifications: CE, CB, RoHS
Kushanda Tembiricha: -25°C kusvika +40°C
Kukwidza: 2-module yakafara pane 35mm DIN njanji
Technical Data Sheet
|
RCBO DABL-63 Electronic mhando |
||
|
Nekudzivirira kwekugovera kwemagetsi kwakawanda (IEC/EN 61009) |
|
|
|
Mapango enhamba |
1P+N |
|
|
Kuita kwemagetsi |
||
|
Yakatemerwa ikozvino Mu( A ) |
6,10,16,20,25,32,40,50,63A |
|
|
Release type |
Electronic type |
|
|
Mabasa |
Dziviriro kubva kupfupi wedunhu, kuvuza, kuwandisa, pamusoro pemagetsi, kuzviparadzanisa nevamwe |
|
|
Rudzi rwekusara ikozvino |
AC uye A |
|
|
Rated frequency f (Hz) |
50-60Hz |
|
|
Rated kushanda voltage Ue (V) AC |
230/400 |
|
|
Rated residual current motion I△n(mA) |
10,30,100,300 |
|
|
Yakatemerwa yasara ikozvino hapana-kufamba I△no(mA) |
5,15,25,50,300 |
|
|
cosф |
0.5 |
|
|
Insulation voltage Ui |
500V |
|
|
Rated impulse inomira voltage Uimp |
6KV |
|
|
Instantaneous tripping type |
B/C/D |
|
|
Rated short circuit Icn(kA) |
6kA uye 10kA |
|
|
Hupenyu hwesevhisi(O~C) |
Mechanical |
12000 |
|
Zvemagetsi |
6000 |
|
|
Kubatanidza uye kuisa |
|
|
|
Dhigirii rekudzivirira |
IP40 |
|
|
Wire mm² |
1~25 |
|
|
Kushanda tembiricha (neavhareji yemazuva ese≤35 ℃) |
-5 ℃+40℃ |
|
|
Kupokana nekunyorova uye kupisa |
Kirasi 2 |
|
|
Altitude pamusoro pegungwa |
≤2000 |
|
|
Hunyoro hwehukama |
+20℃ , ≤90% ;+40℃ , ≤50% |
|
|
Dhigirii rekusvibisa |
2 |
|
|
Installation environment |
Dzivisa kuvhunduka uye kudedera kuri pachena |
|
|
Kuiswa kirasi |
Kirasi Ⅱ , Kirasi Ⅲ |
|
|
Kusanganiswa nemidziyo |
||
|
Mubatsiri kuonana |
Ehe |
|
|
Alarm contact |
Ehe |
|
|
ALT+AUX |
Ehe |
|
|
Shunt release |
Ehe |
|
|
Undervoltage release |
- |
|
|
Overvoltage kusunungurwa |
Ehe |
|
|
Dimensions(mm) (WxHxL) |
a |
35 |
|
b |
80.4 |
|
|
c |
72 |
|
Zvinokosha:
★ Electronic differential module → high setivity & nekukurumidza mhinduro
★ Yakazvimirira yekubata chiratidzo (inoratidza chokwadi ON/OFF/rwendo mamiriro)
★ "TEST" bhatani remwedzi nemwedzi mashandiro ekutarisa
★ Notched terminal clamps → kupisa kwakadzika, kubata kwakasimba
★ Cross-functional screws (+/-) → kuiswa nyore, hapana zvikamu zvakadonha
★ Silver-bearing contact alloy → hupenyu hurefu, kushorwa kwakaderera
Sei Kusarudza CDADA Electronic RCBO?
★ All-in-One Dziviriro mu2 Modules
Inotsiva yakaparadzana MCB + RCCB + surge mudziviriri-kuchengetedza nzvimbo, mutengo, uye kuomarara kwewaya.★ Kudzivirirwa kwakawedzerwa neSurge Suppression
Yakasanganiswa dunhu nemagetsi module yekusiyanisa kudzivirira, D-class varistor uye yakabatanidzwa yedunhu breaker yeDAB7-63 mutsara inovimbisa 4 marudzi ekudzivirira: kubva kune yakasara ikozvino (yakadonha ikozvino), pfupi pfupi; overload uye kuwedzera overvoltage.★ Chokwadi Chimiro Kuonekwa
Kusiyana neakajairwa mabreaker, iyo yakazvimirira yekubata chiratidzo inoratidza chaiyo yekubata mamiriro-kunyangwe kana mubato wakabatwa nemaoko ON.★ Installer-Hushamwari Dhizaini
● Wide tembiricha siyana → yakakodzera magaraji asina kupisa kana denga rinopisa
● Notched terminals → chengetedzo, inodzikisira kubatanidza
● Madhiraivha maviri → anoshanda neflat kana maturusi ePhillips

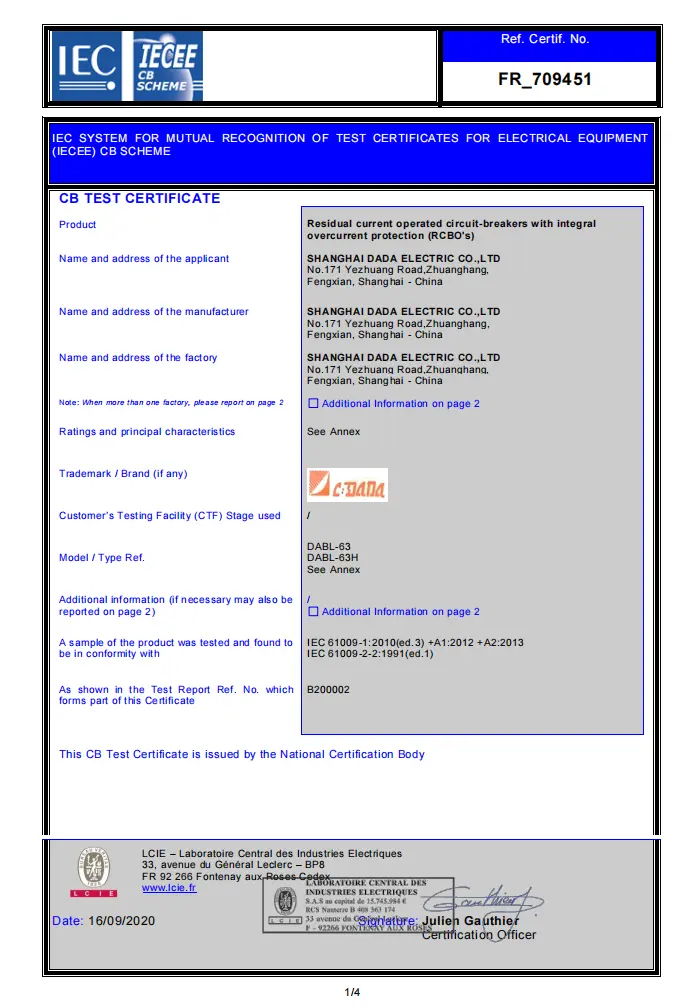

★ Pasi rose Certified
CE, CB, uye RoHS mvumo inovimbisa kuteedzera muEurope, Asia, Africa, uye nemhiri-yakanakira mapaneru ekunze.
★ Yakakwana kune Yakakwira-Njodzi Nzvimbo
Inokurudzirwa kune zvekubuda kunze, nzvimbo dzakanyorova, magaraji, uye dzimba dzepasi umo kuvhunduka uye njodzi dzemoto dzinokwidziridzwa.★ Nemakore akawanda ruzivo rwekutumira kuRussia uye nyika yeEurope mukuwedzera kune yese yeSouth America, Europe, Asia, neAustralia, CDADA yakakufukidza!

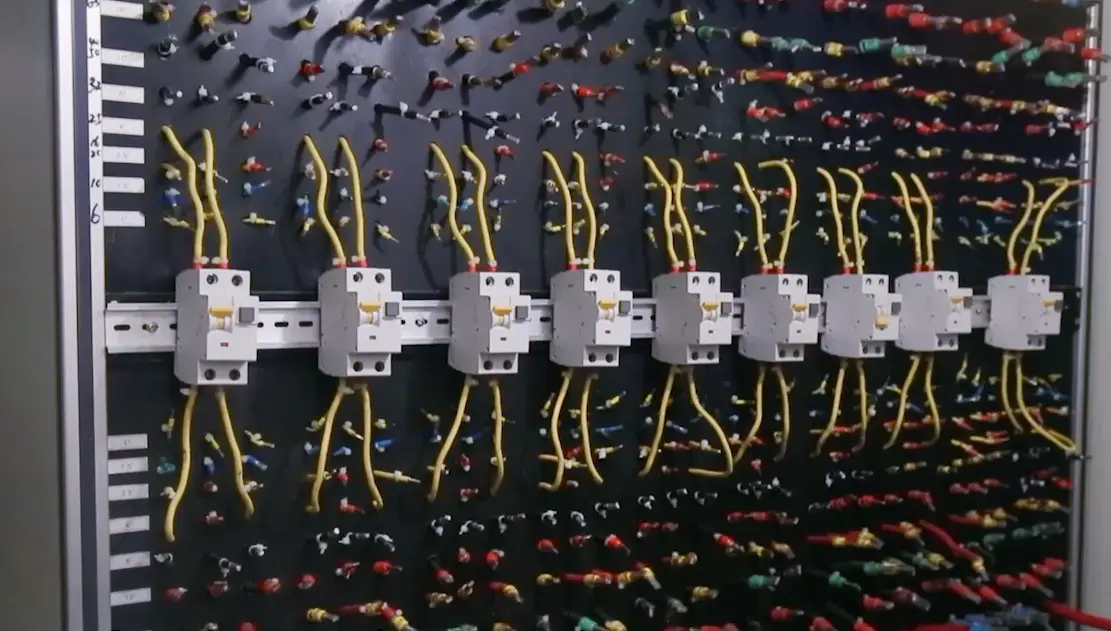

★ Sezvo iri mutemo wedu kuti 100% iongorore zvigadzirwa zvose zvinosiya nzvimbo yedu, tinogona kuvimbisa nechokwadi chakakwana kuti chigadzirwa chinoshanda 100% chakarurama chisati chasiya nzvimbo yedu.
★ Isu tinofara kuti iwe ukatishanyira chero nguva! Iyi ndiyo chete nzira yatinogona kuve nekutonga kwakazara pamusoro penguva dzekugadzira uye process throughput.
Typical Applications
Zvekunze Sockets: Zvematurusi egadheni, majaja eEV, marambi ezororo
Garage & Basement Mwenje: Kunyorova, kutonhora nharaunda
Appliance Circuits: Michina yekuwachisa, madhishi, mafiriji
Workshop Power: Iko maturusi uye mwando zvinogara
Residence Sub-Panels: Compact, multi-protection solution
Mibvunzo Inowanzo bvunzwa (FAQ)
Q1: Ndeupi musiyano pakati peRCCB neRCBO?
A1: RCCB inongoona zvakasara (kudonha) ikozvino-hazvidziviriri kubva pakuremerwa kana mapfupi. RCBO (senge DABL-63) inosanganisa RCCB + MCB mumudziyo mumwe-inopa kuvuza + kuwandisa + kuchengetedzwa kwepfupi-redunhu.
Q2: Iyi RCBO inodzivirira chaizvo kubva pakuvhiya?
A2: Hongu! Inosanganisira yakavakirwa-muD-class varistor iyo inodzvanya overvoltages kwenguva pfupi (semuenzaniso, kubva kumheni kana kushandura masurges) -chinhu chisingawanzo mumhando dzeRCBOs.
Q3: Sei uchisarudza yemagetsi RCBO pane yemagetsi? A3:
● Electronic RCBOs inopa kunzwisisika kwepamusoro, hukuru hudiki, uye inogona kubatanidza mamwe mabasa (sekudzivirira kwekuvhiya).
● Dzinoda magetsi emagetsi kuti ashande—saka hazvina kunaka kana kwazvakarerekera kusingavimbiki.
● Mhando dzeElectromagnetic dzinoshanda pa0V asi dzakakura uye hadzina hungwaru.
→ Kune magidhi ekugara akatsiga, maRCBO emagetsi senge DABL-63 akakwana.
Q4: Ko 30mA yakakwana pakuzvidzivirira wega?
A4: Hongu. 30mA ndiyo chiyero chepasi rose (IEC) chikumbaridzo chekuchengetedza hupenyu hwekuvhunduka mumatunhu ekugara.
Q5: Sei uchisarudza CDADA yemagetsi RCBO?
A5: CDADA inomira pachena nekuti:
● Chokwadi 4-in-1 kudzivirira (kudonha + kuwandisa + kupfupika kwedunhu)
● Compact 2-module design inochengetedza nzvimbo yepaneti
● Kuzvimiririra kuonana chiratidzo kunovimbisa chimiro chakarurama
● Global certifications (CE/CB/RoHS)
● OEM-yakagadzirira: unhu hunoenderana, rubatsiro rweChirungu, mutengo wakawanda
