DIN Rail Shanduko Shanduko 125A
Tenga CDADA DIN Rail Changeover Switch 125A, semugadziri muChina ane 40+ makore ane ruzivo, chigadzirwa chedu IEC60947-3 chakasimbiswa, 3-chinzvimbo (I-O-II), nokuda kwemasimba maviri emagetsi ekufambisa kusvika ku400V. Manual, DIN-yakaiswa, yakanakira jenareta backup & maindasitiri mapaneru.

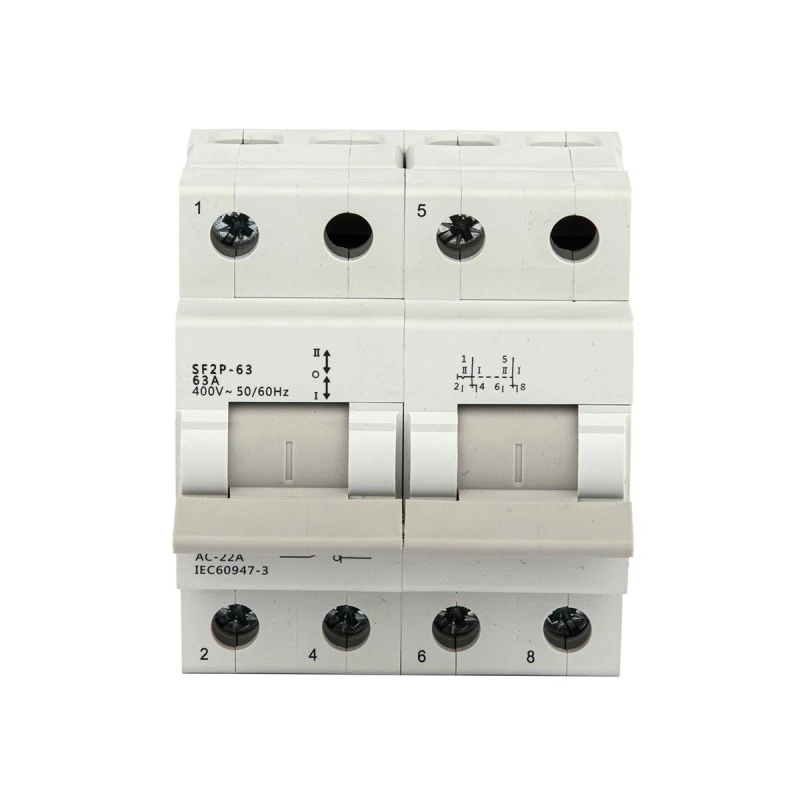

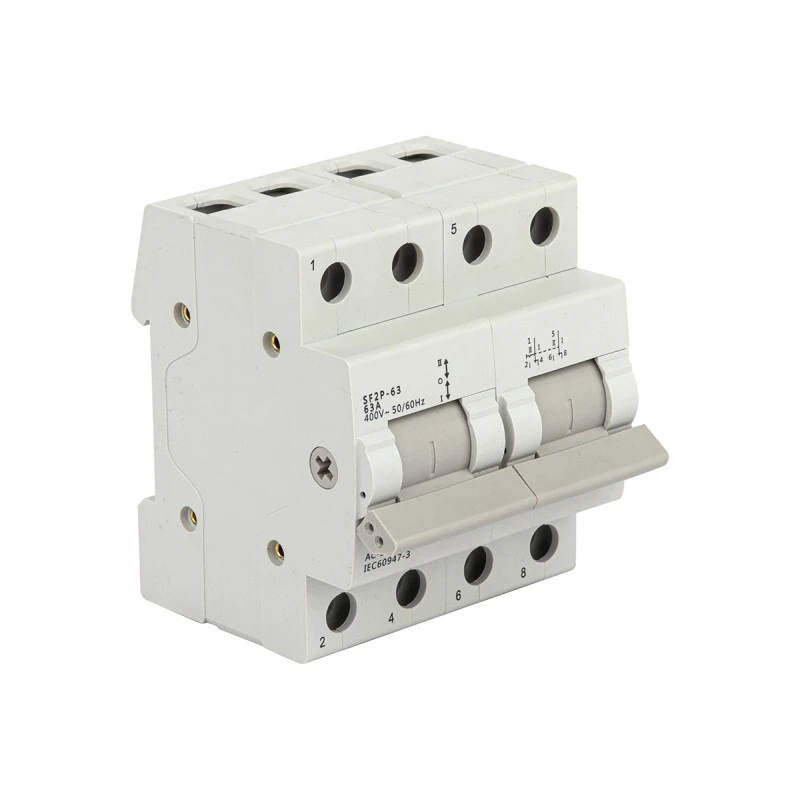

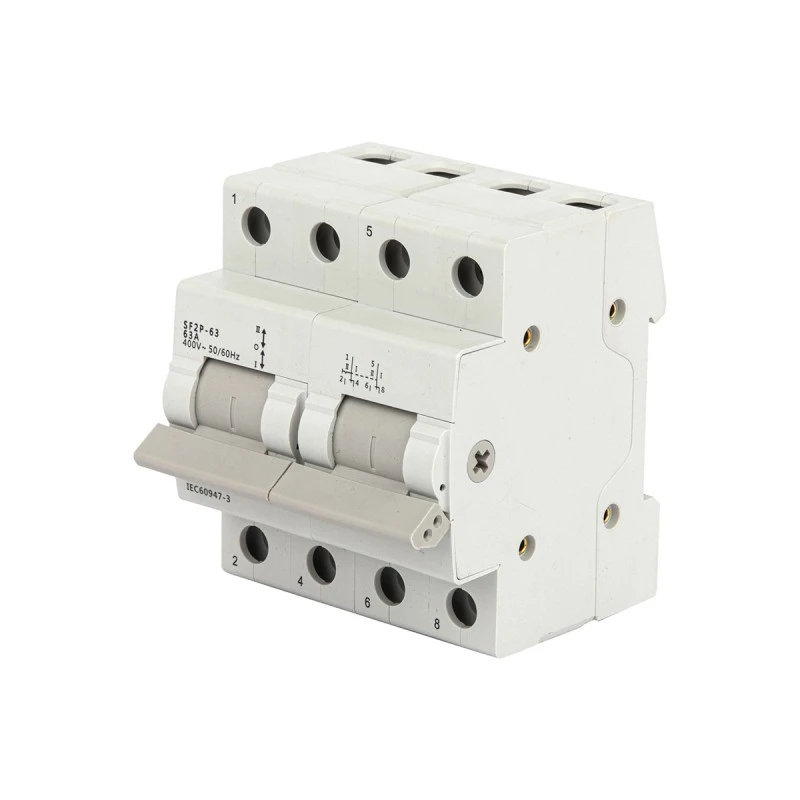

Iyo CDADA SF Series DIN Rail Changeover Switch 125A isimba rakasimba, rinoshandiswa nemaoko switching solution rakagadzirwa neShanghai DADA Electric CO., LTD kune yakavimbika mbiri sosi yemagetsi kana kutendeuka kwemutoro mune zvekutengesa, maindasitiri, uye zvivakwa zvekushandisa. Inoenderana neIEC 60947-3 uye EN 60947-3, switch iyi inotsigira AC 50/60Hz masisitimu anosvika 400V uye inobata anoenderera mberi mafungu anosvika 125A pasi pe AC-22A kushandiswa kwechikamu (mixed resistive uye inductive mitoro).
Inoratidzira yakajeka 3-nzvimbo yemanyorero mubato (I - OFF - II), inogonesa kuchinjika kwakachengeteka pakati pegridi huru uye backup jenareta, dual transformers, kana redundant maseketi, nepo yepakati OFF chinzvimbo ichivimbisa kuparadzaniswa kwakazara-yakakosha pakugadzirisa nekuchengetedza. Yakagadzirirwa yakajairwa TH35 DIN njanji inokwirisa, inosanganisa isina musono mumabhodhi emazuva ano ekugovera padivi peMCBs, macontactor, uye vanodzivirira ekuvhiya.
Iine high-conductivity contacts, chitubu-chinobatsira kukurumidza-kugadzira / kuputsa michina, uye chaiyo-yakaiswa mafuta emukati, iyo 125A modhi inoburitsa 8,500 mechanical mashandiro uye 1,500 magetsi emagetsi pasi pemamiriro akayerwa. Ongorora: haina kamuri yekudzimisa arc, saka inofanirwa kushandiswa nemafusi ekumusoro kana mabreaker edunhu ekudzivirira-pfupi.
Zvinodiwa Zvinokosha (125A Model)
| Muenzaniso: | SF Series DIN Rail Shanduko Shanduko - 125A |
| Brand: | CDADA | Mugadziri: Shanghai DADA Electric CO., LTD |
| Poles: | Inowanikwa mu1P, 2P, 3P, 4P (taura sezvinodiwa) |
| Yakatemerwa Zvazvino: | 125A (derate kusvika 100A kana ambient>40°C) |
| Rated Voltage: | 230V / 400V AC, 50/60Hz |
| Insulation Voltage (Ui): | 500V |
| Utilization Category: | AC-22A |
| Yenguva Pfupi Kutsungirira Zvazvino (Icw): | 12 × 125A = 1, 500A kwesekondi imwe |
| Kuita Kugona: | 20 × 125A = 2, 500A pa t = 0.1s |
| Mechanical Life: | 8, 500 kushanda |
| Upenyu hweMagetsi: | 1, 500 mashandiro (pasi pemutoro) |
| Kusvibisa Degree: | II |
| Kukwidza: | TH35 DIN njanji, yakatwasuka kuisirwa chete |
| Operation: | Manual 3-nzvimbo mubato (I - O - II) |
| Zviteshi: | Cable kana busbar, max 50mm² waya yemhangura |
| Kusimbisa Torque: | 3.5 Nm |
| Kutevedzera Kuchengetedzwa: | IEC 60947-3, EN 60947-3 |
| Kukanganisa kweArc: | ❌ Hapana arc chamber → kwete yekukanganisa ikozvino |
Sei Sarudza CDADA DIN Rail Shanduko Switch 125A?
★ Kuvimbika Kwepamusoro-Iyezvino
Yakagadzirirwa kuenderera mberi 125A basa-yakanakira pombi hombe, HVAC mauniti, kana data center backup masisitimu.
★ Chokwadi Kuzviparadzanisa nevamwe ne OFF Position
Center "O" chinzvimbo chinobvisa zvese zviri zviviri, kubvisa njodzi yekudzosera shure kana netsaona simba.
★ DIN-Rail Yakagadzirira Yemazuva Ano Panels
Inochengetedza nzvimbo uye inorerutsa kuisirwa mune compact kana modular kugovera mabhodhi.
★ Industrial-Giredhi Kuvaka
Chitubu-chakaremerwa mabikirwo, lubricated spindle, uye 50mm² terminal kugona inovimbisa kugadzikana kwenguva refu.
★ Global Standards Compliance
Certified to IEC 60947-3 - inogamuchirwa pasi rese yekutengeserana uye chiedza-industrial kushandiswa.
★ Safe Operation Guidance
Inosanganisira kurudziro yakawedzera ye125A modhi-inovimbisa inodzorwa, yakazara-yekufamba-chinja.
Typical Applications
Emergency Power Transfer: Main grid ↔ Jenareta (zvipatara, telecom shongwe)
Redundant Power Systems: Dual UPS kana transformer switching

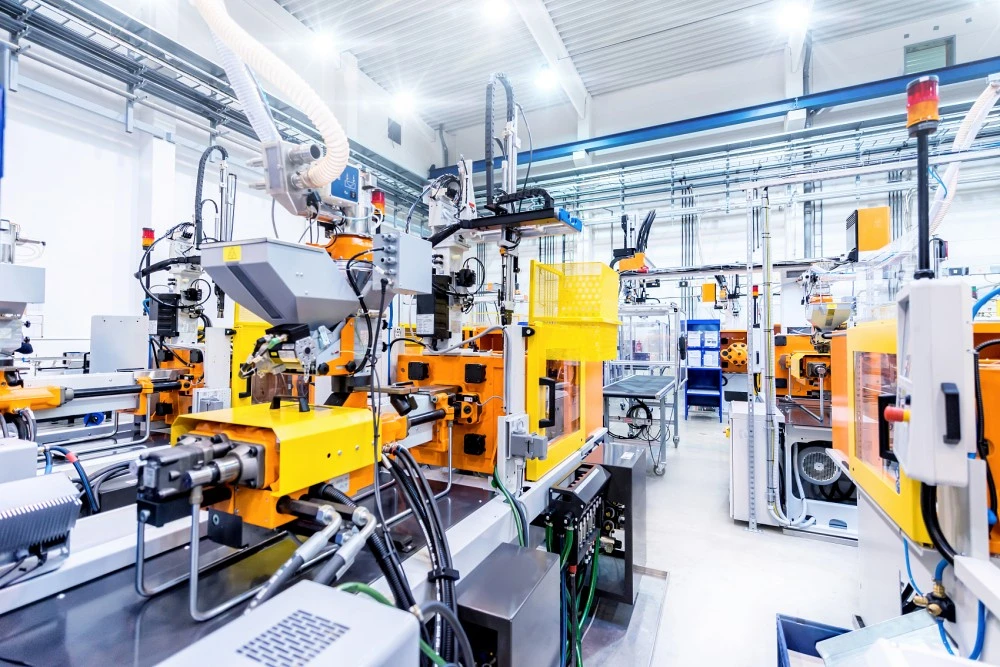

Industrial Machina: Kusarudzwa kwakasarudzika kwemahombe mota kana kudziyisa masisitimu
Kuronga Kwekuvaka: Chengetedza mwenje kana elevator magetsi routing
Renewable Integration: Grid vs. solar hybrid system isolation
Pamusoro peCDADA
★ Tine nyanzvi yeR & D timu, tine chiyero chekusimudzira maitiro. Inogona kupa yakanakisa customized service.

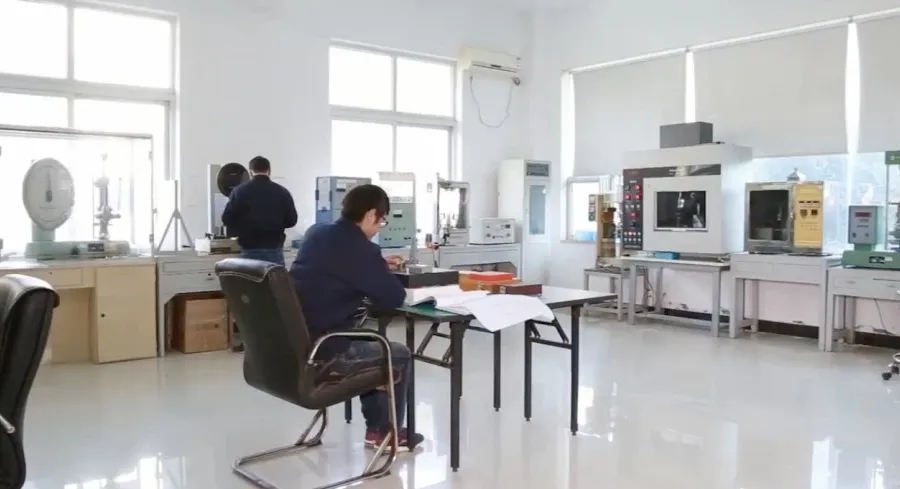

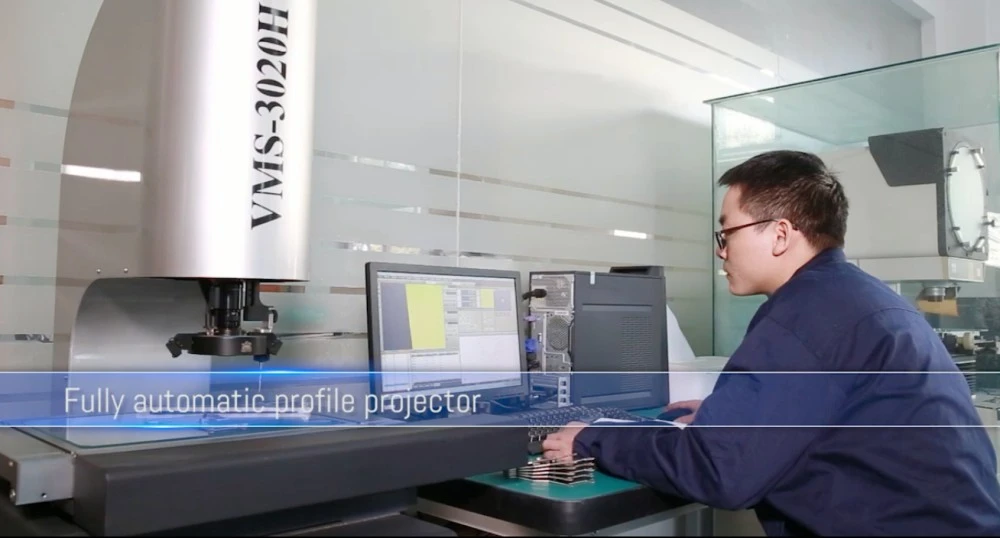

★ Tine rabhoritari inoshanda zvizere, rabhoritari yedu inogona kupupurira marabhoritari, tinogona kuita thermal load, magnetic, uye tripping limit, mechanism life, EMC murabhoritari yedu.
★ tinopa zvirongwa zvekudyidzana zvakarongwa zvevagovera, vamiririri, uye vanobatana neOEM mumisika yakakosha, tichipa rutsigiro rwekutengesa, zvekushambadzira, uye mazwi emakwikwi.

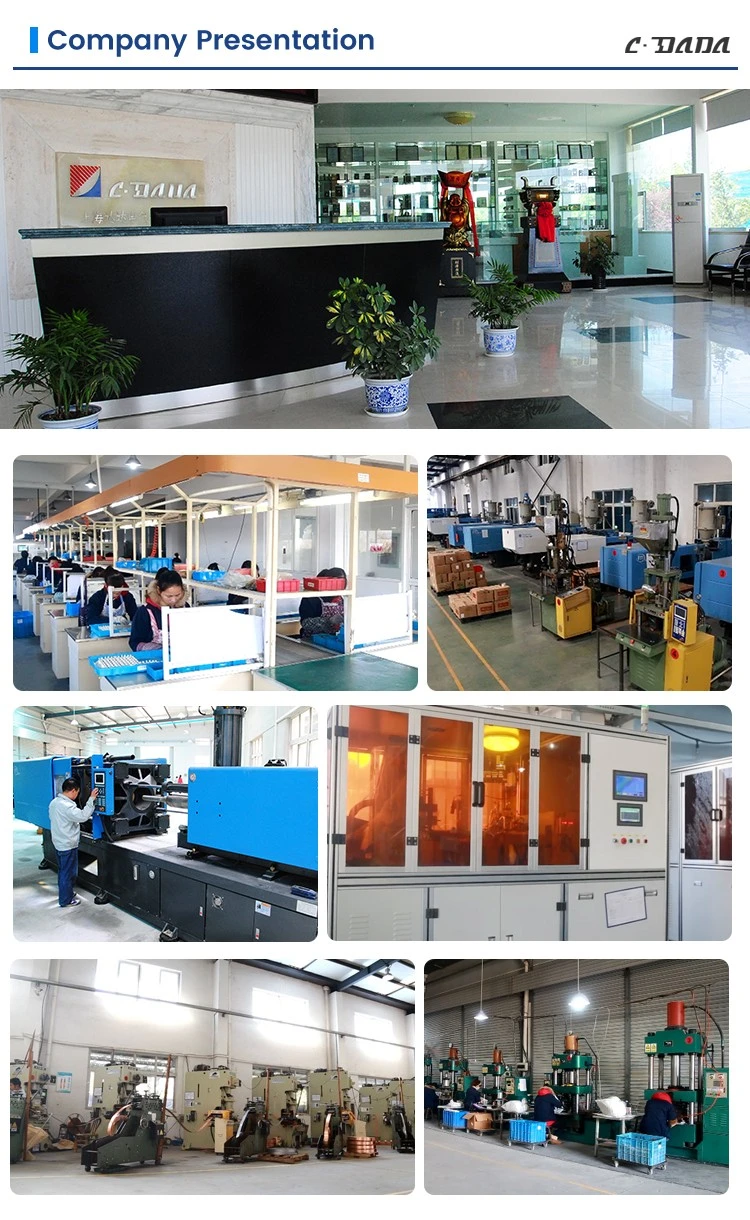

★ Profile yekambani
Mibvunzo Inowanzo bvunzwa
Q1: Ndinogona kushandura DIN Rail Changeover Switch 125A pasi pemutoro?
A1: Kwete. Switch iyi haina arc yekudzima simba. Inofanirwa kushandiswa chete kana yakadzimwa kana kushandiswa zvakanyanya seyega (hapana-mutoro switching). Nekufambisa-mutoro wekufambisa, shandisa otomatiki yekufambisa switch (ATS) kana fused motorized switch.
Q2: Sei iyo 125A modhi ichida maoko maviri kana mubato wakawedzerwa?
A2: Chitubu chemuchina mumhando yepamusoro-yazvino inoburitsa yakakura inertial simba. Kuvhiya kweruoko rumwe chete kunogona kukonzera kusakwana kwekubatana, zvichikonzera arcing kana kupisa. CDADA inokurudzira maoko ese kana fekitori-yakapihwa mubato wakatambanudzwa kuitira kushanda kwakachengeteka, kuzere-kufamba.
Q3: Ndeupi tambo saizi inodiwa ku125A?
A3: Shandisa 50mm² tambo yemhangura (sekureva kwakapihwa). Ita shuwa kuti materminals akasungwa kusvika 3.5 N·m kudzivirira kupisa.
Q4: Ini ndinoda fuse neiyi switch?
A4: Hongu. Sezvo isingakwanise kukanganisa mapfupi-edunhu mafungu, gara uchiisa ma fuse ekumusoro kana maMCBs akatemerwa kune yako system inotarisirwa kukanganisa. Iyo switch inongopa bhuku rekuzviparadzanisa / kutendeuka.
Q5: Sei kusarudza CDADA pamusoro vakwikwidzi nokuda 125A shanduko?
A5: CDADA inopa:
● Chokwadi 3-nzvimbo mechanical interlock (hapana inoyangarara nyika)
● IEC 60947-3 certification nekugamuchirwa kwepasi rose
● Optimized thermal design yeDIN-rail enclosures
● Chiratidzo chakajeka chekuona chekuchinja nzvimbo
● Mitengo yemakwikwi nerutsigiro rwehunyanzvi muChirungu
