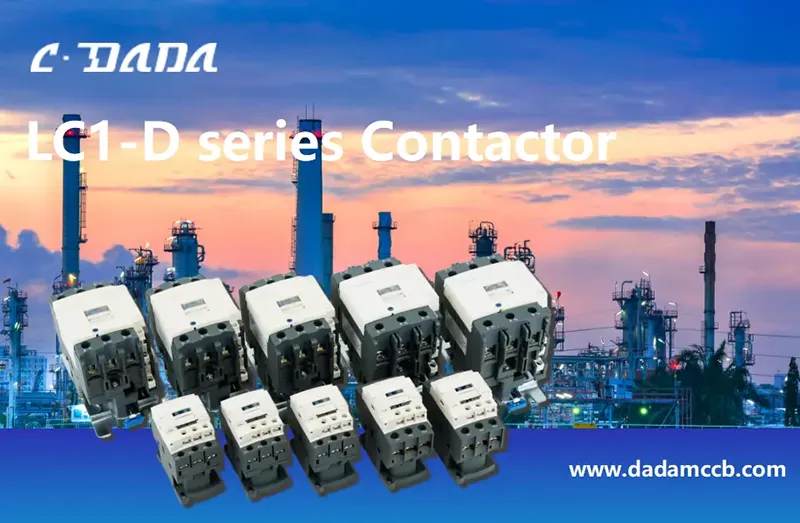

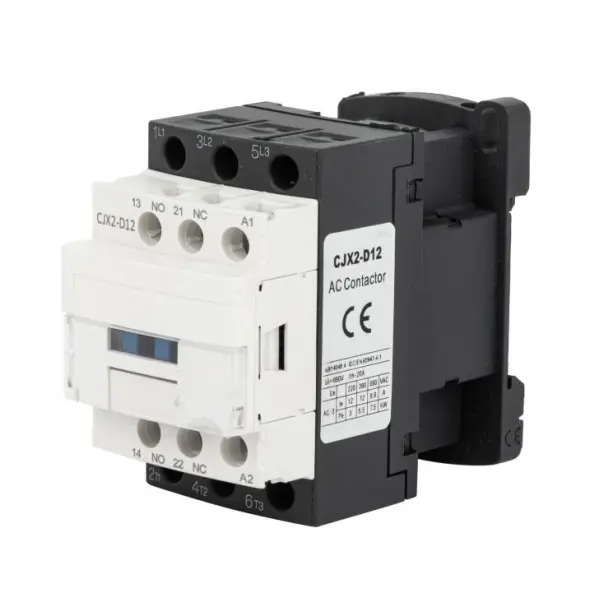

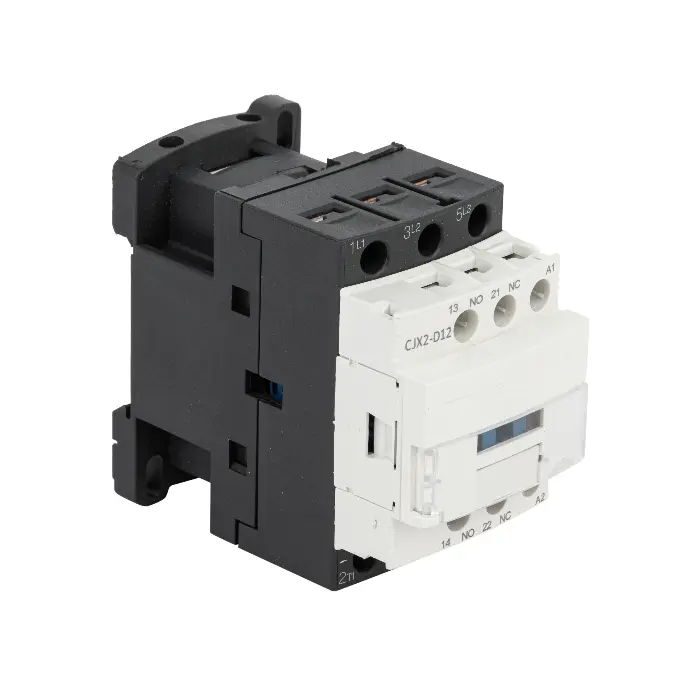

D Contactor
Model:LC1-D Series
Shanghai DADA Electric mugadziri akavimbika uye isu tine mabhuraki edu, CDADA. Yedu D Contactor (LC1-D Series) ndeye IEC 60947-4-1 yakasimbiswa, 3P / 4P, kusvika ku620A, AC-3 / AC-4 yakarongwa. Wide coil voltage sarudzo. Isu tinorumbidza chigadzirwa ichi chekudzora mota & maindasitiri otomatiki, taura nesu kuti uwane quote.
Engineer yakavimbika mota kudzora uye simba switching neCDADA LC1-D Series D Contactor yepamusoro-inoshanda AC contactor yakagadzirwa neShanghai DADA Electric CO.,LTD kusangana neIEC/EN 60947-4-1 zviyero. Yakagadzirirwa maindasitiri, kutengeserana, uye zvivakwa zvekushandisa, iyo LC1-D yakatevedzana inotsigira 3-pole kana 4-pole masisitimu ane akatemerwa mafambiro kubva ku9A kusvika 95A (kusvika 620A mune inorema-basa akasiyana) uye inodzora 3-chikamu squirrel-cage motors anosvika 45kW (pa 13 duty-AC4-AC4).
Yakashongedzerwa neyakajairwa 1NO + 1NC yekubatsira mabatiro, inosanganisirwa isina musono neyekupisa yakawandisa relays yekudzivirira yakazara mota. Iine AC kana DC coil sarudzo (24V-600V), AC-3 uye AC-4 mashandisirwo emhando, uye yakasimba dhizaini yakatemerwa 690V insulation, iyo CDADA D Contactor inopa yakavimbika mashandiro muanogara ekutanga-kumira ma cycle, conveyor systems, pombi, compressors, uye HVAC zvikamu-kunyangwe munzvimbo dzinoda 40m 0m°C kusvika 0m°C.
Zvinotaurwa Nezvakakosha
Series: D Contactor
Mucherechedzo: CDADA | Mugadziri: Shanghai DADA Electric CO., LTD
Chiyero: IEC/EN 60947-4-1
Certification: CE
Mapango: 3P kana 4P (inosarudzwa)
Rated Operational Current (AC-3): 9A - 95A (kusvika 620A muhurefu hwakawedzerwa)
Mota Power Control (AC-3):
380/415V: 4kW – 45kW
660/690V: kusvika 45kW
Mashandisirwo Mapato: AC-3 (squirrel-cage motors), AC-4 (plugging & inching)
Rated Insulation Voltage: 690V AC
Ambient Tembiricha: -5°C kusvika +40°C
Kureba: ≤ 2000m
Kukwidza: Ndege yakamira ± 5 °, Kukwidza Chikamu III
Vanobatsira Mazita: 1NO + 1NC (yakajairwa pamhando dzese)
Coil Options
AC Coils: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V
DC Coils: 24V, 36V, 48V, 110V, 220V
Technical Data sheet
|
Items |
Model |
LC1-D09 |
LC1-D12 |
LC1-D18 |
LC1-D25 |
LC1-D32 |
|
|
Pole |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Auxiliary Contact |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
||
|
Yakatemerwa zvakajairwa kudziyisa ikozvino (A) AC-1 |
20 |
20 |
30 |
40 |
50 |
||
|
Rated kushanda ikozvino (A) |
380/400V |
AC-1 AC-4 |
9 |
12 |
18 |
25 |
32 |
|
3.5 |
5 |
7.7 |
8.5 |
12 |
|||
|
660/690V |
AC-3 AC-4 |
6.6 |
8.9 |
12 |
18 |
21 |
|
|
1.5 |
2 |
3.8 |
4.4 |
7.5 |
|||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Simba rekudzora 3-chikamu keji mota (AC-3) |
kW |
220/230V AC 380/415V AC 660/690V AC |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
4 |
5.5 |
7.5 |
11 |
15 |
|||
|
5.5 |
7.5 |
10 |
15 |
18.5 |
|||
|
AC koiri(V) |
24,36,48,110,127,220,240,380,415,440,480,500,600 |
||||||
|
DC coil(V) |
24,36,48,110,220 |
||||||
|
Items |
Model |
LC1-D40 |
LC1-D50 |
LC1-D65 |
LC1-D80 |
LC1-D95 |
|
|
Pole |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Auxilirary Circuit Cat:AC-15,Ue=4 15V le=0.95A Ith=10A |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
||
|
Yakatemerwa zvakajairwa kudziyisa ikozvino (A) AC-1 |
60 |
80 |
80 |
110 |
110 |
||
|
Rated kushanda ikozvino (A) |
380/400V |
AC-3 AC-4 |
40 |
50 |
65 |
80 |
95 |
|
18.5 |
24 |
28 |
37 |
44 |
|||
|
660/690V |
AC-3 AC-4 |
34 |
39 |
42 |
49 |
49 |
|
|
9 |
12 |
14 |
17.3 |
21.3 |
|||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Simba rekudzora 3-chikamu keji mota (AC-3) |
KW |
220/230V AC 380/415V AC 660/690V AC |
11 |
15 |
18.5 |
22 |
25 |
|
18.5 |
22 |
30 |
37 |
45 |
|||
|
30 |
37 |
37 |
45 |
45 |
|||
|
AC koiri(V) |
24,36,48,110,127,220,240,380,415,440,480,500,600 |
||||||
|
DC coil(V) |
24,36,48,110,220 |
||||||
|
Items |
Model |
LC1-D115 |
LC1-D150 |
LC1-D170 |
LC1-D205 |
LC1-D245 |
|||||||
|
Pole |
3 |
3 |
3 |
3/4 |
3/4 |
||||||||
|
Yakatemerwa zvakajairwa kudziyisa ikozvino (A) AC-1 |
200 |
200 |
200 |
275 |
280 |
||||||||
|
Rated kushanda ikozvino (A) |
380/400V |
AC-3 AC-4 |
115 |
150 |
170 |
205 |
245 |
||||||
|
50 |
65 |
70 |
75 |
85 |
|||||||||
|
660/690V |
AC-3 AC-4 |
70 |
90 |
100 |
108 |
115 |
|||||||
|
25 |
32 |
35 |
38 |
40 |
|||||||||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||||||||
|
Simba rekudzora 3-chikamu keji mota (AC-3) |
kW |
380/415V AC 660/690V AC |
55 |
75 |
75 |
90 |
110 |
||||||
|
80 |
100 |
100 |
110 |
140 |
|||||||||
|
AC koiri(V) |
110,127,220,240,380,415,440,480,500,600 |
||||||||||||
|
Items |
Model |
LC1-D300 |
LC1-D410 |
LC1-D475 |
LC1-D620 |
||||||||
|
Pole |
3/4 |
3/4 |
3/4 |
3/4 |
|||||||||
|
Yakatemerwa zvakajairwa kudziyisa ikozvino (A) AC-1 |
360 |
430 |
580 |
850 |
|||||||||
|
Rated kushanda ikozvino (A) |
380/400V |
AC-3 AC-4 |
300 |
410 |
475 |
620 |
|||||||
|
124 |
150 |
185 |
188 |
||||||||||
|
660/690V |
AC-3 AC-4 |
190 |
235 |
290 |
360 |
||||||||
|
60 |
72 |
85 |
170 |
||||||||||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
|||||||||
|
Simba rekudzora 3-chikamu keji mota (AC-3) |
kW |
380/415V AC 660/690V AC |
160 |
200 |
250 |
335 |
|||||||
|
220 |
280 |
330 |
450 |
||||||||||
|
AC koiri(V) |
110, 127,220,240,380,415,440,480,500,600 |
||||||||||||

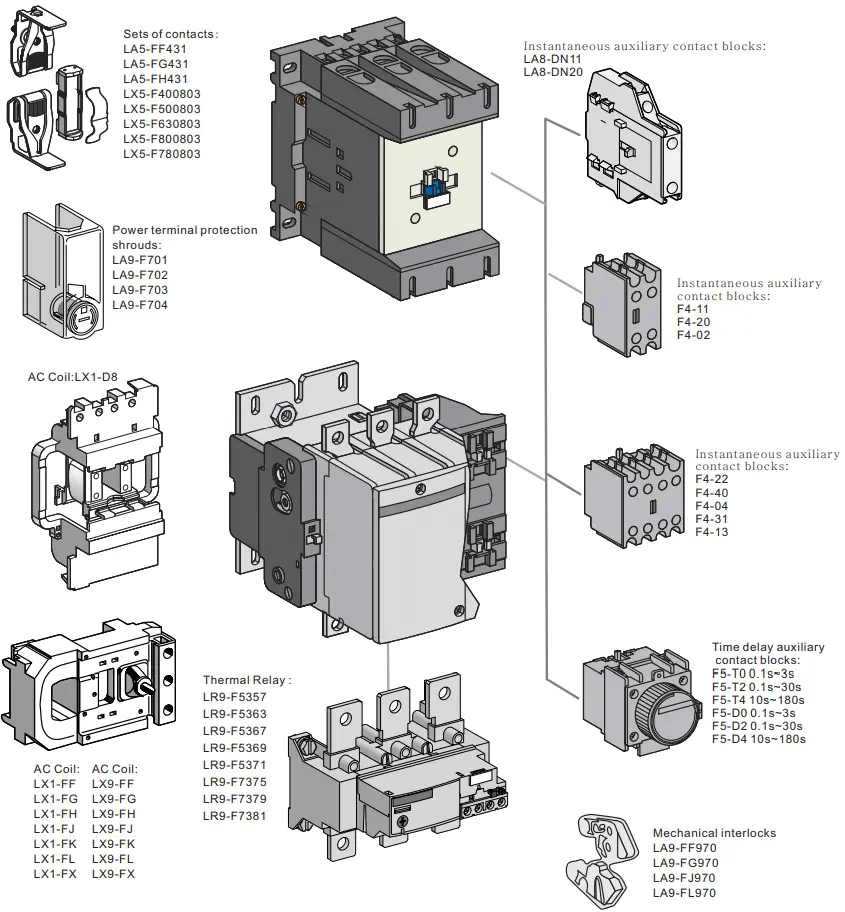

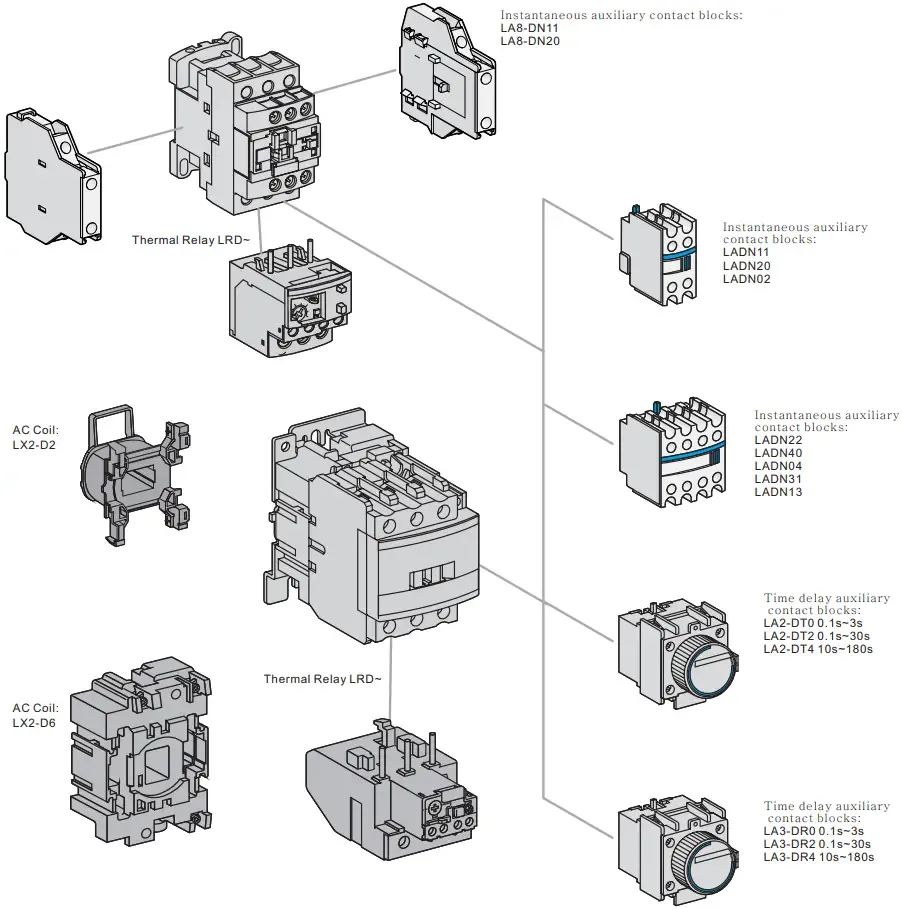

Accessories
Sei Sarudza CDADA D Contactor?
★ Chokwadi IEC Kutevedzera
Yakagadzirwa uye yakaedzwa kuIEC / EN 60947-4-1 - kuve nechokwadi chekugamuchirwa kwepasirese uye kudyidzana.★ Full Motor Control Solution
Pair neCDADA yekupisa yakawandisa relays kune yakazara mota inotangisa magungano-yakawandisa + pfupi-yedunhu + yekuzviparadzanisa nevamwe.★ Wide Voltage Flexibility
Sarudza kubva pa13 AC uye 5 DC coil voltages-yakanakira mapurojekiti epasi rose kana akasanganiswa-voltage mapaneru.★ Robust for Heavy Duty
Inotsigira AC-4 basa (kazhinji kudzoreredza / plugging) - yakanakira cranes, elevator, uye conveyor.★ Plug-uye-Play Integration
Yakajairwa 1NO+1NC yekubatsira mabatiro inogonesa kukiya nyore, kusaina, kana PLC mhinduro.★ Industrial-Giredhi Kuvimbika
Kuedzwa kwekutsungirira kwemagetsi, kuderera kwekubata kuramba, uye kugadzikana kwearc kudzvinyirira-kuderedza nguva.★ Zvatinobatsira zvakakosha ndezvi: 1) Kuzadza zvitupa zvepasi rose, 2) Kusimba kweOEM / ODM kwakasimba, 3) Kukwirisa mari-yekuita basa reshiyo, 4) Kuvimbika kwehukuru hwekugadzira hukuru, 5) Yakawanda yekuburitsa ruzivo.
★ Zvigadzirwa zvedu zvinobudirira kutumirwa kuSoutheast Asia, Middle East, South America, Africa, Europe, uye nyika dzeCIS, nekutarisa kwakasimba pamisika yeBelt uye Road.
Typical Applications
Motor Starters: Mapombi, mafeni, compressors, musanganiswa
HVAC Systems: Chiller & blower control
Industrial Automation: Conveyor mitsetse, kurongedza michina
Building Management: Elevator kutonga, mabhangi ekuvhenekera
Simba & Mvura: Kugadziriswa kwemvura yakasviba, masisitimu ekudiridza
Mibvunzo Inowanzo bvunzwa
Q1: "D Contactor" inorevei?
A1: "D" inoreva kuteedzera zita (LC1-D) rinoshandiswa pasi rose kune iyi modular, yakamisikidzwa AC yekubatanidza yepuratifomu. Haisi yemhando yehunyanzvi-asi inozivikanwa zvakanyanya muchivako chepaneru nekuda kwekuenderana kwayo nemidziyo senge yakawandisa relays uye mechanic interlocks.
Q2: Ndeupi musiyano pakati pe AC-3 uye AC-4 basa?
A2:● AC-3: Kazhinji kutanga / kumira kwe squirrel-cage motors (somuenzaniso, mapombi, mafeni). Kuderedza kushushikana.
● AC-4: Kugaro plugging, inching, kana kudzorera kumashure (somuenzaniso, cranes, hoists). Kuwedzera kushushikana kwemagetsi → kunoda mamwe mabatiro akasimba. → CDADA LC1-D yakayerwa ese ari maviri, ichiita kuti ive yakawanda.
Q3: Ndinogona kushandisa contactor iyi pasina overload relay?
A3: Hazvikurudzirwe kune mitoro yemota. Iyo contactor inongochinja simba-haidzivirire kubva kune yakawandisa. Gara uchibatana neyekupisa kana yemagetsi overload relay yekuchengetedza mota.
Q4: Pane 4-pole shanduro dziripo?
A4: Hongu! Ese maLC1-D modhi anotsigira 3P kana 4P masisitimu-yakanakira kune kwaakarerekera-kuchinja maapplication kana mana-waya masisitimu.
Q5: Sei kusarudza CDADA pane dzimwe D-akatevedzana contactors?
A5: CDADA inopa:● Genuine IEC 60947-4-1 kutevedza nemishumo yebvunzo
● Wider coil voltage range (kusanganisira 415V, 480V, 600V yekutumira kunze)
● Hunhu hunoenderana nesirivha-alloy contacts uye arc chutes
● OEM-ushamwari mitengo uye nokukurumidza sampuli kutendeuka
● Global certifications (CE) uye zvinyorwa zveChirungu
