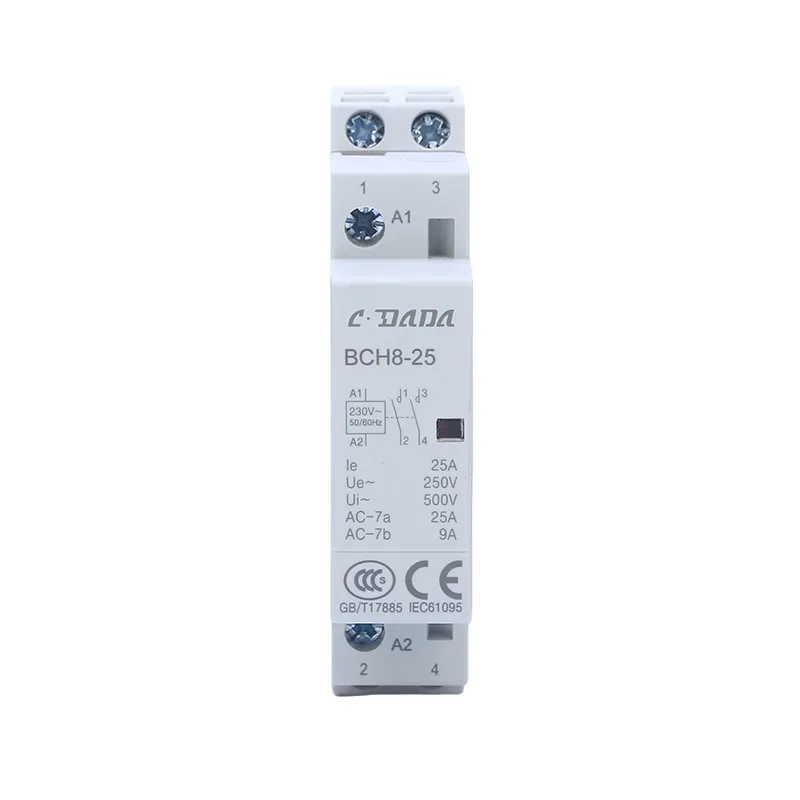

BCH8 Contactor
CDADA mutengesi akavimbika weBCH8 Contactor, tinogona kupa rubatsiro rwehunyanzvi uye waranti yezvigadzirwa zvedu. Iyi yekubatanidza yakanyarara, 16-125A, yekuvhenekesa, HVAC & madiki mota. Inoenderana neIEC61095/IEC60947-4-1. DIN-rail yakaiswa, IP40 mupaneru, yakakodzera kushandiswa kune smart zvivakwa & veruzhinji zvivakwa.

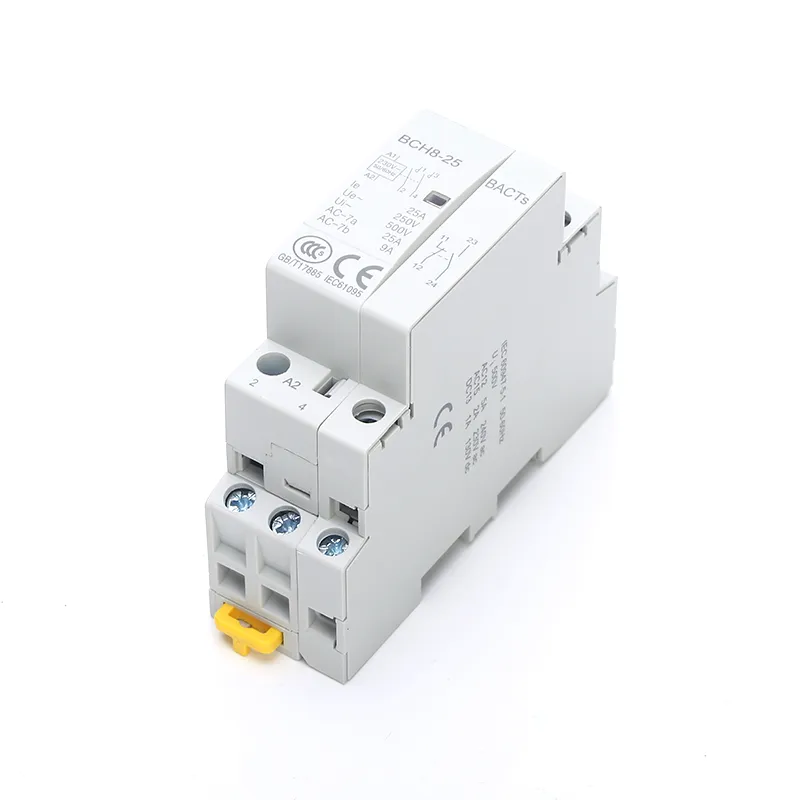

Sangana neCDADA BCH8 Contactor-ine compact, modular, uye yekupedzisira-yakanyarara mhinduro, inopihwa nemugadziri akavimbika, CDADA. Iyo inozivikanwawo se "household" kana "contactor yekuvaka," iyo BCH8 yakagadzirirwa kuchinjisa kure kure yekuremedza uye yakaderera-inductive mitoro semagetsi ekuvhenekesa, maheater emvura, geothermal system, roller shutters, uye madiki emumba mota.
Yakarongerwa kusvika ku125A (AC-1) uye 50A (AC-3) pa400V, inoshanda zvakavimbika munzvimbo dzekushisa kubva -5 ° C kusvika + 60 ° C uye inokwira zvakananga pane yakajairwa TH35 DIN rails-yakakwana yekubatanidzwa pamwe chete neMCBs mumabhodhi ekugovera. Iine IP40 dziviriro kana yaiswa, pasina ruzha rwekushanda, uye yakajeka chimiro chechiratidzo hwindo, iyo BCH8 yakanakira mahotera, zvipatara, mahofisi, zvitoro, uye zvivakwa zvekugara zvine hungwaru.
Inoenderana neIEC 61095, IEC 60947-4-1, GB17885, uye GB/T 14048.4, inotsigira SELV/ELSV control voltages (12–240V AC/DC) uye inopa 1 miriyoni mechanical cycles uye 100,000 magetsi ekushanda-pasina kuunza runyararo kana kufambisa kwemaitiro.
Zvinotaurwa Nezvakakosha
| Series: | BCH8 Modular AC Contactor |
| Brand: | CDADA | Mugadziri: Shanghai DADA Electric CO., LTD |
| Poles: | 1P, 2P, 3P, 4P (yakasiyana NO/NC misanganiswa) |
| Yakatemerwa Zvazvino (AC-1): | 16A – 125A |
| Yakatemerwa Zvazvino (AC-3): | 6A - 50A (yekutakura mitoro midiki) |
| Rated Operating Voltage: | 250V (1P/2P), 400V (3P/4P) |
| Rated Insulation Voltage (Ui): | 500V |
| Kudzora Voltage: | AC/DC 12V, 24V, 48V, 110V, 230V (yakafara SELV siyana) |
| Maitiro: | IEC 61095, IEC 60947-4-1, GB17885 |
| Mechanical Life: | ≥1,000,000 mashandiro |
| Upenyu hweMagetsi: | ≥100,000 mashandiro |
| Max Kuchinja Frequency: | 30 ops / awa, 100 ops / zuva |
| Kusvibisa Degree: | II | Overvoltage Category: II |
| Kudzivirirwa Rating: | IP20 (muviri), IP40 (mumukati) |

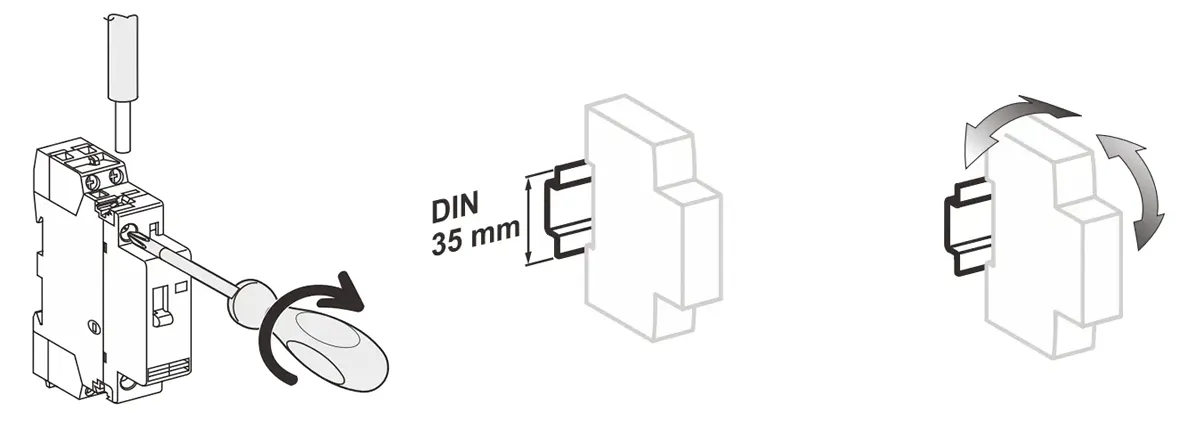

| Kuiswa: | TH35-7.5 DIN njanji, yakatwasuka ±5° |
Special Features:
★ Silent operation (yakanakira zvipatara/mahotera)
★ Status chiratidzo hwindo
★ Manual override sarudzo (pakusarudza mhando)

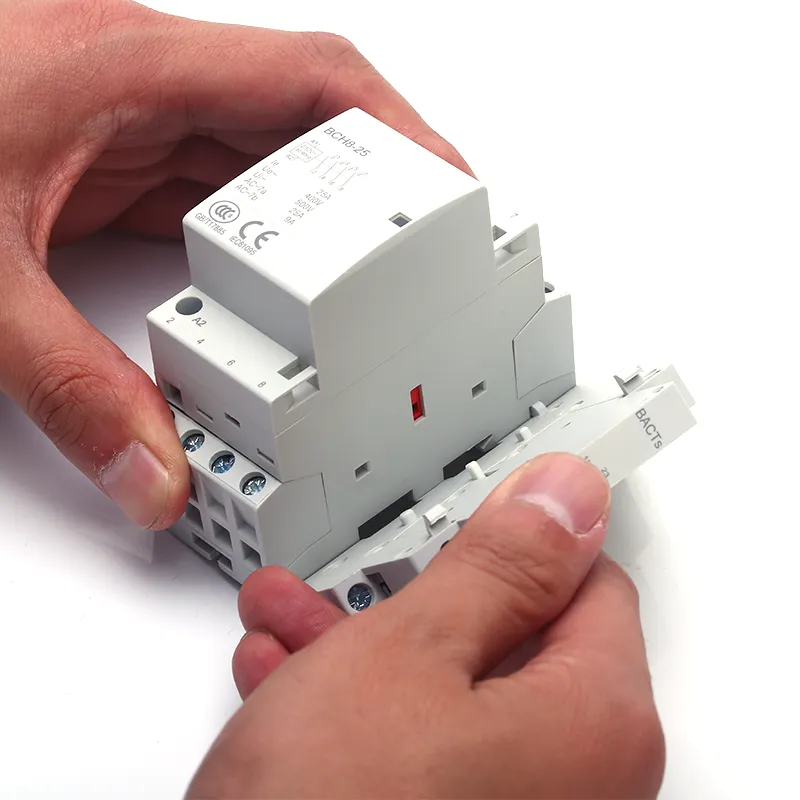

★ Spacers yekupisa kupisa mumapanera akakora

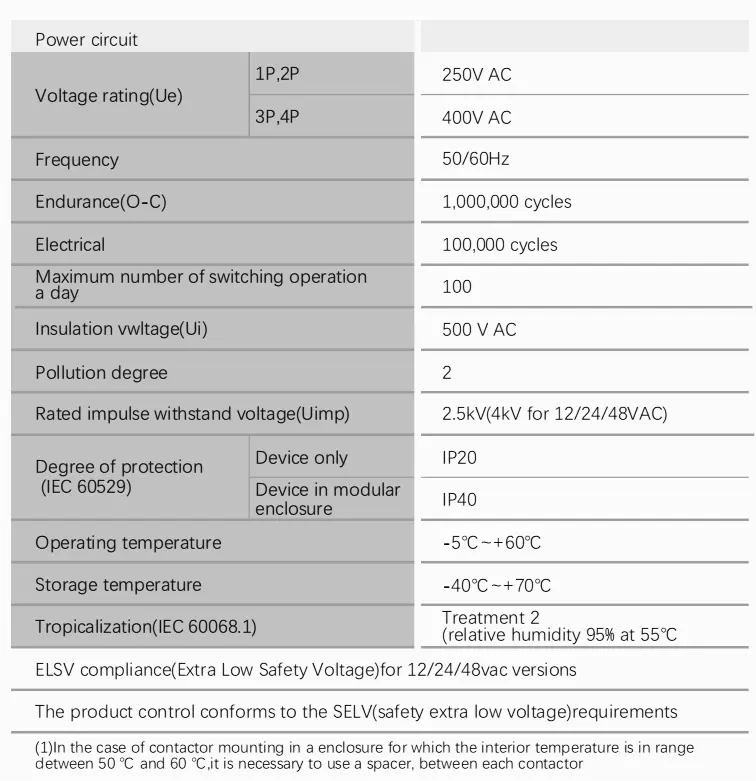

Technical Data Sheet
Sei Sarudza CDADA BCH8 Contactor?
★ Yakagadzirirwa Smart Zvivakwa
Yakakwana yekudzora mwenje, HVAC zoning, uye otomatiki zvivharo mumapurojekiti ekutengesa / ekugara.
★ Zvechokwadi Silent Operation
Hapana kupembera kana kupururudza—zvakakosha kuzvipatara, mahotera, maraibhurari, uye dzimba.
★ Modular & Space-Saving
Yakajairwa 9mm akawanda anokwana zvisina musono padivi peMCBs-hapana mamwe mabhuraketi kana adapta.
★ Global Safety Compliance
Inosangana neIEC 61095 (veimba yekubata) uye IEC 60947-4-1 (maindasitiri) - mbiri-yakasimbiswa kuvimbika.
★ SELV Kudzora Tsigiro
Inogamuchira 12–48V AC/DC—yakanakira PLC, BMS, kana masisitimu epamba akangwara anoshandisa low-voltage control.
★ High Durability
1M mechanicha ma cycles inovimbisa makore ekuchengetedza-yemahara sevhisi mune yakakwirira-kutenderera maapplication.

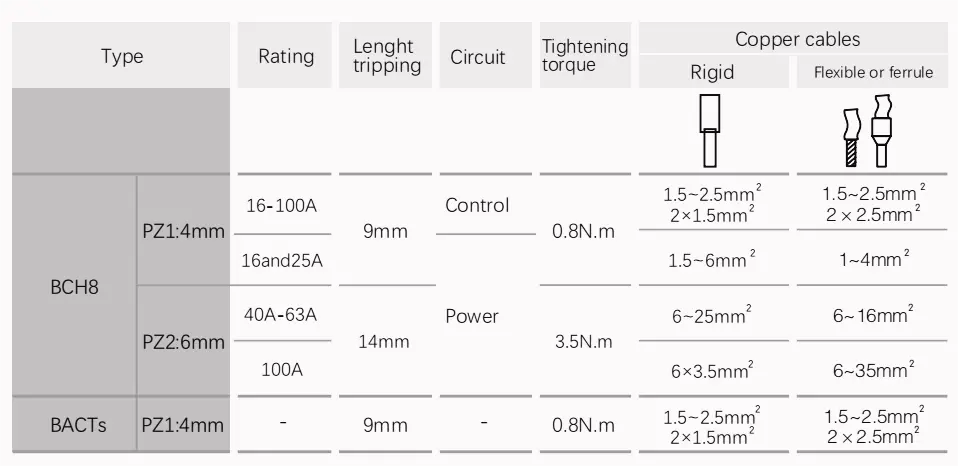

★ Connector Parameters
Typical Applications
★ Kudzora Mwenje: Nhandare, mashopu, mikoto yehofisi
★ Building Automation: Roller shutters, geothermal floor heat, pombi dzemvura
★ Zvivakwa Zveruzhinji: Zvipatara, nhandare dzendege, nzvimbo dzebasa rehurumende
★ Dzimba: Dzimba dzakangwara, dzimba dzemafurati, villa simba manejimendi
★ OEM Panels: Integrated muungwaru kugovera mabhodhi

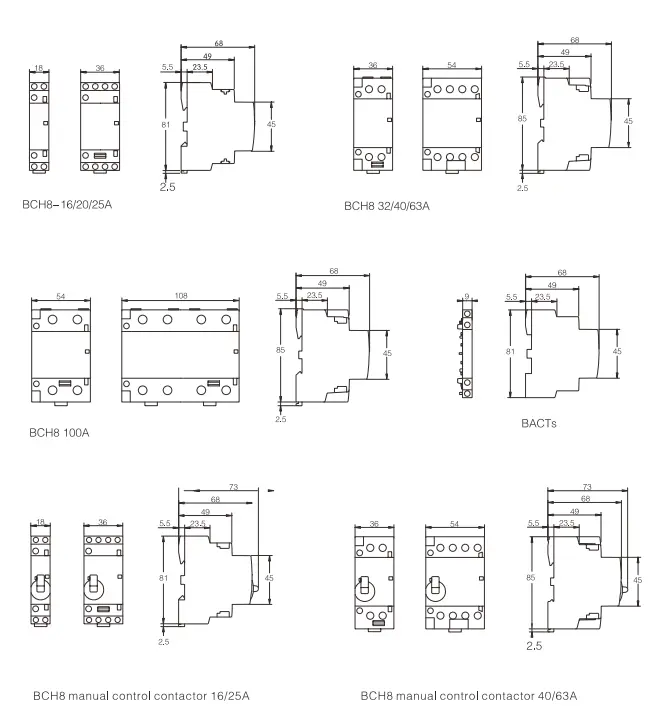

Outline Dimension
Sei uchisarudza CDADA?
★ Yakasimba mutengi hwaro
★ Tine patents yenyika inodarika makumi matanhatu, kusanganisira zvigadzirwa, mhando dzekushandisa, uye magadzirirwo.
★ Mainjiniya edu ekutengesa anogona kukubatsira kusarudza chakanyanya kukodzera chigadzirwa zvichienderana nekushandisa kwako, mutoro, uye system zvinodiwa.
★ zvigadzirwa zvedu zvakapihwa mapurojekiti emagetsi emagetsi, zvidyarwa zvemaindasitiri, zvivakwa zvekutengesa, uye mapurojekiti ezvivakwa munyika zhinji.
★ Zvatinazvo zvakakosha ndezvi:
1) Zadzisa zvepasirese zvitupa,
2) Yakasimba OEM / ODM kugona,
3) High mutengo-kuita reshiyo,
4) Inovimbika yakakura-yemhando yekugadzira kugona, 5) Yakawanda yekuburitsa ruzivo.
Mibvunzo Inowanzo bvunzwa
Q1: Ko BCH8 Contactor yakakodzera kudzora mota?
A1: Hongu-asi chete kune zviduku zviduku zveimba (somuenzaniso, magonhi egaraji, mapombi maduku). Yakatemerwa AC-3 kusvika ku50A (125A modhi). Kune maindasitiri motors, shandisa F kana D akateedzana contactors.
Q2: Nei ichida spacers mupaneru?
A2: BCH8 inogadzira kupisa panguva yekuenderera mberi kwekushanda. Spacers (3mm/9mm) pakati pemayuniti inonatsiridza kuyerera kwemhepo uye inodzivirira kupisa mumabhokisi ekugovera akazara.
Q3: Inogona kudzorwa ne smart home system?
A3: Ndizvozvo! Iine 12V/24V DC coil sarudzo, inobatanidza zvakananga neKNX, BACnet, PLCs, kana Raspberry Pi-based controllers.
Q4: Ndeupi musiyano pakati peBCH8 uye maindasitiri contactors?
A4:
● BCH8: Yakagadzirirwa kunyarara, kuchinja nguva dzose kwemwenje / mitoro inodzivisa; inosangana neIEC 61095.
● Indasitiri (somuenzaniso, LC1-F): Yakagadzirirwa motokari dzemazuva ano, AC-4 basa, uye nzvimbo dzakaoma.
→ BCH8 = kunyaradza kwekuvaka; F/D series = simba refekitari.
Q5: Sei uchisarudza CDADA BCH8 pane mamwe mabhureki?
A5: CDADA inopa:
● Yechokwadi modular dhizaini neyakajairwa DIN kuenderana
● Kutevedza kaviri (IEC 61095 + IEC 60947-4-1)
● Low-voltage SELV coils ye smart systems
● Zero-ruzha kushanda-kunosimbiswa mumaedzo chaiwo
● Makwikwi emitengo nerutsigiro rwakazara rwechiRungu rwehunyanzvi
