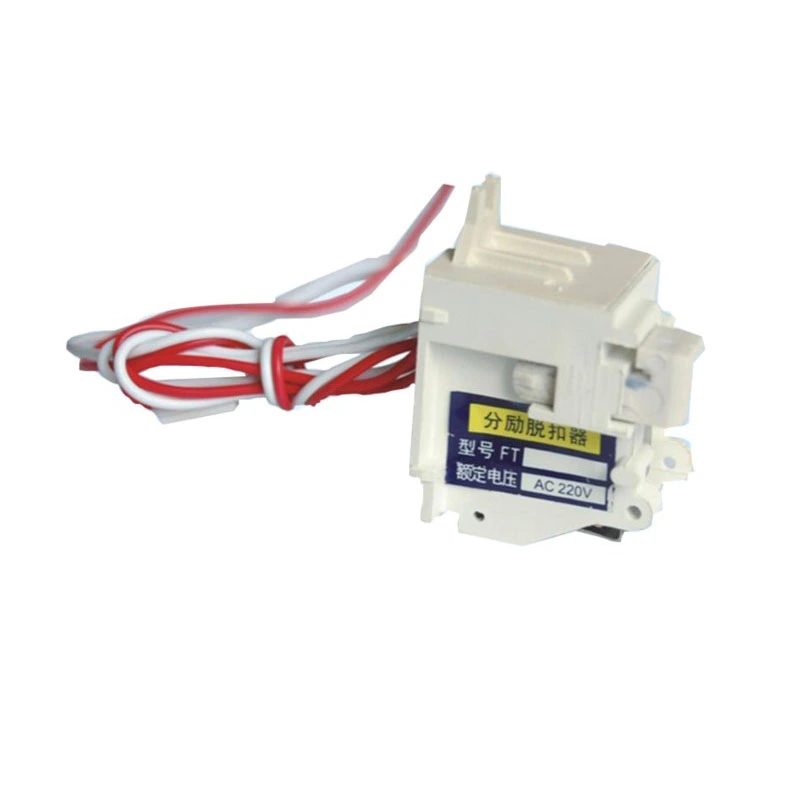

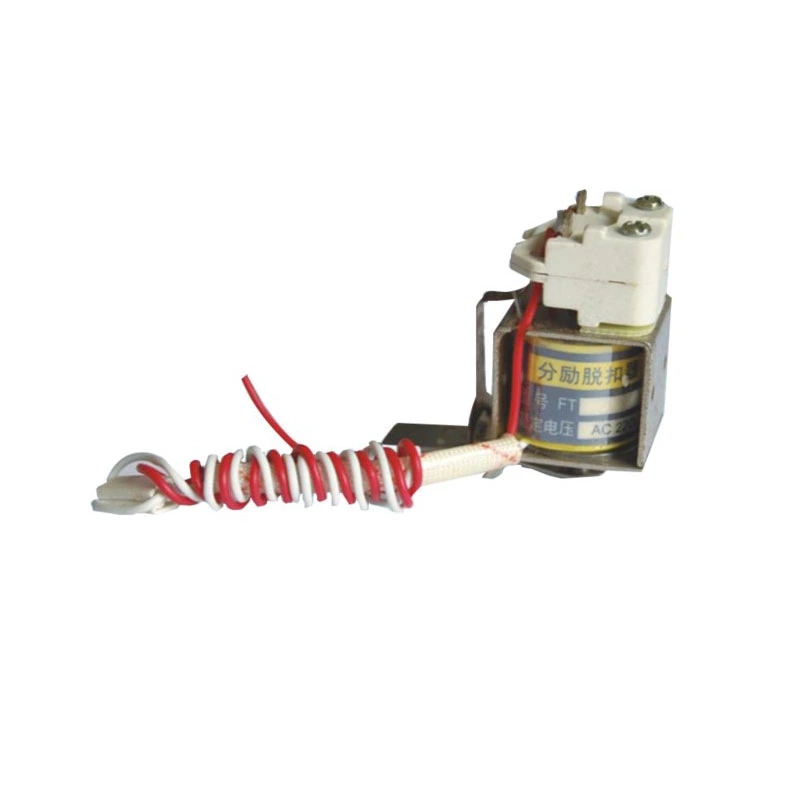

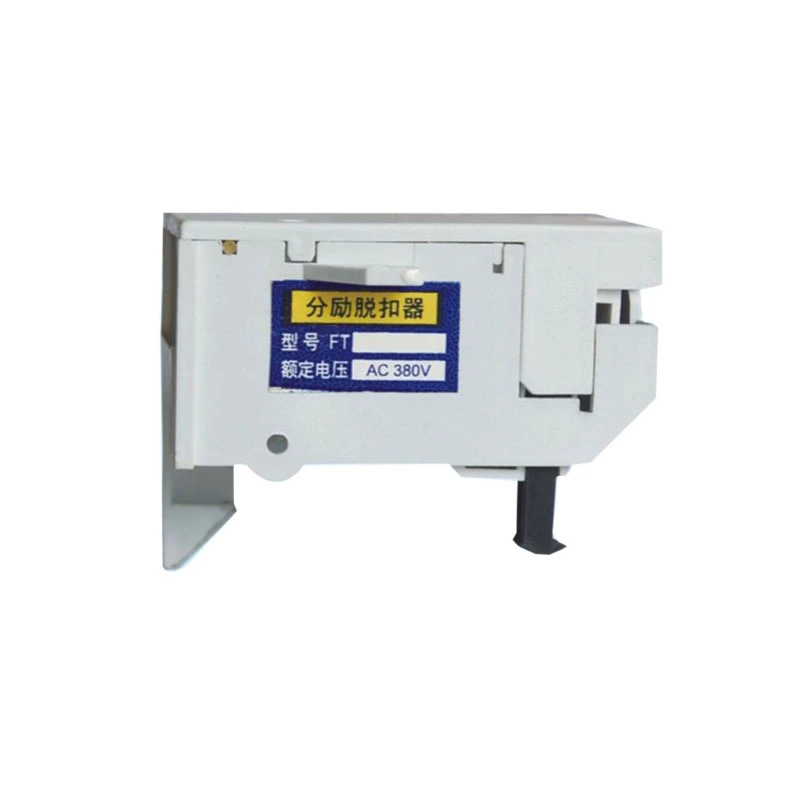

MCCB Shunt Kuburitswa

Shanghai DADA Electric CO., LTD. mugadziri akavimbika muChina, uye ane mhando yayo, CDADA. Isu tinonzwisisa kukosha kwekuve nemagetsi akavimbika uye anoshanda anogona kudzorwa kure kuti ive nechokwadi chekuchengetedza uye kutendeseka kwehurongwa. Ndicho chikonzero takagadzira CDADA MCCB Shunt Release, yakagadzirirwa kuzadzisa izvi zvinodiwa.

Kunyangwe iwe uri injinjiniya ari kutsvaga kusimudzira maficha ekuchengetedza sisitimu yako kana maneja wekutenga achitsvaga emhando yepamusoro zvikamu, yedu shunt kuburitswa kunopa kuvimbika uye nyore kushandisa kwaunoda.

Product Highlights

★ Chinangwa: Kure kure kushanda kweMCCBs (Molded Case Circuit Breakers) yekukurumidza kubviswa.

★ Voltage Range: Inoenderana ne AC 50Hz 220V / 380V uye DC 110V / 220V zvigadzirwa.

★ Pre-Wired Convenience: Inouya nefekitari-yakagadzirirwa mukati wiring, ichisiya chete kunze kwekubatana kwemushandisi.

★ Kuiswa Kwakareruka: Batanidza masaini ako ekudzora kune akatemerwa materminal-hapana kugadzika kwakaoma kunodiwa.

★ Kuita kwakavimbika: Yakagadzirirwa basa repakarepo, kuve nechokwadi chekupindura nekukurumidza panguva dzemamiriro ezvinhu akaoma.

★ Yedu Kurudziro: Kuti uite zvakakwana, gara uchienderana nevoltage rating yekuburitswa kweshunt neMCCB yako yekudzora magetsi ekupa zvinotsanangurwa.

Zvidimbu zvehunyanzvi

Kuisa & Kushandisa Gaidhi

Kuti uwane zvakanyanya kubva pane yako CDADA MCCB Shunt Release, tevera matanho aya:

★ Verify Compatibility: Ita shuwa kuti voltage rating yekuburitswa kweshunt inoenderana neyako MCCB's control supply.

★ Batanidza Kudzora Chiratidzo: Shandisa yakapihwa push-bhatani (SB2) kana chako chekudzora mudziyo kubatanidza kune zviteshi P3 neP4.

★ Tarisa Wiring Diagrams: Tarisa kune dhayagiramu inosanganisirwa iyo chete mitsetse yakaputsika inoda kubatana nemushandisi-yese dzimwe wiring dzakagadzirirwa fekitori.

★ Test Operation: Usati watumirwa kuzere, edza kuburitswa kweshunt pasi pemamiriro akadzorwa kuti usimbise basa rakakodzera.

★ Maintenance Tip: Gara uchiongorora mabatiro ewaya kuona zviratidzo zvekusakara kana kukuvadzwa. Chengetedza nzvimbo yakapoteredza shunt kusunungurwa yakachena uye isina guruva kuti uone kushanda kwakavimbika.

Wiring Diagram Overview

Iyo wiring dhizaini yeCDADA MCCB Shunt Kuburitswa yakatwasuka:

● SB2: Kuvhura push-bhatani (inopihwa nemushandisi).

● P3, P4: Nhamba dzekupedzisira dzekubatanidza chiratidzo chako chekutonga.

● Isu: Kudzora magetsi.

● QF: Kuonana kwebetsero.

Chete mitsara yakaputsika mudhayagiramu inoda mushandisi kubatana-ese mamwe ese anodiwa wiring anouya asati abatanidzwa kubva kufekitari, zvichiita kuti kuisirwa kuve nekukurumidza uye nyore.

Kuiswa Cherechedzo: Gara uchitarisa kaviri wiring yako usati waisa simba kudzivirira chero njodzi dzinogona kuitika.

Mibvunzo Inowanzo bvunzwa

Q1: Chii chinonzi "shunt release" chinorevei?

A1: Kuburitswa kweshunt chinhu chinoshandiswa kuvhura kure kure dhizaini kana paine emergency kana chaiyo yekushanda zvinodiwa. Inopa nzira yekukurumidza kubvisa simba pasina kuwana kwemuviri kune iyo breaker pachayo.

Q2: Ndinogona kushandisa iyi shunt kuburitswa nechero MCCB?

A2: Kwete, inofanira kuenderana neMCCB modhi uye yayo yekudzora voltage. Yedu shunt kuburitswa kwakagadzirirwa kushanda zvisina mutsetse neCDADA MCCBs asi inogona zvakare kuenderana nemamwe mabhureki-kana usina chokwadi, bvunza nechikwata chedu chetsigiro chehunyanzvi.

Q3: Iyo shunt kuburitswa kwakakodzera kune ese AC uye DC zvikumbiro?

A3: Ehe, yedu shunt kuburitswa inotsigira ese AC (220V, 380V) uye DC (110V, 220V) maapplication, achipa kuchinjika munzvimbo dzakasiyana siyana.

Q4: Sei uchisarudza CDADA shunt kusunungurwa pane vamwe?

A4: PaCDADA, tinoisa pamberi:

● Kuvimbiswa Kwehutano: Kuedza kwakasimba kunoita kuti chikwata chimwe nechimwe chinosangana nepamusoro-soro.

● Kureruka kweKuisa: Pre-wired units kuchengetedza nguva uye kuderedza zvikanganiso.

● Tsigiro yeVatengi: Rubatsiro rwakananga kubva kuchikwata chedu chine ruzivo.

● Mutengo-Kubudirira: Kukwikwidzana kwemitengo pasina kukanganisa pahutano.

Yekupedzisira Note kubva kuCDADA

Kusarudza iyo chaiyo shunt kusunungurwa kunogona kuwedzera zvakanyanya kuchengetedzwa uye kushanda kwemagetsi ako masisitimu. NeCDADA, hausi kungowana chikamu-uri kuwana mudiwa akazvipira kuita zvakanaka mune zvese. Rega tikubatsire iwe kuwana runyararo rwepfungwa nemhinduro dzedu dzakavimbika uye dziri nyore kushandisa.
