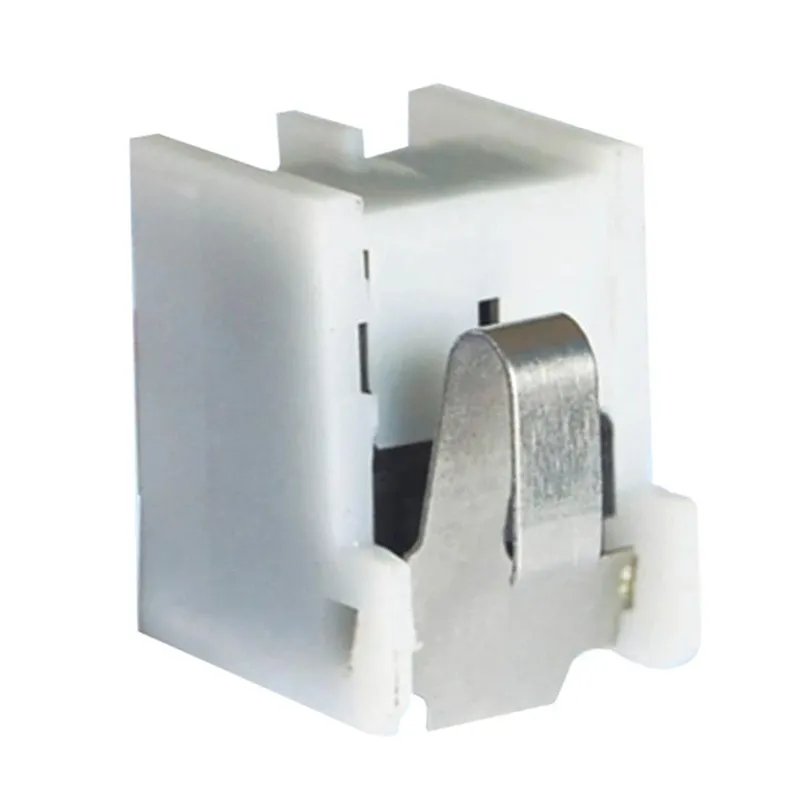

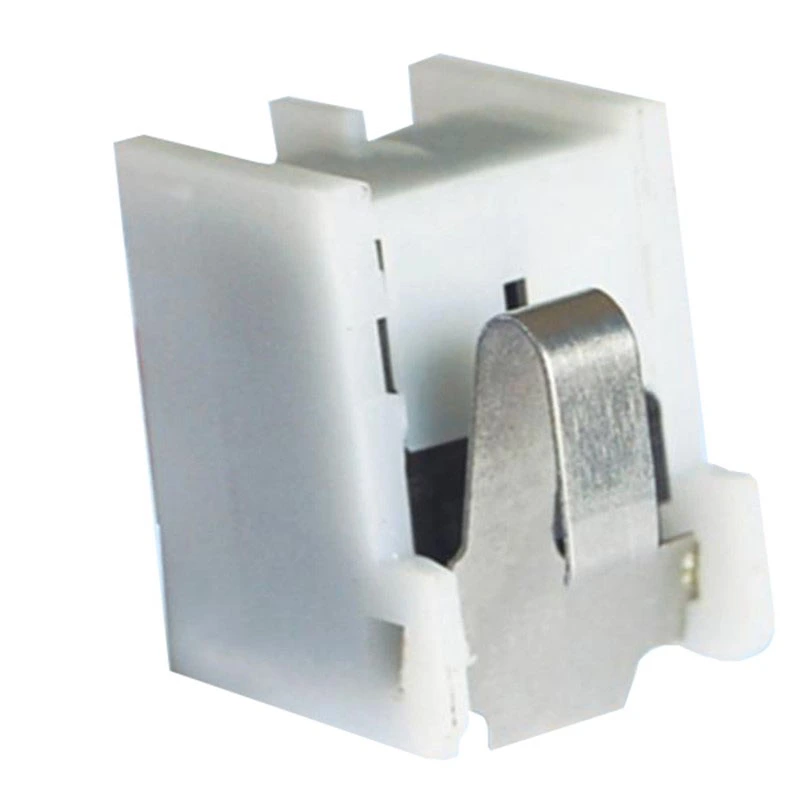

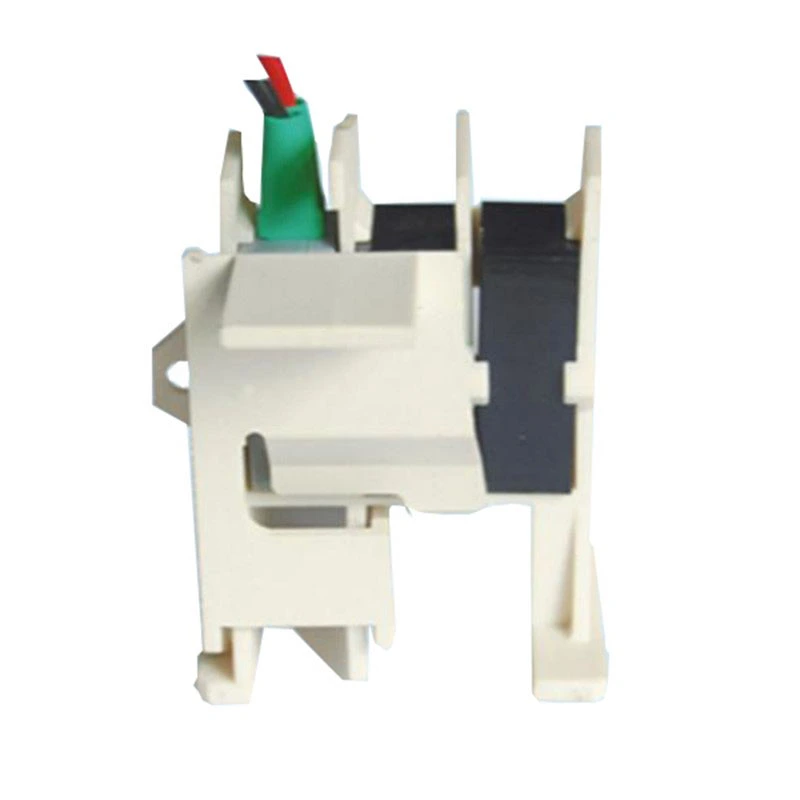

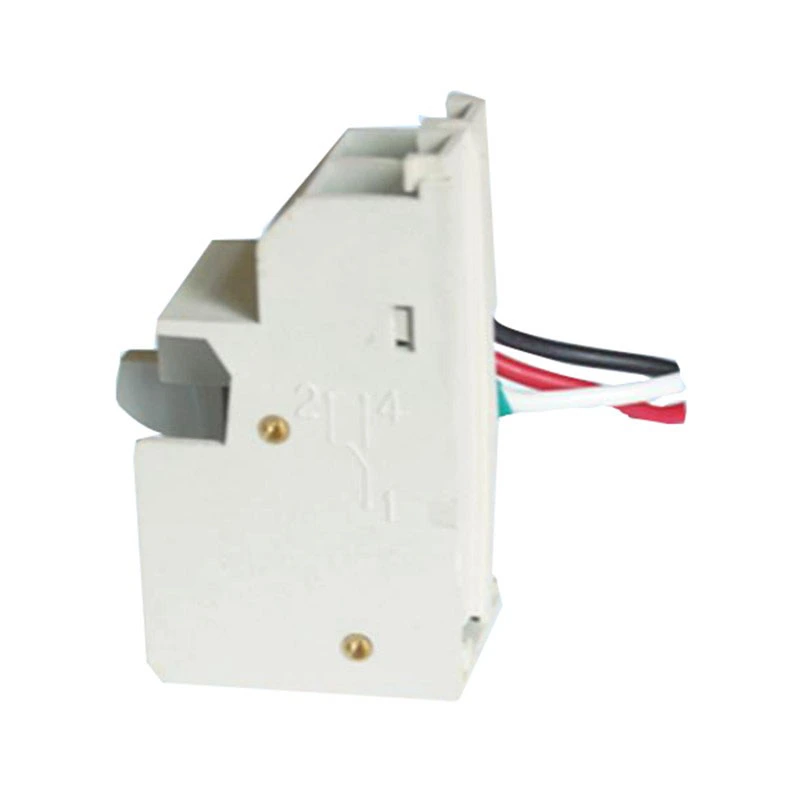

MCCB Wekubatsira Bata

CDADA mutengesi anovimbika uye tinonzwisisa kuti akavimbika ekubatsira ekuonana akakosha pakuona kuchengetedzeka uye kugona kwemagetsi masisitimu ako. Yedu CDADA MCCB Auxiliary Contacts inopa chaiyo chiratidzo cheyakavhurika uye yepedyo nyika dzeMCCBs dzako (Molded Case Circuit Breakers), zvichiita kuti dzive dzakakosha kune ese maindasitiri nekutengesa maapplication. Kunyangwe iwe uri kugadzira sisitimu nyowani kana kukwidziridza iripo, edu ebetsero anobatika anopa kuchinjika uye kuvimbika kwaunoda.

Product Highlights

Chinangwa: Tarisa uye kutonga mamiriro eMCCBs.

Configurations: Inowanikwa mu1NO/1NC, 2NO/2NC, uye 4NO/4NC sarudzo.

Kugarisana: Yakagadzirirwa kushanda isina musono neCDADA MCCBs, asi zvakare inoenderana nemamwe akawanda mabhureki.

Kureruka kweKuisa: Pre-waya kuitira kukurumidza uye nyore kuseta.

Durability: Yakagadzirirwa kumira nharaunda dzakaoma uye kushandiswa kazhinji.

Yedu Kurudziro: Kune akawanda maapplication, iyo 2NO/2NC kumisikidzwa inopa yakaenzana maitiro pakati pekushanda uye mutengo-kubudirira.

Zvidimbu zvehunyanzvi

Kuisa & Kushandisa Gaidhi

Kuti uve nechokwadi chekushanda kwakakodzera uye hupenyu hurefu hweCDADA MCCB Auxiliary Contacts, tevera nhungamiro iyi:

★ Verify Compatibility: Ita shuwa kuti magadzirirwo ekusangana anoenderana nezvinodiwa zvekushandisa uye MCCB modhi.

★ Kuiswa: Batanidza zvinoenderana neiyo wiring dhayagiramu yakapihwa.

● For Inm = 63A-225A, shandisa 1 seti yevabatsiri vanobatana (asi 2 seti yakapihwa).

● For Inm = 250A-1600A, shandisa 2 seti yevabatsiri vanobatana (asi 4 seti yakapihwa).

★ Kuedzwa: Usati watumirwa zvizere, edza vabatsiri vanobata pasi pemamiriro ezvinhu anodzorwa kuti usimbise basa rakakodzera.

Maintenance Tip: Gara uchitarisa kubatanidza kune zviratidzo zvekusakara kana kuora. Chengetedza nzvimbo yakachena kudzivirira kuunganidzwa kweguruva kunogona kukanganisa kushanda.

Wiring Diagram Overview

Iyo wiring dhizaini inosiyana zvishoma zvichienderana neiyo MCCB ikozvino chiyero:

★ For Inm = 63A-225A:

★ Yakavharwa Nzvimbo: Shandisa 1 seti yevabatsiri vanobatana (2 seti yakapihwa).

★ Vhura Position: Saizvozvowo, shandisa 1 seti yevabatsiri vanobatana (2 seti yakapihwa).

★ For Inm = 250A-1600A:

★ Yakavharwa Nzvimbo: Shandisa 2 seti yevabatsiri vanobatana (4 seti yakapihwa).

★ Vhura Position: Saizvozvowo, shandisa 2 seti yevabatsiri vanobatana (4 seti yakapihwa).

★ Kuiswa Cherechedzo: Nguva dzose tarisa kune chaiyo wiring dhayagiramu inosanganisirwa nechigadzirwa chako kuti inyatso kubatana.

FAQ

Q1: Chii chinonzi MCCB yekubatsira kuonana inoshandiswa?

A1: Kubatana kwekubatsira kunoshandiswa kutarisa uye kuratidza nzvimbo yakavhurika / yepedyo yeMCCB, ichigonesa kutarisa kure uye kutonga kwedunhu rinotyora.

Q2: Ndinogona here kuisa iyi yebetsero yekubata pane chero MCCB?

A2: Kunyange yakagadzirirwa kuenderana neCDADA MCCBs, inogona kukwana mamwe mabhureki zvakare. Simbisa zvakatemwa uye bvunza neboka redu rehunyanzvi kana usina chokwadi.

Q3: Ini ndinosarudza sei pakati peNO uye NC yekufonera?

A3: Kazhinji Vhura (NO) mazita anovhara kana MCCB yavhara, nepo Kazhinji Yakavharwa (NC) mazita akazaruka. Sarudza zvichibva pane yako system inoda kusaina uye kutonga.

Q4: Sei uchisarudza CDADA MCCB Auxiliary Contacts?

A4: PaCDADA, tinotarisa pa:

● Kuvimbiswa Kwehutano: Chikamu chimwe nechimwe chinoedzwa zvakasimba.

● Kusununguka kweKubatanidza: Kuisa nyore uye kuenderana neMCCB dzakasiyana-siyana.

● Mutengi Tsigiro: Kusvika kwakananga kune yedu ruzivo tekinoroji timu.

● Mutengo-Kubudirira: Zvikamu zvepamusoro pamitengo yemakwikwi.

Yekupedzisira Note kubva kuCDADA

Kusarudza iyo yakakodzera yekubatsira kuonana kunogona kuwedzera zvakanyanya kuvimbika uye kushanda kwemagetsi ako masisitimu. NeCDADA, urikudyara muzvigadzirwa zvemhando yepamusoro zvinotsigirwa nerutsigiro rwenyanzvi. Rega isu tikubatsire iwe kuwana yepamusoro sisitimu kuita uye kuchengetedzeka nemhinduro dzedu dzakavimbika.
