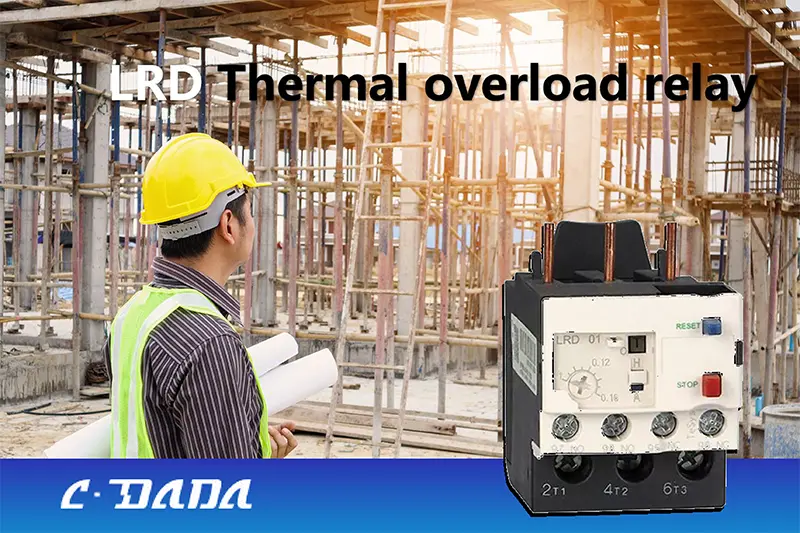

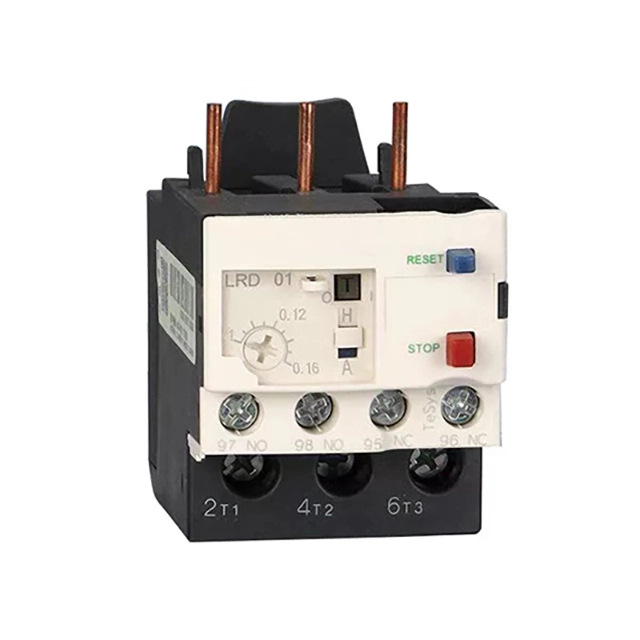

LRD Thermal Overload Relay

Dzivirira mota dzako kubva pakukuvadzwa kunodhura neCDADA LRD Thermal Overload Relay, isu tiri mutengesi ane hunyanzvi anogona kupa zvigadzirwa zvekuchengetedza mota dzakavimbika, nehungwaru mumaindasitiri nekutengesa zvikumbiro. Yakagadzirwa kuti ishande isina musono neCDADA D-series contactors (D09-D95), iyo LRD relay inopa yakakwana dziviriro kubva:

● Zvakawandisa

● Kukundikana kwechikamu (kurasikirwa kwechikamu)

● Nguva dzokutanga dzakareba zvakanyanyisa

● Rotor inomira kwenguva refu

Iine inogadziriswa yazvino renji kubva ku0.1A kusvika 104A, manyorero kana otomatiki reset sarudzo, uye yakavakirwa-mukati bhatani rekuyedza redunhu rekuona uye rwendo simulation, LRD yakatevedzana inovimbisa zvese kuchengetedzeka uye nyore kugadzirisa. Chiratidzo cherwendo chinopa chimiro chakajeka chekuona, nepo chivharo chakavharwa chinodzivirira kusatenderwa kwekugadzirisa shanduko-yakanakira nzvimbo dzakaomarara kana dzakadzorwa. Yakatenderwa kushandiswa kwepasirese uye inoenderana neyakajairwa DIN-njanji yakamisikidzwa macontactor, CDADA's LRD thermal relay ndiyo sarudzo yakangwara yemagungano akazara ekutangisa mota.

Zvinotaurwa Nezvakakosha

Series: LRD Thermal Overload Relay

Mucherechedzo: CDADA | Mugadziri: Shanghai DADA Electric CO., LTD

Kugarisana: Paviri neD09-D95 contactors (LC1-D series)

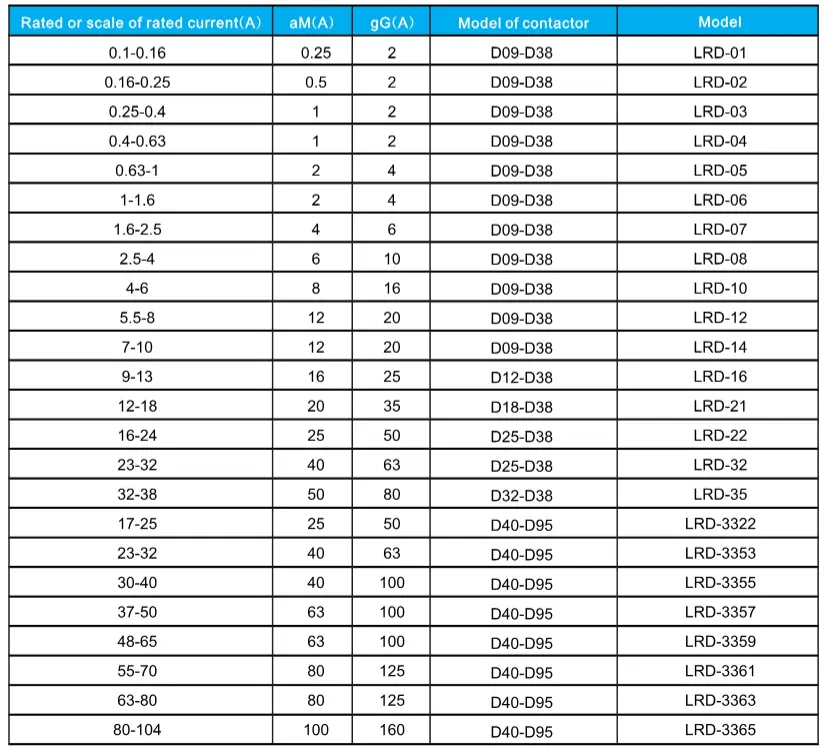

Yakayerwa Yazvino Range: 0.1A - 104A (mamodheru akawanda aripo)

Mapango: 3-pole (inotarisa zvikamu zvese zvekusaenzana)

Dziviriro Mabasa:

★ Thermal overload

★ Chikamu chekutadza kuona

★ Kureba kutanga nguva yekutarisa

★ Rotor danda kudzivirira

Reset Mode: Manual kana otomatiki (sector switch)

Bhatani Rokuedzwa: Inotevedzera rwendo-inomisikidza ese NO uye NC ebetsero maaitirwo

Stop Button: Inovhura NC yekubata chete (ye emergency stop signing)

Rwendo Indicator: Mureza unooneka unoratidza nyika yakagumburwa

Setting Lock: Kavha inogona kuvharwa kudzivirira kukanganisa

Vanobatsira Mazita: Yakajairwa 1NO + 1NC (yearamu, PLC, kana maseketi anovharira)

Kukwirisa: Yakananga inokwira pane inowirirana CDADA contactors (snap-on dhizaini)

Certification: Inoenderana neIEC 60947-4-1 (CE zvinyorwa zviripo)

Sei Kusarudza CDADA LRD Thermal Overload Relay?

★  Yakazara Dziviriro Yemotokari

Inoenda pamusoro pekuremerwa kwekutanga-inoona kurasikirwa kwechikamu, kutanga kwenguva refu, uye zviteshi zvinogona kuparadza mota chinyararire.

★ Seamless Contactor Integration

Snap-on dhizaini inokodzera CDADA D09-D95 contactors zvakakwana-hapana mabhureki kana maadapter anodiwa.

★ Maintenance-Hushamwari Zvimiro

★ TEST bhatani rinosimbisa kudzora redunhu pasina simba bhasikoro

★ Zvakajeka rwendo chiratidzo chinomhanyisa kugadzirisa matambudziko

★ Chivharo chinovharika chinosangana nekuchengetedzwa kwekuongorora zvinodiwa

★  Flexible Operation

Sarudza gadziriso yemanyorero (yekuchengetedza-yakakosha masisitimu) kana auto reset (yemidziyo isina kutarisirwa).

★ Global Compatibility

Yakakura yazvino renji inovhara madiki mapombi kune makuru maindasitiri mota-yakanakira OEMs inotumira kunze kwenyika.

★ Mari-Inoshanda Kuchengetedza

Inodzivirira kupera simba kwemotokari, inoderedza nguva, uye inodzivirira kugadzirisa kunodhura-ROI mumavhiki.

★ Isu tinoshingairira kukumbira mhinduro kubva kune vatengi uye musika, kuita ongororo yemukati nguva dzose, kuisa mari mukudzidziswa kwevashandi uye tekinoroji nyowani, uye bhenji rinopesana neakanakisa maitiro eindasitiri.

★ Mitengo yedu inokwikwidza. Isu tinozviisa pachedu kwete seyakachipa, asi sekupa iyo yakanakisa kukosha-yepamusoro mhando, yakazara chitupa, uye yakasimba sevhisi rutsigiro zvichienzaniswa nevazhinji vagadziri vadiki.

Typical Applications

Mota Starter Assemblies: Akabatanidzwa neanobatika mapombi, mafeni, compressors

Conveyor Systems: Inodzivirira kubva kune jam-induced stalls

HVAC Units: Vanorinda vanotonhora uye vanofuridza kubva mukusaenzana kwechikamu

Michina yekurima: Mapombi ekudiridzisa kumaruwa ane magidhi asina kugadzikana

OEM Control Panels: Compact, yakavimbika, uye nyore waya

Mibvunzo Inowanzo bvunzwa (FAQ)

Q1: Ndeupi mutsauko uripo pakati pekupisa kuwedzeredza relay uye MPCB?

A1:

● MPCB (somuenzaniso, GV2/GV3): Inobatanidza pfupi-circuit + overload + yoga mumudziyo mumwe.

● Thermal Relay (LRD): Inongopa chete overload & phase-loss protection-inofanira kushandiswa necontactor uye fuse / MCB kuti ichengetedze zvizere.

→ LRD yakanyatso kurongeka kune mota-chaiwo kukanganisa uye kazhinji inodzikira mutengo mukuisirwa kukuru.

Q2: Ndinogona kushandisa LRD nevasiri-CDADA contactors?

A2: Iyo LRD yakagadziridzwa kuCDADA D-series (D09–D95). Nepo mechanical fit ingasiyana, tinokurudzira kushandisa CDADA contactor-relay pairs kuti tive nechokwadi chekuita uye garandi rutsigiro.

Q3: Kudzivirirwa kwechikamu kunoshanda sei?

A3: Kana chikamu chimwe chikarasika, zvikamu zviviri zvasara zvinokwevera zvakakwirira zvazvino, zvichikonzera kupisa kusina kuenzana muzvikamu zvebimetallic. Iyo LRD inoona kusaenzana uku uye inofamba mukati memasekonzi - kudzivirira kukuvadzwa kwechikamu chimwe chete.

Q4: Chii chinangwa che "Stop" bhatani vs. "Reset" bhatani?

A4:

● Stop Button: Kwekanguva inovhura iyo NC contact (somuenzaniso, yechiratidzo chekukurumidzira) - haigadzirizve relay.

● Reset Button: Inodzosa relay kune yakagadzirira mamiriro mushure merwendo (inoshanda chete kana kukanganisa kwabviswa).

Q5: Sei uchisarudza CDADA LRD pane mamwe mabhureki?

A5: CDADA inopa:

● Chokwadi chinopisa chekusiyanisa michina (kwete yemagetsi kutevedzera)

● Kunyatsoenderana neD-series contactors-plug-and-play

● Zvirongwa zvinovharika zvekuteedzera (semuenzaniso, ISO, kuongororwa kwekuchengetedza)

● Edza & kumisa mabhatani ekuongorora kwakagadziridzwa

● Makwikwi emitengo ane CE-inoenderana nemhando
