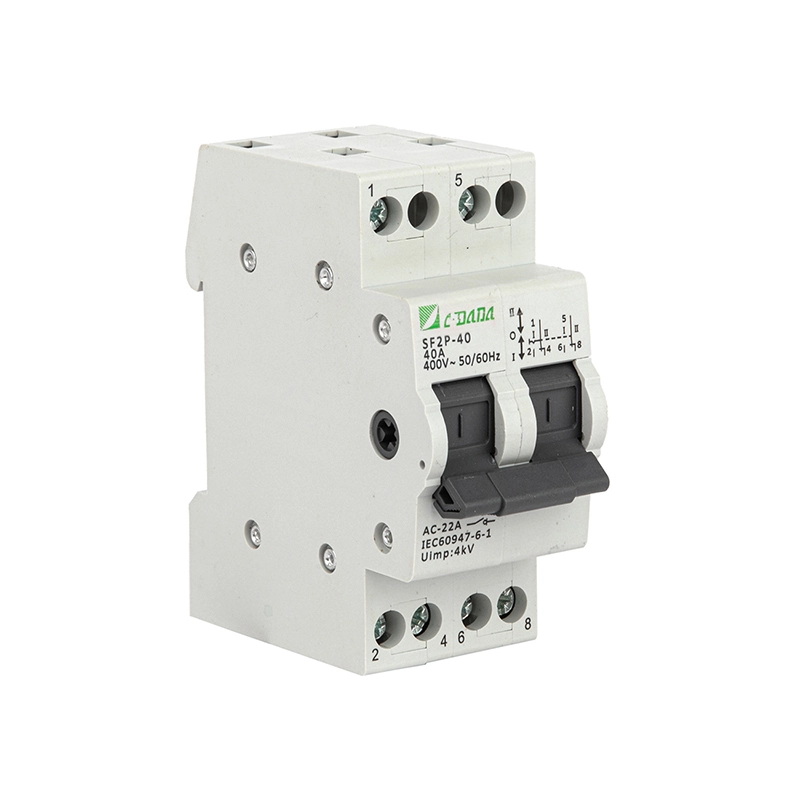

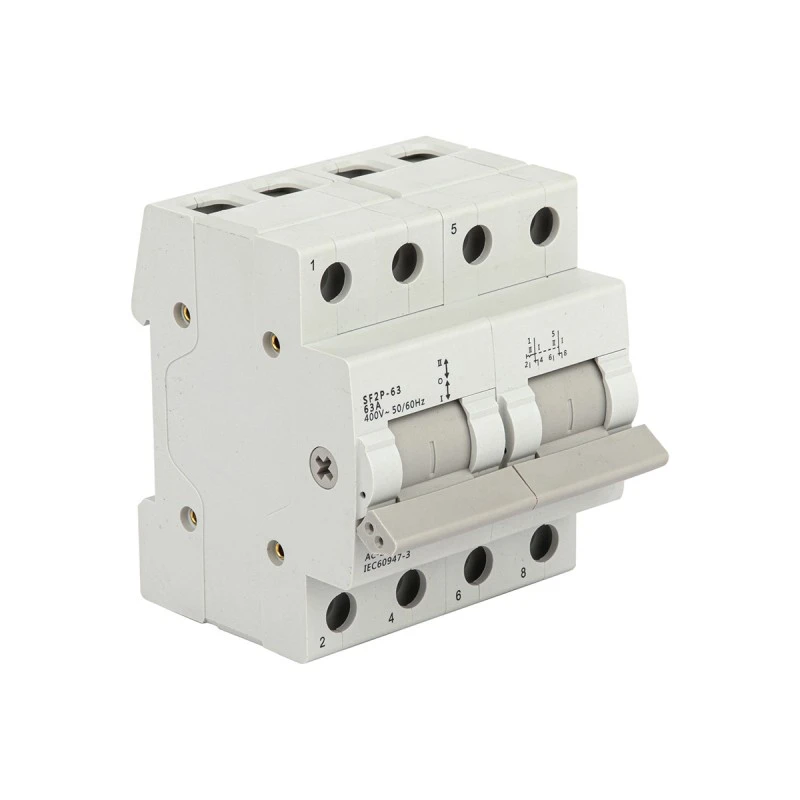

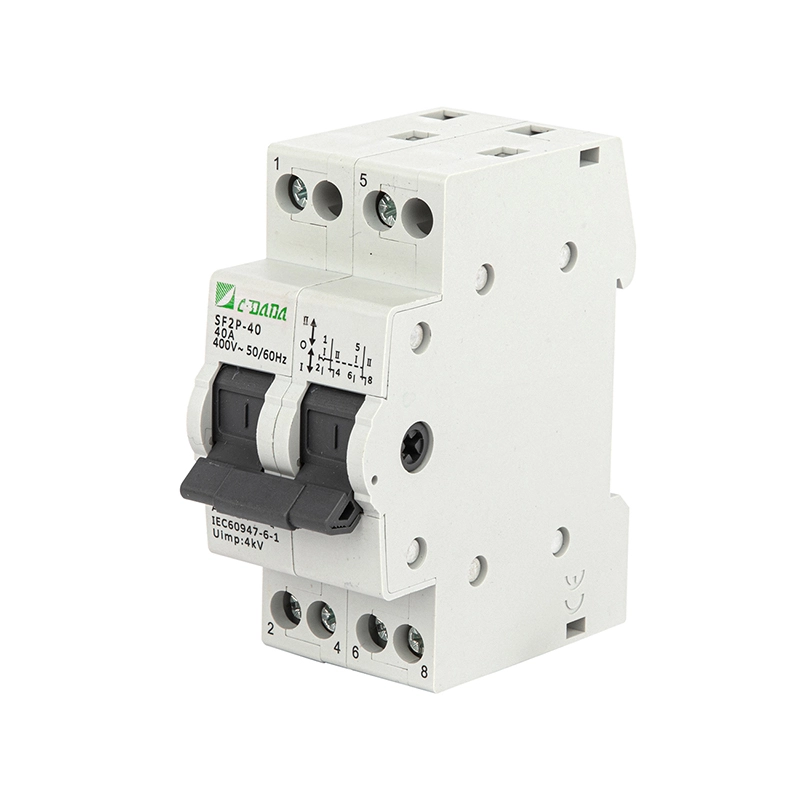

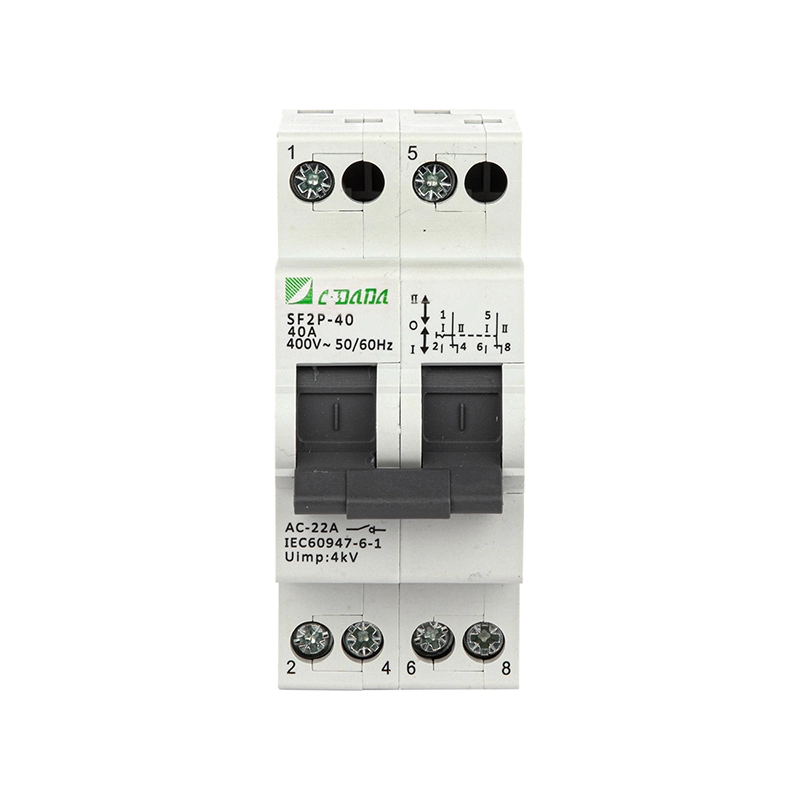

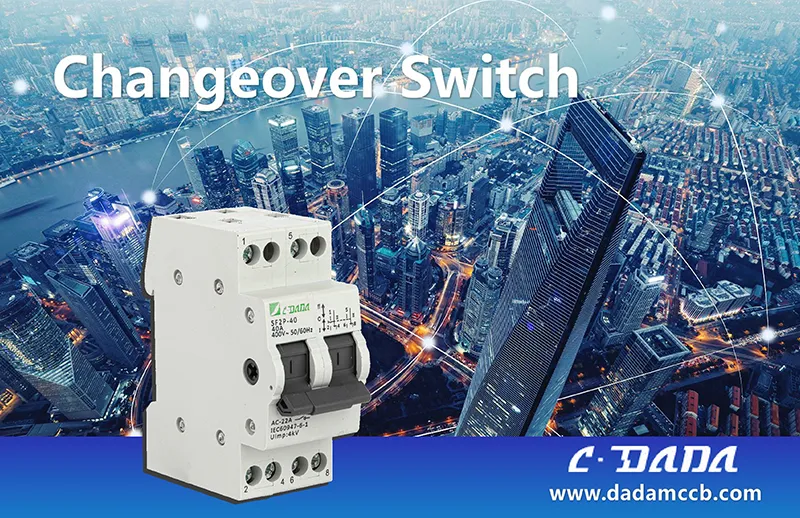

2P Shanduko yekuchinja

Ita shuwa yakachengeteka uye yakavimbika simba sosi inochinja neCDADA SF Series 2P Shanduko Shanduko, inokodzera yakakosha kushandurwa kwedunhu munzvimbo dzekugara, dzekutengesa, uye dzakareruka maindasitiri. Iyi DIN-rail yakasungirirwa micro changeover switch inotsigira maviri masimba emagetsi kana mitoro ine yakajeka 3-chinzvimbo mashandiro: I -OFF-II, inogonesa shanduko isina musono pakati pe mains / grid uye backup / jenareta zvekushandisa, mota kumberi / reverse control, kana phase / voltage monitoring circuits.

Yakatemerwa AC 50/60Hz, 230–400V, uye mafungu kubva 16A kusvika 125A, CDADA 2P shanduko shanduko inowirirana neIEC 60947-3 uye EN 60947-3 zviyero. Inoratidzira ON / OFF zviratidzi zvechinzvimbo, yakakwirira-conductivity mabatiro, uye chitubu-chinobatsira kukurumidza-kugadzira / kuputsa meshini, inova nechokwadi chekuita kwakagadzikana kunyangwe pasi pekugara kwemanyorero kushanda. Yakagadzirirwa kuisirwa modular padivi peMCBs uye macontactor, yakanakira kugovera mabhodhi muzvivakwa, makamuri epombi, telecom makabati, uye emergency mwenje masisitimu.

Zvinotaurwa Nezvakakosha

Series: SF Series 2P Manual Changeover Switch

Mucherechedzo: CDADA | Mugadziri: Shanghai DADA Electric CO., LTD

Mapango: 2P (Dual Pole) - inowanikwa mu1P kusvika ku4P akasiyana

Yakatemerwa Parizvino: 16A - 125A (yakareba kusvika ku80% pamusoro pe40°C ambient)

Rated Voltage: 230/400V AC, 50/60Hz

Insulation Voltage (Ui): 500V

Utilization Category: AC-22A (musanganiswa resistive & inductive mitoro)

Nguva Yakapfupi Kutsungirira Ikozvino (Icw): 12×Ie ye1s

Kuita Kugona: 20×Ie, t=0.1s

Mechanical Hupenyu: 8,500 mashandiro

Hupenyu hweMagetsi: 1,500 mashandiro (pasi pemutoro)

Dhigirii rekusvibisa: II

Kukwidza: Standard TH35 DIN njanji

Kushanda: Manual 3-nzvimbo mubato (I - O - II)

Zviratidzo: Inoonekwa ON / OFF chinzvimbo kuburikidza nekugadzirisa mubato

Zviteshi: Cable kana busbar yekubatanidza

Kusimbisa Torque:

1.2 N·m (16–40A)

3.5 N·m (63–125A)

Chengetedzo Chengetedzo: Hapana arc yekudzima kamuri → inofanira kushandiswa nemafuse ekumusoro/MCBs kudzivirira pfupi-circuit

Technical data sheet

Sei Sarudza CDADA 2P Changeover Switch?

★ Yakachengeteka 3-Position Isolation

Chokwadi OFF (O) chinzvimbo chinobvisa zvese zviri zviviri zvinyorwa-zvakakosha pakugadzirisa uye anti-backfeed chengetedzo.

★ DIN-Rail Modular Design

Inoisa mumasekonzi padivi peMCBs-inochengetedza nzvimbo uye inorerutsa marongero epanera muzvivakwa zvakangwara kana maOEM akavharirwa.

★ High Kuvimbika Contacts

Yakagadziridzwa dynamic-static yekubata geometry inovimbisa kushoma kuramba uye kugadzikana kwenguva refu.

★ Global Compliance

Yakasimbiswa kuIEC 60947-3 inogamuchirwa muEurope, Asia, Africa, uye Latin America.

★ Mushandisi-Yakachengeteka Kushanda

Spring-assisted mechanism inodzivirira kubatanidzwa kwechikamu; mubato wakawedzerwa sarudzo ye63A+ modhi.

★ Zvishandiso Zvakasiyana-siyana

Kubva kuchinjisa jenareta kuenda kumota yekudzosera kumashure-imwe switch, akawanda mabasa.

Typical Applications

Backup Power Systems: Chinja pakati pekushandisa uye jenareta

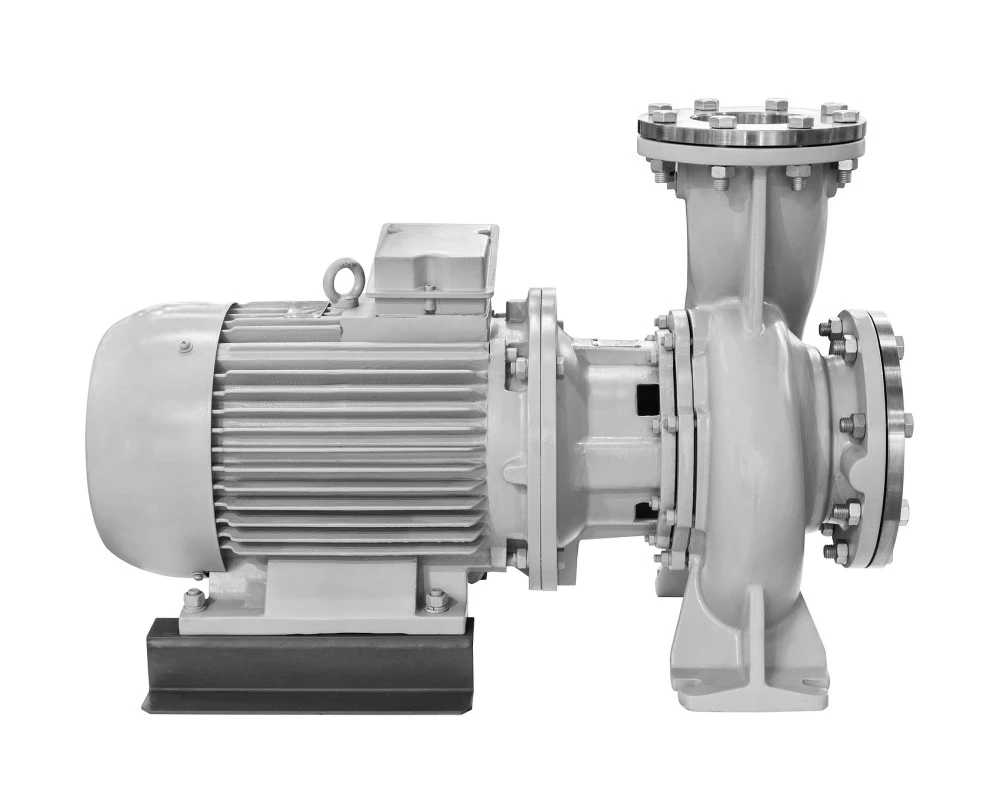

Mota Kudzora: Pamberi/kudzosera kumashure kutenderera kwemapombi madiki kana mafeni

Measurement Circuits: Voltage/phase kusarudzwa mumametering panels

Kuvaka otomatiki: Dual HVAC unit switching, emergency emergency kuendesa

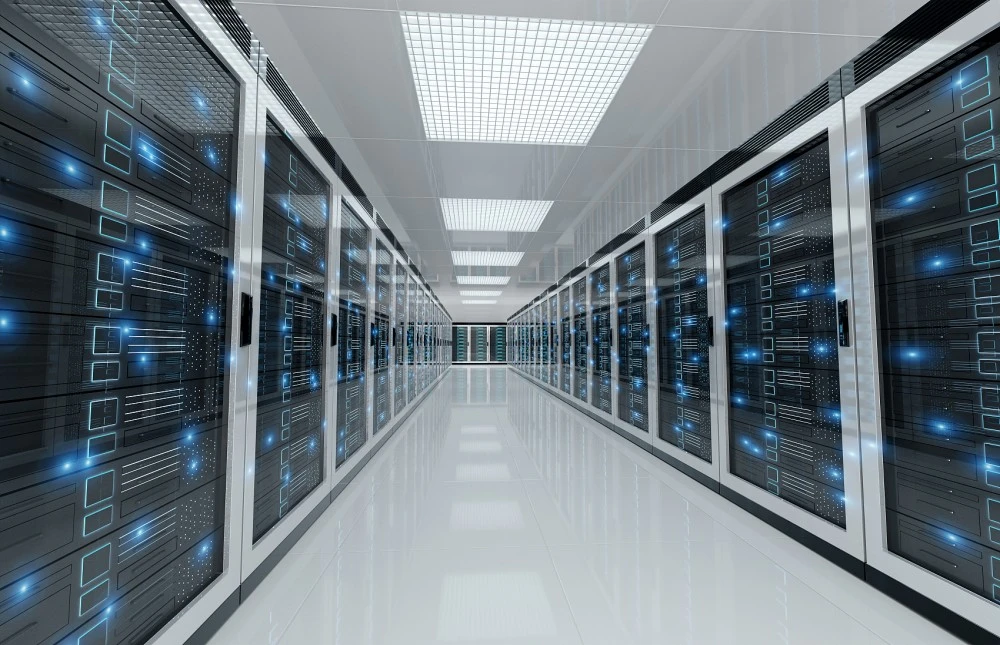

Telecom & Data Centers: Redundant PSU sosi sarudzo

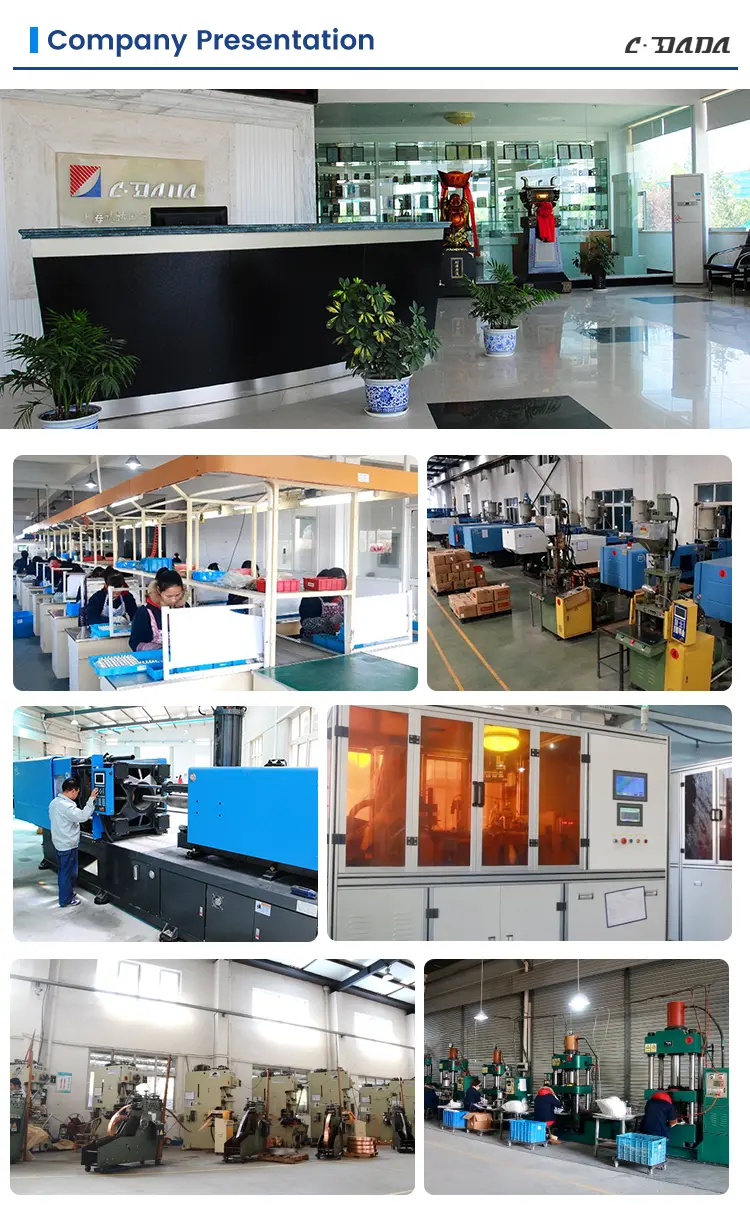

Pamusoro peCDADA

★ Zvatinakire zvakakosha ndezvi:

1) Zadzisa zvepasirese zvitupa,

2) Simba OEM / ODM kugona,

3) High mutengo-kuita reshiyo,

4) Inovimbika yakakura-yakakura kugadzirwa kugona,

5) Zvakawanda zvekutengesa kunze.

★ Zvigadzirwa zvedu zvinobudirira kutumirwa kuSoutheast Asia, Middle East, South America, Africa, Europe, uye nyika dzeCIS, nekutarisa kwakasimba pamisika yeBelt uye Road.

★ Tinodyara mari nguva dzose muR&D, tichitarisisa mwero wepasi rose uye mafambiro emusika, uye tinodyidzana nenyanzvi dzeindasitiri kusimudzira zvigadzirwa zvedu.

Mibvunzo Inowanzo bvunzwa

Q1: Ndinogona kushandura pasi pemutoro?

A1: Hazvikurudzirwe. Iyo SF yakatevedzana 2P Changeover Switch haina arc yekudzima kamuri. Gara uchibvisa simba redunhu usati wachinja, kana shandisa chete pasina-mutoro kutamisa (semuenzaniso, isolator basa). Zvekuchinja-mutoro wehupenyu, funga mota yeATS kana fused switch disconnectors.

Q2: Sei pane "O" (OFF) nzvimbo?

A2: Iyo yepakati OFF chinzvimbo inovimbisa kuparadzaniswa kwakazara kubva kune ese masimba masosi-yakakosha pakuchengetedza kuchengetedza uye kudzivirira backfeed mumajenareta kana inverters.

Q3: Ndinoda fuse neiyi switch?

A3: Hongu. Sezvo isingakwanise kukanganisa mafambiro ekutadza, gara uchiibatanidza nemafusi ekumusoro kana maMCB akatemerwa hurongwa hwako hunogona kupfupika.

Q4: Inogona kudzora mota kutungamira?

A4: Hongu-kune madiki motors, iyo 2P switch inogona kudzoreredza kutevedzana kwechikamu kana yaiswa waya nemazvo. Ita shuwa kuti mota yamiswa uye kubviswa simba isati yachinja nzira.

Q5: Sei uchisarudza CDADA pane mamwe mavanga?

A5: CDADA inopa:

● Chokwadi 3-nzvimbo mechanical interlock (hapana inoyangarara nyika)

● DIN-rail inoenderana nepasi rose mapaneru

● Chiratidzo chakajeka chekuona chekuchinja nzvimbo

● Robust chitubu nzira kuti yakavimbika kuonana kumanikidzwa

● Makwikwi emitengo ane yakazara IEC certification uye technical support
