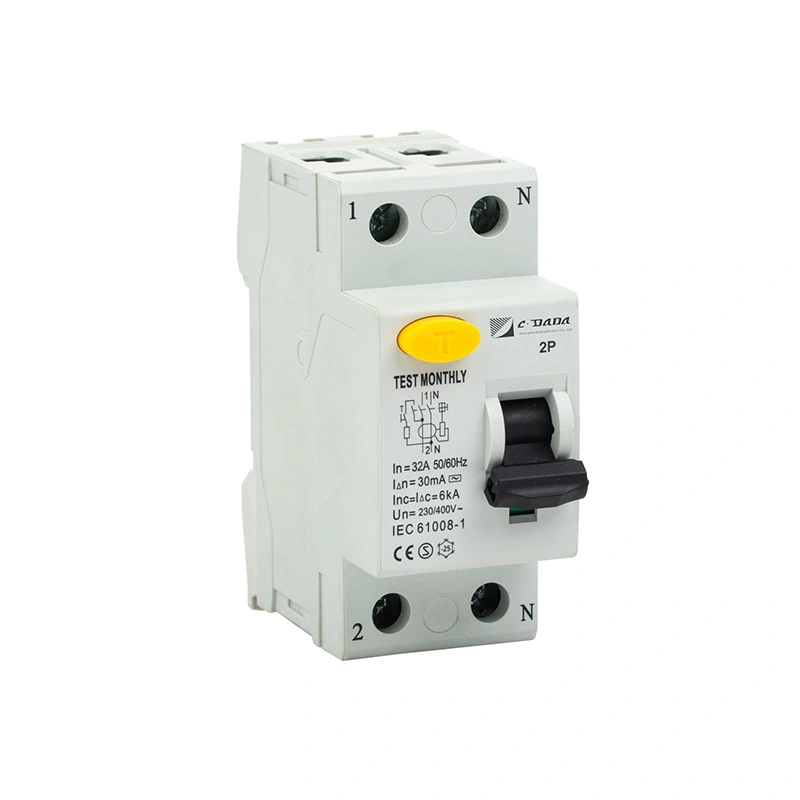

Type A Residual Current Circuit Breaker
Tenga CDADA Type A Residual Current Circuit breaker kubva kuShanghai DADA Electric, isu tine anopfuura makore makumi mana echiitiko, anogona kuve mutengesi wako. EN/IEC 61008-1 yakasimbiswa, 2P/4P, 16–100A, 30mA/100mA sarudzo. Inoona AC + pulsating DC kuvuza. IP20, DIN njanji gomo, kusurge-resistant. Yakanakira dzimba dzemazuvano & mapaneru ekutengesa.
Iva nechokwadi chakakwana chekuchengetedzwa kwemunhu uye moto munzvimbo dzemazuva ano dzemagetsi neCDADA Type A Residual Current Circuit Breaker (RCCB), tinogona kupa fekitari mutengo wakananga. Iyo inopfuura yekutanga AC yekudonha yekuona-inofamba nekuvimbika pane ese sinusoidal AC uye inopuruzira DC inosara mafungu anogadzirwa neakajairika zvishandiso senge machaja efoni, madhiraivha eLED, makomputa, uye inochinja-kumhanya midziyo.

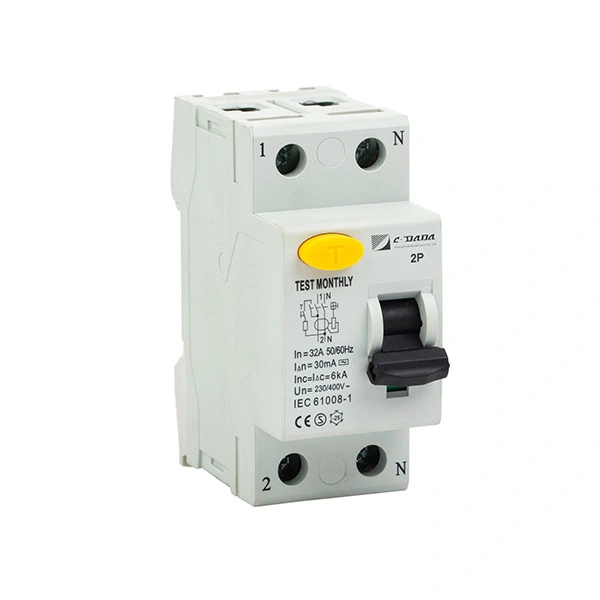

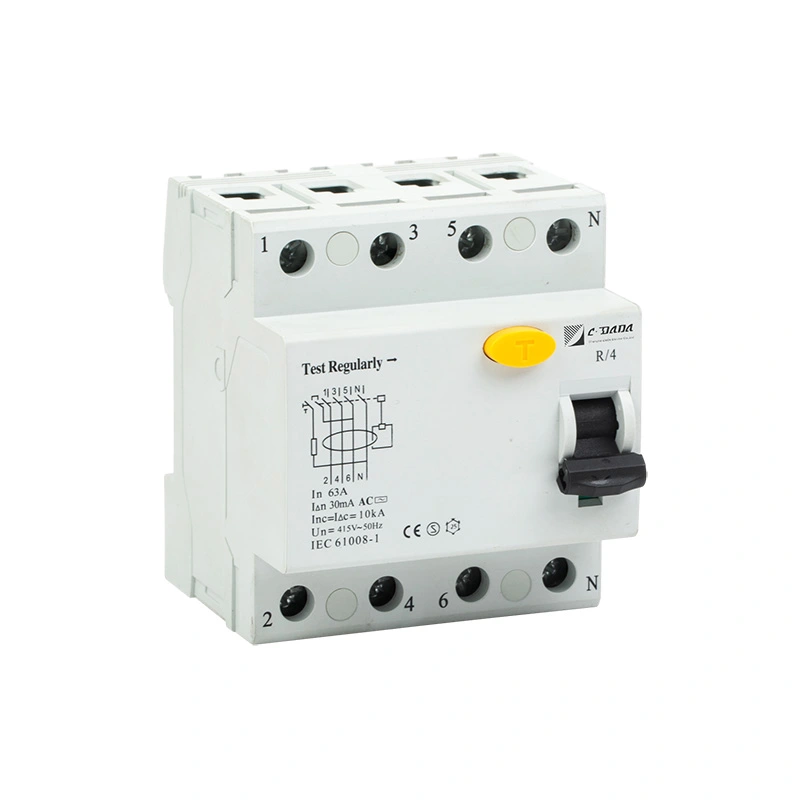

Inowanikwa mu2P (1+N) uye 4P (3+N) zvigadziriso zvine rated current kubva ku16A kusvika 100A uye sensitivities ye10mA, 30mA, 100mA, kana 300mA, yakagadzirirwa dzimba dzemazuvano dzekugara, hofisi, uye mwenje wekutengesa.
Iine 6kA inomisikidzwa pfupi-yedunhu reti, IP20 dziviriro, uye mbiri terminal sarudzo (lug/pini), CDADA Type A RCCB inosanganisa chengetedzo, kuvimbika, uye dhizaini-inoshamwaridzika dhizaini-zvese zvichitsigirwa nekuteerana kwepasirese.
Zvinotaurwa Nezvakakosha
| Product Type: | Type A RCCB (Residual Current Circuit Breaker isina overcurrent protection) |
| Standard: | EN/IEC 61008-1 |
| Poles: | 2P (1+N) kana 4P (3+N) |
| Yakayerwa Zvazvino (Mu): | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Voltage: | 2P: |
| 230V AC | 4P: |
| 230/400V AC | Residual Sensitivities (I△n): |
| 10mA, 30mA, 100mA, 300mA | Zvisiri Kufamba Parizvino: |
| 0.5 × I△n | Rwendo Nguva paI△n: |
| ≤ 0.1 sekondi | Conditional Short-Circuit Current (Inc): |
| 6kA | Kugadzira & Kutyora Kugona (I₄m): |
| 500A (yeIn ≤ 40A) 630A (yeIn ≥ 63A) |
Impulse Withstand Voltage (Uimp): |
| 6000V | Operating Temperature: |
| -25°C kusvika +40°C | Dziviriro Degree: |
| IP20 | Kukwidza: |
| 35mm DIN njanji (EN 60715 inoenderana) | Zviteshi: |
| Lug rudzi kana Pini mhando, inotsigira tambo dzinosvika 35mm² | Visual Indicator: |
| Tsvuku = ON (mazita akavharwa), Green = DZIMA (mazita akavhurwa) | Trip Mechanism: |
| Electromagnetic kuburitswa - immune kune voltage fluctuations |
|
Sei Sarudza CDADA Type A RCCB?
★ Inoona Chaiyo-Nyika Yekuvhundutsa
Kusiyana nemhando yekutanga AC zvishandiso, CDADA Type A inopindura kune ese ari maviri AC uye pulsating DC-yakakosha kuchengetedza mudzimba uye mahofisi akazadzwa nekuchinja-modhi magetsi emagetsi, inverters, uye EV majaja.
★ Hapana Kushungurudza Kufamba
Kusefa kwepamberi kunovimbisa kusadzivirirwa kune voltage spikes uye isingakuvadze yenguva pfupi, ichiri kuvimbisa <0.1s nguva yerwendo payakayerwa kunzwa.
★ Bvisa Visual Status
Iyo yakatsvuka / girinhi yekubata chinzvimbo chiratidzo inobvumira kukurumidza kusimbiswa kweiyo breaker state-yakakosha panguva yekugadzirisa kana cheki yekukurumidzira.
★ Flexible Wiring & High Compatibility

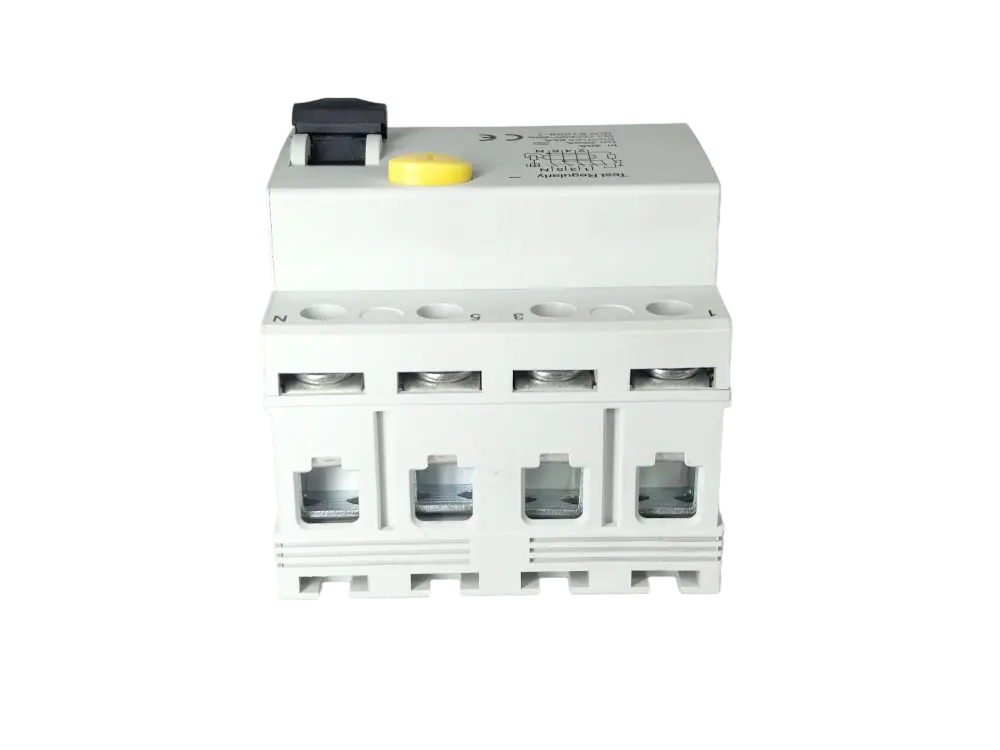

Inotsigira mabhegi kana mapini materminal uye 35mm² tambo, zvichiita kuti ienderane nemabhara uye maconductor anochinjika mumapanera azvino.
★ Maviri ekuwedzera rivet
yakawedzera kusimba kwecasing munzvimbo yekubatanidza conductor nekuda kwemaviri ekuwedzera rivets uye yakasimba faceplate
★ DIN njanji simbi

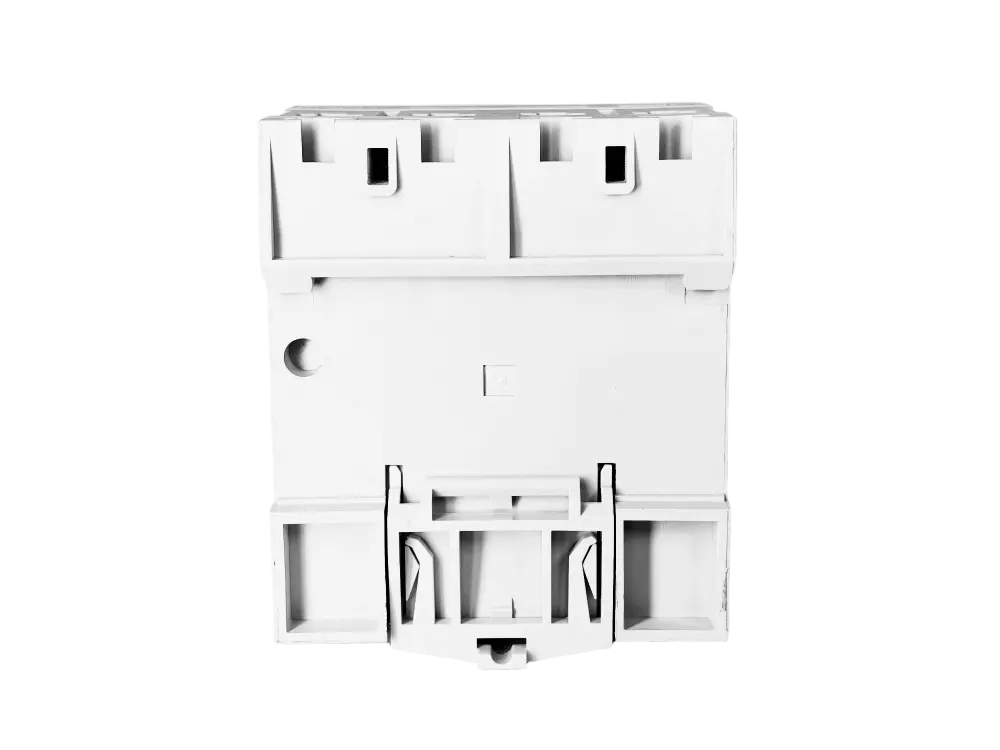

Kurumidza kuisirwa uye nekuwedzera kuvimbika kwekurovera paDIN njanji nekuda kwelatch ine kukiya kaviri.
★ Global Compliance, Local Value

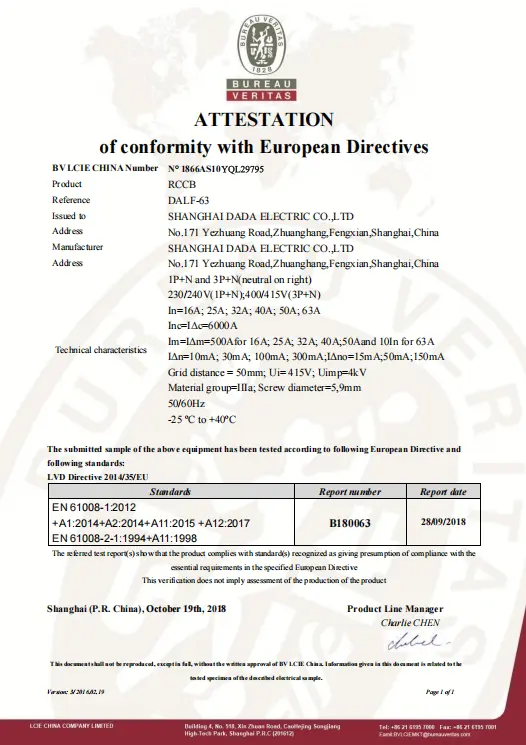

Yakasimbiswa kuIEC/EN 61008-1, inokodzera EU, Middle East, Africa, uye Asia misika-ine mitengo yemakwikwi kubva kumugadziri akavimbika wekuChina.
Typical Applications
Dzimba dzemazuvano: Socket circuits ine maTV, malaptop, zvemagetsi zvemukicheni
Mahofisi: IT makamuri, workstation magetsi mitsetse
Retail: POS masisitimu, chiratidzo chedhijitari, mwenje we LED
EV Kuchaja Mapoinzi: Yekutanga chengetedzo layer (yakapetwa neye overcurrent mudziyo)
Renewable Installations: Solar inverters inogadzira pulsed DC leakage
FAQ
Q1: Ndeupi musiyano pakati peRudzi A uye Type AC RCDs?
A1: Type AC inongoona yakatsetseka sinusoidal AC leakage. Type A inoona zvese zviri zviviri AC uye pulsating DC (semuenzaniso, kubva kune zvinogadziridza mumachaja efoni, madhiraivha eLED, kana muchina wekuwachisa). Kune chero dunhu rine zvemagetsi, Type A inodiwa nemagetsi macode emazuva ano.
Q2: Iyo 30mA Type A RCD yakakwana here kuti uzvidzivirire?
A2: Hongu. 30mA ndiyo yakajairwa chikumbaridzo chekuchengetedza hupenyu hwekuvhundutsa paIEC. CDADA's Type A inova nechokwadi chekuti inoshanda kunyangwe kukanganisa kuchisanganisira zvikamu zveDC-ichiita kuti ive yakachengeteka kupfuura Type AC mumamiriro ezvinhu epasirese.
Q3: Iyi RCCB inopa yakawandisa kana yekudzivirira-pfupi dunhu?
A3: Kwete. Iyi iRCCB yakachena (hapana kuchengetedzwa kwepamusoro). Inofanirwa kushandiswa munhevedzano neMCB kana fuse kudzivirira kubva kune yakawandisa uye mapfupi maseketi.
Q4: Ndinogona kuishandisa muTT earthing system?
A4: Hongu—Type A Residual Current Circuit Breakers inowanzoshandiswa muTT systems, kunyanya ine 100mA kana 300mA yekudzivirira moto kune anowana, uye 30mA yemasekete ekupedzisira.
Q5: Sei uchisarudza CDADA pane mamwe mhando A mhando?
A5: CDADA inopa:
● Chokwadi IEC 61008-1 kutevedza nemishumo yebvunzo
● Dual terminal options (lug/pini) ye flexible wiring
● Mamiriro ekuonana ane mavara ane mavara (tsvuku/girini)
● Magadzirirwo ekudzivirira muviri - hapana nzendo dzenhema
● OEM-yakagadzirira: mitengo yakawanda, zvinyorwa zveChirungu, kukurumidza kuenzanisa
