MCCB ine Leakage Protection

Wedzera kuchengetedzeka kwemagetsi kupfuura kuwandisa uye kupfupi-sekiti chengetedzo neCDADA DAM1L Series MCCB ine Leakage Dziviriro yakasanganiswa yakaumbwa kesi yedunhu breaker ine yakavakirwa-mukati residual current (RCD/ELCB) mashandiro. Yakagadzirwa nenyanzvi yekugadzira Shanghai DADA Electric CO., LTD kune dzimwe nyika zviyero, iyi yekuvuza MCCB 4P inosanganisa yakakwirira-inoshanda kugovera magetsi nehupenyu- uye inoponesa moto pasi pekuona kukanganisa.

Yakarongerwa kubva ku10A kusvika ku500A pa400V/415V, inopa inogadziriswa yakasara inoshanda ikozvino (30mA-1000mA) uye inosarudzika kunonoka-inogonesa kuchengetedzwa kwakagadzirirwa kuchengetedzwa kwemunhu (≤30mA) kana kudzivirira moto (100mA-500mA +). Iine akawanda-chikamu magetsi emagetsi, inoramba ichishanda kunyangwe chikamu chimwe chikatadza kana voltage inodonha kusvika ku50V, ichiona kuvimbika kusingaenzaniswi muzvivakwa zvakakosha senge tunnels, makwiriro, nzvimbo dzekufambisa, uye zvidyarwa zvemaindasitiri.

Zvinotaurwa Nezvakakosha

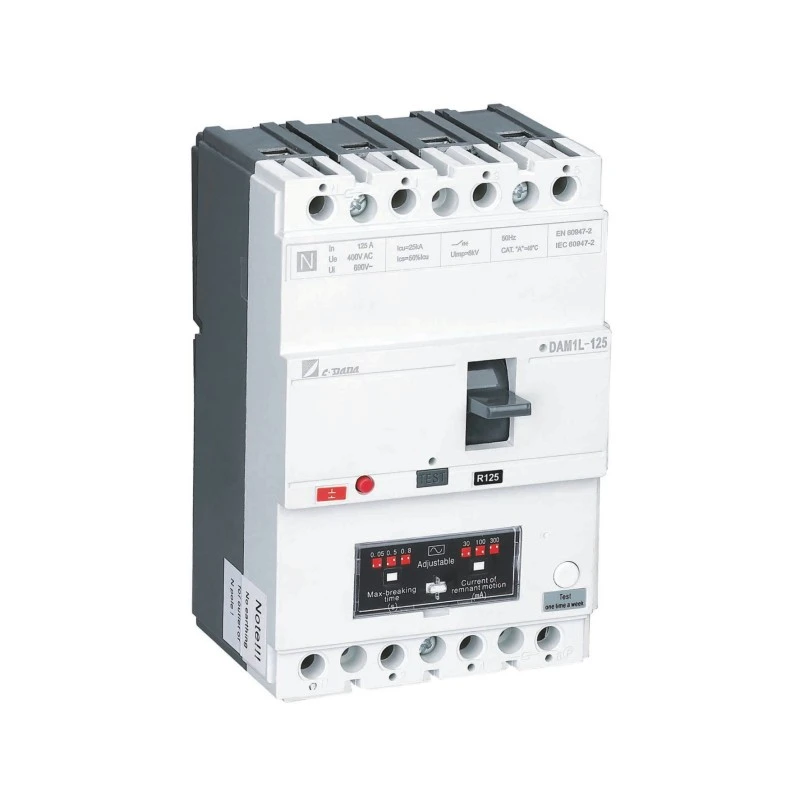

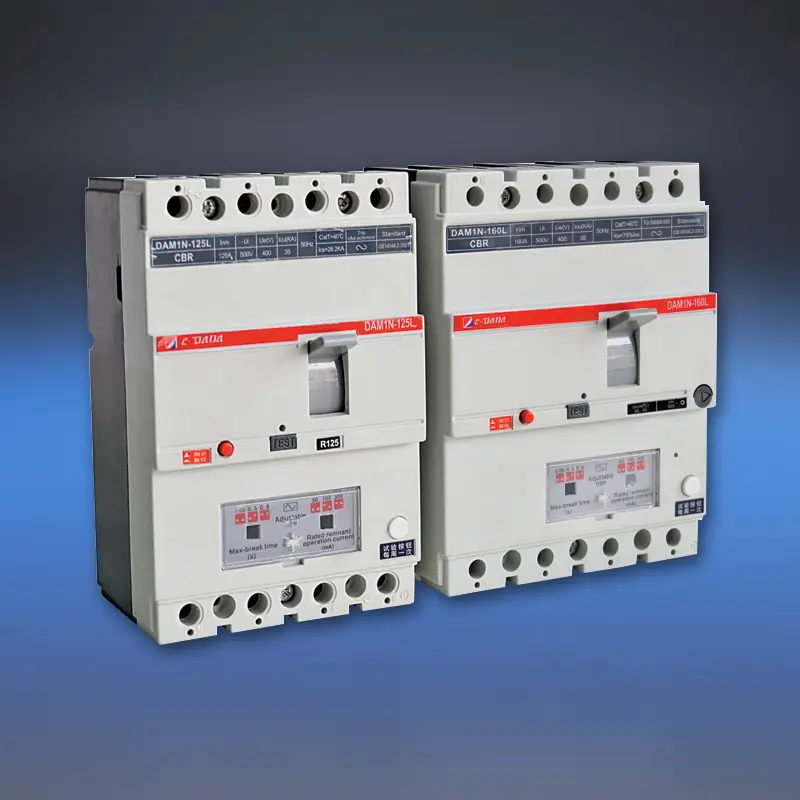

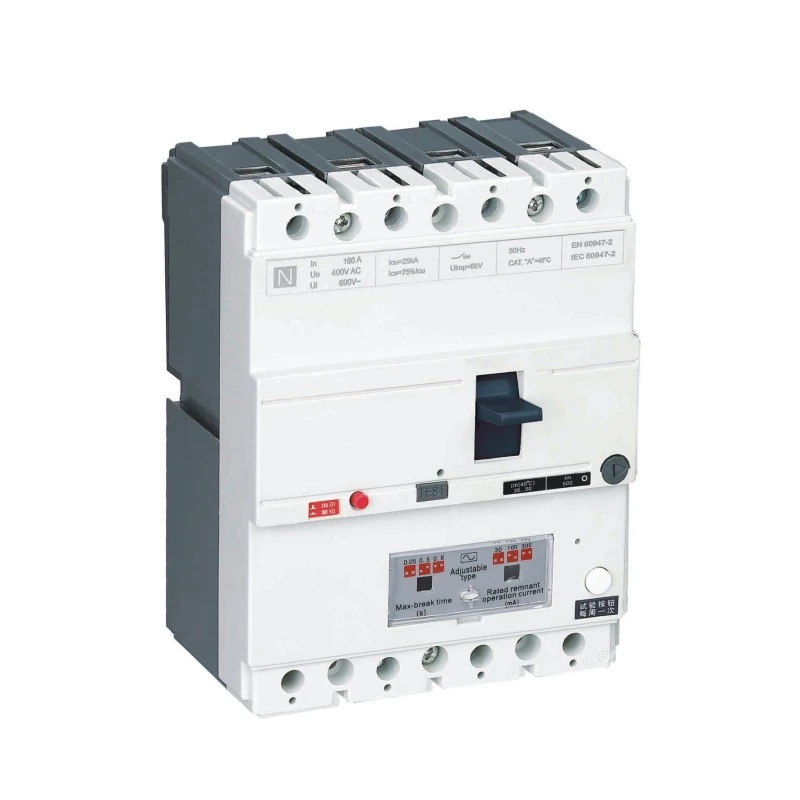

Muenzaniso: DAM1L Series - Earth Leakage MCCB (CBR-mhando MCCB)

Mapango: 4P (yakajairwa; 3P inowanikwa pakukumbira)

Yakatemerwa Yazvino (Mu): 10A - 500A

Rated Voltage: 400V / 415V AC, 50Hz

Insulation Voltage (Ui): 400V (≤160A), 690V (>250A)

Residual Current Settings (I△n): 30mA, 100mA, 300mA, 500mA, 1000mA

Kugadziriswa: Pa-saiti kugadziridzwa kweI△n uye nguva yerwendo (pakarepo kana kunonoka)

Mhando dzeKuputsa Kwesimba:

B Rudzi: Chekutanga (Inm <100A)

S Type: Standard

H Rudzi: Kutyora kwakanyanya (> 160A)

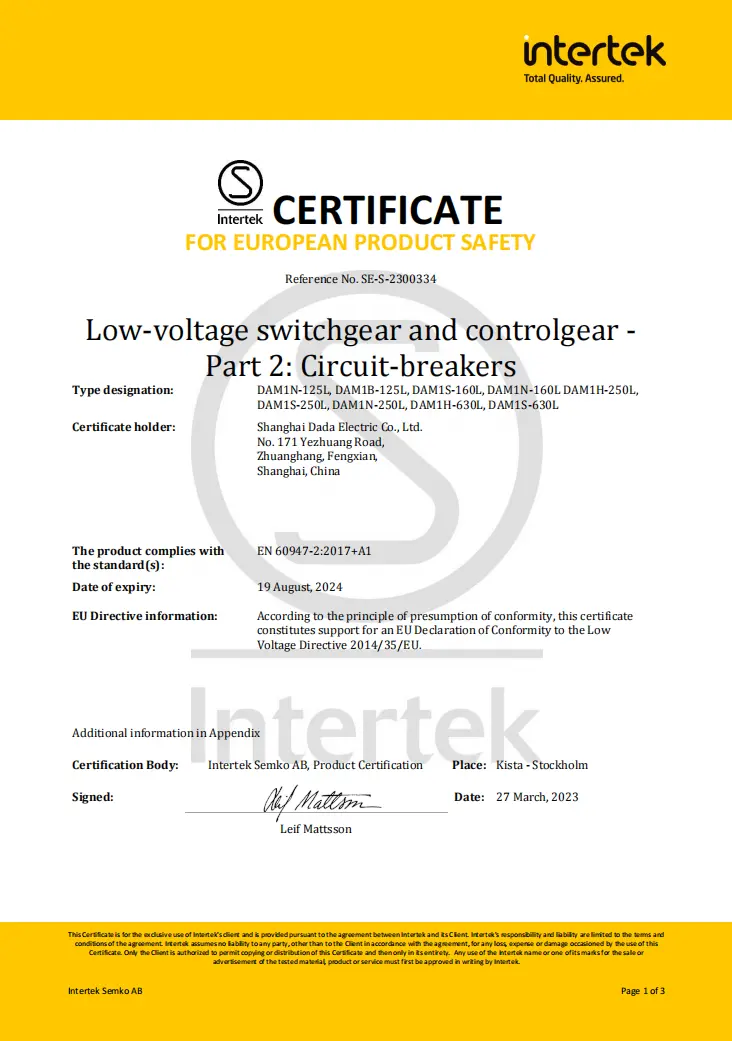

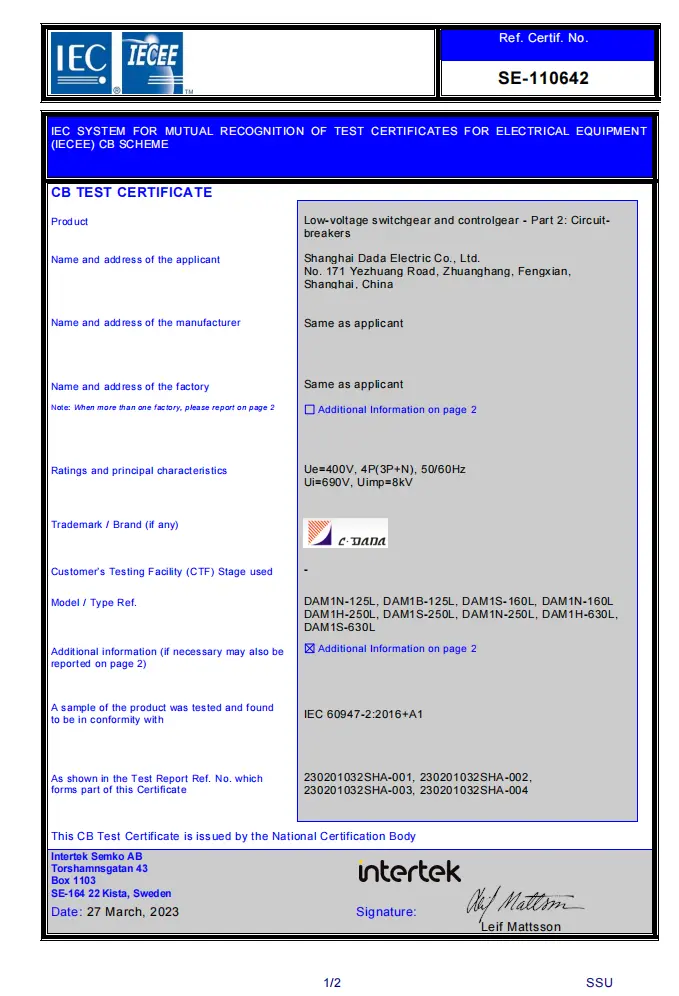

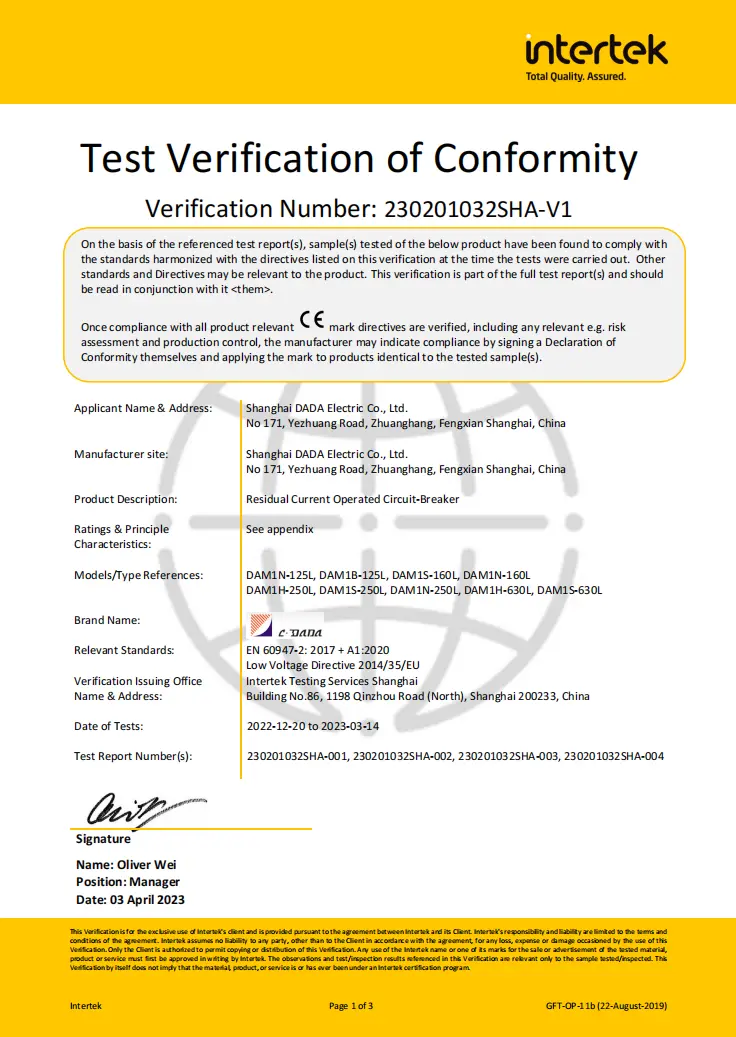

Certifications: CE, CB, SEMKO

Zvinokosha:

★ Multi-phase powered RCD circuit → inoshanda pasi kusvika ku50V

★ Kupatsanura makuru & arcing mazita

★ Push-ku-rwendo bvunzo bhatani

★ Kugadziriswa kwemagineti kurongedza (0.8–1.0×In)

★ Yakasimba EMI / RFI anti-kupindira kugona

★ Full accessory range: shunt rwendo, anobatsira/alarm contacts, rotary handle

Technical data sheet

Earth-Leakage Circuit Breakers(ELCB)
Model			DAM1-125L			DAM1-160L
Kuputsa Capacity Code			B	N	S	B	N	S
Yakatemerwa Yazvino yesaizi yeframe- Inm (A)			125A			160A
Yakayerwa Yazvino-Mu(40,50 kana 55℃) (A)			10 - 12,5 - 16 - 20 - 25 - 32(30) - 40 - 50 - 63(60) - 80 - 100 - 125A			10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A
Ui (V)			690V			690V
Ue (V)			400V			400/415V
Nhamba yePole			4P			4P
Icu (KA)			25	35	50	25	35	50
Ics(KA)			12.5	17.5	37.5	12.5	26.25	37.5
Icm(pamusoro)/cos ф (KA)			40/0.3	73.5/0.25	105/0.25	41/0.3	73.5/0.25	110/0.25
(I△m)KA/cosф			9/0.5			19/0.5
Residual current threshold(mA)			100-300-500			100-300-500
Nguva inononoka(ms)			50-500-800			50-500-800
Uimp (V)			10000			8000
Dielectric Propery (V)			2500			3000
kureba kureba (mm)			≤30/0			≤30/0
Kutsungirira	Total Cycles		8000			8000
	Upenyu hweMagetsi		1000			1000
	Mechanical Life		7000			7000
Chikamu (EN 60947-2/IEC 60947-2)	Main dunhu		A/0			A/0
	Mubatsiri wedunhu		AC-15			AC-15
Under Voltage Release			√			√
Shunt Release			√			√
Auxiliary Contact			√			√
Alarm Contact			√			√
Yekubatsira Kubata uye Alarm Contact			√			√
Bata Operation Mechanism			√			√
Electrical Operastion Mechanism			√			√
Terminal cover			√			√
Phase seperator			√			√
	W (mm)	3P	-			-
		4P	101			120
	L (mm)	3P	-			-
		4P	155			120
	H (mm)	3P	-			-
		4P	70			70
Kurema	Yakagadziriswa vhezheni 3P/4P		-			-
	Plug-in version 3P/4P		-			-
	Dhirowa vhezheni 3P/4P		-			-

Sei Sarudza CDADA MCCB ine Leakage Dziviriro?

★ Chokwadi Integrated Kuchengetedzwa

Kusiyana nekuwedzera-paRCD modules, iyo DAM1L ine yakavakirwa-mukati, fekitori-calibrated leakage dziviriro-inoona kurongeka kwakakwana uye kubvisa nyaya dzekuenderana.

★ Multi-Phase Simba reRCD Circuit

MaRCD ekutanga akakundikana kana chikamu chimwe chakarasika. Dhizaini yeCDADA inoshandisa nhanho dzese kusimbisa magetsi edziviriro, saka inoramba ichishanda kunyangwe panguva yekurasikirwa kwechikamu kana kuderera kwakanyanya.

★ Zvinangwa Zviviri Dziviriro mune Imwe Chishandiso

◆ 30mA: Inosangana neIEC zvinodiwa zvekudzivirira kuvhunduka kwevanhu

◆ 100mA-1000mA: Inodzivirira kupisa kwekudzivirira kupisa moto kubva kune zviduku, zvinoramba zvichikanganisa pasi.

★ Munda-Unogadziriswa kune Real-World Conditions

Fine-tune senitivity uye nguva kunonoka kudzivirira kugumburwa munzvimbo dzakanyorova (semuenzaniso, kugeza mota, mapurazi) uchichengetedza kuchengeteka.

★ Industrial-Giredhi Kuvimbika

Yakakwira yekutyora simba (H-mhando), yakasimba arc kupatsanurwa, uye IP20+ terminal kuchengetedza inoita kuti ive yakakodzera kune dzakaomarara kutengeserana uye maindasitiri marongero.

★ Global Compliance, Local Value

Certified for Europe (CE/CB), Nordic countries (SEMKO)—yakanakira mapurojekiti ekunze kunze—nemitengo inokwikwidza kubva kumugadziri akavimbika wekuChina.

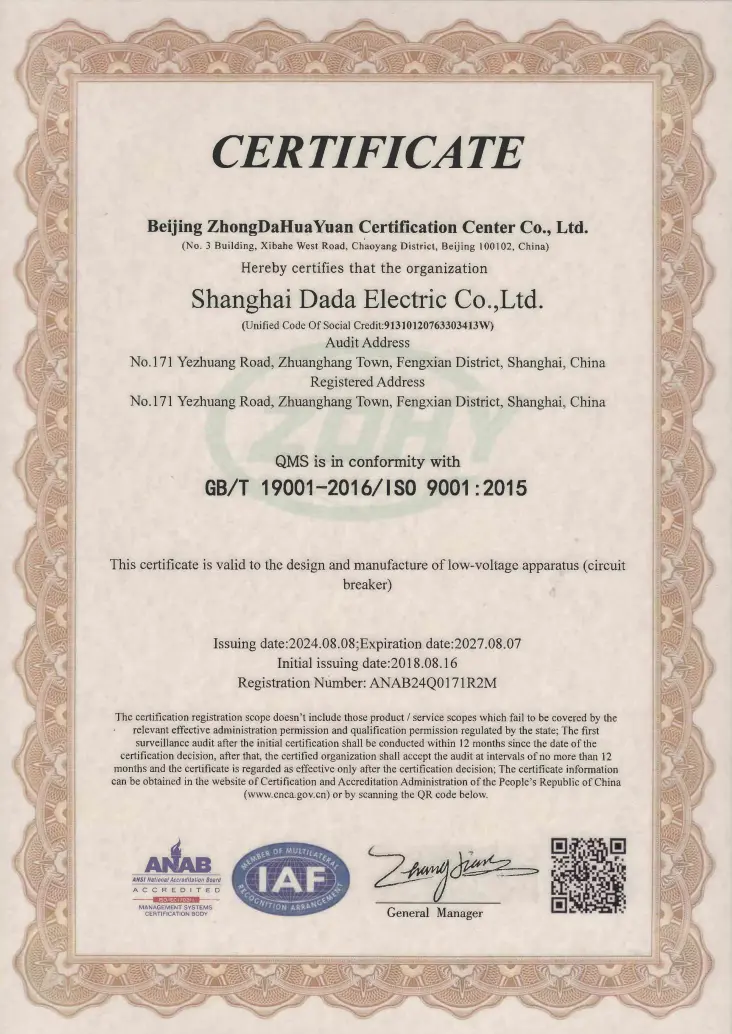

★ Nzvimbo yedu yekugadzira inosimbiswa pasi pe ISO9001:2015 Quality Management System.

Typical Applications

Yepamusoro-Rise Residence: Muhoro mukuru kana pasi mapaneru (300mA yekudzikisa njodzi yemoto)

Tunnels & Subways: Yakakosha zvivakwa zvinoda kutadza-kuchengetedzeka kuvuza kuoneswa

Zvipatara & Zvikoro: 30mA dziviriro munzvimbo dzine mvura (maLab, zvimbudzi)

Industrial Plants: Motor feeders ine pasi pekutarisa kukanganisa

Nzvimbo dzekuvaka: Kugoverwa kwemagetsi kwenguva pfupi nekuchengetedzwa kwevashandi

FAQ

Q1: Ndeupi musiyano uripo pakati peyakajairwa MCCB uye MCCB ine leakage dziviriro?

A1: Yakajairwa MCCB inongodzivirira kubva pakuwandisa uye mapfupi maseketi. Iyo DAM1L inowedzera yakasara ikozvino (kudonha kwepasi) kucherechedzwa-kugumburwa kana ikozvino inodonha pasi (semuenzaniso, kuburikidza nemunhu kana yakakuvadzwa insulation), kudzivirira kuvhunduka kwemagetsi kana moto.

Q2: Ndingashandisa 100A MCCB RCD yekuzvidzivirira pachako here?

A2: Chete kana yakaiswa ku30mA. Iyo yakayerwa ikozvino (100A) inotsanangura mutoro wekutakura; iyo yakasara kugadzika (I△n) inotsanangura kuchengetedza basa. Nekudzivirira kwekuvhunduka, I△n inofanirwa kunge iri ≤30mA, zvisinei neIn.

Q3: Sei RCD redunhu richida akawanda-chikamu simba?

A3: Kana yakapihwa simba nechikamu chimwe chete, kutadza kwechikamu chimwe chete kwaizodzima kudzivirira kwekudonha. CDADA's multi-phase design inoita kuti RCD irambe ichishanda kunyange panguva yekurasikirwa kwechikamu kana kuderera kwemhepo (kusvika ku50V) -inokosha pakuenderera mberi kwekuchengeteka.

Q4: Iyo 4P kuvuza MCCB yakakodzera TT kana TN-S masisitimu?

A4: Hongu-yakagadzirirwa TT, TN-S, uye IT masisitimu. Iyo 4P dhizaini inopwanya ese matanho uye asina kwaakarerekera, yakakosha kune TT masisitimu uko kwaakarerekera asina kuvimbika kudzika kumusoro.

Q5: Sei uchisarudza CDADA pamusoro modular RCD + MCCB musanganiswa?

A5: CDADA DAM1L inopa:

● Diki yetsoka (yakabatanidzwa vs. midziyo miviri)

● Guaranteed coordination (hapana mismatch ngozi)

● Mutengo wakaderera & kuoma kwewaya

● Kuvimbika kwepamusoro (single sealed unit)

● Kugadziriswa kwepa-site hakugoneki ne-fixed-sensitivity RCDs
