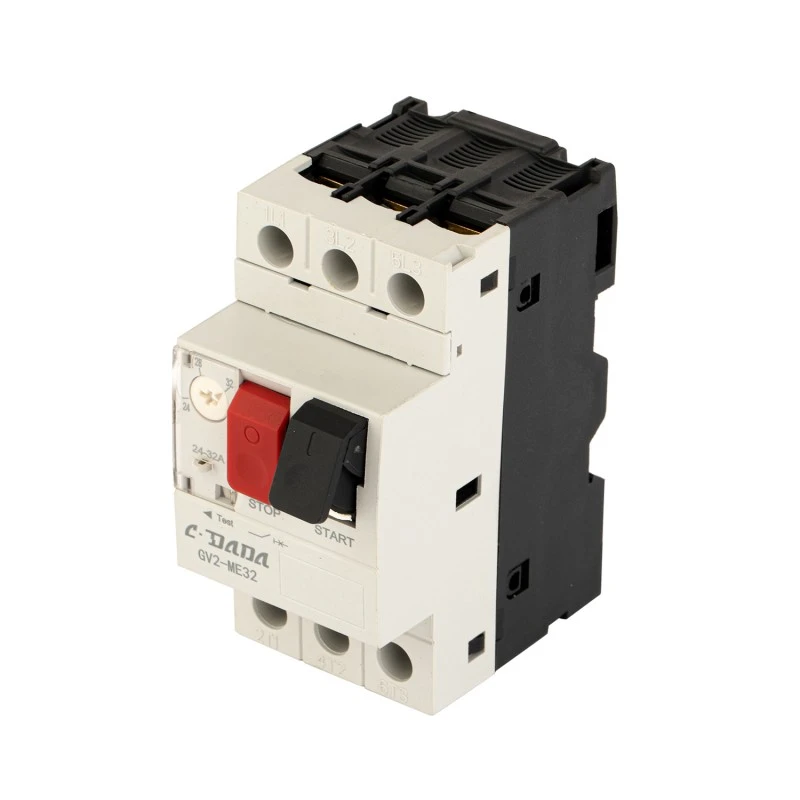

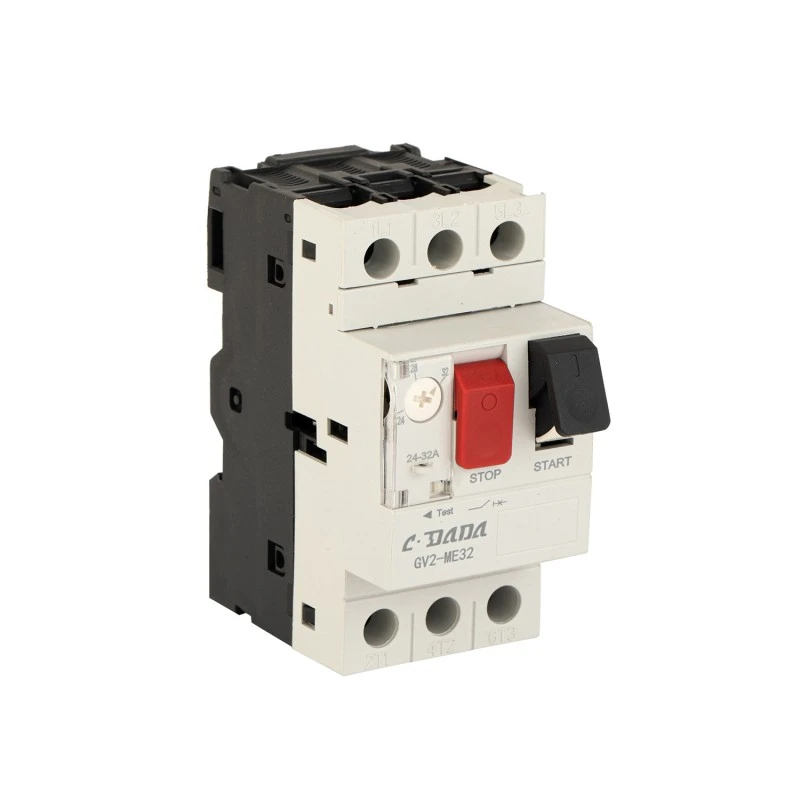

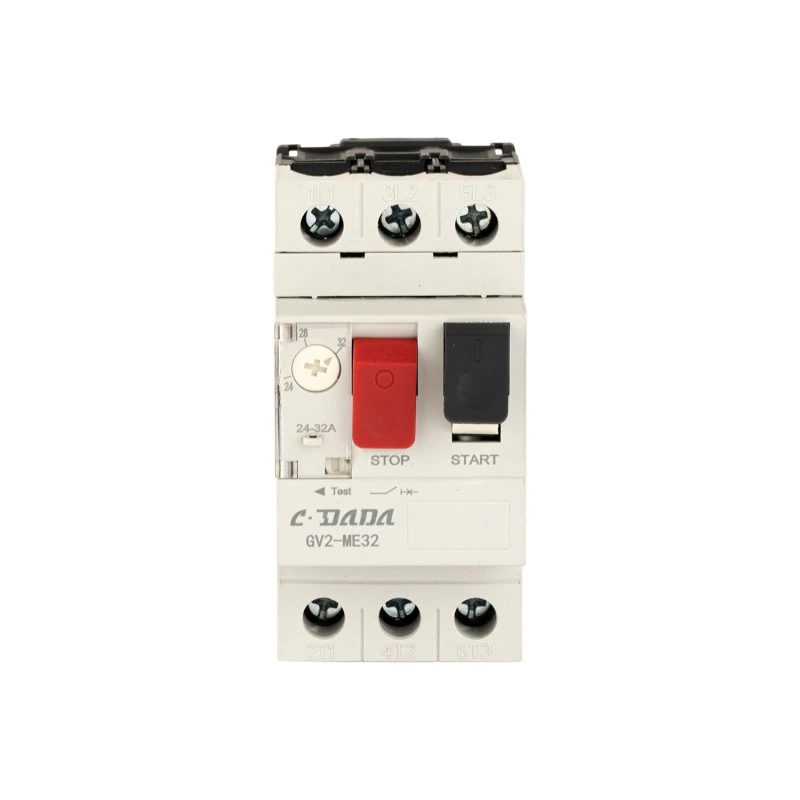

GV2 2P Mota Dziviriro Circuit Breaker

Rerutsa dziviriro yemota neCDADA GV2 2P Mota Dziviriro Circuit Breaker (MPCB) yakakwira-chaiyo, compact solution inogadzirwa neShanghai DADA Electric CO., LTD. uchishandisa inotevera-chizvarwa tekinoroji chikuva uye zvizere otomatiki kugadzirwa. Yakagadzirirwa imwe-phase kana maviri-phase motor circuits, iyo GV2 2P inobatanidza kuwandisa, pfupi-circuit, phase-kurasikirwa (ye3-phase application kana ichishandiswa mumaseti), uye mabasa ekuzviparadzanisa nevamwe mune imwe DIN-njanji yakaiswa mudziyo.

Iine inogadzirika kuseta renji ye 0.1A kusvika 32A, muripo wekupisa wekusiyana kwekushisa kwemukati, uye yakatemerwa insulation voltage ye690V, inova nechokwadi chekuchengetedzwa kwakavimbika kwemamota madiki mumapombi, mafeni, compressor, conveyor, uye HVAC masisitimu. Yakasimbiswa kuEC miyero, ine zviuru zana negumi zvemagetsi uye zvemagetsi mashandiro, uye akashongedzerwa nesarudzo yekuwedzera senge yekubatsira mabatiro, shunt kuburitswa, uye undervoltage kuburitswa, iyo CDADA GV2 MPCB inopa maindasitiri-giredhi kuita mune inochengetedza nzvimbo 2-pole fomati.

Zvinotaurwa Nezvakakosha

Model Series: GV2 2P MPCB

Mucherechedzo: CDADA | Mugadziri: Shanghai DADA Electric CO., LTD

Certification: CE

Mapango: 2P (yakanakira single-phase motors kana sechikamu che3-chikamu chekudzivirira set)

Kuisa Range Yazvino: 0.1A - 32A (inogadziriswa kuburikidza nedhiya)

Chiyero chechimiro: 32A

Rated Operating Voltage: 690V AC

Rated Insulation Voltage (Ui): 690V

Impulse Kutsungirira Voltage (Uimp): 6000V

Kushanda Frequency: 50/60Hz

Rwendo Kirasi: 10A (yakajairwa kune general-chinangwa mota)

Dziviriro Mabasa:

★ Thermal overload dziviriro

★ Dziviriro pfupi-yedunhu

★ Phase-kurasikirwa kuchengetedza* (*kana ichishandiswa mu 3-pole kumisikidza kana yakarongeka seti)

★  Kuzviparadzanisa nevamwe (kutyora kunooneka)

★ Yakavakwa-mukati tembiricha muripo

Mechanical Hupenyu: 110,000 mashandiro

Upenyu hweMagetsi (AC-3, 400V): 110,000 kushanda

Kusimbisa Torque: 1.7 N · m

Rudzi rweKushanda: Push-bhatani ON / OFF ine yakajeka rwendo chiratidzo

Kukwira: 35mm DIN njanji

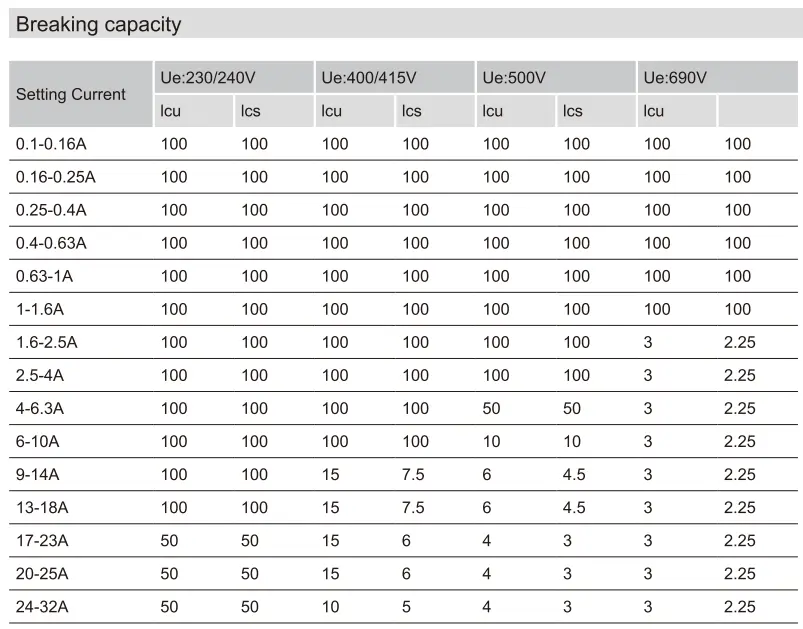

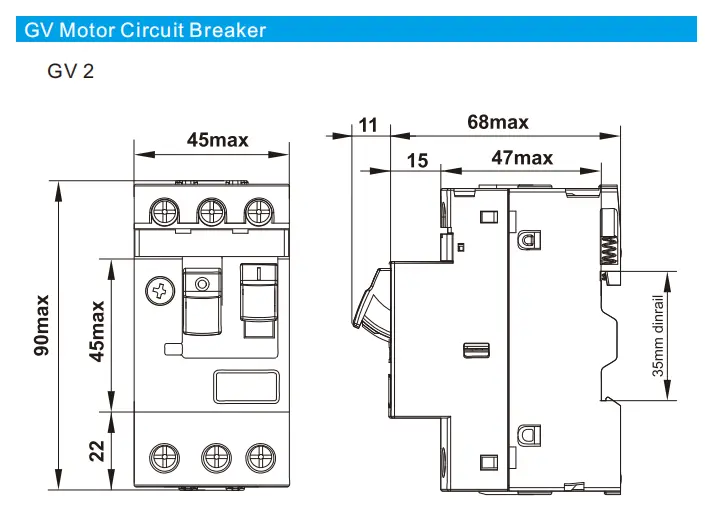

Technical Data sheet

Sei Kusarudza CDADA GV2 2P Mota Dziviriro Circuit Breaker?

★ All-in-One Motor Protection

Inosanganisa wedunhu breaker + thermal overload relay + isolator-inobvisa kudiwa kwezvinhu zvakasiyana.

★ Precision & Kugadzikana

Tembiricha-inodzoreredza nzira inovimbisa kutsika kwakafanana zvisinei nekuchinja kwemukati (semuenzaniso, maworkshop anopisa kana dzimba dzepasi dzinotonhora).

★ High Durability

110,000 mechanical / electric cycles-inodarika vakwikwidzi vakawanda mukuvimbika kwenguva refu.

★ Space-Saving 2P Dhizaini

Yakanakira compact control mapaneru, OEM muchina, uye retrofit mapurojekiti uko mapaneru real estate ane mashoma.

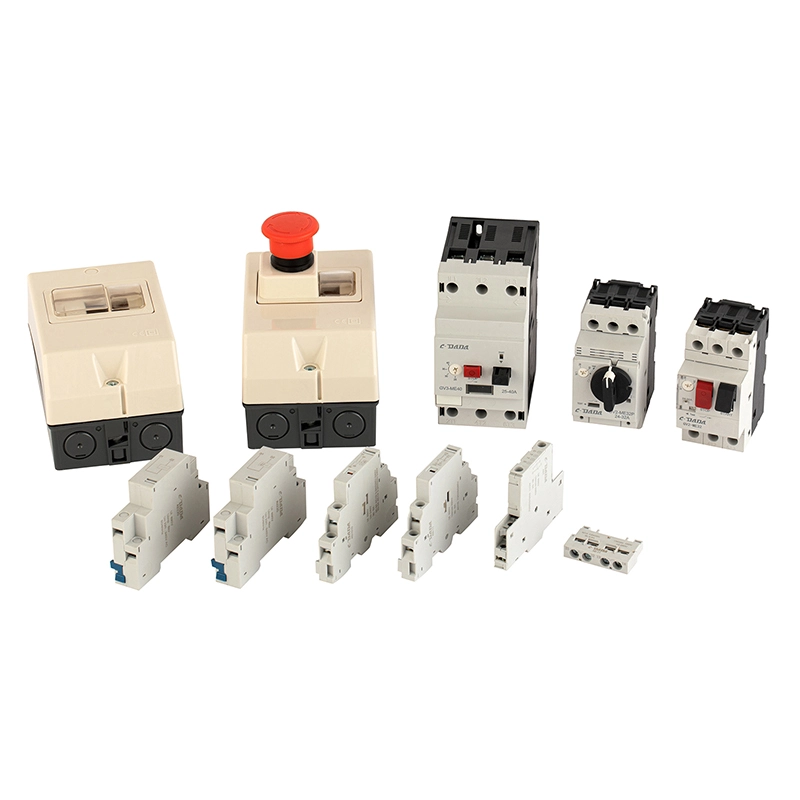

★ Full Accessory Ecosystem

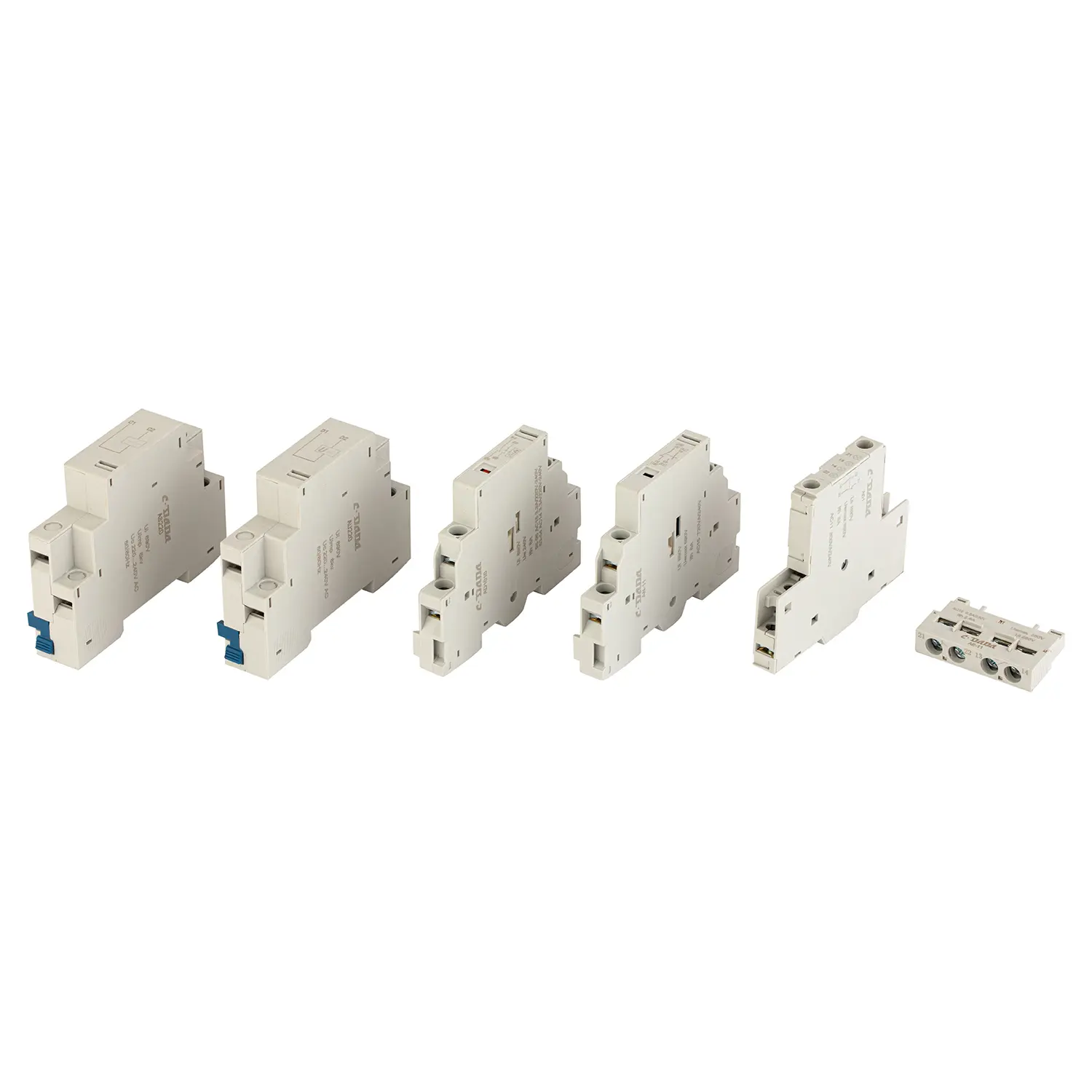

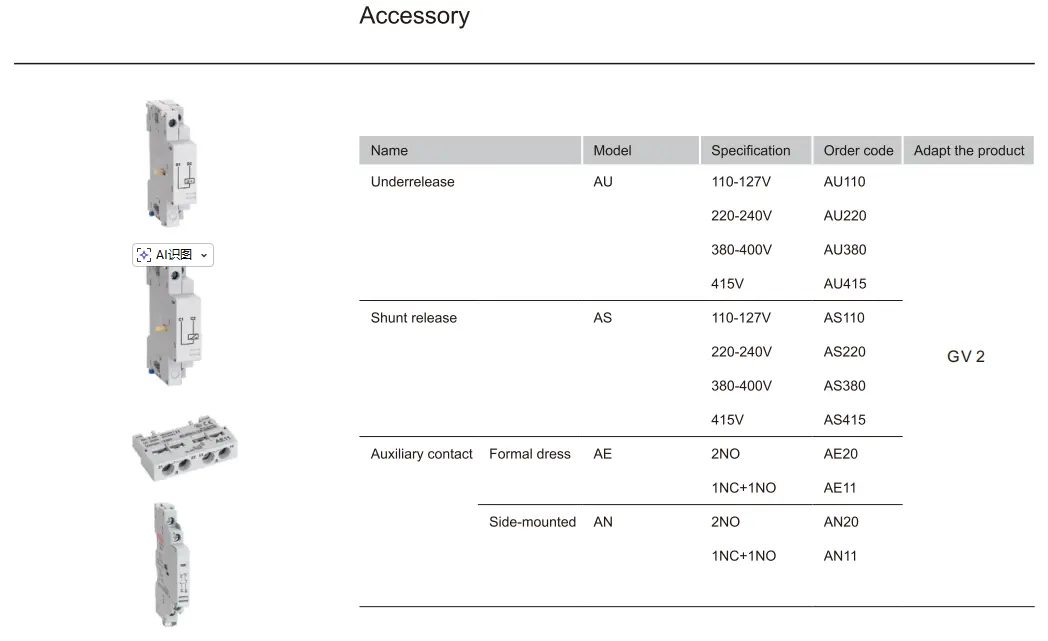

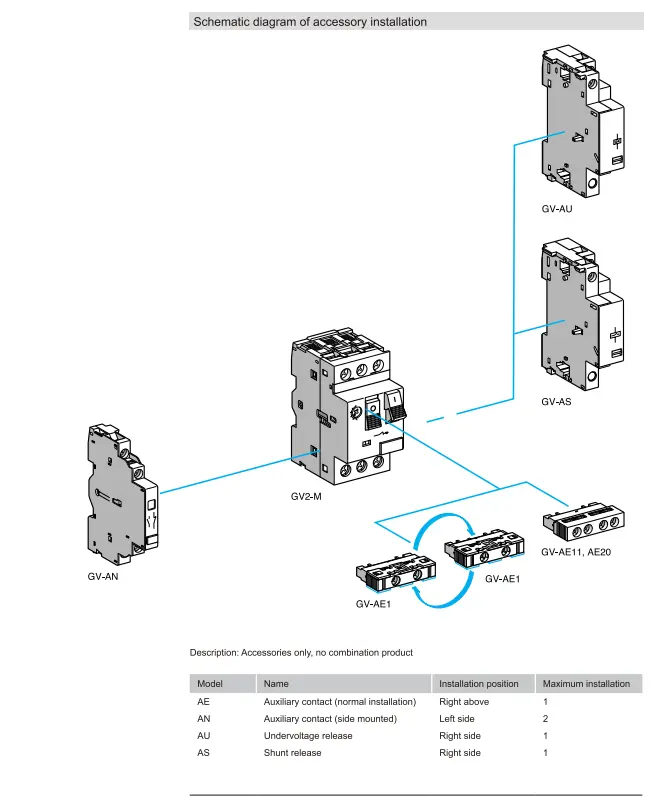

Inotsigira AE (yemberi yekubatsira), AN (padivi rekubatsira), AU (undervoltage kuburitswa), AS (shunt rwendo) -inogonesa kure kure kusaina, auto-kudzima, kana PLC kubatanidzwa.

★  Global Compliance

CE yakasimbiswa ne690V chiyero-inokodzera misika yeEurope, Asia, Africa, uye Latin America.

★ Consistency inovimbiswa kuburikidza neotomatiki yekugadzira michina, yakamisikidzwa maitiro ekushandisa, yakasimba inopinda yekuongorora zvinhu, in-process kuyedza, uye yekupedzisira 100% yekushanda bvunzo yemaparamita akakosha.

Typical Applications

Single-Phase Motors: Mapombi, magonhi egaraji anovhura, madiki compressor

OEM Michina: Packaging michina, chikafu chekugadzira michina

HVAC Systems: Fan coil zvikamu, zvidiki zvinotonhorera

Kuvaka otomatiki: Elevator vabatsiri, ventilation control

Retrofit Projects: Kutsiva fuse + thermal relays neMPCB yakabatanidzwa

Mibvunzo Inowanzo bvunzwa

Q1: Ndeupi musiyano uripo pakati peMPCB uye yakajairwa wedunhu breaker?

A1: A Motor Protection Circuit Breaker (MPCB) seGV2 inopa:

● Kugadziriswa kwekudzivirira kwemafuta ekuremerwa (kunoenderana nemota FLC)

● Magnetic short-circuit kudzivirira

● Kuonekwa kwekurasikirwa kwechikamu (mune 3P shanduro)

● Basa rekuzviparadzanisa nevamwe

→ Yakajairwa MCBs inongopa pfupi-sekiti uye yakagadziriswa yakawandisa kudzivirira-kwete mota-yakagadziridzwa.

Q2: Ko 2P GV2 inogona kudzivirira mota 3-chikamu?

A2: Kwete chete. Kune matatu-phase motors, unoda matatu maGV2 mauniti (imwe pachikamu) akarongeka pamwechete, kana kushandisa 3P MPCB. Nekudaro, 2P GV2 yakanakira single-phase motors kana control maseketi.

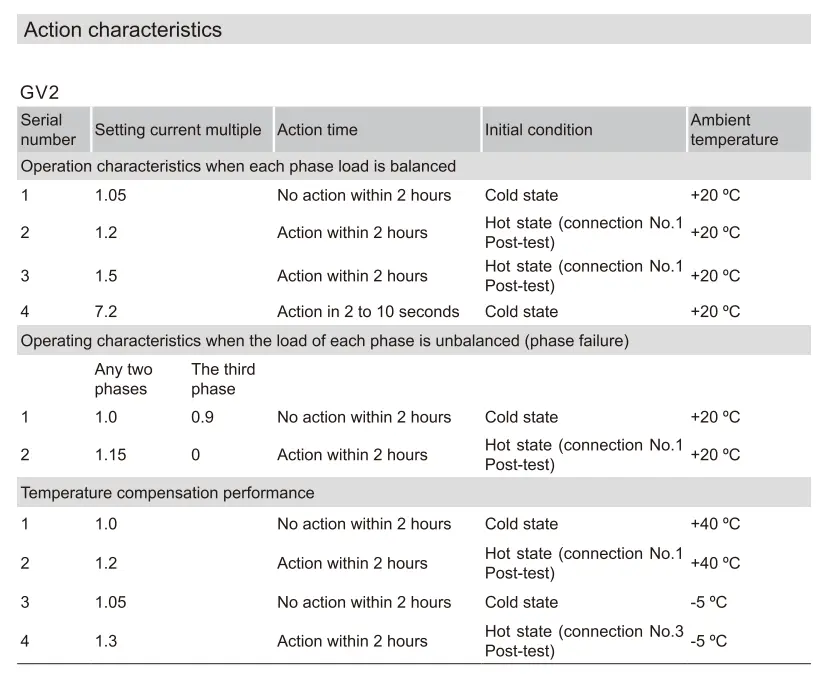

Q3: "Rwendo Kirasi 10A" inorevei?

A3: Inotsanangura kuti mupazaki anofamba sei achiremerwa. Kirasi 10A inoreva kuti ichafamba mukati memasekonzi gumi pa7.2 × kuseta ikozvino-yakanakira squirrel-cage motors isina yakakwirira yekutanga torque.

Q4: Inobhadhara chaizvo tembiricha?

A4: Hongu! Iyo bimetallic strip inobhadharwa nemafuta, saka kutsika kunoramba kwakarurama kunyangwe yakaiswa mudura re0°C kana 50°C yakavharirwa.

Q5: Sei uchisarudza CDADA GV2 pane mamwe mabhurendi?

A5: CDADA inopa:

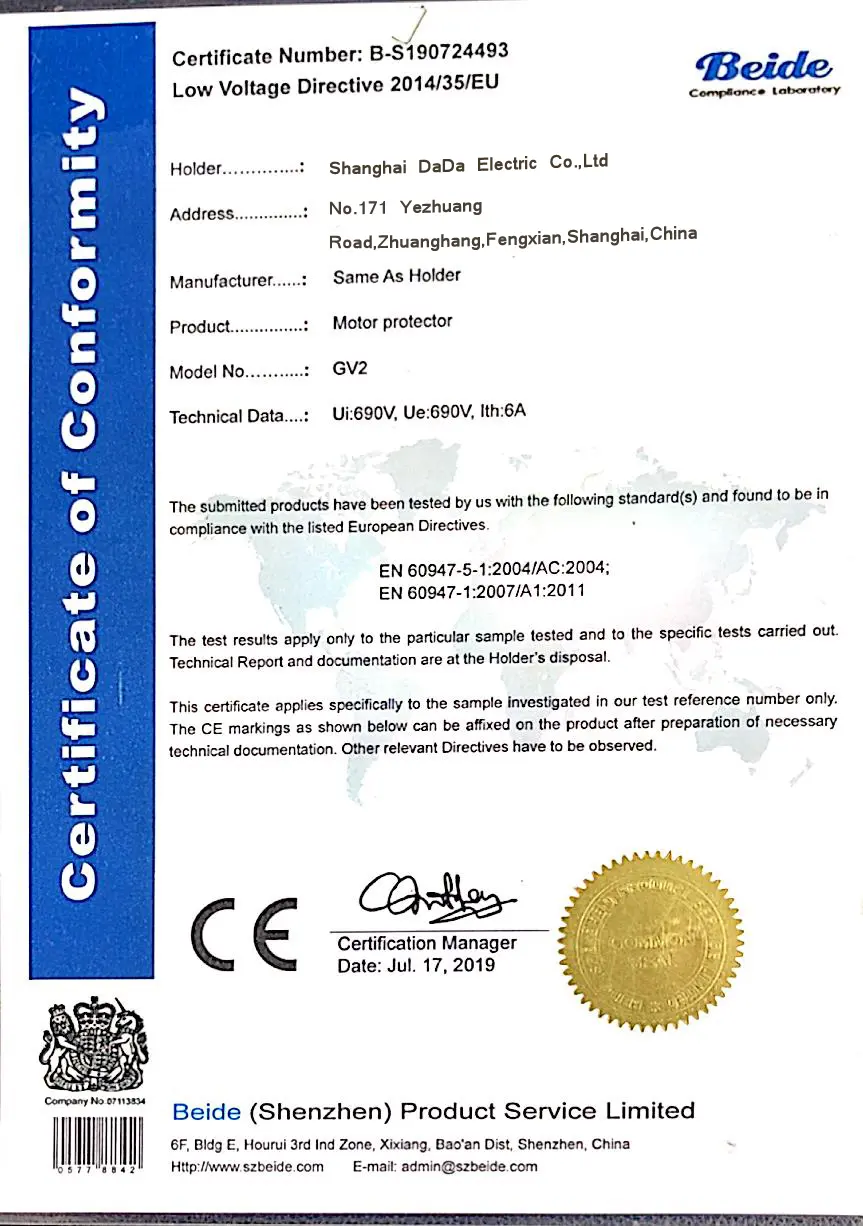

● Chokwadi CE certification nemishumo yebvunzo

● Kugadzira otomatiki → inowirirana mhando & yakaderera kuremara mwero

● Kukwana kwezviwanikwa (AE/AN/AU/AS)

● Makwikwi emitengo yeOEMs nevaparadzi

● Kurumidza kutsigirwa kwehunyanzvi uye zvinyorwa muChirungu
