F Contactor

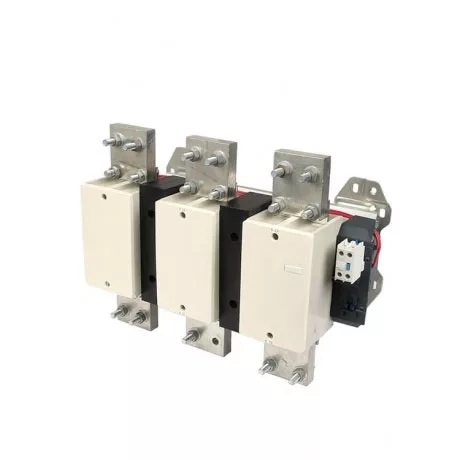

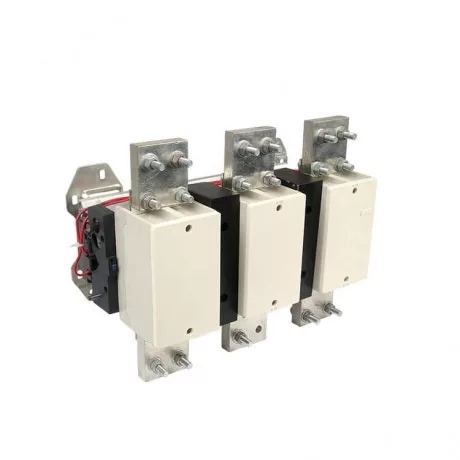

Sangana nezvinodikanwa zvesimba zvemaindasitiri makuru masisitimu ane CDADA LC1-F Series F Contactor-yepamusoro-ikozvino AC contactor inogadzirwa nemupi wehunyanzvi Shanghai DADA Electric CO., LTD. IEC / EN 60947-4-1 zviyero. Yakagadzirirwa inorema-basa kudzora mota uye simba switching, iyo LC1-F nhevedzano inotsigira yakayerwa kushanda ikozvino kubva 115A kusvika 1000A uye inodzora 3-phase squirrel-cage motors kusvika 500kW (pa380-415V, AC-3 basa) kana 670kW pa670kW.

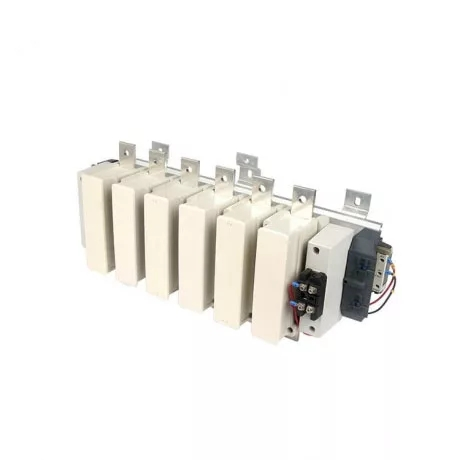

Inowanikwa mune 3-pole kana 4-pole masisitimu, yakanakira compressors, mapombi mahombe, macrusher, HVAC chiller, michina yemugodhi, uye zvidyarwa zvekuchenesa mvura. Iine AC-3 uye AC-4 mashandisirwo ratings, inobata ese akajairwa mota yekutanga uye inoda maapplication senge plugging kana inching. Certified with CE, yakarongerwa 690V insulation, uye inoshanda mumhepo tembiricha kubva -5 ° C kusvika +40 ° C, CDADA F Contactor inopa yakasimba, inochengetedza-inoshamwaridzika kuita kunyangwe munzvimbo dzakaoma kusvika 2000m urefu.

Zvinotaurwa Nezvakakosha

Series: F Contactor

Mucherechedzo: CDADA | Mugadziri: Shanghai DADA Electric CO., LTD

Chiyero: IEC/EN 60947-4-1

Certification: CE

Mapango: 3P kana 4P (munda-unosarudza pamhando dzakawanda)

Rated Operational Current (AC-3): 115A - 1000A

Mota Power Control (AC-3):

380/415V: 55kW – 500kW

660/690V: 80kW – 670kW

Mashandisirwo emapoka: AC-3 (motor inomhanya), AC-4 (plugging/inching)

Rated Insulation Voltage: 690V AC

Ambient Tembiricha: -5°C kusvika +40°C

Kureba: ≤ 2000m

Kukwidza: Yakatwasuka ± 5 °, Kukwidza Chikamu III

Coil Voltages (AC): 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

Max Conventional Heating Current (AC-1): Kusvikira 1200A

Technical data sheet

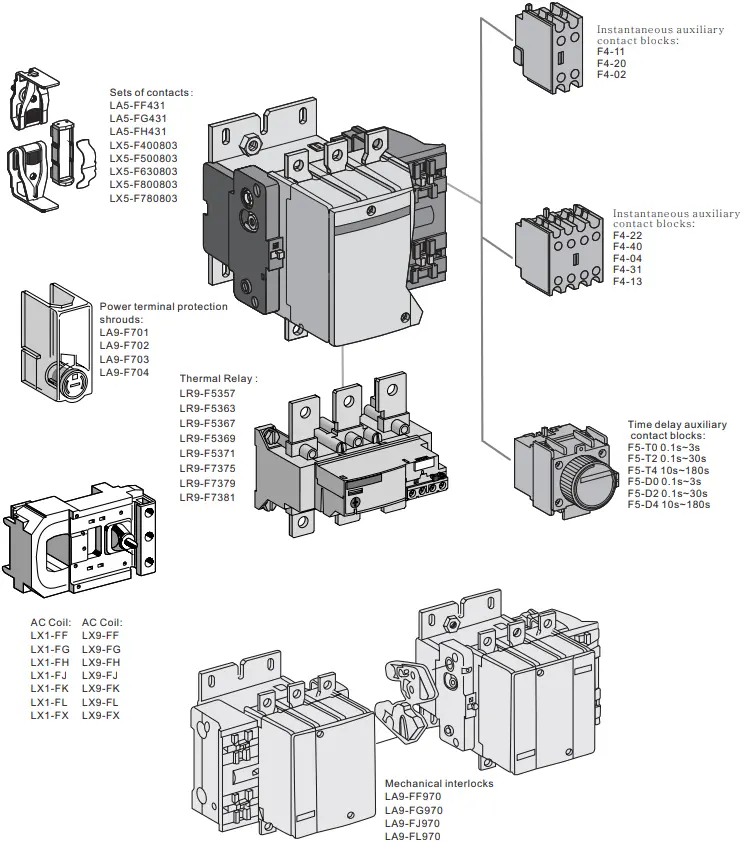

Accessories

Sei Sarudza CDADA F Contactor?

★ Yechokwadi Inorema-Duty Performance

Inobata anosvika 1000A uye 500kW+ mota-yakakwana kumigodhi, oiri & gasi, zvigayo zvesimbi, uye masisitimu masisitimu.

★ Global Voltage Compatibility

Yakasiyana siyana yeAC coil sarudzo (inosanganisira 415V, 480V, 600V) inovimbisa kubatanidzwa kusina musono muEuropean, North America, Middle East, uye Africa mapurojekiti.

★ AC-4 Yakatemerwa kune Inoda Cycles

Kusiyana nevanobatika, LC1-F inomira kudzokororwa kazhinji, braking, uye kumhanya-yakakosha kune cranes, elevator, uye extruder.

★ 4-Pole Flexibility

Chinja kwazvakarerekera pazvinenge zvichidiwa-yakanakira TT masisitimu, majenareta seti, kana mitoro inorema yemaindasitiri.

★ Robust Thermal & Arc Management

Yakagadziridzwa arc makamuri uye yakakwirira-conductivity mabatiro anovimbisa hupenyu hurefu hwemagetsi uye yakaderera kupisa chizvarwa pasi pemutoro unoramba uripo.

★ OEM & Panel Builder Yakagadzirira

Inoenderana neyakajairwa DIN njanji kana screw mounting, uye pairi zvakakwana neCDADA thermal overload relays kune yakazara mota starter mhinduro.

★ Tinodyara mari nguva dzose muR&D, tichitarisisa mwero wepasi rose uye mafambiro emusika, uye tinodyidzana nenyanzvi dzeindasitiri kusimudzira zvigadzirwa zvedu.

Typical Applications

Yakakura Mota Kudzora: Crushers, bhora zvigayo, centrifugal pombi

Simba & Zvishandiso: Zvidyarwa zvemvura / tsvina yemvura, magetsi emagetsi anobatsira

HVAC: Industrial chillers, kutonhora shongwe

Material Kubata: Conveyor mabhandi, bucket elevators

Marine & Offshore: Shipboard mota masisitimu

Renewables: Pumped hydro, biomass feed masisitimu

Mibvunzo Inowanzo bvunzwa (FAQ)

Q1: Ndeupi musiyano pakati peD uye F akatevedzana contactors?

A1:

● D Series (semuenzaniso, LC1-D): Kwechiedza kusvika pakati pebasa (kusvika ku95A / 45kW).

● F Series (LC1-F): Zvebasa rinorema maindasitiri (115A–1000A / 55kW–500kW +). → F akatevedzana ane akakurisa ekusangana, akasimbisa arc chute, uye yakakwirira-yenguva pfupi yekumira.

Q2: Ndinogona kushandisa 4P F contactor kuchinja kwazvakarerekera?

A2: Hongu. Iyo 4-pole vhezheni inobvumira kubviswa panguva imwe chete kwese 3 nhanho + kusarerekera-inodiwa mune imwe chengetedzo kana yekuzviparadzanisa application (semuenzaniso, jenareta shanduko).

Q3: Kuwedzeredza relay kuchiri kudikanwa here?

A3: Ndizvozvo. Iyo contactor inongochinja simba-haidzivirire kubva kune yakawandisa kana kurasikirwa kwechikamu. Gara uchibatana neyekupisa kana yemagetsi overload relay yekudzivirira mota.

Q4: "AC-4 yakayerwa" inorevei mukuita?

A4: Zvinoreva kuti musanganisi anogona kubata zvakachengeteka motor plugging (reverse braking) uye inching (pfupi kuputika) -inowanikwa muhoist, mashina, uye mamikisi. Izvi zvinokonzeresa kukwira kwepamusoro ikozvino; AC-4 rating inovimbisa kusimba kwekubata.

Q5: Sei uchisarudza CDADA F Contactor pamusoro pemhando dzepasirese?

A5: CDADA inopa:

● Genuine IEC 60947-4-1 kutevedza nemagwaro ekuedzwa

● Makwikwi emitengo pasina kukanganisa pasirivha-alloy contacts kana arc kudzvinyirira

● Yakazara coil voltage renji yekutengeswa kwenyika

● Kurumidza sampuli & kutakura kukuru kubva kuChina

● Rutsigiro rweOEM: manyorero etsika, kurongedza, uye hunyanzvi mafaira (CE declaration, wiring diagrams)
