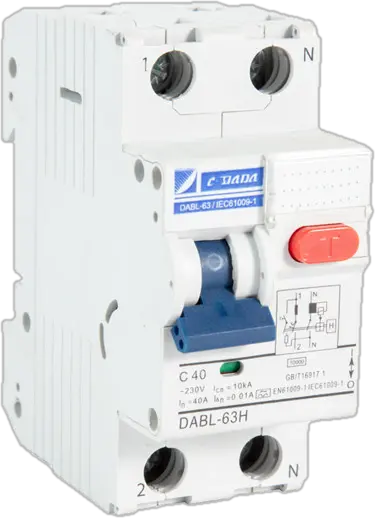

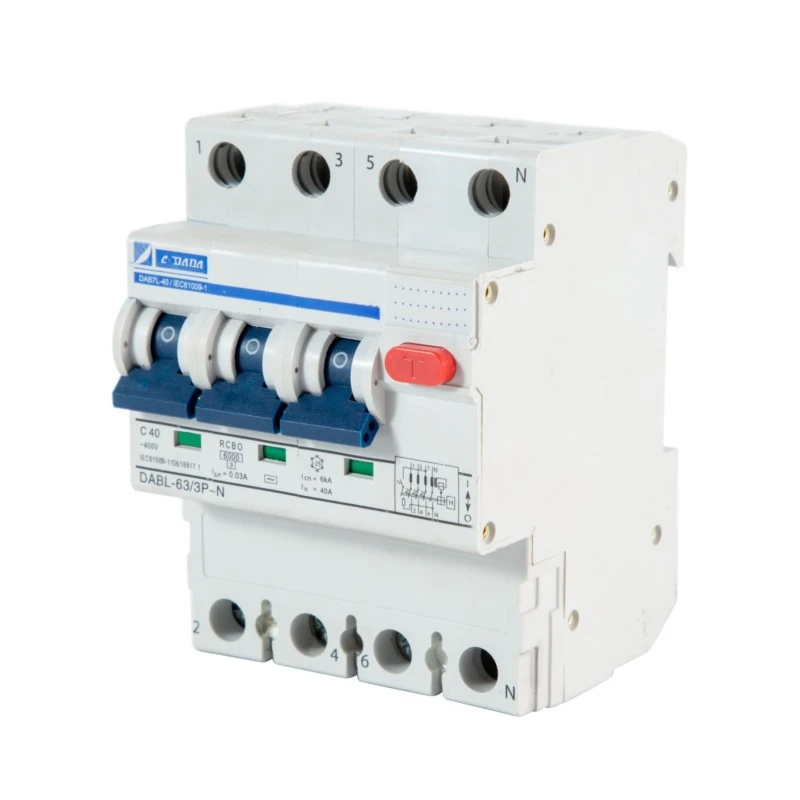

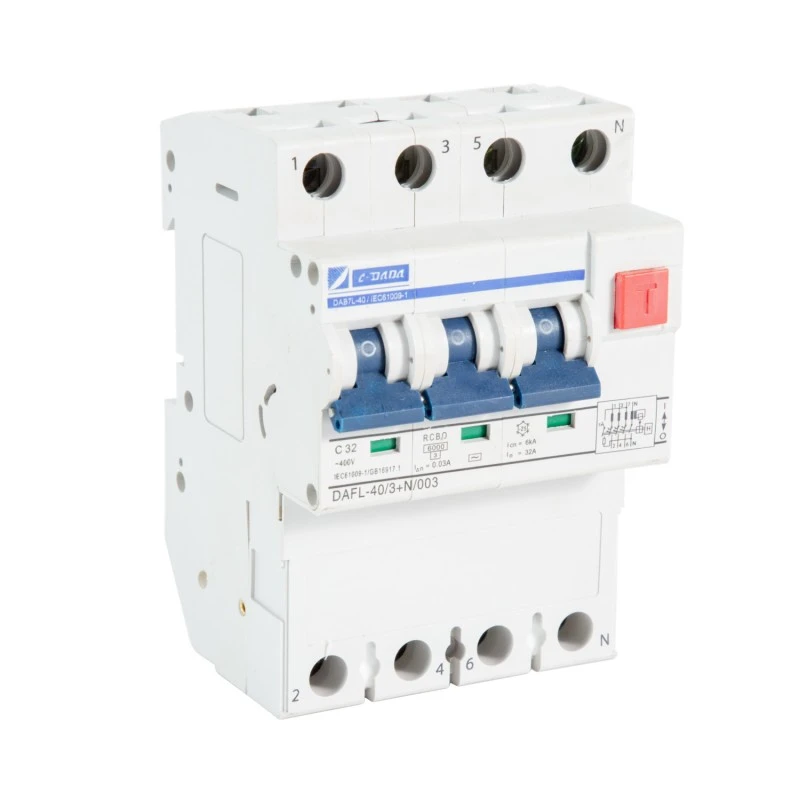

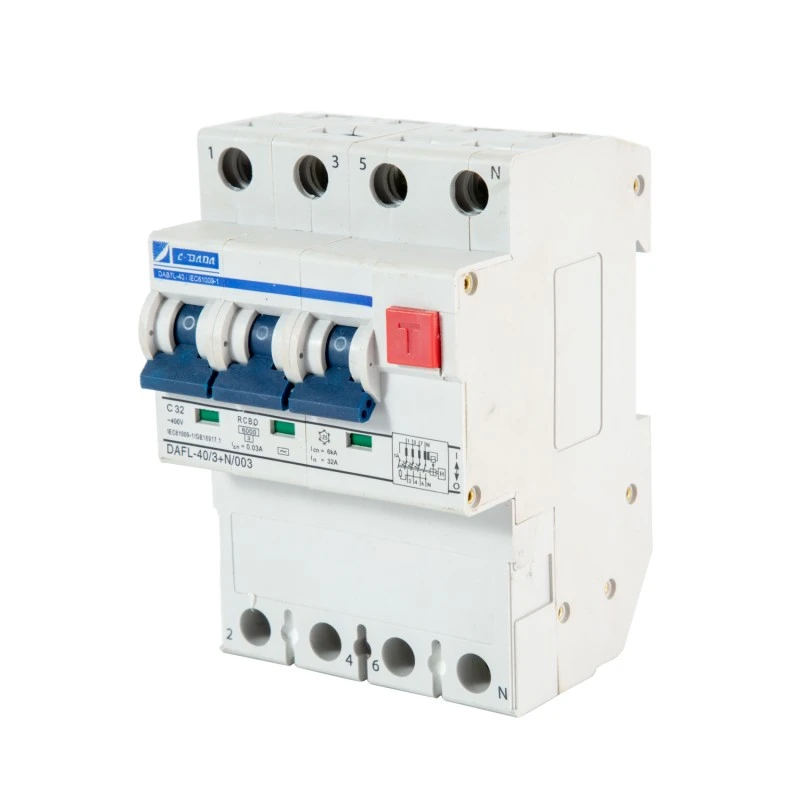

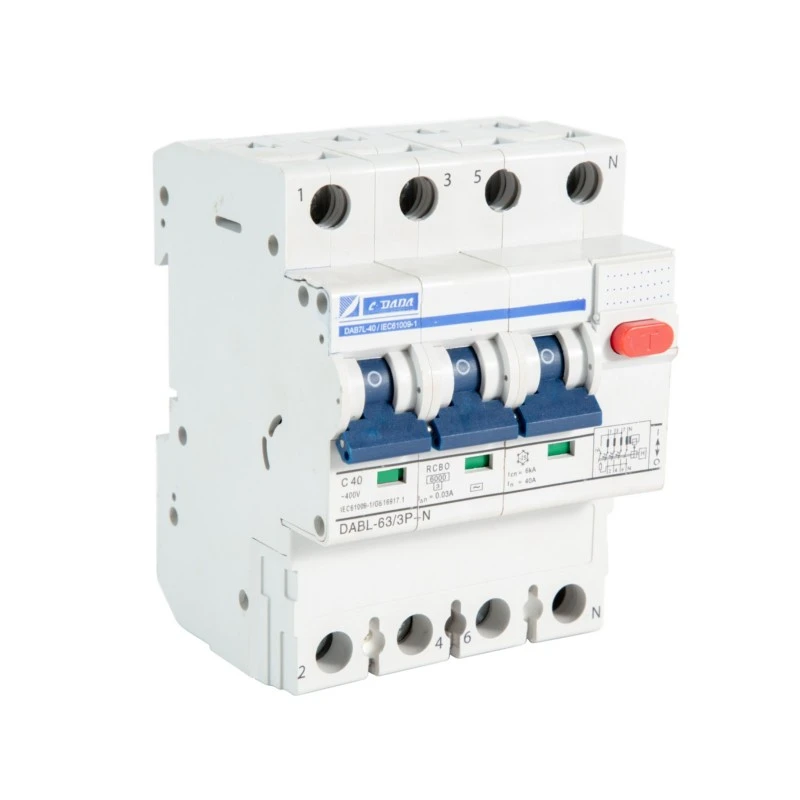

2P 4P Electromagnetic RCBO

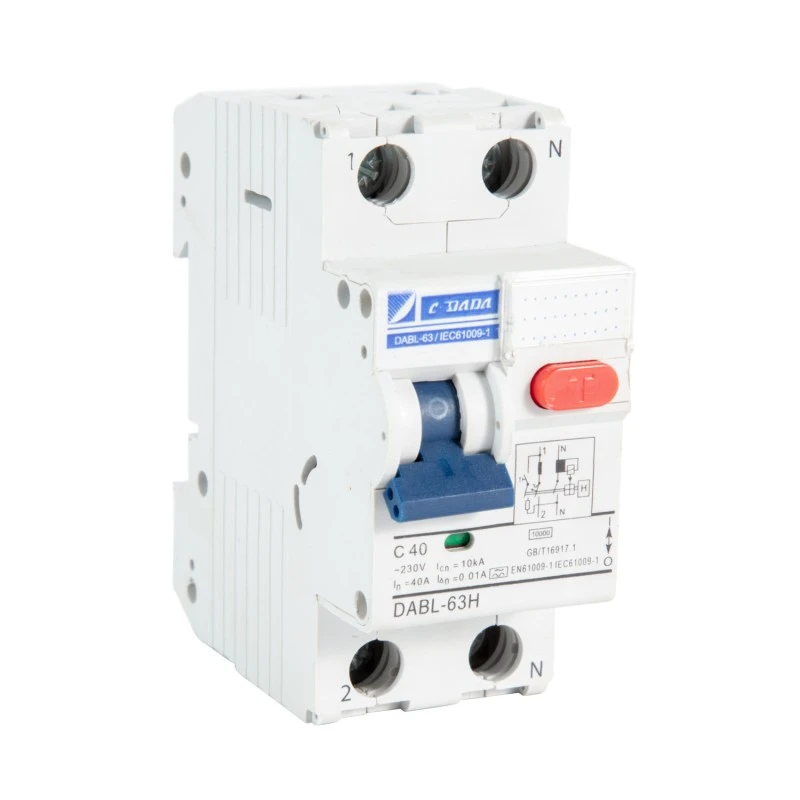

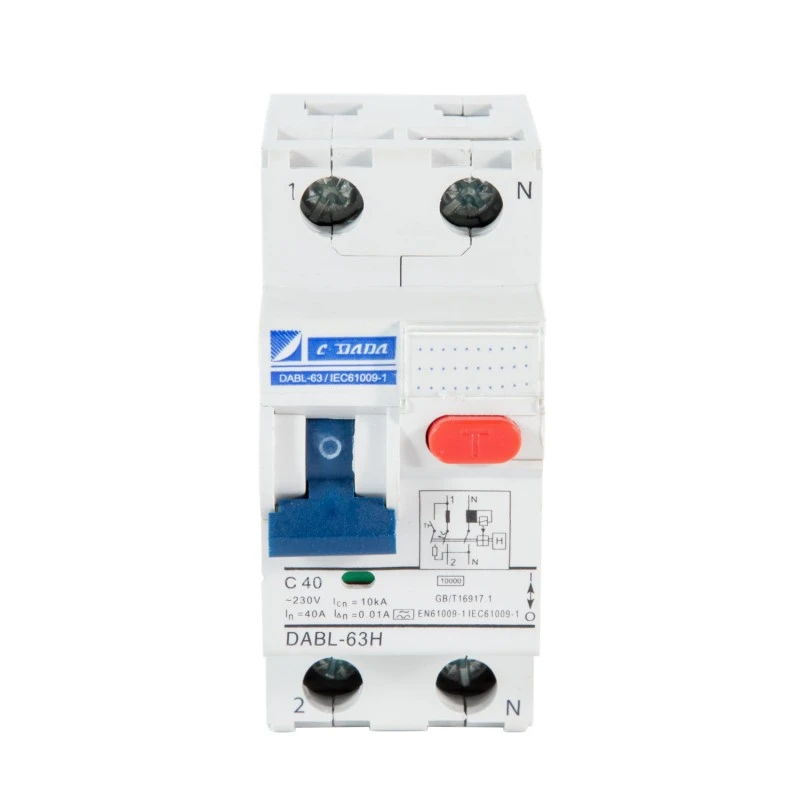

Nokuda kwekuchengetedzwa kusingakanganisi munzvimbo umo kuvimbika kwesimba kusina chokwadi, Shanghai DADA Electric CO., LTD. inopa iyo CDADA DABF-63 2P 4P Electromagnetic RCBO ndeyechokwadi 2P/4P yemagetsi yakasara yedunhu inotyora ine overcurrent dziviriro inoshanda isina chero zvinhu zvemagetsi kana kunze kwemagetsi. Yakagadzirirwa kuIEC zviyero, iyi RCBO inopa dziviriro nhatu dzakakosha mumudziyo mumwe:

★ Electric shock kudzivirira (kuburikidza ne30mA yasara kuona ikozvino),

★ Kudzivirirwa kwemutoro (thermal mechanism),

★ Short-circuit interruption (magnetic release, 6kA).

Yakakurudzirwa zvigadziko zvekunze, magaraji, dzimba dzepasi, uye kuisirwa kumaruwa, iyo DABF-63 inoramba ichishanda kunyangwe ikarasika isina kwayakarerekera, kudonha kwemagetsi, kana panguva yekudzima - mukana wakakosha pane dzimwe nzira dzemagetsi. Iine yakazvimirira yekubata chinzvimbo chiratidzo, -25 ° C kusvika + 40 ° C inoshanda renji, uye yakasimba terminal dhizaini, inopa kutadza-kuchengetedza kuita kwazvinonyanya kukosha.

Zvinotaurwa Nezvakakosha

Muenzaniso: DABF-63 Series

Type: Electromagnetic RCBO (Hapana zvemagetsi, hapana simba rekubatsira rinodiwa)

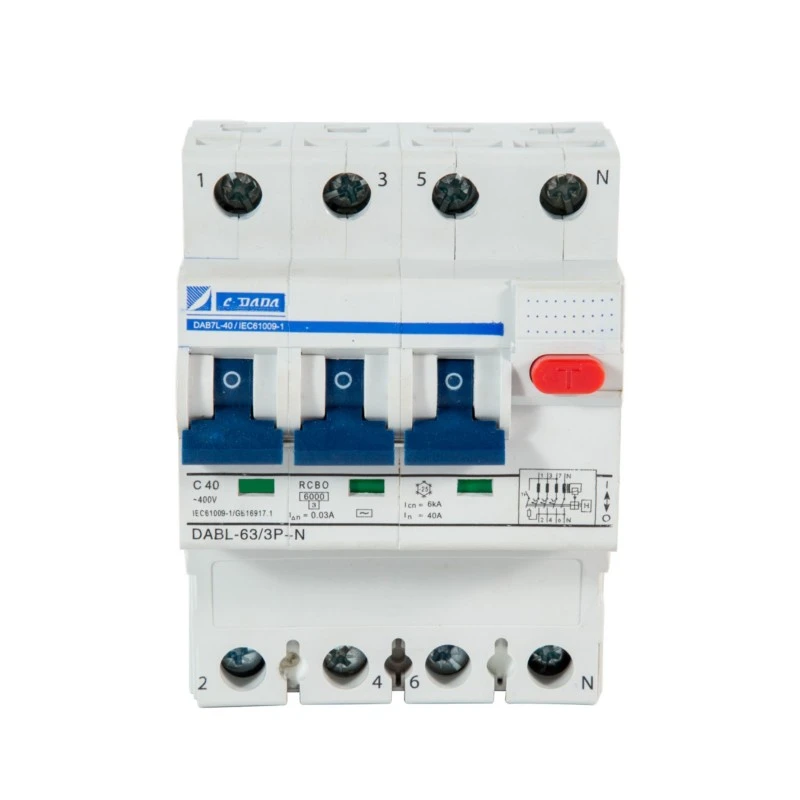

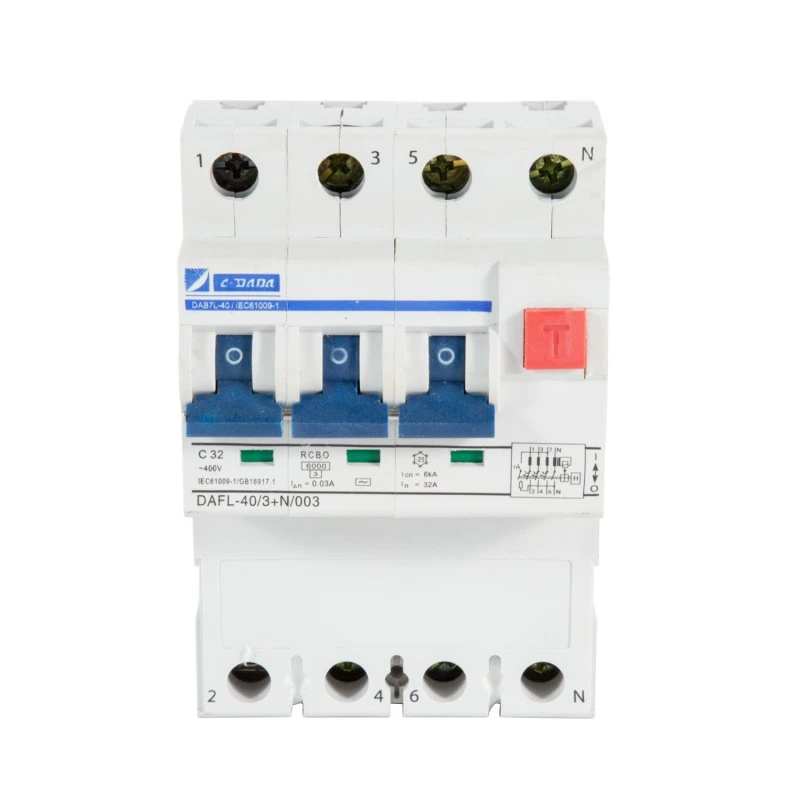

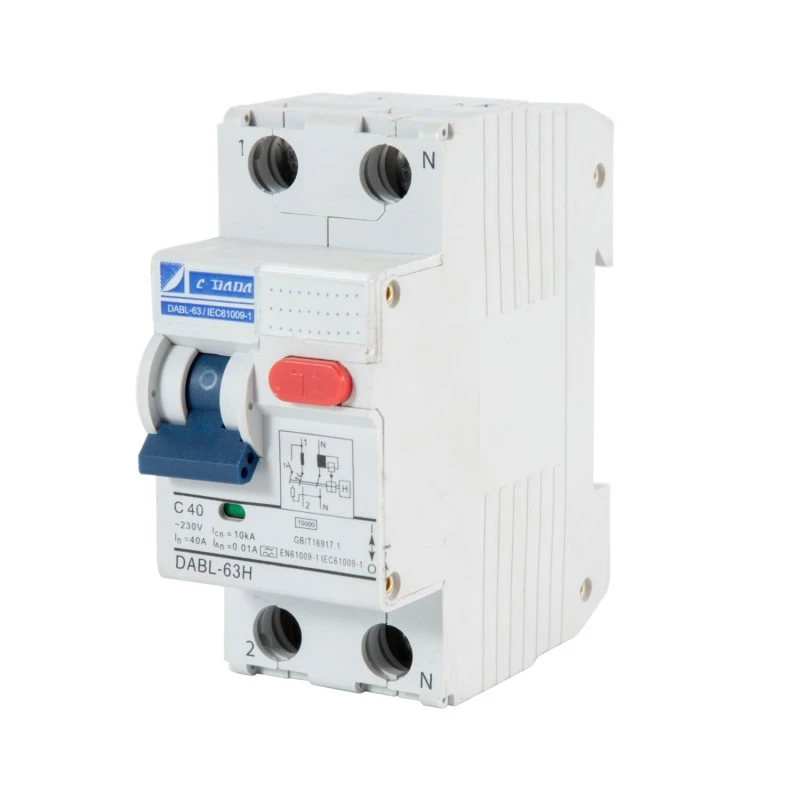

Mapango: 2P (1+N) kana 4P (3+N)

Yakayerwa Yazvino (Mu): 6–63A (yakajairika renji yakavakirwa paDAB7 papuratifomu)

Residual Sensitivity (I△n): 30mA (yakajairwa kuzvidzivirira; 100mA sarudzo)

Kwete-Kufamba Parizvino: 0.5 × I△n

Rwendo Nguva paI△n: ≤ 0.1s

Kuputsa Kukwanisa: 6kA

Dziviriro Mabasa:

Residual current (leakage) - electromagnetic sensing

★ Overload - bimetallic thermal

★ Short circuit - magnetic release

★ Kushanda Tembiricha: -25°C kusvika +40°C

Kukwidza: 2-module yakafara pane 35mm DIN njanji

Zvinokosha:

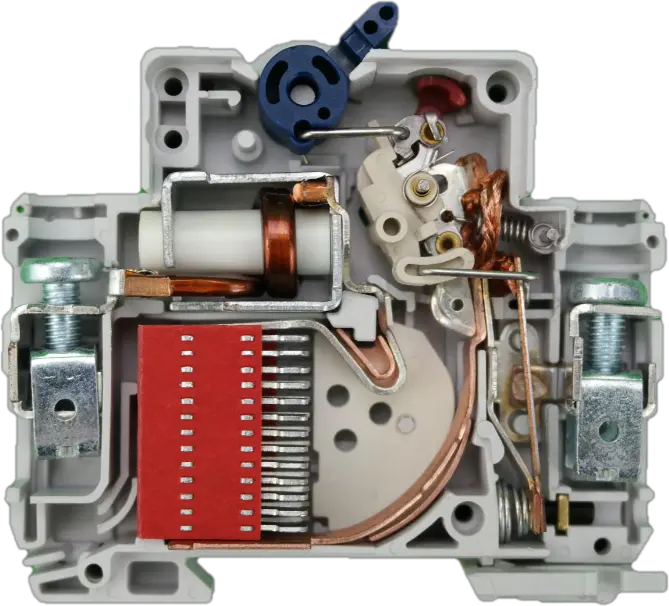

★ Pure electromagnetic differential mechanism

★ Yakazvimirira kuonana chinzvimbo chiratidzo (yechokwadi ON/OFF/rwendo mamiriro)

★ "TEST" bhatani remwedzi nemwedzi mashandiro ekutarisa

★ Notched terminal clamps → kudzikisa kurasikirwa kwemafuta, kubata kwakasimba

★ Silver-bearing contacts → high durability, low resistance

★ Cross-functional screws (+/-) → kugadzika nyore

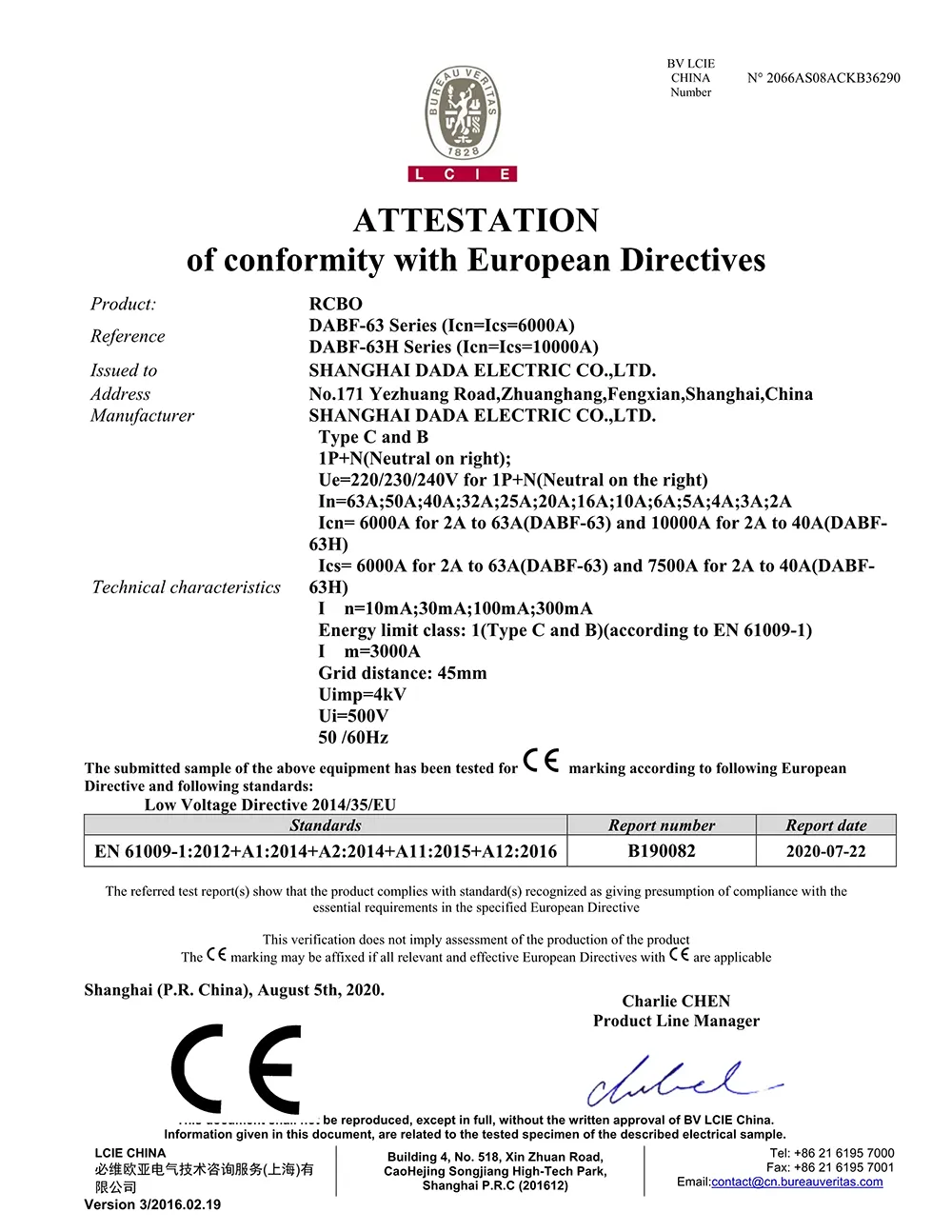

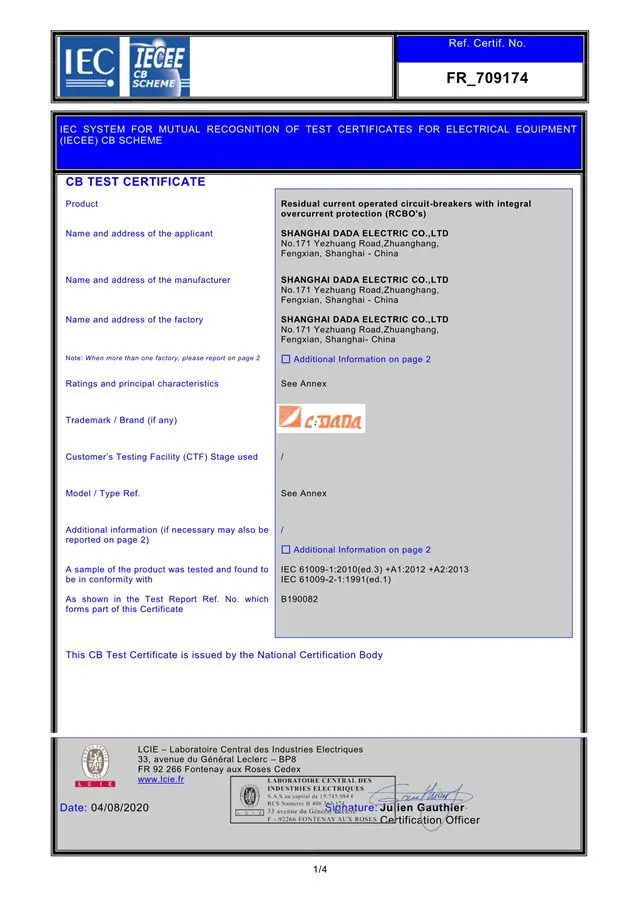

★ Certifications: CE, CB (RoHS inoenderana zvinhu)

Sei Kusarudza CDADA Electromagnetic RCBO?

★ Inoshanda Pasina Simba - Ever

Kusiyana nemagetsi eRCBOs, 2P 4P Electromagnetic RCBO yedu haidi tambo yemagetsi kuti ione kubuda—kuvimbisa kuchengetedzwa panguva yekutadza kushanda, brownout, kana kupera zvachose.

★ Yakanakira Harsh kana Remote Nzvimbo

Yakakwana kunzvimbo dzekumaruwa, nzvimbo dzekuvaka, mapurazi, tunnels, uye matunhu ane magidhi asina kugadzikana uko michina yemagetsi inogona kusashanda.

★ Kutadza-Kuchengeteka

Hapana semiconductors = hapana kuchembera, hapana zvikanganiso zvesoftware, hapana EMI senitivity. Ingoratidzwa yemagetsi fizikisi.

★ Clear Operational Status

Iyo yakazvimirira yekubata chiratidzo inoratidza chaiyo yekuonana nyika-yakakosha pakugadzirisa uye kuchengetedza ongororo.

★ Yakakwana & Yakavimbika

2-module saizi inochengetedza nzvimbo yepaneru, nepo sirivheri-alloy mabhatani uye akasimba materminal anovimbisa hupenyu hurefu hwebasa.

★ Global Compliance

Yakasimbiswa kuIEC, CE, uye CB zviyero-yakavimbika kune kunze kwenyika uye mapurojekiti epasi rese.

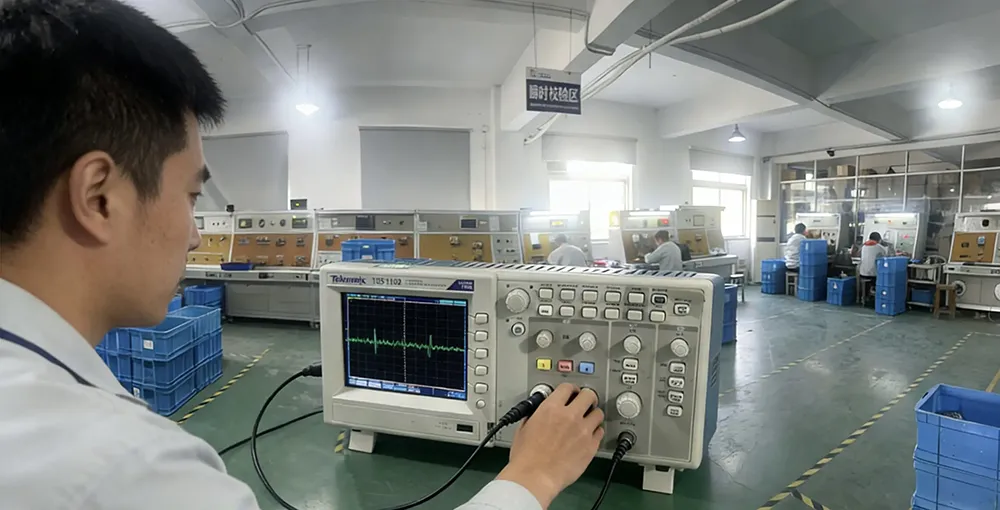

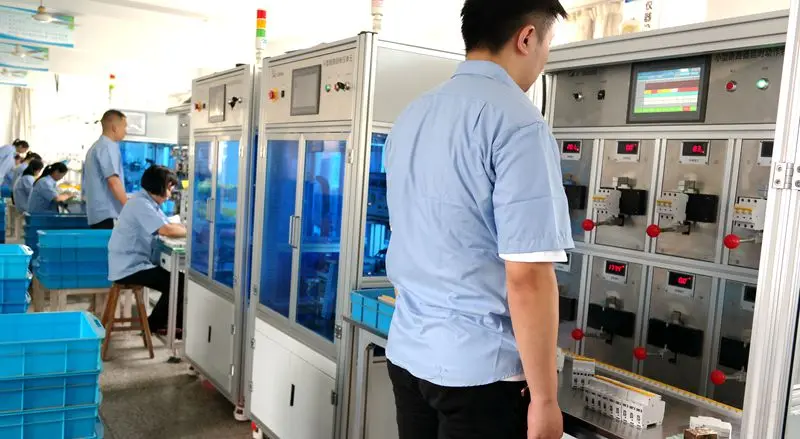

★ Sezvo iri mutemo wedu kuti 100% iongorore zvigadzirwa zvose zvinosiya nzvimbo yedu, tinogona kuvimbisa nechokwadi chakakwana kuti chigadzirwa chinoshanda 100% chakarurama chisati chasiya nzvimbo yedu.

★ Ticharamba tichivaka hunyanzvi hwedu hwetekinoroji nekudyara mumidziyo, maitiro, vanhu, uye zvitupa zvinozoratidzwa muchigadzirwa chedu uye pakupedzisira mukugutsikana kwevatengi vedu.

Typical Applications

Mapurojekiti eMagetsi ekumaruwa

Kunze Sockets & EV Kuchaja Mapoinzi (basic layer)

Magaraji, Basement & Workshops (inonyorova, nzvimbo dzinotonhora)

TT Earthing Systems (apo kusarerekera kwakashata kwakashata)

Backup Circuits & Emergency Panels

Mibvunzo Inowanzo bvunzwa

Q1: Ndeupi musiyano pakati pemagetsi uye emagetsi RCBOs?

A1:

Q2: Iyi RCBO inopa kudzivirira kwekuvhiya here?

A2: Kwete. Chokwadi electromagnetic RCBOs haibatanidzi varistors kana surge kudzvinyirira-izvo zvinoda zvigadzirwa zvemagetsi. Kana kudzivirira kwekuvhiya kuchidiwa, batanidza neSPD yakaparadzana (surge protective device).

Q3: Ko 30mA inokwana kuchengetedza kuvhunduka?

A3: Hongu. 30mA ndiyo IEC yakajairwa chikumbaridzo chekuchengetedza hupenyu kubva pakubata zvakananga mumaseketi ekugara uye ekutengesa.

Q4: Inogona kushandiswa seyo huru yekuchengetedza mari?

A4: Hongu-ine 6kA kuputsa simba, DABF-63 inogona kushanda sekudzivirirwa kunouya mumabhodhi maduku ekugovera, kunyanya muTT systems.

Q5: Sei uchisarudza CDADA yemagetsi RCBO?

A5: CDADA inopa:

● Genuine electromagnetic dhizaini (hapana zvakavanzika zvemagetsi)

● Chokwadi 0V kushanda kugona

● 2-module compact size-kashoma kumhando dzemagetsi emagetsi

● Yakazvimirira yekuonana chiratidzo chekuchengetedza kuchengetedza

● Global certifications (CE / CB) uye OEM-yakagadzirira kutsigirwa
