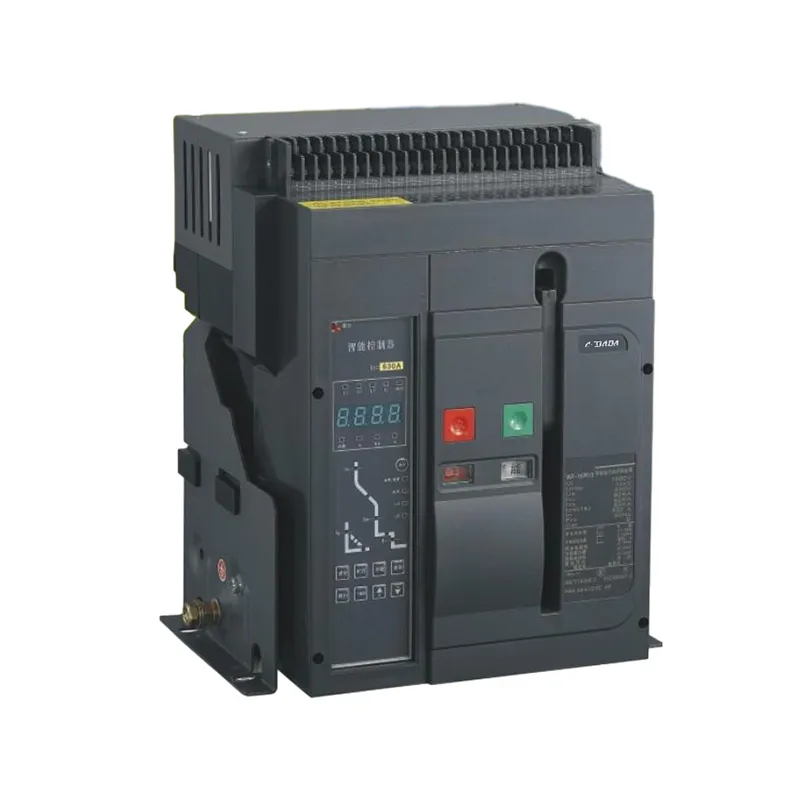

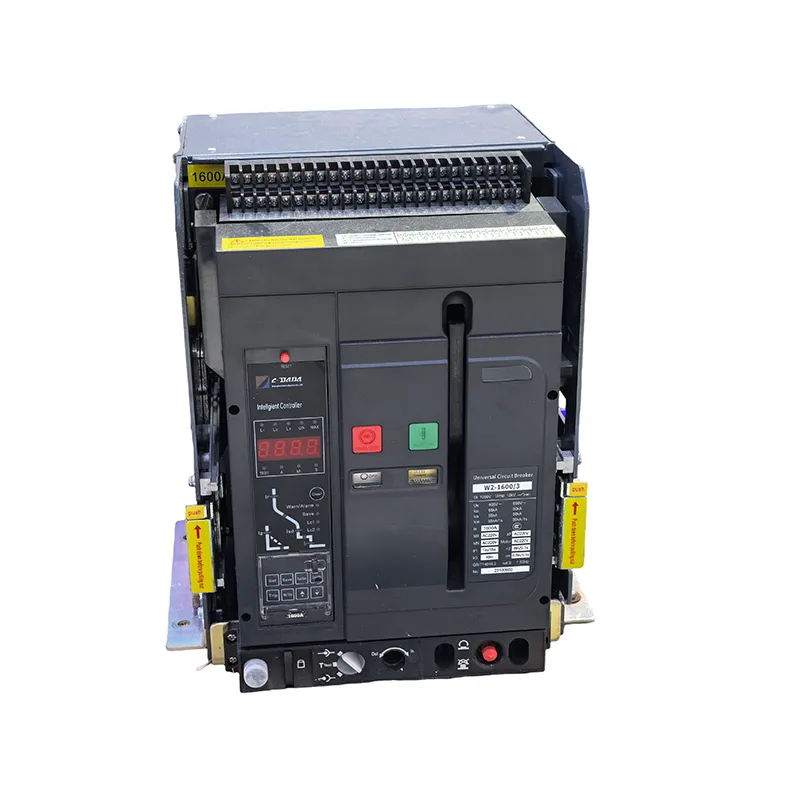

1600A Air Circuit Breaker
Model:DAW2-1600 Series
CDADA inogadzira yakavimbika ye1600A Air Circuit Breaker, iri CB-yakasimbiswa nekudzivirira kwakangwara, yakavakirwa inorema-basa reindasitiri simba rekugovera zvinodiwa. Yakagadzirwa nemhando yepamusoro-giredhi uye kuvaka kwakasimba, iyi mhepo yedunhu breaker iri nyore kushandisa uye kuchengetedza, inokodzera musono mumaindasitiri emagetsi masisitimu. Ndiyo sarudzo yepamusoro yekutengesa uye yeOEM kutenga, kuendesa yakagadzikana, yakavimbika kuita kune ese maindasitiri ekuchengetedza simba zvinodiwa.
CDADA ifekitari ine hunyanzvi inogona kupa 1600A Air Circuit Breaker (DAW2-1600 Series), yakanakira kutenga zvinhu zvakawanda, ine CB certification uye kutevedza mitemo yeIEC60947-2. Inoshanda kune AC 50Hz, 690V network, ichipa chaiyo yakawandisa, pfupi-circuit, undervoltage uye leakage dziviriro.
Yakagadzirirwa kushandiswa kwemaindasitiri, inotsigira kutarisisa kure, iri nyore kuisa, uye inoenderana nevanogovera 'zvido zvekugara kwakadzika-voltage switchgear.
Chigadzirwa Parameter (Kutsanangurwa)
Muenzaniso: DAW2-1600 Series
Yakatemerwa Frame Yazvino (Inm): 1600A
Yakarongwa Yazvino (Mu): 200A / 400A / 630A / 800A / 1000A / 1250A / 1600A
Rated Insulation Voltage (Ui): 690V
Rated Kushanda Voltage (Ue): 400V / 690V
Kutevedzera Maitiro: IEC 60947-2
Dziviriro Zvimiro: Kuwedzeredza, Dunhu Pfupi, Undervoltage, Ground Fault (ine inosarudzika leakage transformer)
Kukurukurirana: Vhura protocol yekubatanidza fieldbus (inotsigira "mana kure" mabasa)
Isolation Symbol: “-x_”
|
Model |
DAW2-1600 |
|||||||
|
Yakatemerwa ikozvino yegoko furemu giredhi Inm (A) |
1600 |
|||||||
|
Rated current ln (A) |
200,400,500,630,800,1000,1250,1600 |
|||||||
|
Rated operating voltage Ue (V) |
AC400,AC690 |
|||||||
|
Kushanda frequency (Hz) |
50Hz/60Hz |
|||||||
|
Rated insulation voltage Ui (V) |
1000 |
|||||||
|
Rated impact tolerance voltage Uimp(kV) |
12 |
|||||||
|
Simba frequency kushivirira voltage U(V)1min |
3500 |
|||||||
|
Nhamba ye |
3, 4 |
|||||||
|
N-pole yakatemerwa ikozvino Mu(A) |
100%cln |
|||||||
|
Shandisa Category |
GB14048.2 |
B |
||||||
|
Yakatemerwa muganho mupfupi wedunhu kutyora kugonaLcu (kA) (inoshanda kukosha) |
AC400V |
65 |
||||||
|
AC690V |
50 |
|||||||
|
|
AC400V |
55 |
||||||
|
Rated ipfupi redunhu kutyora kugona |
AC690v |
42 |
||||||
|
LCS (kA) (kukosha kunoshanda) |
AC400V |
143 |
||||||
|
AC690V |
105 |
|||||||
|
Rated short circuit connection kugona |
AC400V |
50 |
||||||
|
AC690v |
42 |
|||||||
|
Nguva yakazara yekutyora (hapana kumwe kunonoka) (MS) |
25 |
|||||||
|
Nguva yekuvhara (MS) |
Max 70 |
|||||||
|
Upenyu hwemagetsi (nguva) |
AC400V |
ln=200A~630A |
1500 |
|||||
|
Mu=800A~1250A |
1000 |
|||||||
|
Mu=160OA |
800 |
|||||||
|
AC690v |
ln=200A~630A |
100o |
||||||
|
ln=80OA~1250A |
650 |
|||||||
|
ln=1600A |
500 |
|||||||
|
Mechanical hupenyu (nguva) |
Kuchengetedza mahara |
15000 |
||||||
|
Iva nekugadzirisa |
20000 |
|||||||
|
Dimensions (kufara X kureba X kudzika)mm |
Fixed type |
3P |
260×310×240 |
Dhirowa mhando |
3P |
275×345×330 |
||
|
4P |
330×310×240 |
|
4P |
345×345×330 |
||||
Chigadzirwa Chimiro uye Chishandiso

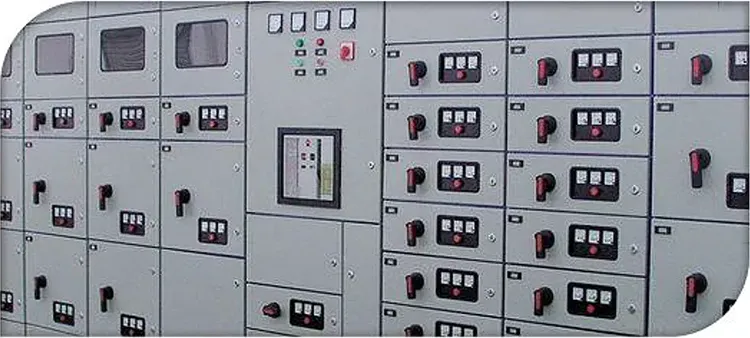

Iyo CDADA 1600A Air Circuit Breaker inokunda mune zvinorema-basa zvikumbiro semagetsi emagetsi, nzvimbo dzedata, uye maneja maneja. Mutongi wayo ane hungwaru anogonesa kusarura kwakaringana, kuderedza nguva-yakakosha kune vatengi kukoshesa kugadzikana kwegidhi. Iine IP20-yakatemerwa yakavharirwa uye modular dhizaini, zviri nyore kubatanidza mune iripo switchgear mapaneru.
Makiyi Zvakanakira:
★ 5-gore rekushanda hupenyu pasi pemutoro wakakwana
★ Optional leakage dziviriro kuitira kuchengetedzwa kwakawedzerwa
★ Inotsigira kudzivirira mota (≤1600A modhi)
★ Infrequent switching kugona kwemota kutanga-up
Zvinyorwa zvekugadzira
Yakagadzirwa neSHANGHAI DADA ELECTRIC CO., LTD., Yese 1600A ACB inoedzwa zvakanyanya kupisa uye dielectric. Yedu otomatiki yekugadzira mutsara inovimbisa ± 2% kushivirira pane nzendo marongero-anoshanda egeneric vakwikwidzi. Iyo aruminiyamu alloy imba inopa yakanyanya kupisa kupisa, nepo sirivheri-yakapfatwa mabatirwo anovimbisa kushomeka kwekufamba kwenguva.
Kuenzaniswa neyakajairwa breakers, CDADA zvikamu zvinopa:
★ 30% nekukurumidza kupindura kune zvikanganiso zvepasi
★ Dual-certification kugadzirira (CE pakukumbira)
★ Tsika yekuisa mazita & kurongedza kune yakasarudzika-label vatengi
Sei Dada's 1600A Air Circuit Breaker Inokunda Vakwikwidzi
Kana tichienzaniswa nevakwikwidzi, chigadzirwa chedu chinopa akasiyana mabhenefiti.
Mari yakawanda - inoshanda pasina kupira mhando.
Inokurumidza kupindura nguva kana paine kukanganisa kwemagetsi.
Iyo yakazara mushure-yekutengesa sevhisi system.
Benefit: Inobatsira vatengi kuita sarudzo ine ruzivo, kusarudza chigadzirwa chinosanganisa kushanda kwepamusoro, kuvimbika, uye mutengo - kunyatsoshanda.

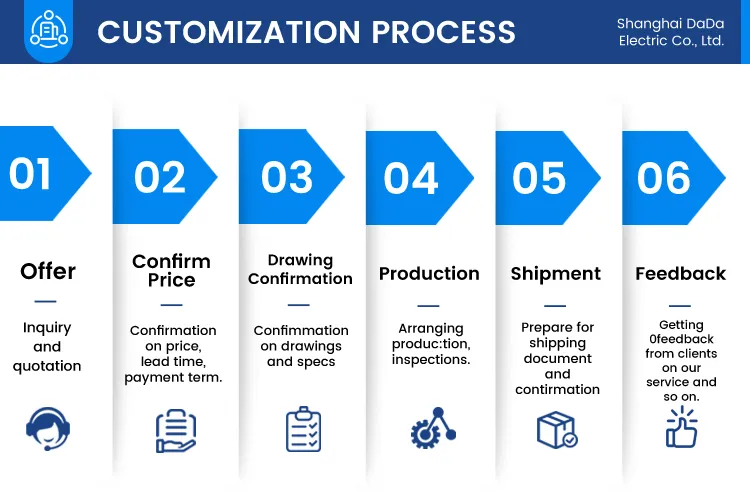

KuShanghai DADA Electric CO., Ltd, tinonzwisisa kuti bhizinesi rega rega rine zvakasarudzika zvinodiwa. Yedu customization inopa yakagadzirirwa kukupa iwe pachako mhinduro. Kunyangwe iwe uchida chigadzirwa chine chaiwo maficha, branding zvinhu, kana mashandiro, timu yedu yakagadzirira kugadzira tsika yekupa iwe chete.
