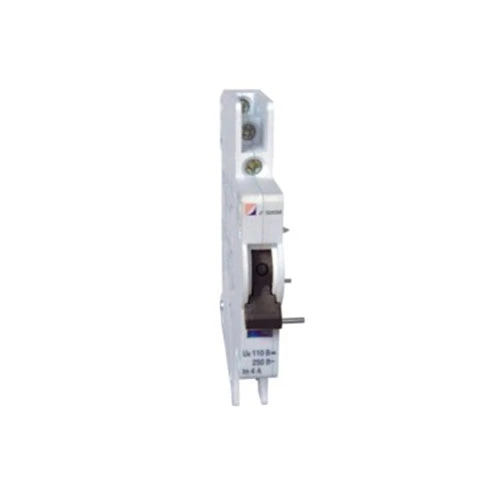

MCB Alarm uye Yekubatsira Kubata
Model:DAB7-FL
Tenga CDADA MCB Alarm uye Auxiliary Contact-dual-function module yeDAB7-63 breakers. Inosanganisa 2 macontact contacts (yebetsero + alarm) mune imwe compact unit. Yakanakira kuremedza mamiriro ekutarisa uye kukanganisa kusaina mumapaneru. Easy-side snap-on install. Sefekitari yakananga, OEM/holesale mitengo iripo.
CDADA inogadzira uye mutengesi ane 40+ makore echiitiko, takaona mapurojekiti akawandisa apo vafambisi vepaneru vanopotsa mupumburu wakagumburwa-kusvika nguva yanyanya. Ndosaka takagadzira iyo CDADA MCB Alarm uye Auxiliary Contact (DAB7-FL): yakangwara, inochengetedza nzvimbo mhinduro inokupa masaini maviri akakosha mune imwe module-breaker chinzvimbo (ON / OFF) uye chikonzero cherwendo (yakawandisa / pfupi-dunhu).
Yedu Zano: Kana yako yekudzora sisitimu ichida kusiyanisa pakati pebhuku rekubvisa uye rwendo rwekukanganisa, ichi ndicho chekuwedzera chaunofanira kutsanangura. Vakajairwa vabatsiri vega vega havagone kutaura mutsauko-asi vedu vanogona.
Dual-Function Dhizaini: Imwe Module, Zviratidzo zviviri
Iyo CDADA MCB Alarm & Auxiliary Contact inoratidzira maviri akazvimirira ekufambisa maitirwo ane akangwara mechanicha anosarudza:
★ Yero chiratidzo pa "A": Vese vanobatika vanoita sevabatsiri vemazita → chiratidzo MCB ON/OFF mamiriro
★ Yero chiratidzo pa“AL”:
★ Kuruboshwe kuonana = Mubatsiri (ON/OFF mamiriro)
★ Right contact = Alarm (inomutsa chete kana MCB yafamba nekuda kwekukanganisa)
★ Izvi zvinoreva kuti unogona waya:
★ Chiedza chegirini kuratidza "simba pa"
★ Robhoti dzvuku kana PLC yekuisa kukonzeresa "fault alarm"
★ Zvese kubva kune imwechete yekuwedzera-module pane yako DAB7-63 MCB.
Zvidimbu zvehunyanzvi
|
Parameter |
Value |
|
Inoenderana MCB |
CDADA DAB7-63 series chete (1P–4P) |
|
Contact Type |
2 mapoka ekuchinja-pamusoro (kutamisa) mazita |
|
Magetsi Ratings |
|
|
|
• AC-12: 230V AC, 2A |
|
|
• AC-15: 230V AC, 1A |
|
|
• DC-12: 11 0V DC, 0.5A |
|
Mounting Position |
Rutivi rworuboshwe rweMCB |
|
Installation |
Yakachengetedzwa nekaviri-mativi tepi + sarudzo DIN njanji clip |
|
Mechanical Link |
Direct drive shaft coupling - hapana ekunze levers inodiwa |
Zvakakosha: Ichi chigadziriso hachigone kushandiswa chakazvimirira-chinofanirwa kuiswa zvakananga paDAB7-63 MCB.
Kuisa Gwaro (Kubva Kwedu Munda Mainjiniya)
★ Tevedza matanho aya kuitira kushanda kwakachengeteka, kwakavimbika:
★ Simba KUBVA redunhu risati raiswa.
★Sveta iyo DAB7-FL module kuruboshwe rweDAB7-63 MCB kusvika yadzvanya.
★ Chengetedza neinosanganisirwa kaviri-mativi tepi (yekuti vibration kuramba).
★ Batanidza waya kumaterminal mana (2 paboka rekuonana):
★ Shandisa mbiri yekuruboshwe kune yebetsero (chimiro)
★ Shandisa pair chaiyo yealarm (kuonekwa kwerwendo)
★ Isa iyo yero selector ku "AL" kana iwe uchida kukanganisa alarm kushanda.
★ Muedzo: Famba MCB nemaoko-chete alarm yekubata ndiyo inofanira kuchinja mamiriro panguva yerwendo rwakakanganisika.
★ Pro Tip: Nyora waya dzako zvakajeka! Vanamazvikokota vazhinji vanovhiringa ebetsero vs. masaini masaini panguva yekutumwa.
Nderini Paunofanirwa Kushandisa Izvi Panzvimbo Yeiyo Yakajairwa Yekubatsira Kubata?
|
Scenario |
Standard Auxiliary |
CDADA Alarm + Mubatsiri |
|
Unoda kuziva kana MCB iri ON/OFF |
✅ Hongu |
✅ Hongu |
|
Unoda kuziva kuti nei yakagumburwa (fault vs. manual off) |
❌ Kwete |
✅ Hongu |
|
Panel ine kure SCADA/PLC yekutarisa |
Mashoko mashoma |
Yakazara yekuongorora kugona |
|
Aramu yemoto kana chengetedzo yekubatanidza maseketi |
Hazvina kukwana |
Inosangana nezvinodiwa zvekodhi |
Zvakajairika Zvishandiso:
★ Data centre PDU monitoring
★ Solar musanganisi mabhokisi
★ Industrial control panels
★ Building Management System (BMS)
★ Elevator kana HVAC kuchengetedza maseketi
Mibvunzo Inowanzo bvunzwa
Q1: Ndingashandisa izvi pane zvisiri-CDADA MCBs?
A1: Kwete. Iyo DAB7-FL inogadzirwa nemagetsi uye dimensionally yakagadzirirwa chete CDADA DAB7-63 breakers. Izvo hazvikodzeri Schneider, ABB, kana Siemens MCBs.
Q2: Iyo alarm yekubata inoshanda sei chaizvo?
A2: Mukati meMCB, rwendo rwelatch mechanism inofamba zvakasiyana panguva yerwendo rwekupisa / magineti kukanganisa vs. Iyo DAB7-FL inoona iyi mutsauko wemuchina uye inomutsa iyo alarm yekubata chete panguva yekukanganisa chaiko.
Q3: Ini ndinoda ese macontacts ane waya?
A3: Kwete hazvo. Iwe unogona kushandisa iyo yekubatsira chete, iyo alarm chete, kana zvese zviri zviviri-zvinoenderana nekutonga kwako pfungwa. Iyo module inokupa iwe kuchinjika.
Q4: Yakakodzera DC solar application?
A4: Hongu! Iine DC-12 chiyero che110V/0.5A, yakanakira kutarisisa tambo yezuva paunoda kuona PV array kukanganisa kure.
Q5: Sei uchisarudza CDADA pamusoro pemhando dzemhando?
A5: Nekuti isu tinopa:
● Rusaruro rwechokwadi (kwete kungoona nzvimbo)
● Kubatanidzwa kusina musono neDAB7 MCBs—hapana adapta mahwendefa
● Factory-tested mechanical coupling - hapana kutamba kana zviratidzo zvakarasika
● Chiratidzo chechiratidzo chakajeka (yellow flag) chekuongorora ndima
● Global certifications (CE, CB, RoHS) yemapurojekiti asinganetse
Yekupedzisira Note kubva kuCDADA R&D
Mumagadzirirwo emagetsi emazuva ano, ‘on/off’ haana kukwana — unoda hungwaru. Yedu MCB Alarm & Auxiliary Contact inoshandura iri nyore breaker kuita yekuongorora node, ichikubatsira iwe kuvaka akangwara, akachengeteka mapaneru. Uye nekuti inogadzirwa nechikwata chimwe chete chinogadzira MCB, unowana mubatanidzwa wakakwana-hapana kufungidzira. " - Chikwata cheCDADA Product Development
Wagadzirira kuhodha here? Tinopa:
● Zvikwereti zvakawanda zvevanovaka mapaneru
● Pre-assembled MCB + DAB7-FL zvikamu (sevha basa)
● Free wiring diagrams & PLC logic mienzaniso
